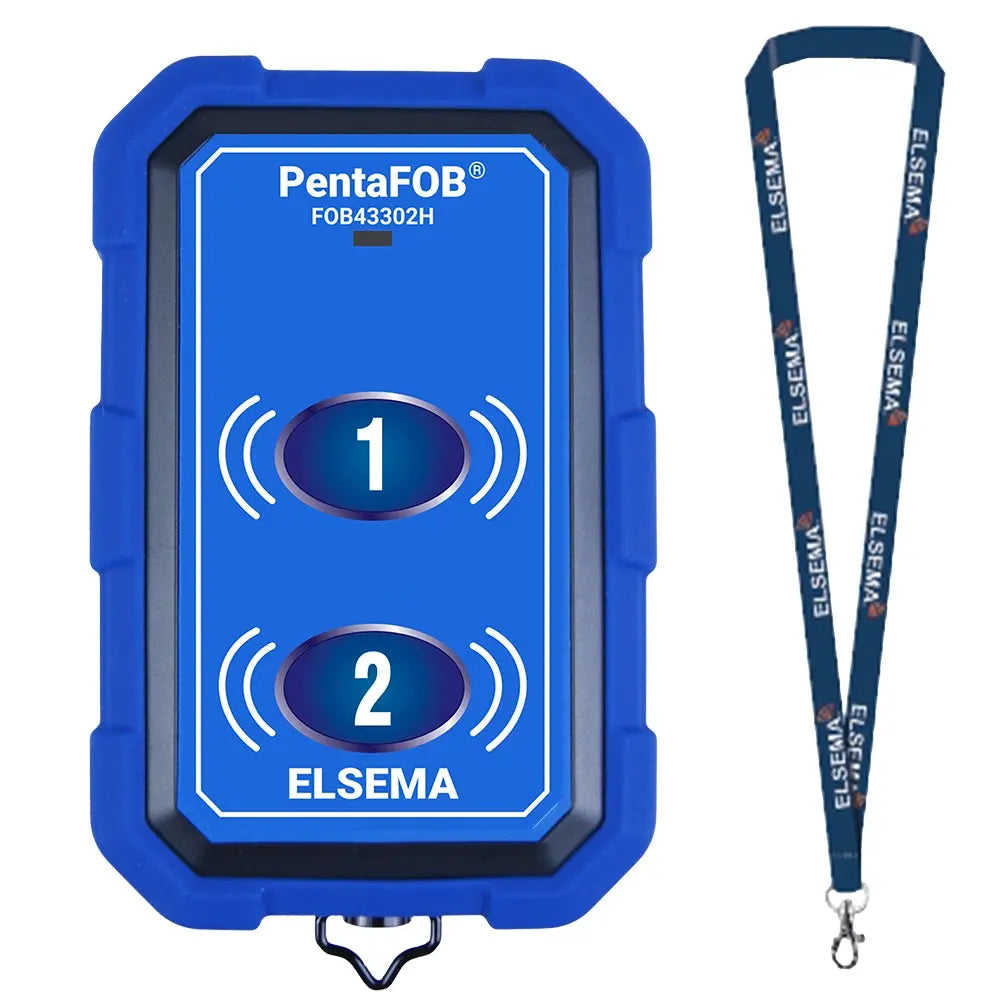

• Elsema FOB43302H two-button heavy-duty handheld remote

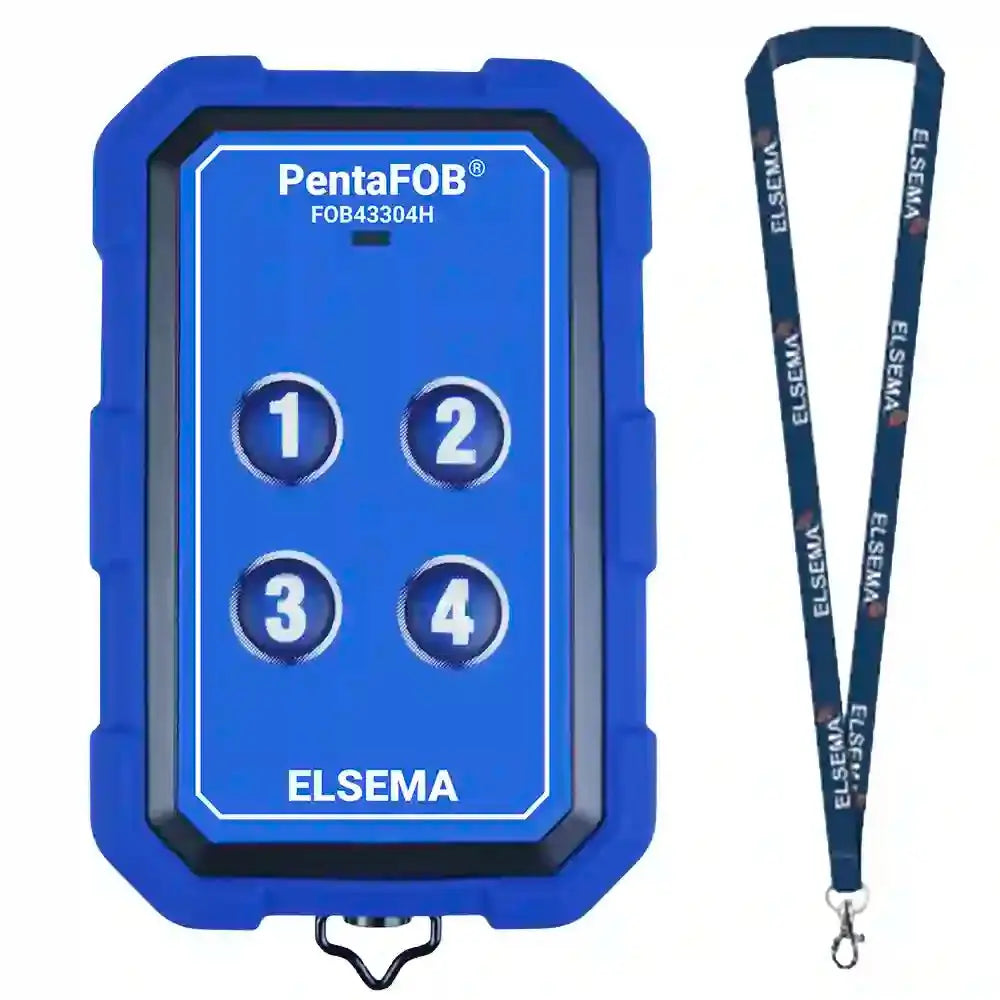

  • Elsema FOB43304H four-button PentaFOB industrial remote

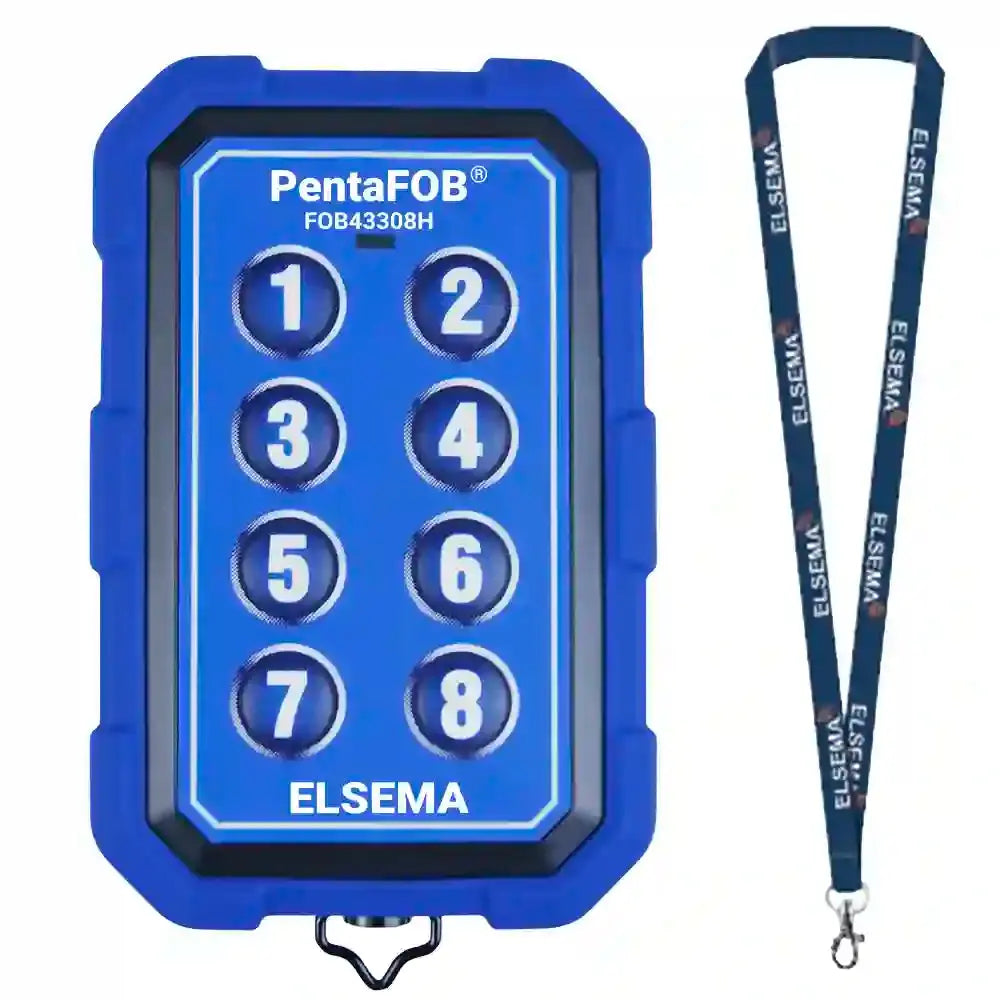

  • Elsema FOB43308H eight-button waterproof handheld remote
  • Elsema FOB43308H industrial remote dimensions
1 4

Elsema PentaFOB Handheld remote

Elsema PentaFOB Handheld remote

$179.95
$179.95
Sale Read More
Duties and taxes included. Shipping calculated at checkout.

This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.

Elsema PentaFOB Heavy-Duty Handheld Remote

Available in 2, 4 & 8 Button Variations

The Elsema PentaFOB Handheld Remote is a rugged, IP66-rated industrial transmitter designed for reliable wireless control in demanding environments. Available in 2, 4 and 8-button configurations, it is suitable for operating gates, industrial doors, machinery and multiple automation functions from one handheld remote.

Each remote uses encrypted Frequency Hopping Spread Spectrum technology, transmitting across five frequencies for reliable, interference-resistant operation. With an operating range of up to 400 metres, raised tactile buttons, a protective rubber boot and included lanyard, the PentaFOB Handheld series is ideal for trucking, agriculture, warehousing, mining and industrial automation.

What’s Included:

  • 1 × Elsema PentaFOB® Handheld Heavy-Duty Remote
    (2-Button, 4-Button, or 8-Button – select variant)
  • 1 x Lanyard
  • 1 × Protective Blue Rubber Boot
  • Easy-to-Follow Coding Instructions

Note: Batteries not included

Key Features:

  • Genuine Elsema PentaFOB handheld transmitter
  • Available in 2, 4 or 8-button configurations
  • IP66-rated waterproof and dust-resistant enclosure
  • Raised tactile buttons suitable for use with work gloves
  • Protective anti-slip rubber boot included
  • Lanyard included for convenient carrying
  • Encrypted coding with over 17 billion code combinations
  • Five-frequency FHSS transmission for reliable operation
  • Up to 400-metre operating range under suitable conditions
  • Compatible with Elsema Penta PCR433 series receivers
  • Powered by two replaceable AAA batteries (not included)
  • Low-battery indicator
  • Supports simultaneous multi-button transmission
  • Suitable for industrial and commercial applications
  • Designed and engineered in Australia

Ideal Applications:

  • Tilt-tray tow trucks
  • Concrete pump trucks
  • Water cart trucks
  • Winches and vehicle-mounted equipment
  • Forklifts and material-handling systems
  • Agricultural machinery
  • Mining and construction equipment
  • Warehouse and cooler-room doors
  • Industrial roller shutters
  • Commercial gates and access control
  • Pumps, lighting and wireless switching
  • Multi-function automation systems

Compatibility:

In addition this remote is compatible with all Elsema PCR Stand-Alone Receivers

Technical Specifications:

Power Supply 2 x AAA Batteries
Current Consumption 37mA (typical) when transmitting
Battery Life 1.5 years with average use
Frequency Band 433.100 to 434.700MHz
Operating Range up to 400m
Operating Temperature -20 to 70°C
Decoding System Encrypted 17 Billion Code Combinations
Dimensions 130 x 85 x 25mm
Weight 214g



Downloads:



Frequently Asked Questions:

What is the difference between the FOB43302H, FOB43304H and FOB43308H?

The remotes use the same heavy-duty housing and PentaFOB transmission technology. The FOB43302H has two buttons, the FOB43304H has four buttons and the FOB43308H has eight buttons.

Is the Elsema PentaFOB Handheld Remote waterproof?

The remote has an IP66-rated enclosure, protecting it against dust and powerful water jets. It is suitable for wet and dusty workplaces but should not be deliberately submerged.

Are batteries supplied?

No. The handheld remote requires two AAA batteries, which are not included.

How far will the remote operate?

The remote can operate from up to approximately 400 metres. Actual performance depends on buildings, metal structures, electrical interference and the position and quality of the receiver antenna.

Which receivers are compatible?

The handheld PentaFOB remotes are compatible with Elsema PCR433 Penta series receivers. They are not directly compatible with Gigalink, Multicode, FMT or KEY receivers.

Can the remote operate more than one machine or door?

Yes. Each button can be assigned to a particular receiver channel. Depending on the installation, separate buttons may control different gates, doors, machines or relay functions.

Can multiple buttons be pressed simultaneously?

Yes. The handheld PentaFOB series supports simultaneous transmission, making it suitable for applications where combined functions need to operate together.

Can all eight buttons be programmed at once?

When used with the PCR43308R eight-channel receiver, multi-channel programming can assign all eight remote buttons to their corresponding receiver channels in one process. Individual buttons can also be programmed separately.

Can the buttons be used while wearing gloves?

Yes. The large, raised tactile buttons are designed to be easier to identify and operate while wearing work gloves.

Does it replace the previous Elsema handheld remote?

The new PentaFOB handheld range replaces the earlier design while retaining compatibility with Elsema PCR433 Penta receivers.
