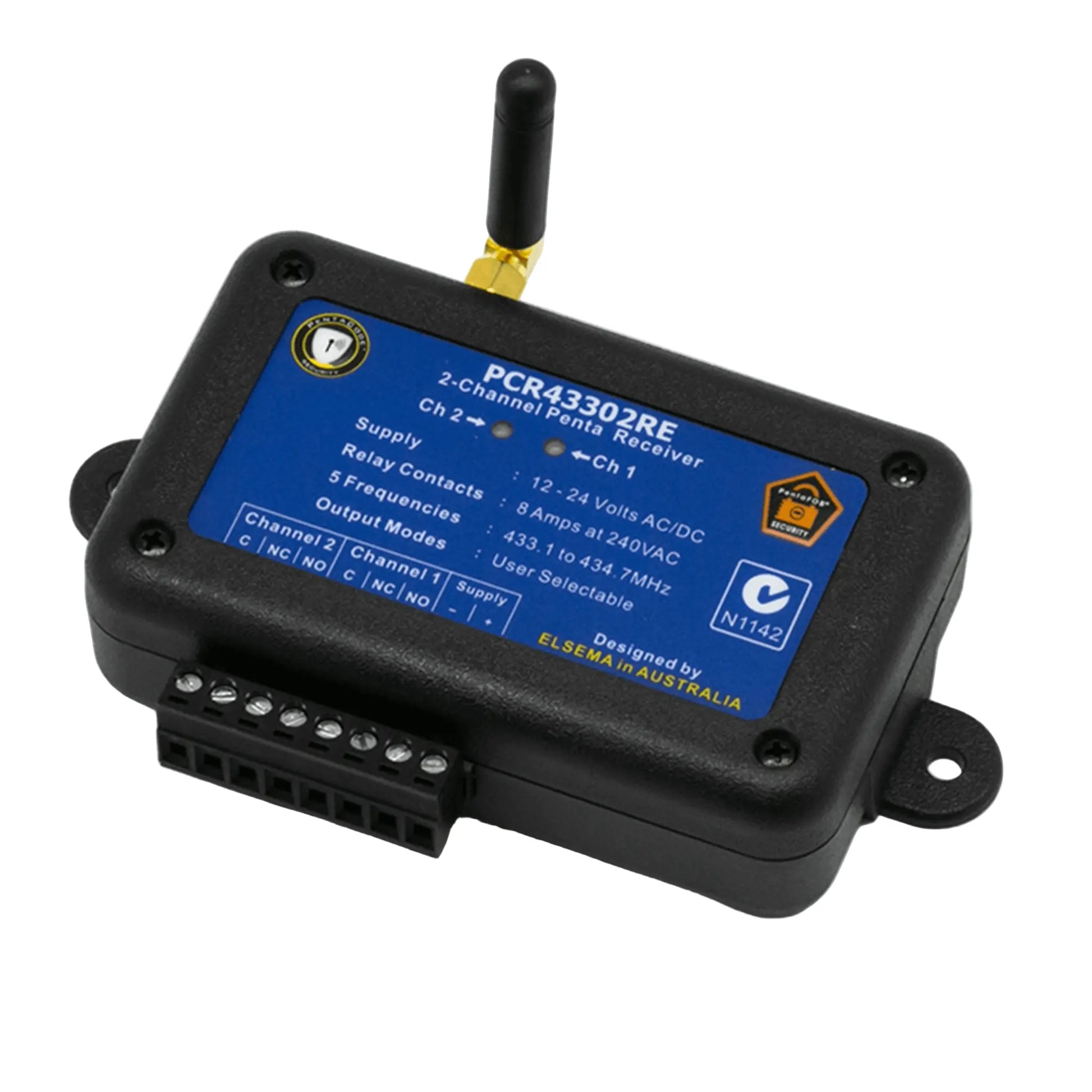

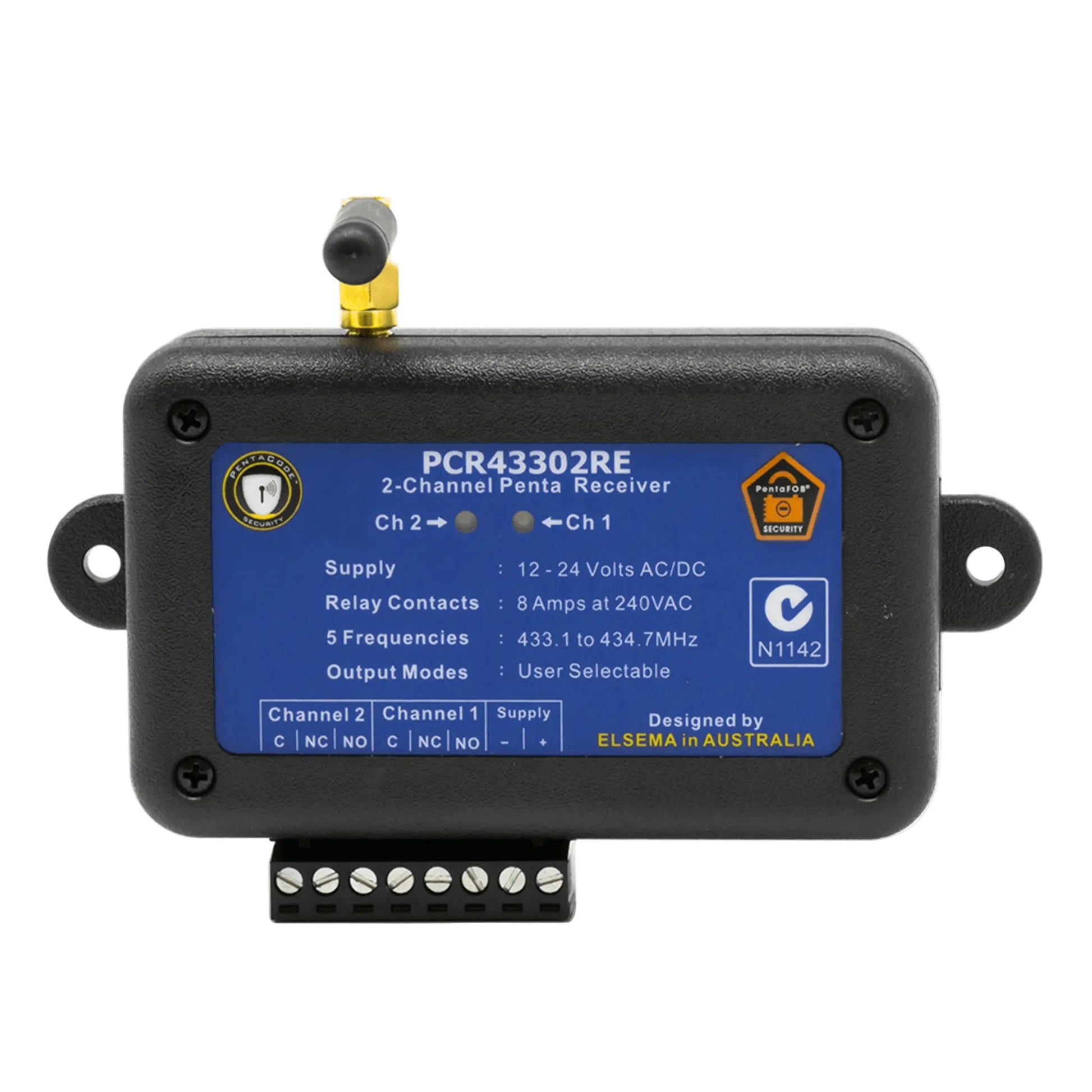

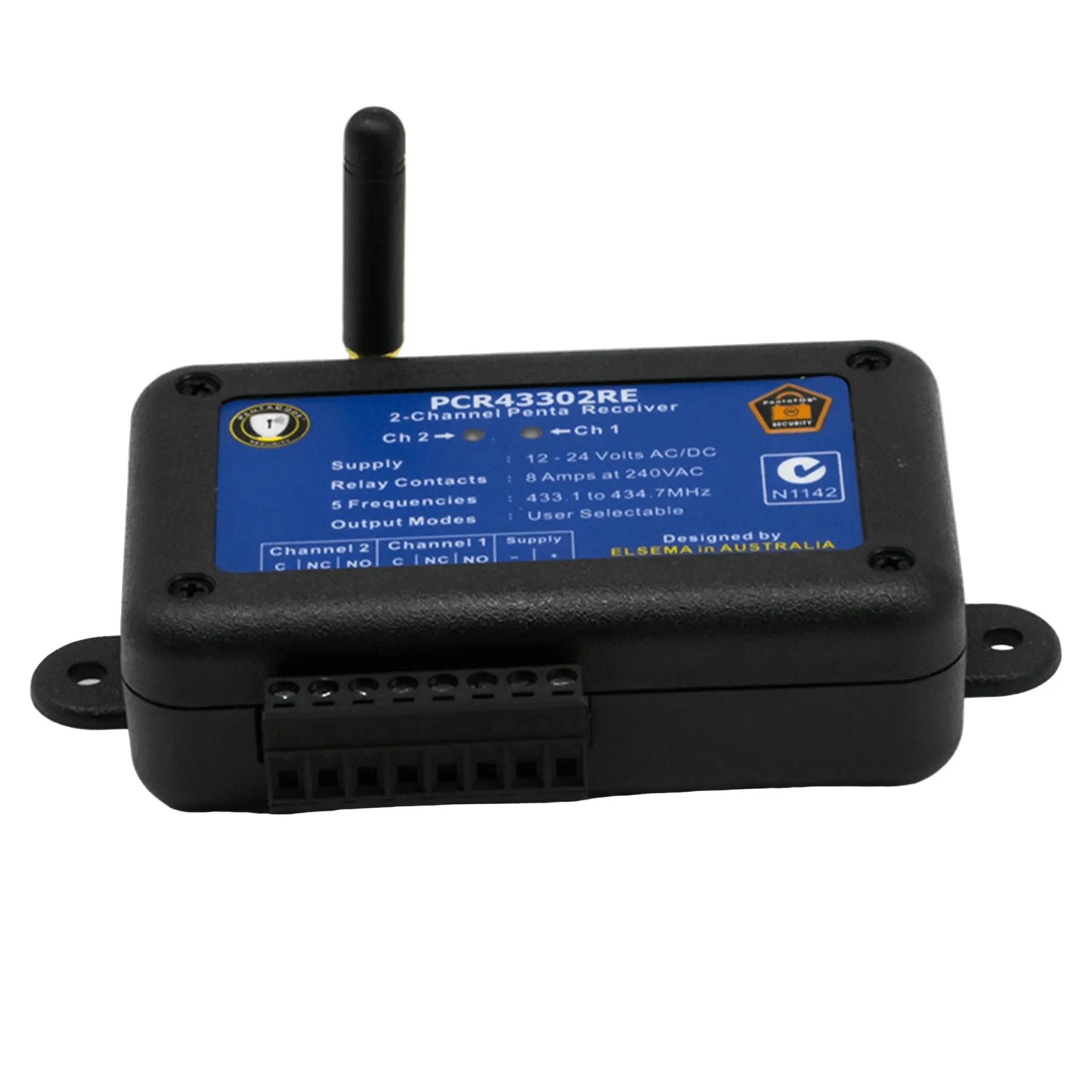

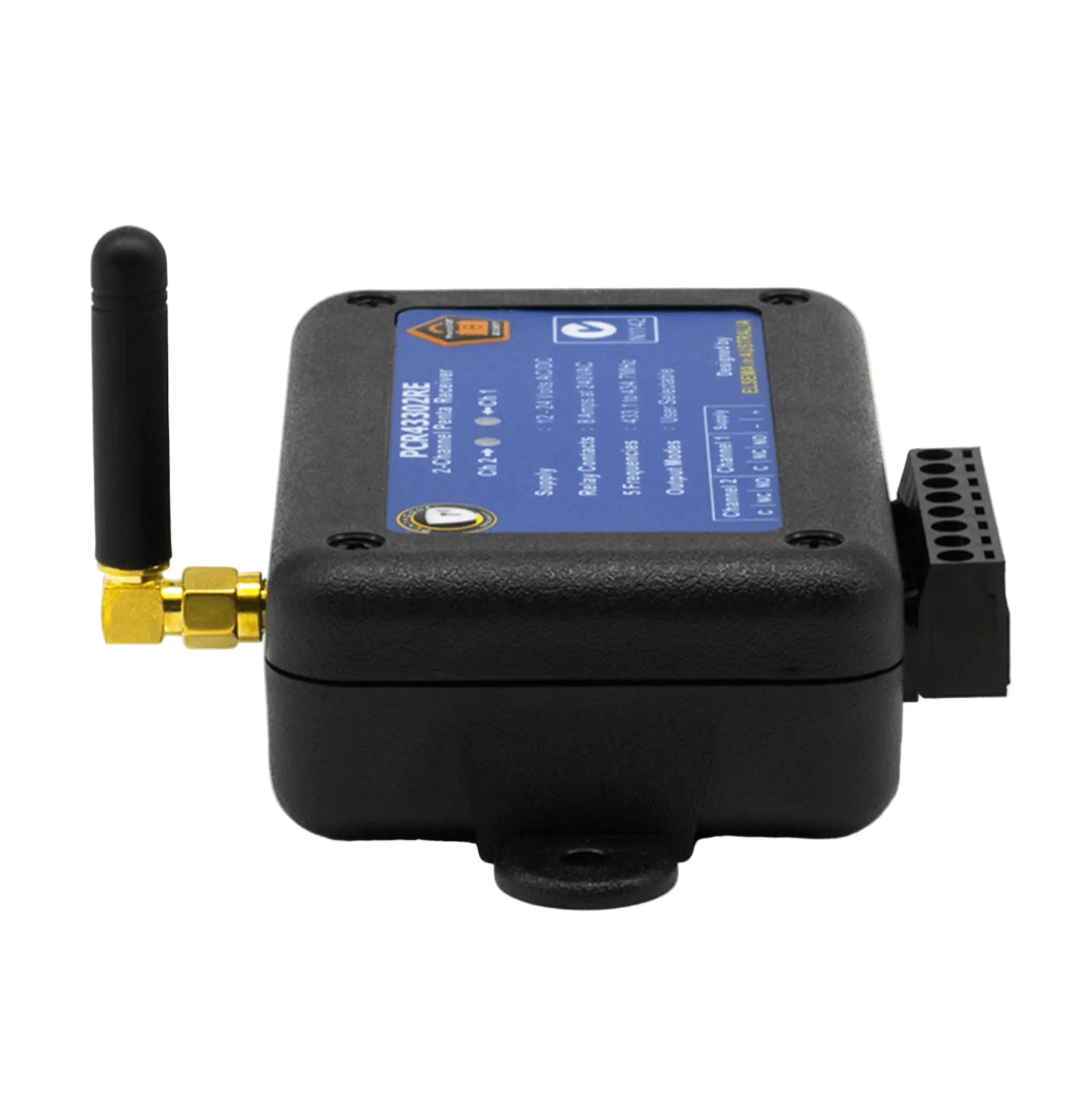

Elsema PCR43302RE 2 Channel Penta Receiver (12–24V AC/DC) with Enclosure
The Elsema PCR43302RE is a genuine 2-channel Penta receiver designed for secure remote control of automatic gates, garage doors, boom gates, industrial doors, lighting, pumps and access control systems. Operating from 12-24V AC/DC, it features two heavy-duty relay outputs, advanced frequency hopping technology, unlimited remote memory and compatible with the either PentaFOB or PentaCODE remotes. Supplied in a durable enclosure, the PCR43302RE is ideal for new installations, upgrades and commercial automation projects.
What’s Included:
- 1 × Brand New Genuine PCR43302RE Receiver with Relay Output
- 1 x Enclosure
- 1 x Micro Antenna
- 1 Step-by-step Wiring Programming Instructions
Key Features:
- Genuine Elsema Product
- Five Frequency Hopping between 433.10 to 434.70 MHz
- Compatible with PentaCODE or PentaFOB remote series
- 2 isolated relay outputs
- Wide Operating Range: up to 100-200m
- High 10A Relay Output
- Diagnostic LED indicators
- IP 66 rated enclosure
Compatible with:
- Elsema PentaFOB
- Elsema PentaFOB Waterproof
- Elsema PentaCODE
- Elsema PentaCODE Hardwired
- Elsema PentaFOB Hardwired
- Elsema Penta FOBSwitch
- Elsema PentaFOB Handheld
Not Compatible with:
- Elsema FMT
- Elsema KEY
- Elsema Gigalink
- Elsema MultiCode
Not sure which remote you would like to use? Check out our Comparison Blog Post Here
Ideal Applications:
The Elsema PCR43302RE Receiver is ideal for:
- Apartment complexes
- Commercial buildings
- Industrial facilities
- Strata complexes
- Automatic gates
- Sliding gates
- Swing gates
- Boom gates
- Roller shutters
- Roller doors
- Garage doors
- Warehouse access
- Agricultural properties
- Pump control
- Lighting control
- Access control systems
Dimensions:
Connection Diagram for PCR43302R:
Technical Specifications:
| Frequency | 433.100 to 434.700Mhz |
| Code Type | 12-way dipswitch (1-8 sets site code and 10-12 sets remote button position) |
| Body Type | Receiver |
| Number of Channels | 2 |
| Enclosure | Not Included |
| Size | 136 x 85 x 33mm |
| Power Supply | 12 – 24 Volts AC or DC |
| Outputs | Two change over relay outputs, rated at 10 Amps 240VAC |
| Standby Current | 21mA standby at 24VDC |
| Connection | Two change over relay outputs, rated at 10 Amps 240VAC |
| Range | Refer to Remote Control specifications |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
Frequently Asked Questions:
Can I use PentaFOB and PentaCODE together?
Yes, Only if using the PentaCODE in the encrypted rolling code (All dipswitches must be in the OFF position.
Is this suitable for apartment complexes?
Yes, this is a perfect solution for an apartment complex.
How many remotes can be programmed?
Encrypted Rolling Code - Up to 1500 per channel
Dipswitch - Unlimited
Can I delete lost remotes?
If using with the dipswitches - just change your dipswitch settings in the receiver and available remotes - old or lost remotes will no longer work.
If using with the encrypted rolling code, you will need to clear the full memory and reprogram any available remotes.
What voltage does it accept?
12 – 24 Volts AC/DC
Does this receiver include an antenna?
Yes, a micro antenna is included.
Can I use an external antenna?
Yes. Elsema ANT433 antennas can be connected to improve reception where required.
