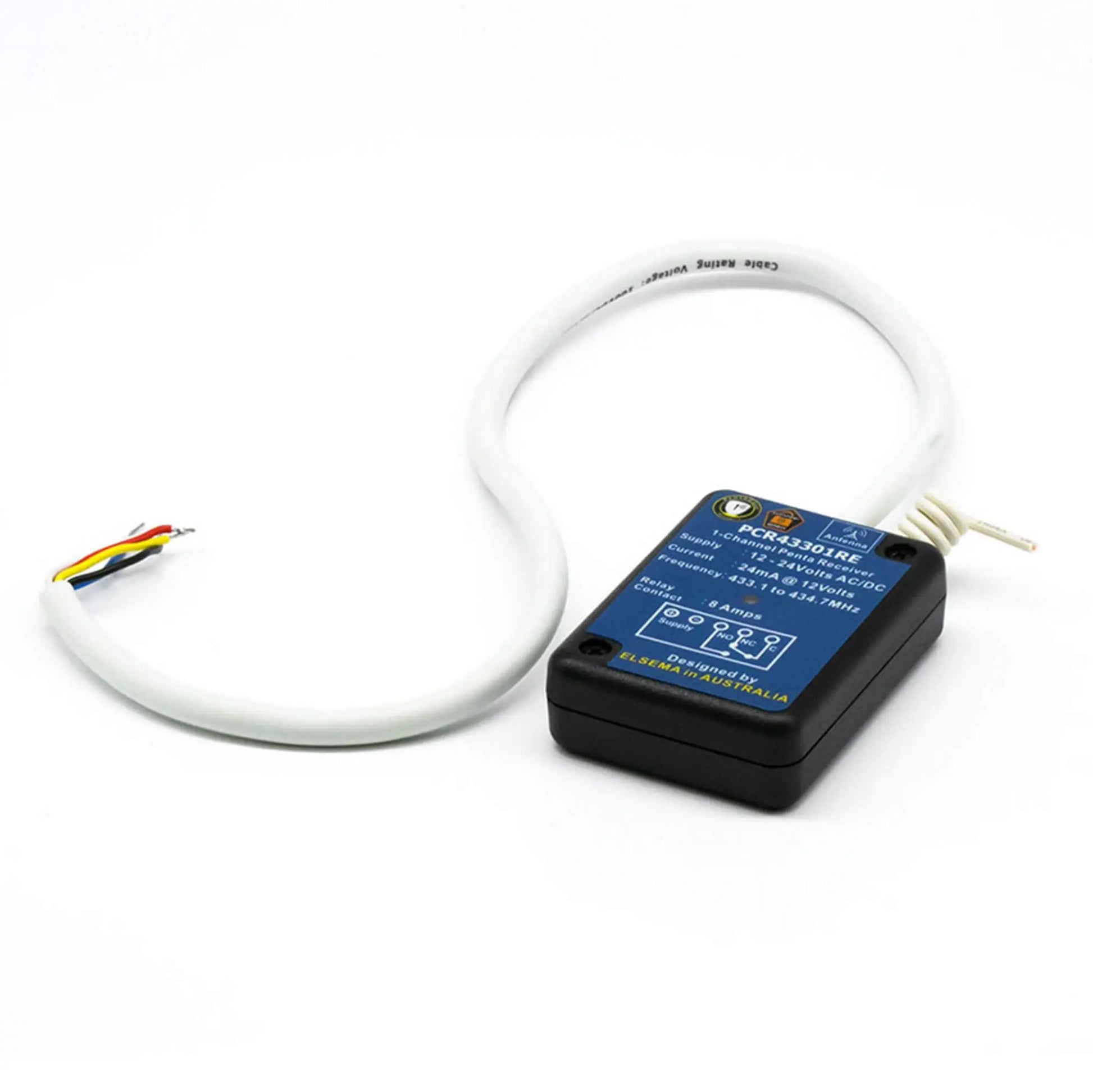

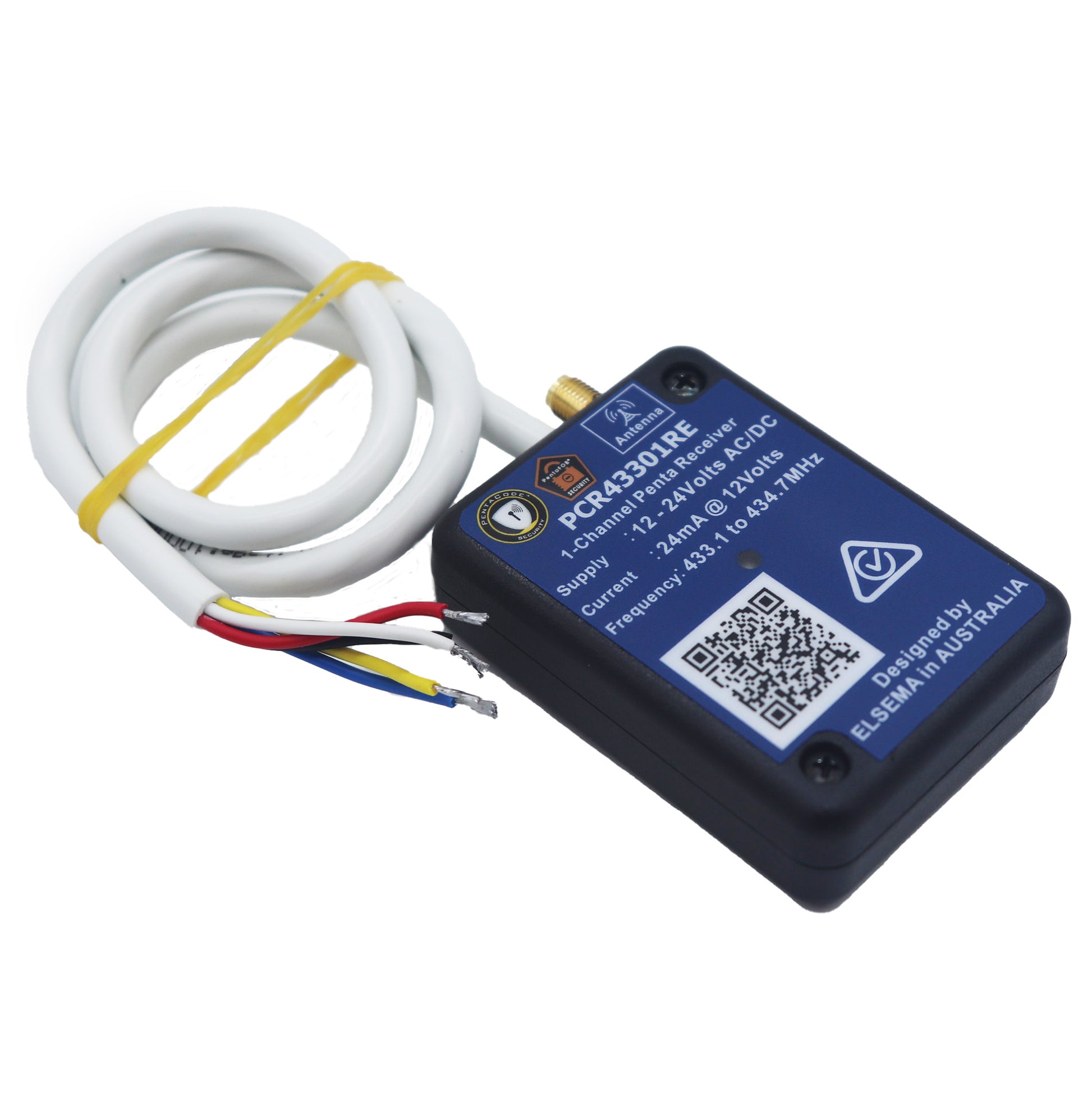

• Elsema PCR43301RE Penta Wired 1 Channel Receiver pre-wired stand-alone receiver

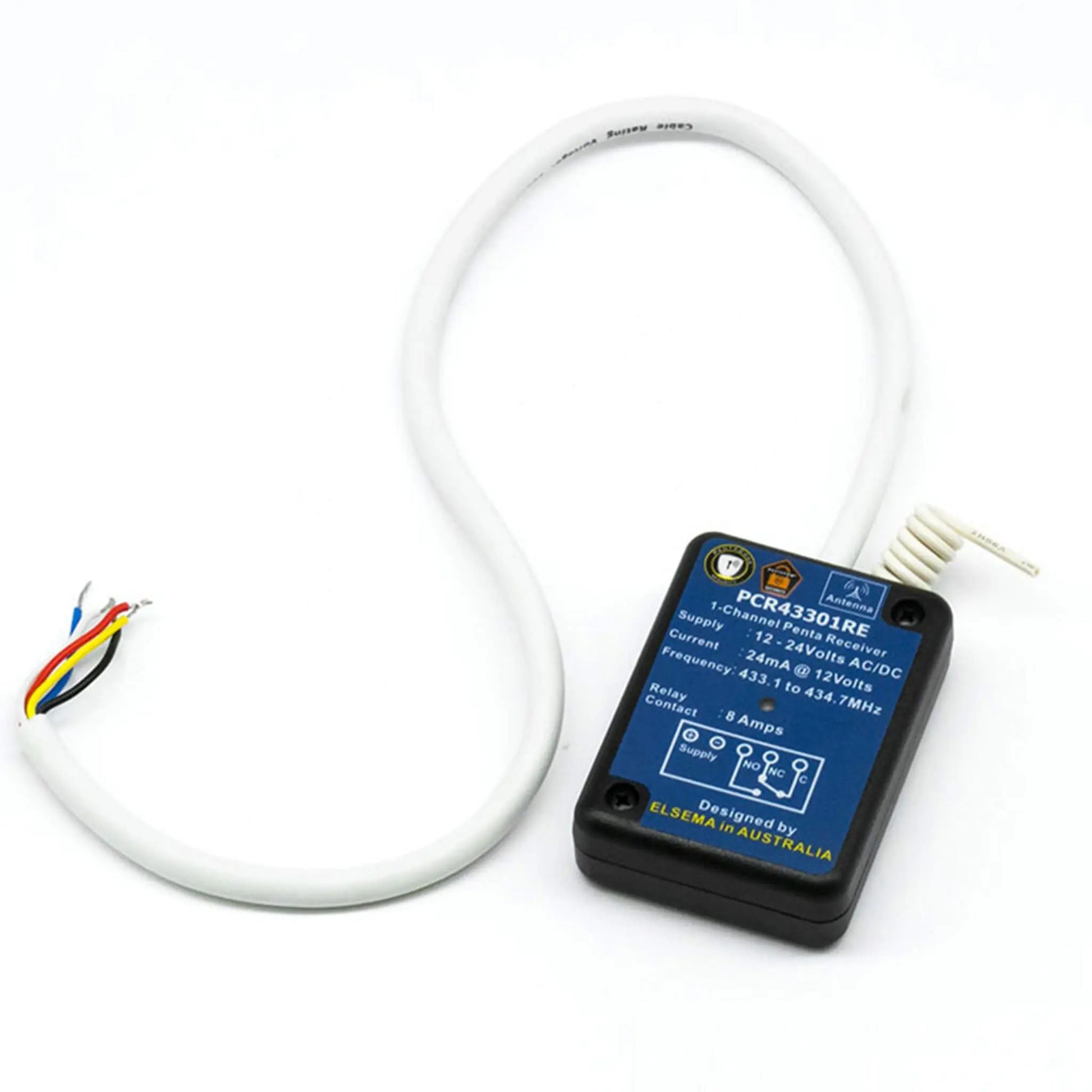

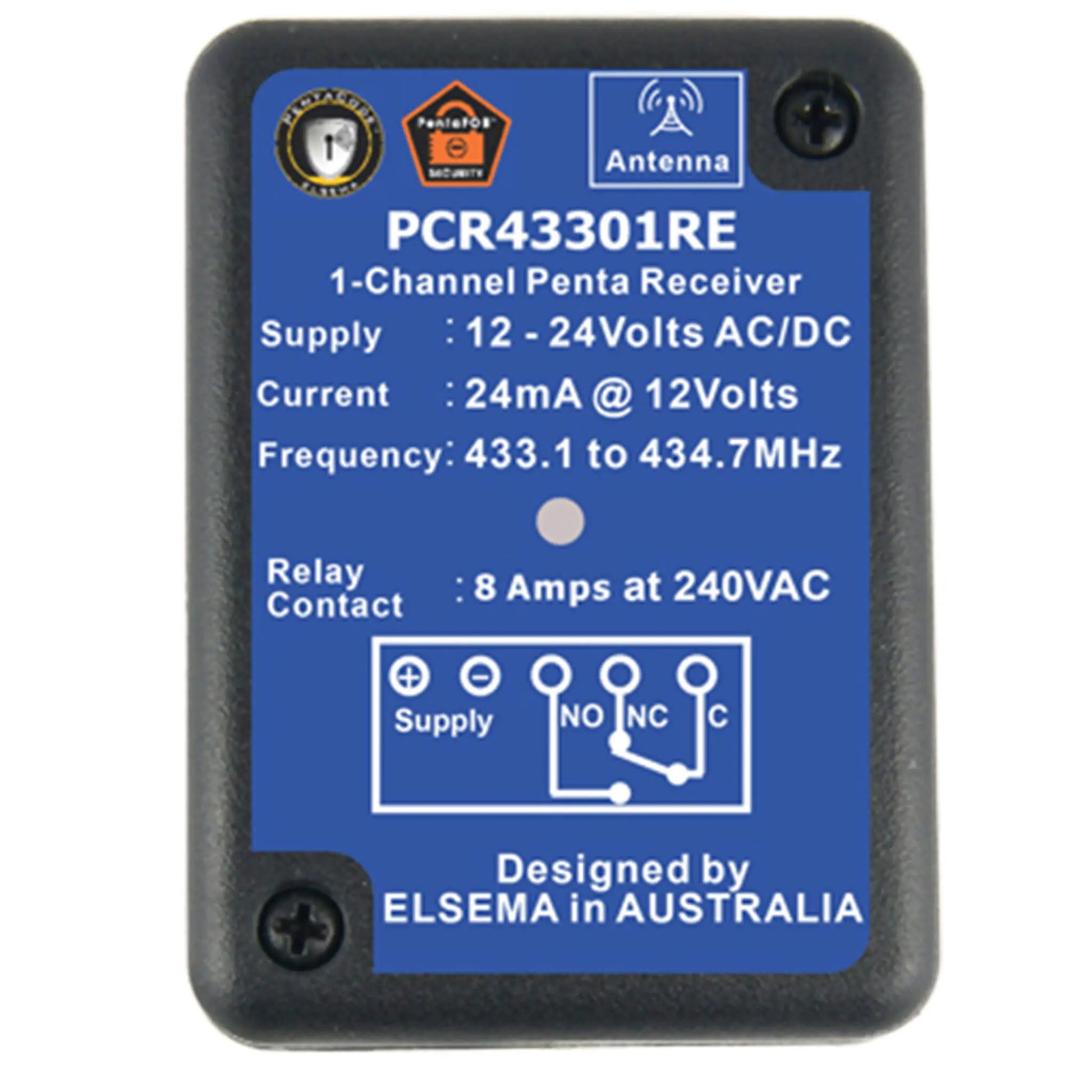

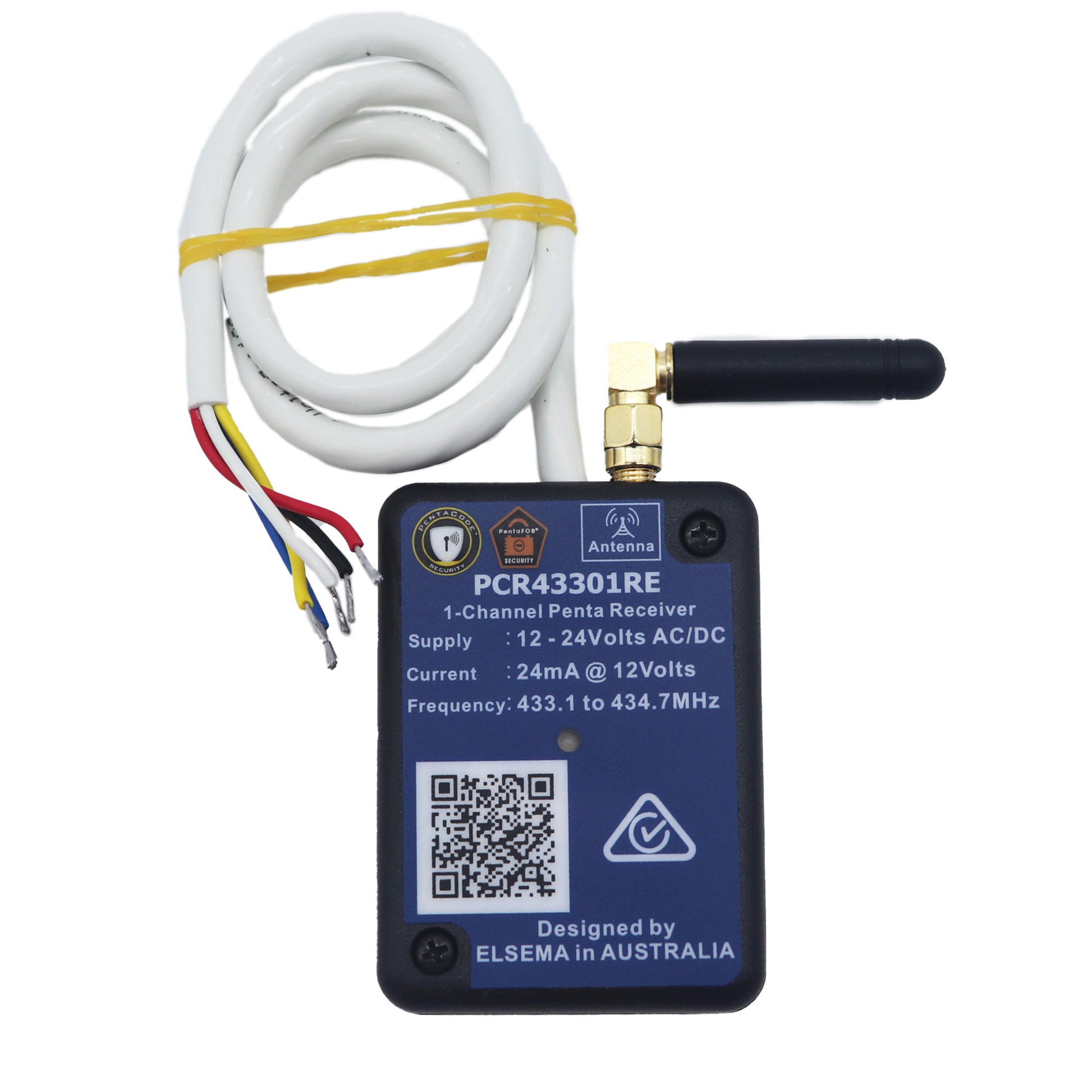

  • Front view of the Elsema Penta PCR43301RE 433MHz receiver

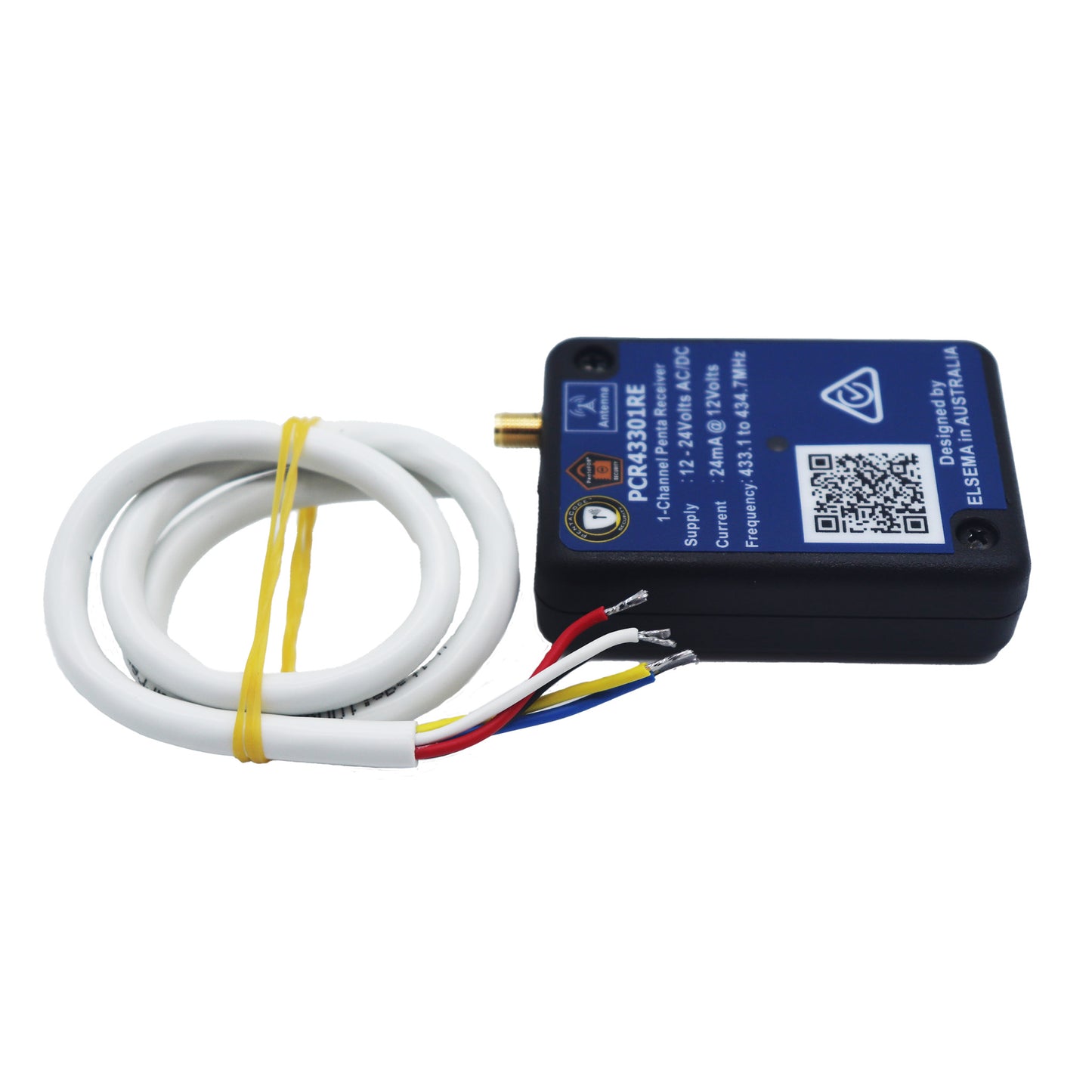

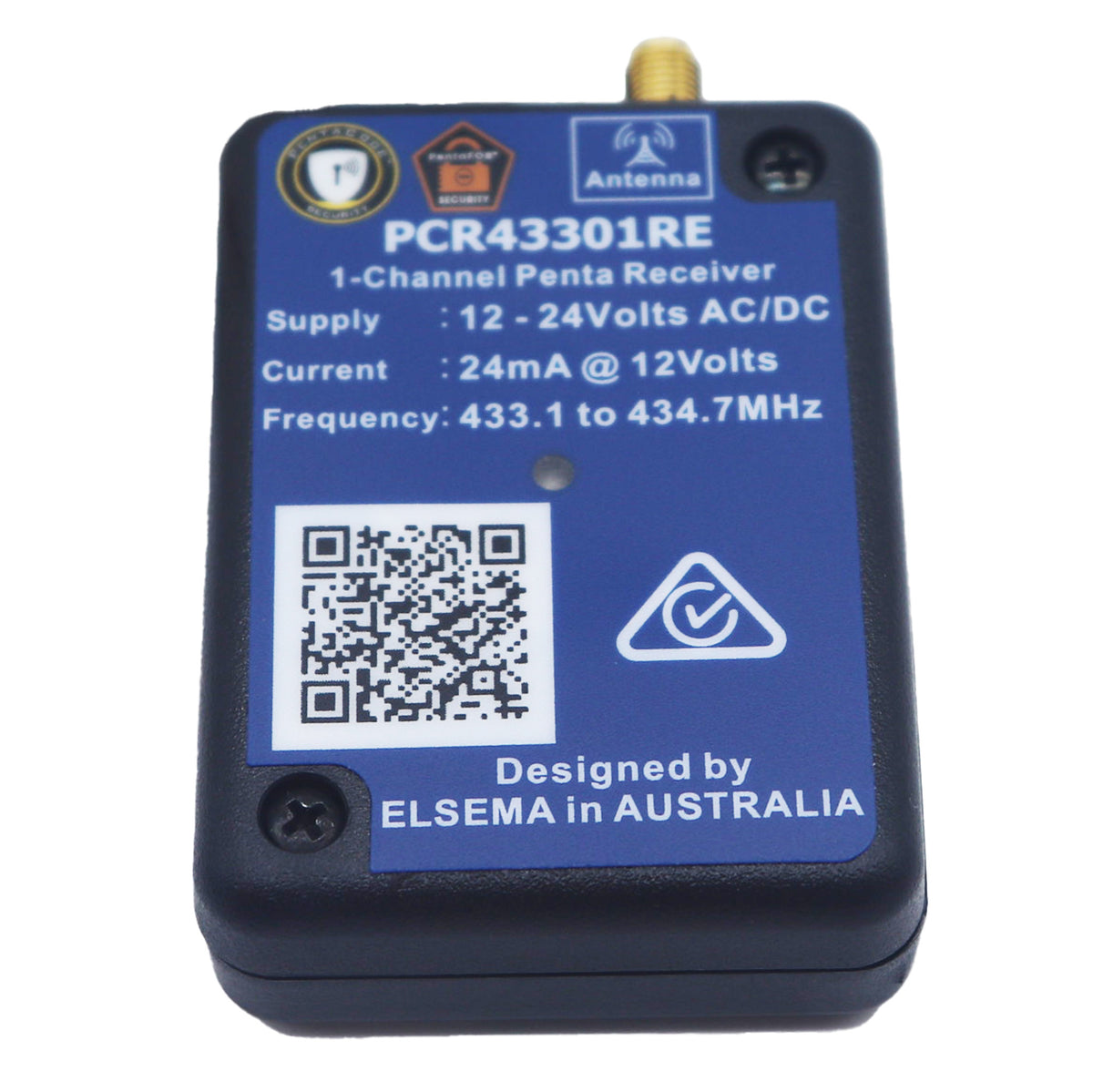

  • Angled view of the Elsema PCR43301RE Penta 1 Channel Receiver with pre-wired relay output

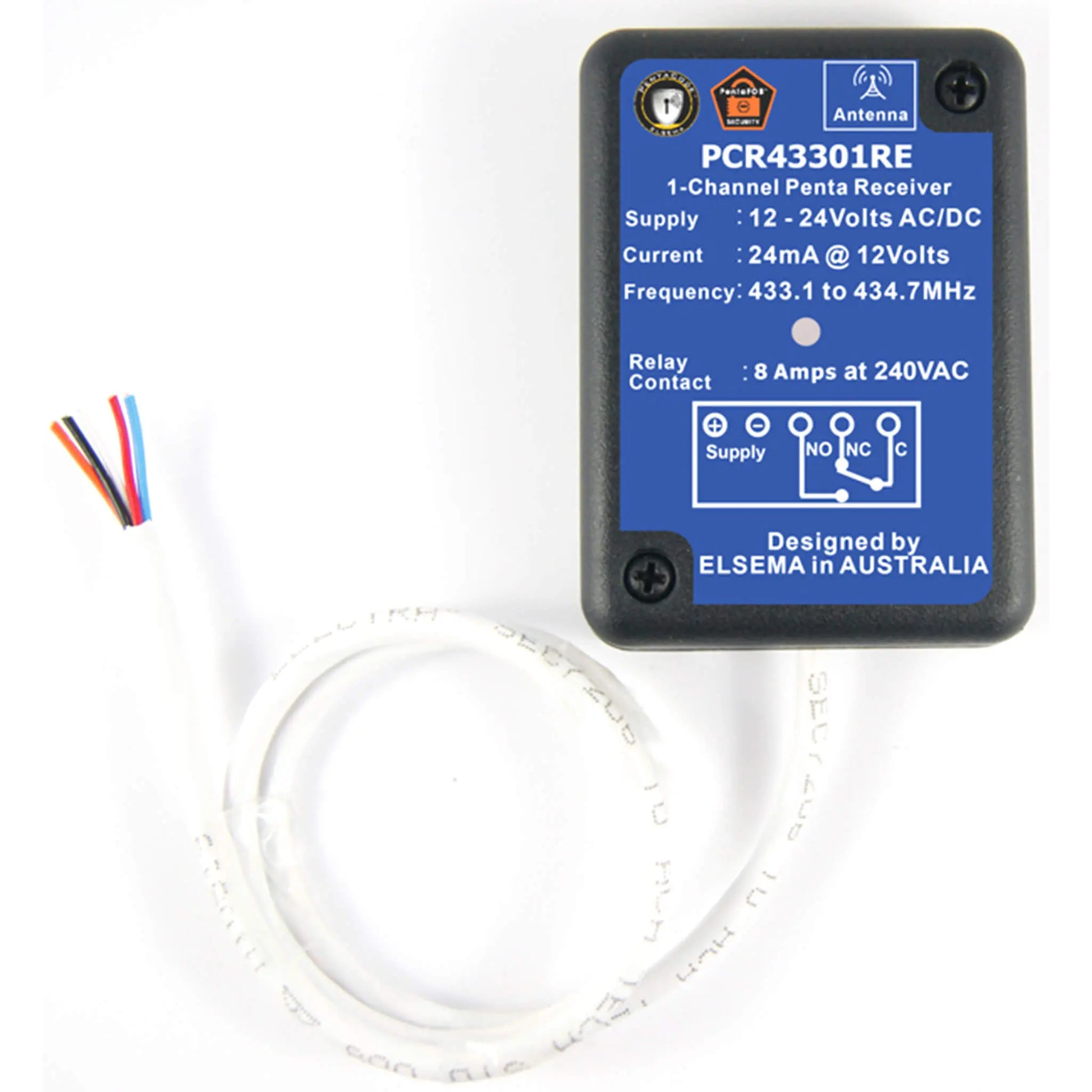

  • Elsema PCR43301RE pre-wired receiver with power and relay connection leads
  • Elsema PCR43301RE compatible with PentaFOB and PentaCODE remote controls
1 5

Elsema PCR43301RE Receiver

Elsema PCR43301RE Receiver

$69.95
$69.95
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.

PCR43301RE - 1-Channel Pre-Wired Receiver in Enclosure

The Elsema PCR43301RE is a 1-channel pre-wired Penta receiver housed in a weather-resistant enclosure, designed for fast installation with minimal wiring. Featuring frequency hopping 433MHz technology, multiple relay modes, and unlimited remote storage, it’s an ideal single-output solution for gates, doors, automation, and access control systems using PentaFOB® & PentaCODE® remotes.

Includes:

  • 1 × Brand New Genuine Pre-Wired PCR43301 Receiver in enclosure

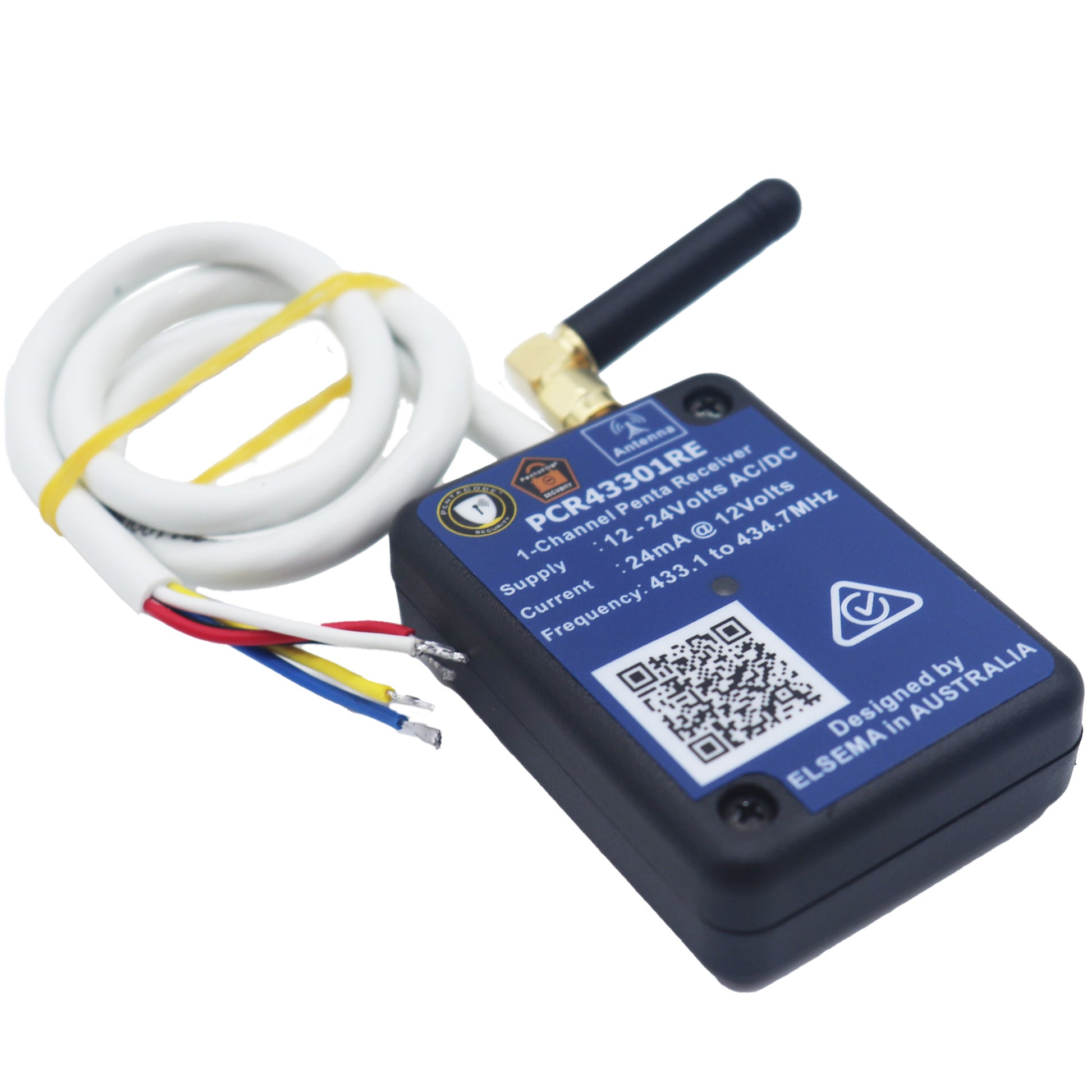

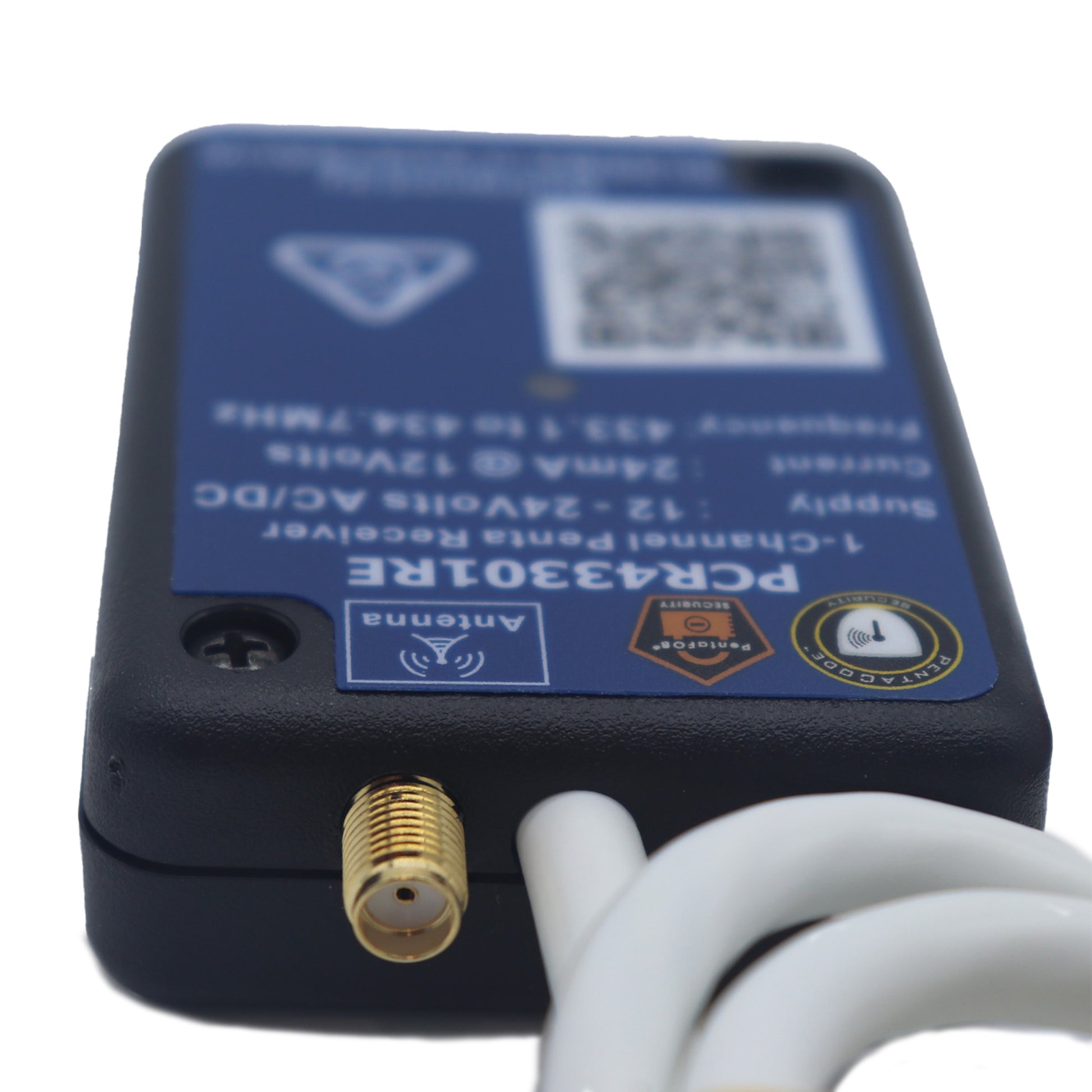

  • 1 x Micro Antenna

Key Features:

  • Genuine Elsema Product
  • Pre-Wired with Voltage Free Relay Output
  • Five Frequency Hopping between 433.10 to 434.70 MHz
  • Compatible with PentaCODE or PentaFOB remote series

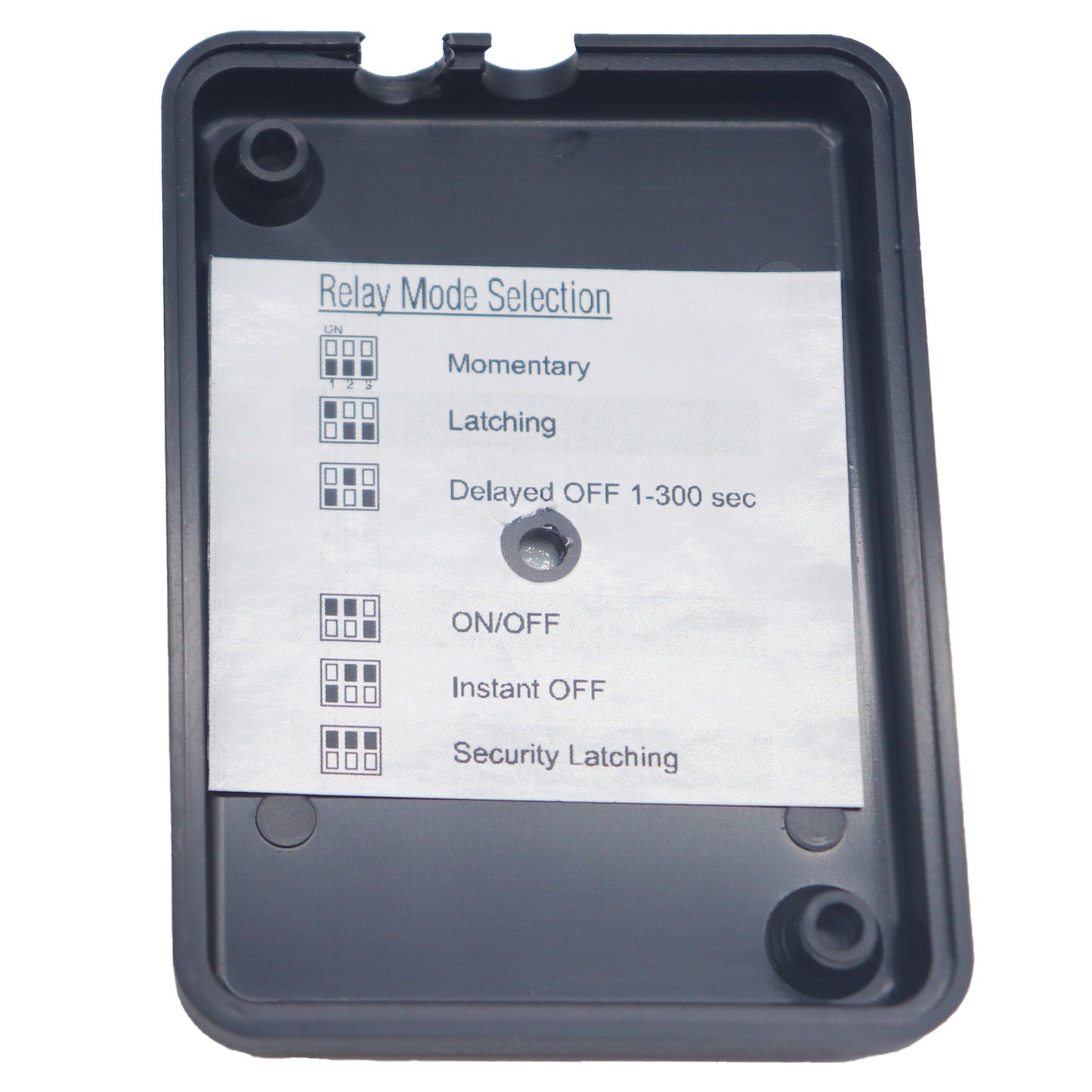

  • Multiple Output Modes:  Momentary, Latching, Delayed Off or Security latching.
  • Wide Operating Voltage: 12-24V AC/DC
  • Long Operating Range: up to 100-200m
  • High 10A Relay Output
  • Diagnostic LED indicators

Compatible with:

Not Compatible with:

  • Elsema FMT
  • Elsema KEY
  • Elsema Gigalink
  • Elsema MultiCode

Not sure which remote you would like to use?  Check out our Comparison Blog Post Here

Ideal Applications:

The Elsema PCR43301RE Receiver is ideal for:

    • Apartment complexes
    • Commercial buildings
    • Industrial facilities
    • Strata complexes
    • Automatic gates
    • Sliding gates
    • Swing gates
    • Boom gates
    • Roller shutters
    • Roller doors
    • Garage doors
    • Warehouse access
    • Agricultural properties
    • Pump control
    • Lighting control
    • Access control systems

Connection Diagram:

PCR43301RE Connection Diagram

Technical Specifications:

Frequency 433.100 to 434.700Mhz

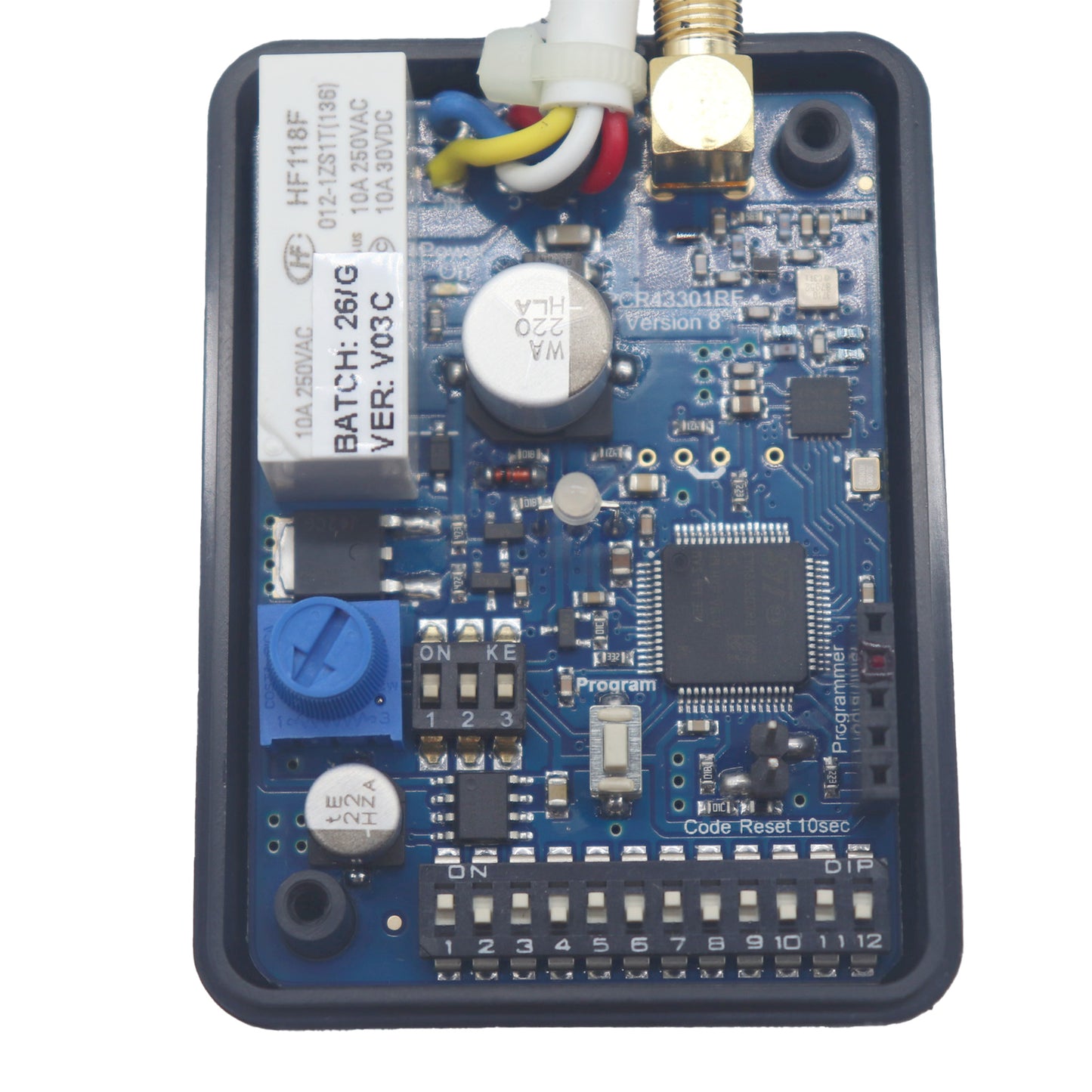

Code Type 12-way dipswitch (1-8 sets site code and 10-12 sets remote button position)
Body Type Receiver
Number of Channels 1
Enclosure Included
Size 70 x 55x 25mm
Power Supply 12 – 24 Volts AC or DC
Outputs 1 Change over realy output, rated at 8 Amps 240VAC
Standby Current 21mA standby at 24VDC
Connection 50cm flying leads to supply and relay output
Range Refer to Remote Control specifications
Warranty 12 Months Manufacturers Warranty


Downloads:

Frequently Asked Questions:

Can I use PentaFOB and PentaCODE together?

Yes, Only if using the PentaCODE in the encrypted rolling code (All dipswitches must be in the OFF position.

Is this suitable for apartment complexes?

Yes, this is a perfect solution for an apartment complex.

How many remotes can be programmed?

Encrypted Rolling Code - Up to 1500 per channel

Dipswitch - Unlimited

Can I delete lost remotes?

If using with the dipswitches - just change your dipswitch settings in the receiver and available remotes - old or lost remotes will no longer work.

If using with the encrypted rolling code, you will need to clear the full memory and reprogram any available remotes.

What voltage does it accept?

12 – 24 Volts AC/DC
