Elsema PCR43301240R Receiver
Elsema PCR43301240R Receiver
This is a low demand item - Stock will need to be sourced from Australian suppliers to fulfil your order. Please allow additional time for dispatch. Contact us for ETA Prior to ordering if required urgently.
Couldn't load pickup availability

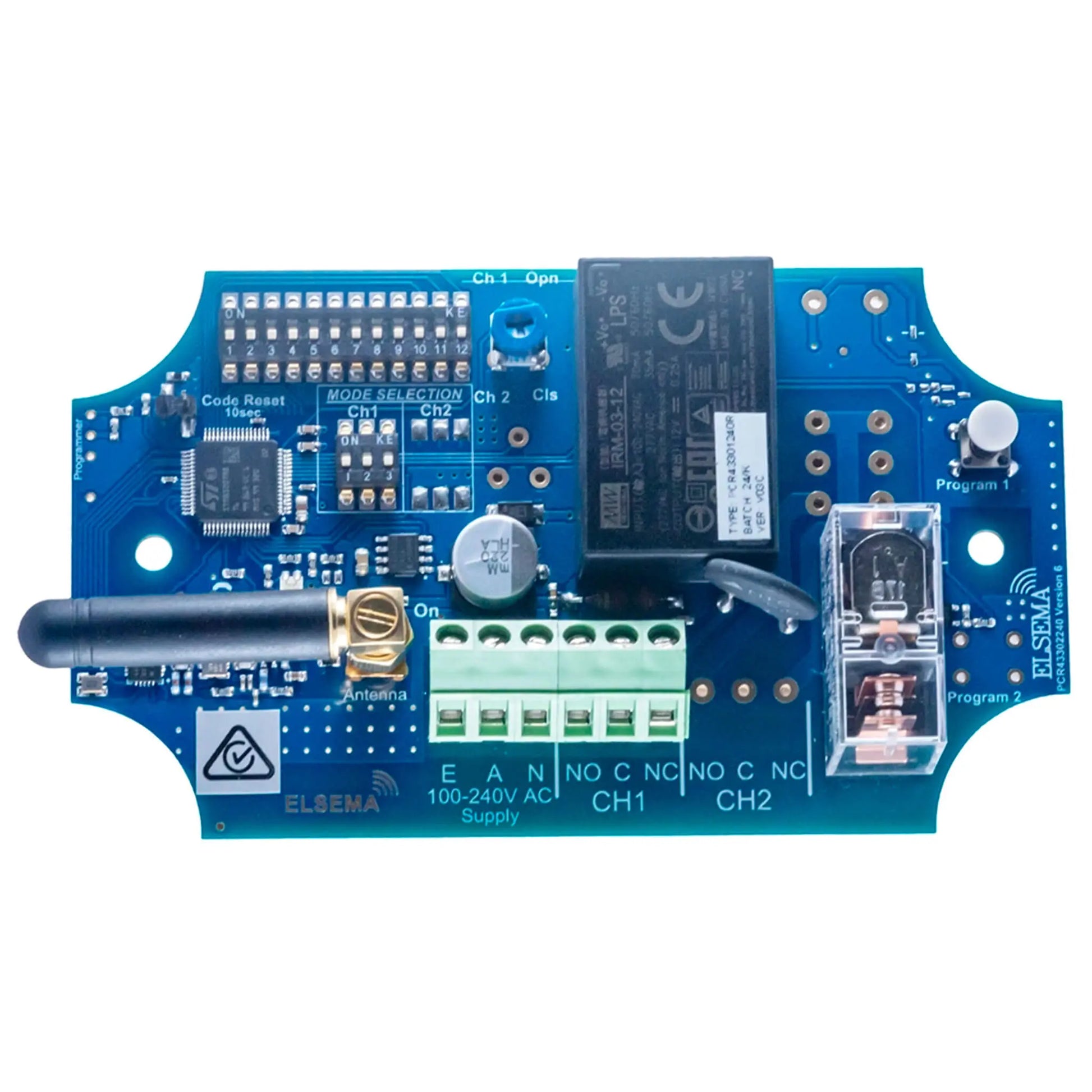

Genuine Elsema PCR43301240R Receiver
The Elsema PCR43301240R is a genuine Elsema 240V AC single channel Penta receiver designed for automatic gates, garage doors, lighting control and industrial automation. Powered directly from 110-240V mains, it features a voltage-free changeover relay outputt and supports both Elsema PentaFOB and PentaCODE remotes using secure frequency hopping technology. Ideal for new installations or replacing older Elsema receivers, it provides long operating range, flexible programming options and reliable Australian-designed performance.
What’s Included:
- 1 × Elsema Genuine PCR43301240R 1 Channel Receiver (240V AC)
- 1 × Comprehensive installation and programming guide
Key Features:
- Genuine Elsema Product
- Direct 110-240VAC Mains Power
- Single Channel Voltage-Free Relay Output
- Compatible with PentaFOB and PentaCODE remotes.
- Five Frequency Hopping Channels (433.10 - 434.70MHz)
- User Selectable Relay Modes: Momentary, Latching, Delayed Off
- Long Operating Range: up to 200m line of sight)
- Diagnostic LED Status Indicator
Compatible with:
- Elsema PentaFOB
- Elsema PentaFOB Waterproof
- Elsema PentaCODE
- Elsema PentaCODE Hardwired
- Elsema PentaFOB Hardwired
- Elsema Penta FOBSwitch
- Elsema PentaFOB Handheld
Not Compatible with:
- Elsema FMT
- Elsema KEY
- Elsema Gigalink
- Elsema MultiCode
Not sure which remote you would like to use? Check out our Comparison Blog Post Here
Ideal Applications:
- Automatic sliding or swing gate control
- Garage door automation
- Boom Gates
- Industrial Doors and Roller Shutters
- Outdoor lighting control
- Pump Control
- Access Control
- Industrial equipment and machinery activation
- Agricultural Equipment
Dimensions:
Technical Specifications:
| Supply Voltage | 110 to 240 Volts AC Mains |
| Frequency Band | 433.100 to 433.700Mhz |
| Receiver Sensitivity | Better then 0.316uV (-117dBm) |
| Operating Temperature Range | -5 to 50 |
| Receiver Memory Storage | Unlimited Remotes |
| Decoding System | Encrypted 17 billion codes combinations or onboard 12-way code switch |
| Outputs | Voltage free charge over relay outputs, rated at 8 Amps at 240Volts AC |
| Relay Contacts | Common ( c ) Normally Closed (NC) and Normally Open (NO) |
| Connections | Screw type terminal block |
| Dimensions | 120 x 70 x 30mm |
| Weight | 140grams |
| Useable Transmitters | PentaFOB and PentaCODE |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
Frequently Asked Questions:
What is the difference between the PCR43301240R and the PCR43301240RE?
| PCR43301240R | PCR43301240RE |
 |
 |
| Receiver Only | Receiver in weather-resistant enclosure |
| Fits inside existing control cabinet | Ready for outdoor installation |
| Lower cost | Better environmental protection |
Is this receiver powered by 240V?
Yes. The PCR43301240R connects directly to a 110-240V AC mains supply.
Does this receiver output 240V?
No. The relay output is voltage free (dry contact), allowing it to switch many different control voltages depending on your installation.
What is a Voltage-Free Relay?
The PCR43301240R provides a voltage-free (dry contact) relay output. While the receiver itself is powered by 110-240V AC mains, the relay contacts do not output voltage. Instead, they simply open or close a circuit, allowing the receiver to control equipment operating on 12V, 24V or 240V depending on your application.
Can I use PentaFOB remotes?
Yes.
Can I use PentaCODE remotes?
Yes.
