Elsema PCR43305RE Receiver with Enclosure

Elsema PCR43305RE Receiver with Enclosure

$129.95
$129.95
Sale Sold out
Shipping calculated at checkout.

This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.

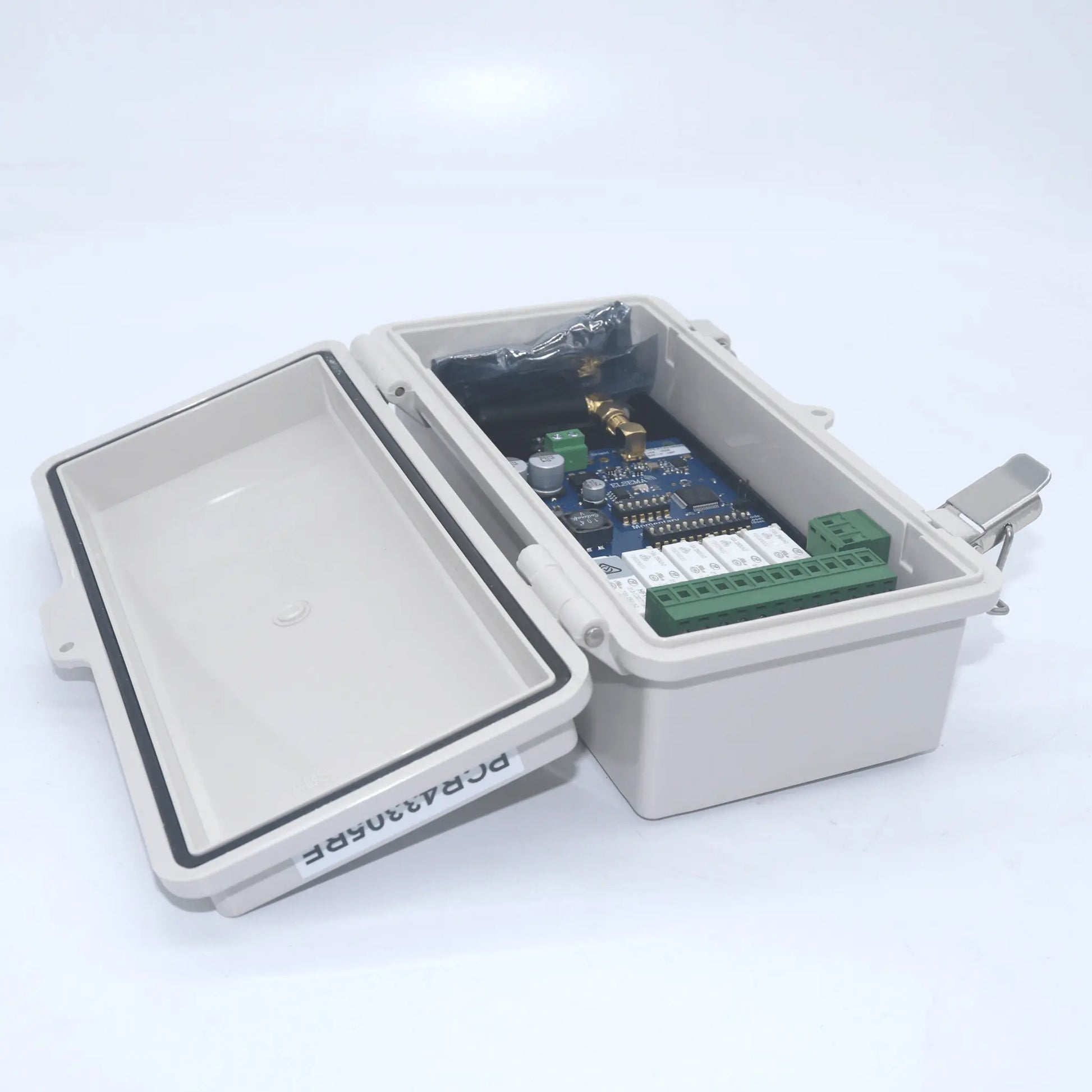

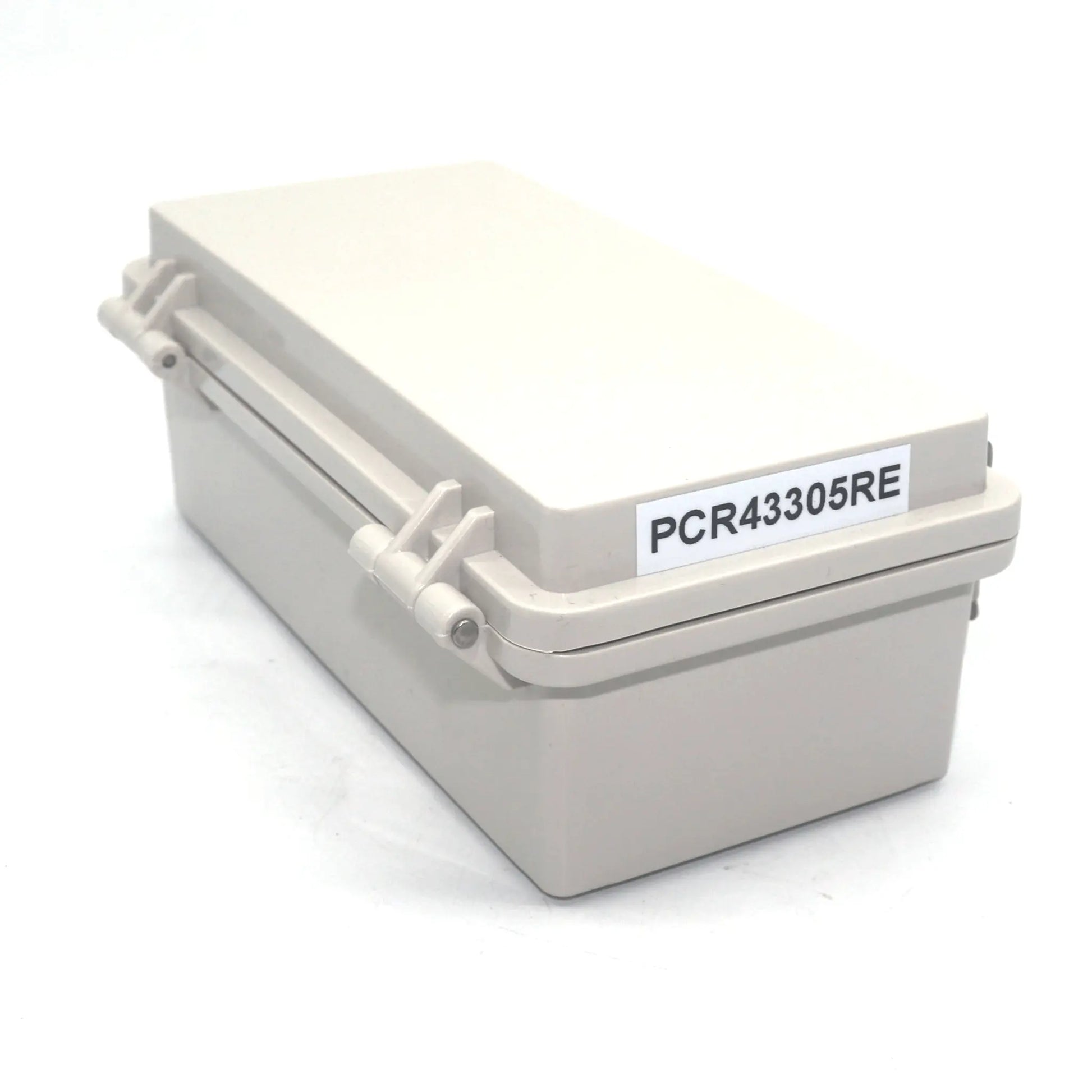

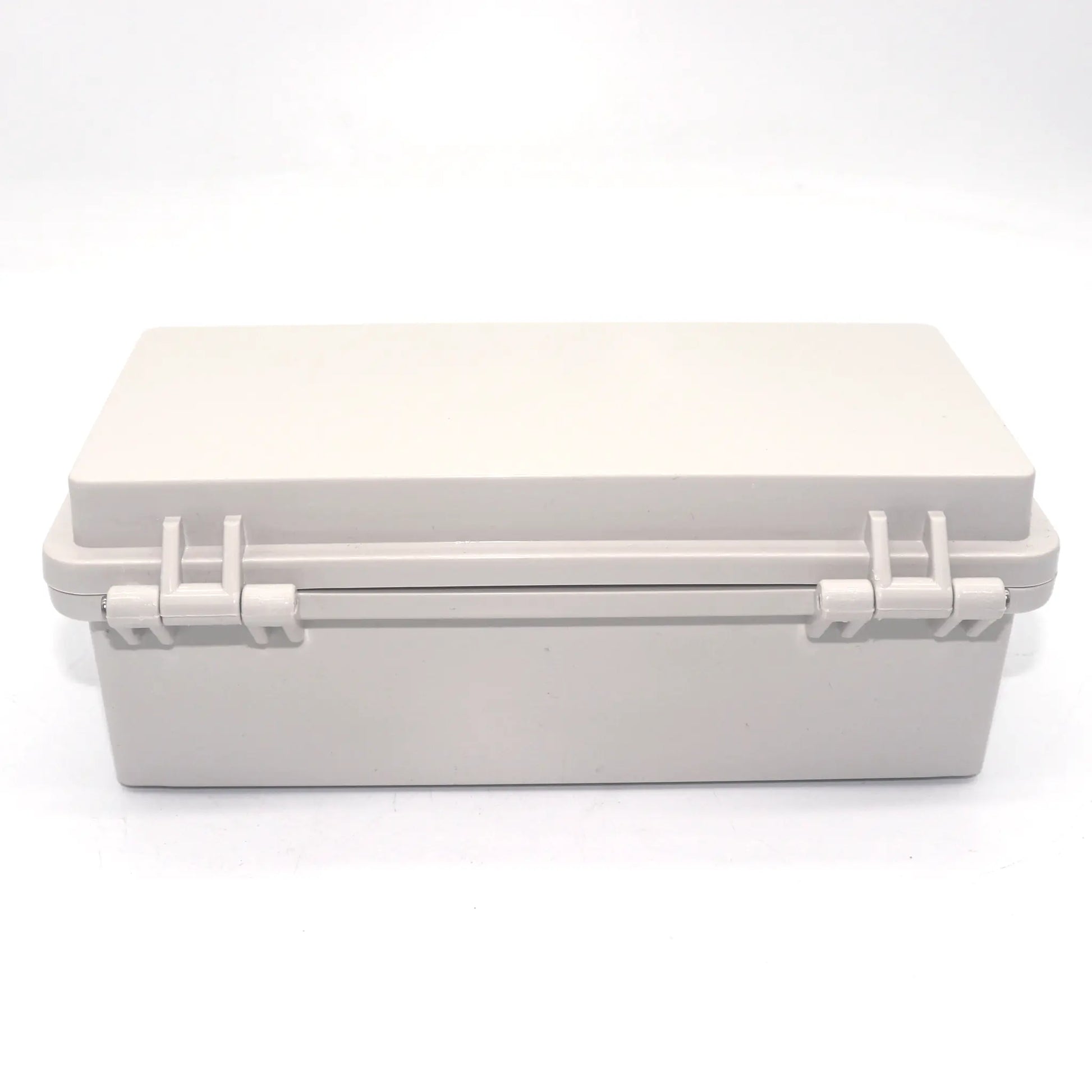

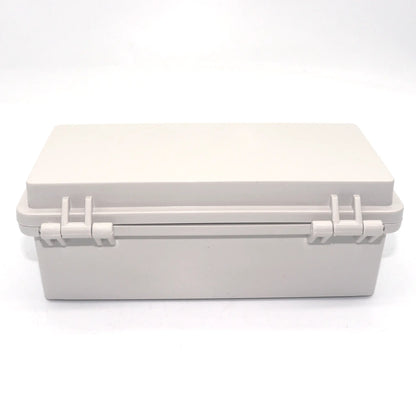

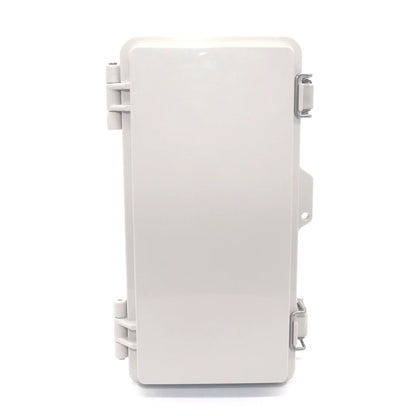

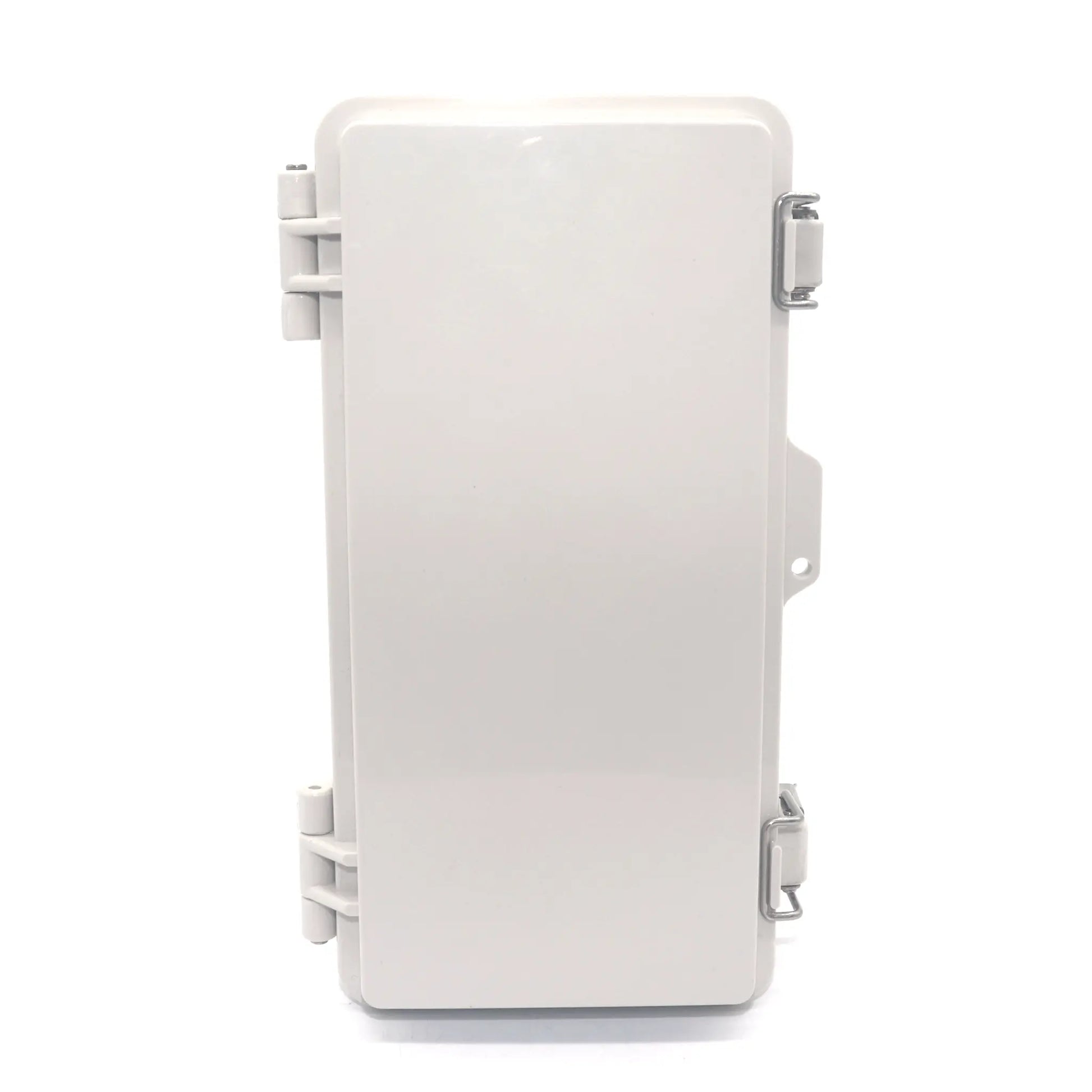

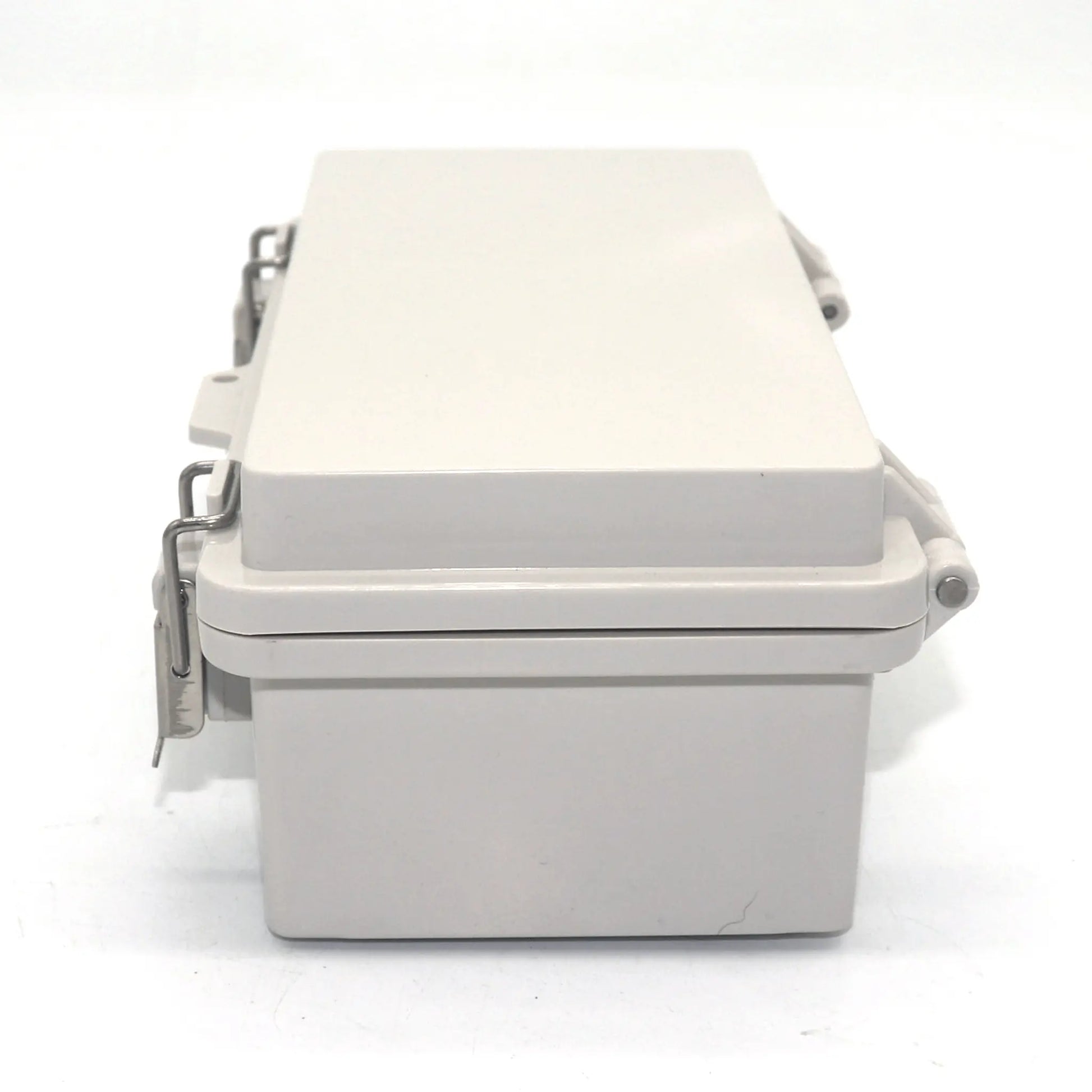

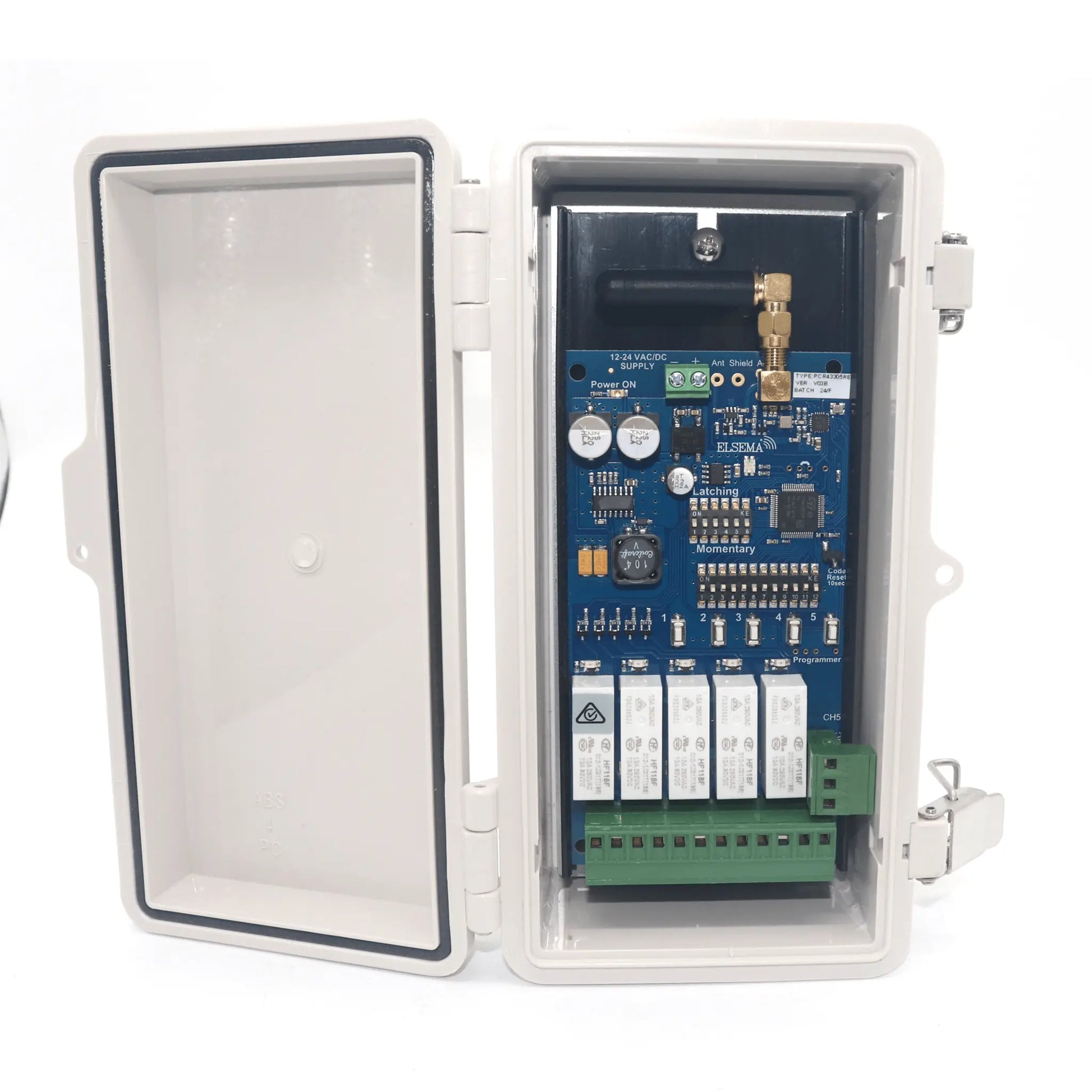

PCR43305RE - Elsema Penta 5 Channel Receiver with Relay Output and Enclosure

The Elsema PCR43305RE is a heavy-duty 5 channel Penta receiver housed in an IP66 weatherproof enclosure, ideal for multi-device control across automation, access and industrial applications. Supporting both encrypted coding and 12-way dipswitch programming, it works seamlessly with PentaFOB® and PentaCODE® remotes, offering long-range performance, flexible output modes and secure 433MHz frequency-hopping technology.

What’s Included:

  • Genuine Elsema PCR43305RE – 5 Channel Receiver
  • Micro Antenna
  • IP66-Rated Weatherproof Enclosure
  • Installation Instructions

Key Features:

  • Five-Channel Receiver with Independent Relay Outputs – Ideal for controlling multiple devices from one unit.
  • IP66-Rated Weatherproof Enclosure – Designed for outdoor and industrial environments.
  • Advanced Frequency Hopping (433.10 to 434.70MHz) – Secure, interference-free communication.
  • Dual Coding Options – 12-way dip switch or encrypted codes with over 17 billion combinations.
  • Unlimited Remote Pairing – Compatible with Elsema PentaFOB® and PentaCODE® remotes.
  • User-Selectable Output Modes – Momentary, latching, and security latching for flexible control.
  • Wide Supply Voltage Range (12–24V AC/DC) – Low power consumption and easy integration.
  • Antenna Diversity – Extended range and improved signal reliability.
  • On-board Diagnostic LEDs – Simplified troubleshooting and operational status checks.

Common Applications:

  • Keyless access control for automatic gates and garage doors
  • Home automation (lighting, garden irrigation, swimming pool control)
  • Security systems and wireless lighting control
  • Machinery control in industrial and warehouse environments
  • Automotive and equipment automation

Connection Diagram for PCR43305R:

PCR43305R Connection Diagram

Technical Specifications:

Frequency 433.100 to 434.700MHz
Standby Current 15 mA stand by at 24VDC
Current Consumption 91 mA with all relays “On”
Supply Voltage 12 – 24 Volts AC or DC
Operating Temperature Range -5 to 50°C
Receiver Memory Storage Unlimited Remotes
Decoding System Encrypted 17 billion codes combinations or On board 12-way code switch
Outputs 5 change over relay outputs, rated at 10 Amps 240VAC each
Relay Contacts Common (C), Normally Closed (NC) & Normally Open (NO)
Connections Supply is a screw type terminal block Relay outputs are plug-in type terminal block
Dimensions 200 x 100 x 75
Useable Transmitter PentaFOB and PentaCODE
Warranty 12 Months Manufacturers Warranty
