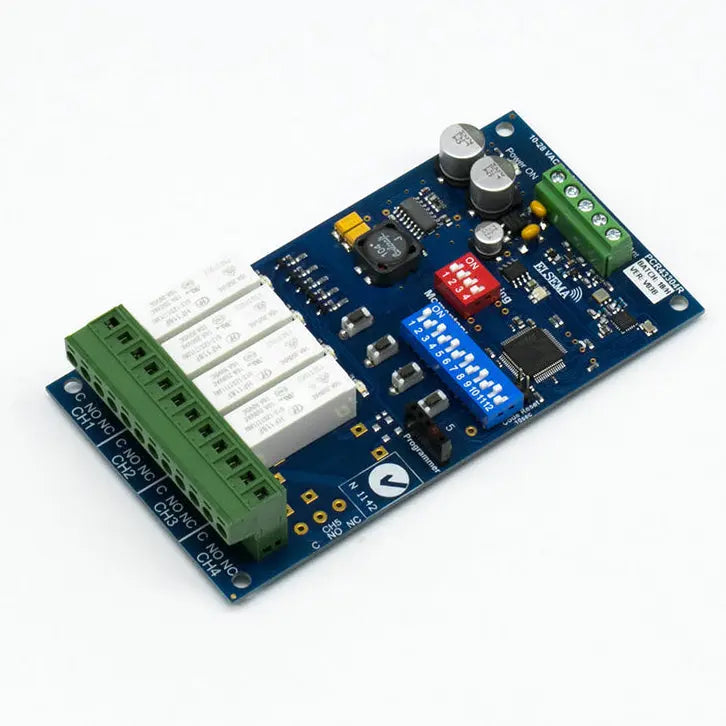

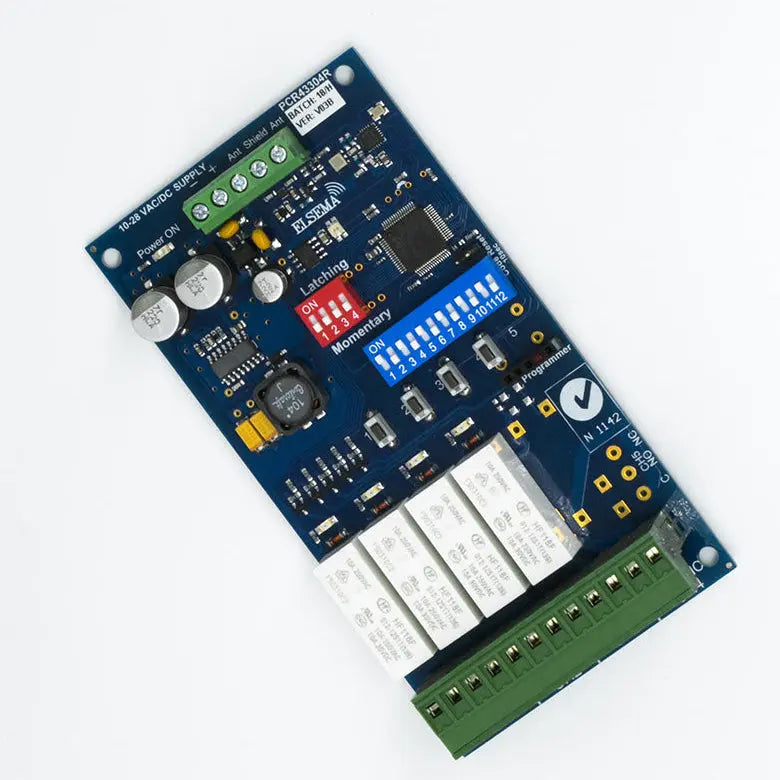

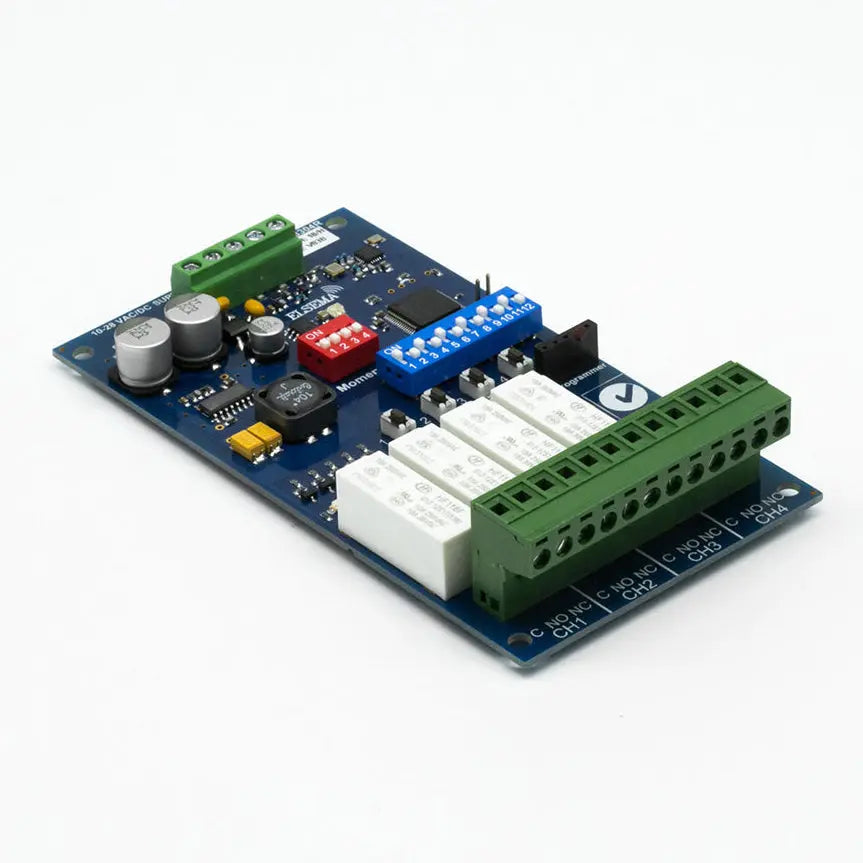

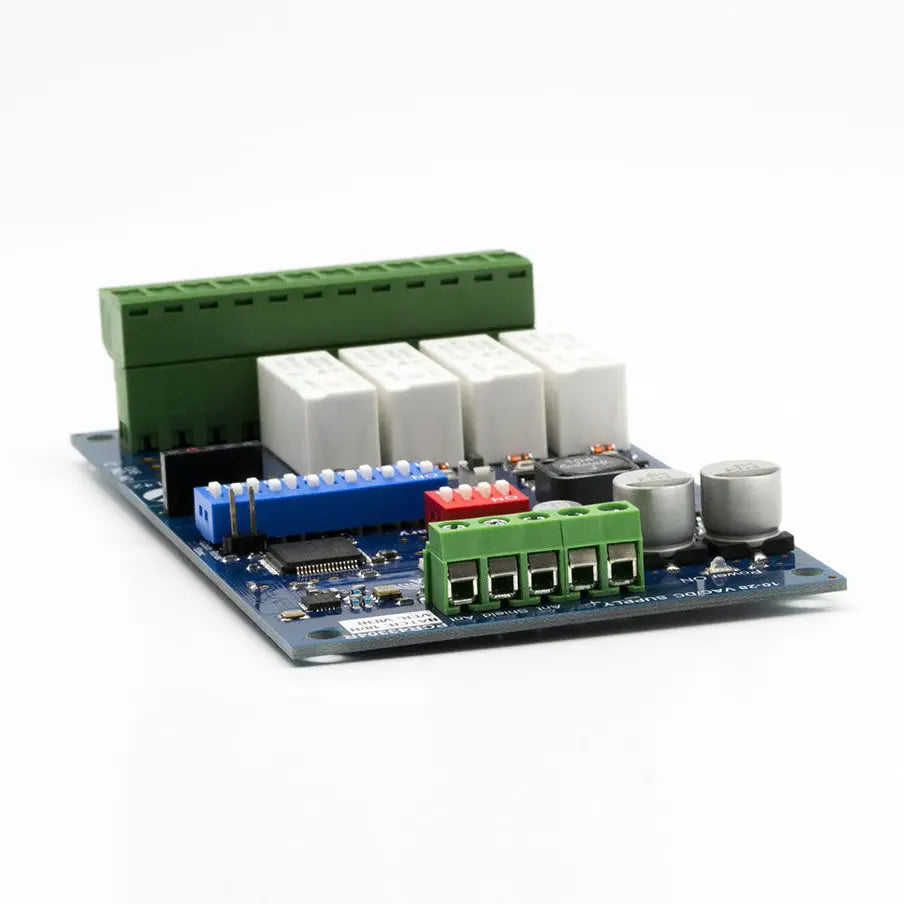

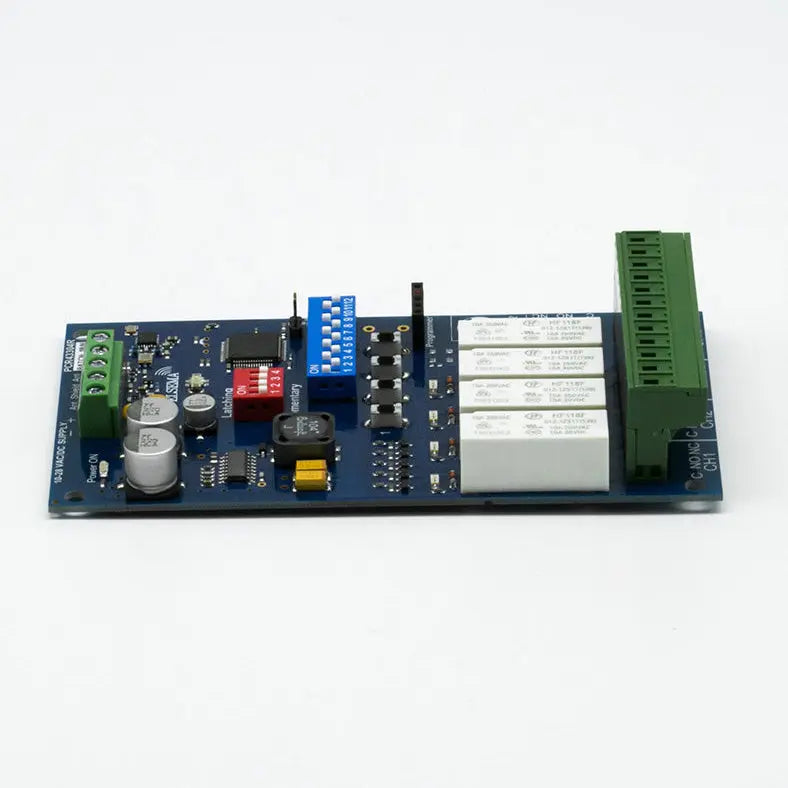

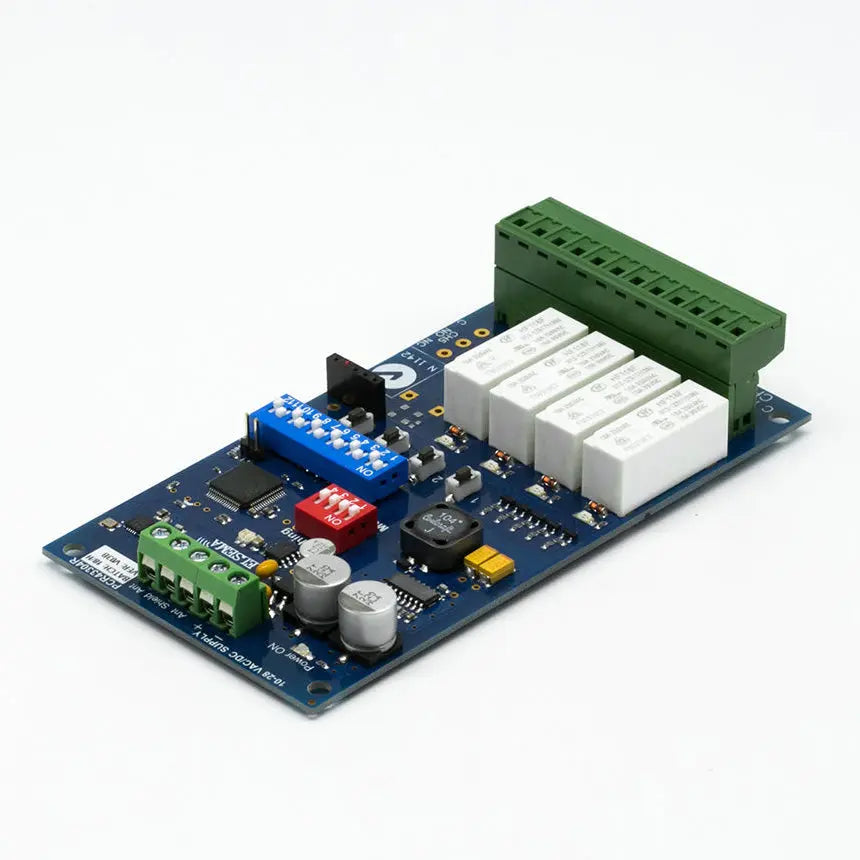

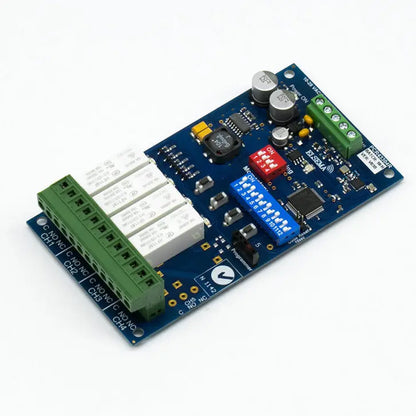

PCR43304R - Elsema Penta 4 Channel Receiver with Relay Outputs

The Elsema PCR43304R Penta 4 Channel Receiver provides secure wireless control of up to four independent gates, garage doors, lights, pumps or other electrical equipment. It operates from a 12–24V AC or DC power supply and features four independent voltage-free changeover relay outputs.

Compatible with both Elsema PentaFOB and PentaCODE remotes, the receiver supports encrypted coding or traditional 12-way dip-switch coding. Each relay can be configured for momentary, latching or security-latching operation.

The PCR43304R is supplied as a receiver board without an enclosure and is designed for installation inside an existing gate controller, automation cabinet or suitable protective enclosure. For an enclosed version, choose the Elsema PCR43304RE.

Includes:

  • Genuine Elsema Wire-In 4 Channel Receiver
  • 1 x Micro Antenna
  • Programming Instructions

Key Features:

  • Genuine Elsema 4-channel Penta receiver
  • 12–24V AC or DC power supply
  • Four independently controlled voltage-free relay outputs
  • Each relay rated up to 10A at 240V AC
  • Common, Normally Open and Normally Closed relay contacts
  • Frequency hopping between 433.10 and 434.70MHz
  • Compatible with Elsema PentaFOB and PentaCODE remotes
  • Encrypted coding with over 17 billion code combinations
  • Optional traditional 12-way dip-switch coding
  • Unlimited remote storage capacity
  • Momentary, latching and security-latching output modes
  • Diagnostic LEDs for power, reception and relay activation
  • Suitable for gates, garage doors, lighting, pumps and industrial automation
  • Receiver board only—protective enclosure not included

Compatible with:

Not Compatible with:

  • Elsema FMT
  • Elsema KEY
  • Elsema Gigalink
  • Elsema MultiCode

Not sure which remote you would like to use?  Check out our Comparison Blog Post Here

Ideal Applications:

  • Automatic gates and garage doors
  • Wireless security activation and alarms
  • Lighting and shutter control
  • Pumps, irrigation, and small agricultural devices
  • Custom-designed automation systems

Connection Diagram:

PCR43304R Connection Diagram

Technical Specifications:

Supply Voltage 12 – 24 Volts AC or DC
Standby Current 15 mA stand by at 24VDC
Current Consumption 91 mA with all relays “On”
Frequency Band 433.100 to 434.700MHz
Operating Temperature Range -5 to 50°C
Receiver Memory Storage Unlimited Remotes
Decoding Systems Encrypted 17 billion codes combinations or On board 12-way code switch
Connections Supply is a screw type terminal block Relay outputs are plug-in type terminal block
Outputs 4 change over relay outputs, rated at 10 Amps 240VAC each.
Relay Contacts Common (C), Normally Closed (NC) & Normally Open (NO)
Dimensions 130 x 70 x 27mm
Warranty 12 Months Manufacturers Warranty


Downloads:

Download the Elsema PCR43304R instruction manual

Frequently Asked Questions:

Does the PCR43304R include an enclosure?

No. The PCR43304R is supplied as a receiver circuit board for installation inside an existing control box or suitable enclosure. The PCR43304RE is the enclosed version.

Which remotes work with the PCR43304R?

It is compatible with Elsema PentaFOB FOB433 series and PentaCODE PCK433 series remotes. It does not work with Elsema Gigalink, Multicode, FMT or KEY remotes.

Can the PCR43304R control four different devices?

Yes. It has four independently controlled relay outputs. For example, it could operate a gate, garage door, light and pump from separate remote buttons.

What power supply does this receiver require?

The receiver requires a 12–24V AC or DC power supply. It must not be connected directly to 240V AC power.

How many remotes can be programmed?

The PCR43304R supports unlimited remote storage, making it suitable for businesses, gated communities and other multi-user installations.

What output modes are available?

Each relay can be configured for momentary or latching operation. Security-latching operation is also available for suitable alarm and security applications.
