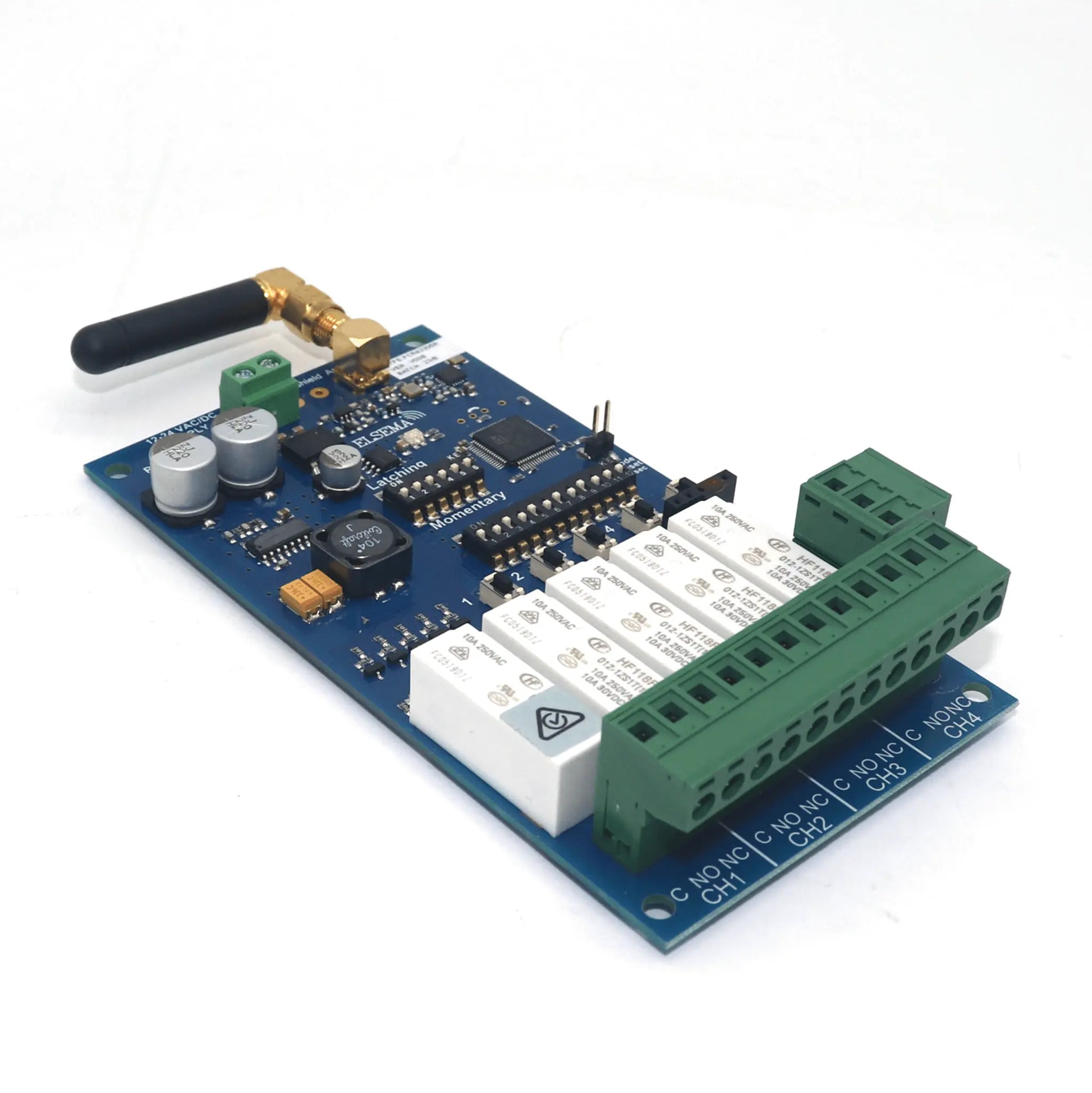

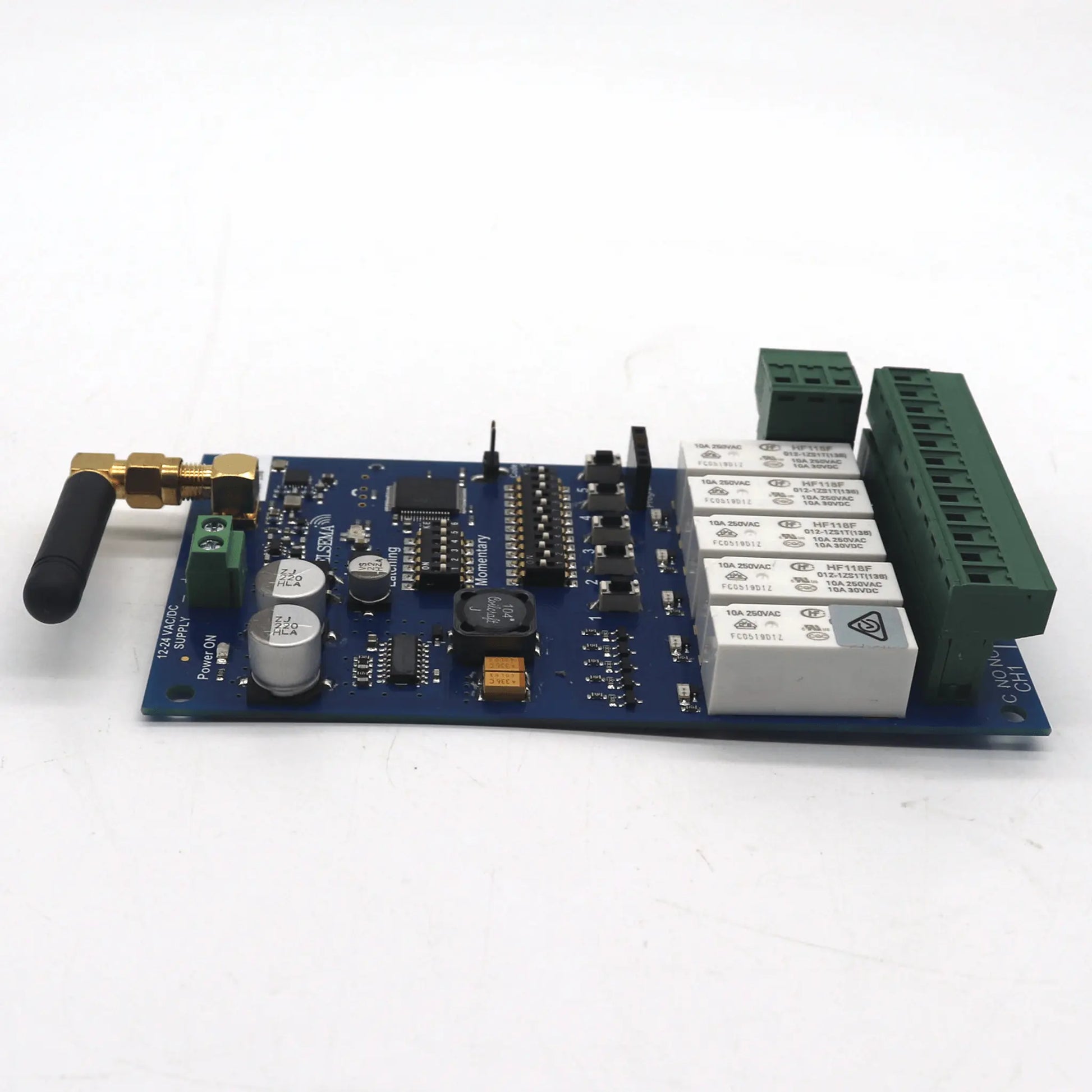

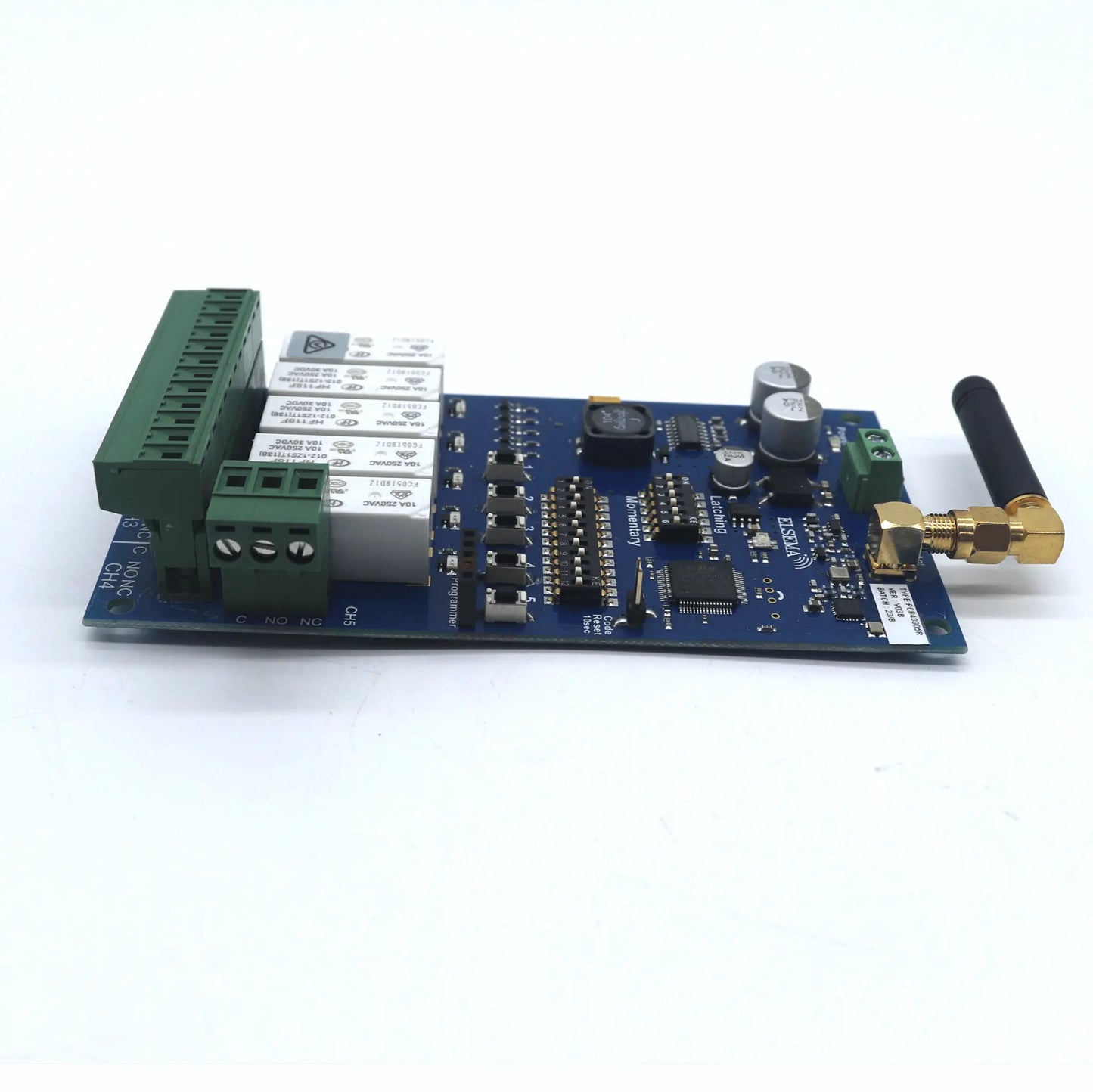

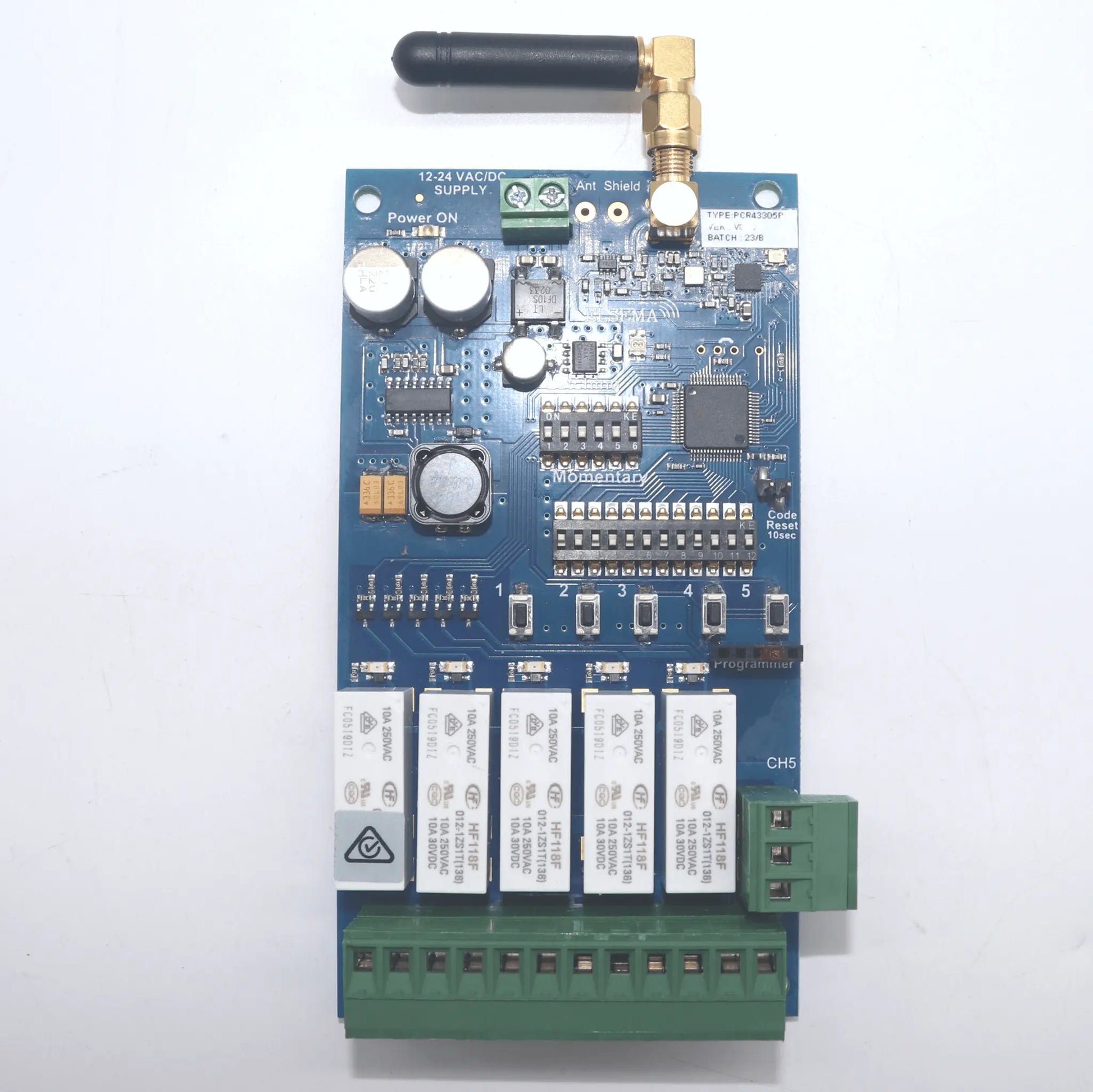

Elsema PCR43305R Receiver

PCR43305R - Elsema Penta 5 Channel Receiver with Relay Outputs

The Elsema PCR43305R is a 5-channel Penta receiver designed for automation control across residential, commercial and industrial applications. Featuring encrypted or dip-switch coding, unlimited remote pairing, and high-capacity relays, it offers secure and reliable 433MHz frequency-hopping communication with PentaFOB® and PentaCODE® remotes. Ideal for multi-device control systems such as gates, lighting, machinery & irrigation.

Includes:

• Genuine Elsema Wire-In 5 Channel Receiver
• Micro Antenna

Key Features:

• 5-Channel Functionality – Control up to five devices independently.
• Frequency Hopping Technology – Operates on 433.10–434.70MHz for secure, interference-free communication.
• Unlimited Remote Pairing – Compatible with Elsema PentaFOB® and PentaCODE® remotes.
• Flexible Coding Options – Choose between 12-way dip switch coding or encrypted coding with 17+ billion codes.
• User-Selectable Relay Modes – Momentary, latching, and security latching outputs.
• Wide Voltage Support – Operates on 12–24V AC/DC with low power consumption.
• Antenna Diversity – Enhanced signal strength and extended range for long-distance applications.
• On-Board Diagnostic LEDs – Quick visual feedback for power, reception, and relay status.

Compatible with:

PentaFOB and PentaCODE Remotes

Ideal Applications:

• Keyless access control for gates, garage doors, and roller shutters.
• Home automation – control lights, pumps, pool systems, or garden irrigation.
• Security systems – activate alarms, sirens, or lighting remotely.
• Industrial machinery – wireless control for equipment in factories and warehouses.
• Agricultural automation – operate pumps, cool room doors, or other equipment.

Connection Diagram:

Technical Specifications:

Downloads:
