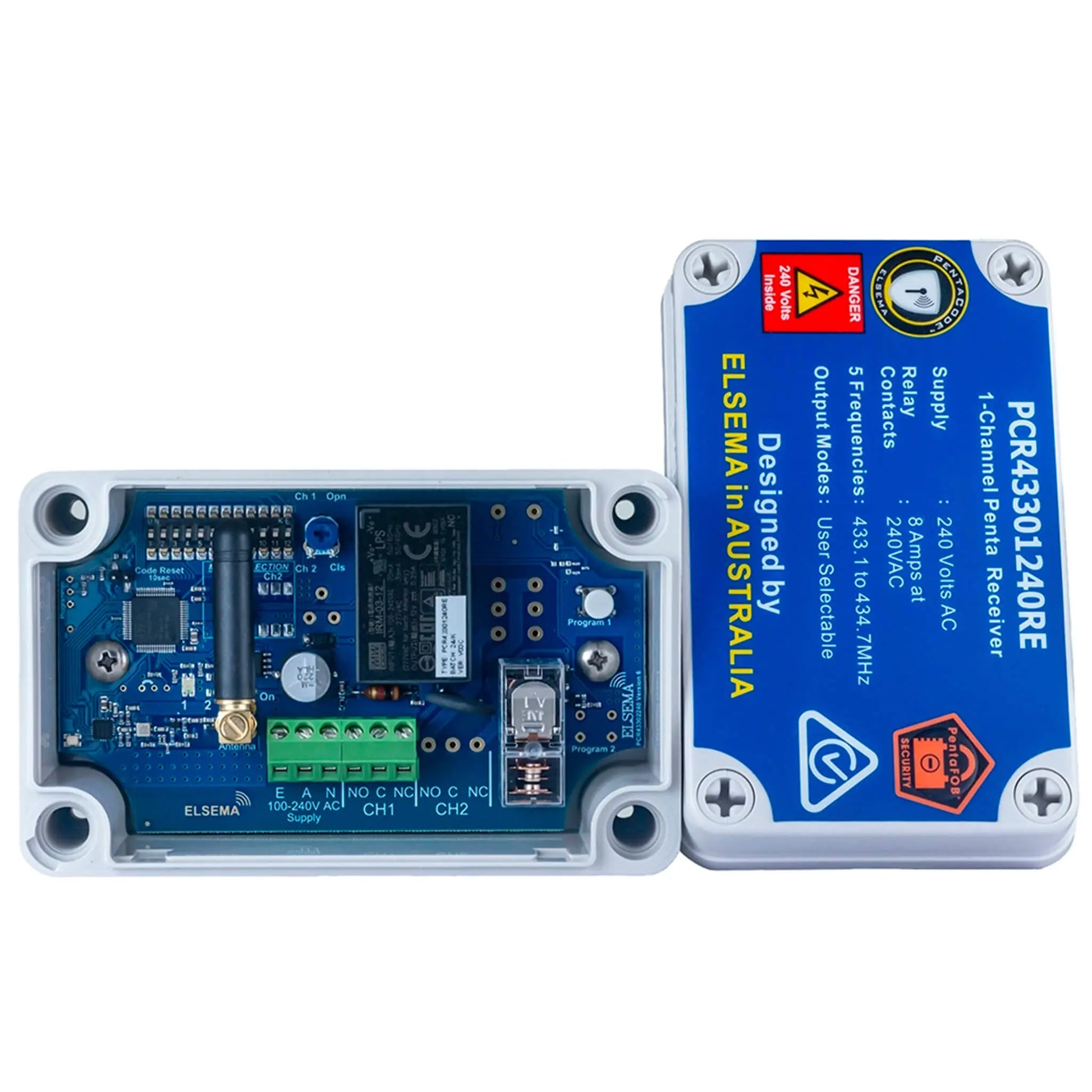

Elsema PCR43301240RE - Penta 1 Channel Receiver 240V with Voltage Free Charge Relay Output and Enclosure
The Elsema PCR43301240RE is a genuine Elsema 240V 433MHz single channel receiver supplied inside a weather-resistant enclosure. Designed for residential, commercial and industrial automation, it provides reliable wireless control of automatic gates, garage doors, boom gates, lighting systems, pumps and access control equipment. Compatible with both Elsema PentaFOB® and PentaCODE® remotes, it combines encrypted security, long-range performance and flexible voltage-free relay switching in one compact solution.
What’s Included:
- 1 × Elsema PCR43301240RE 1 Channel Receiver with Enclosure (240V AC)
- 1 × Comprehensive installation and programming guide
Key Features:
- Genuine Elsema Receiver
- Fully Enclosed Design in Weather Resistant Outdoor Enclosure (IP66)
- 110–240VAC Mains Power
- Single Channel Voltage Free Relay Output
- Compatible with PentaFOB and PentaCODE Remotes
- LED Status Indicator
- Ideal for Gates, Garage Doors, Lighting and Access Control
- Designed for Australian Conditions
Compatible with:
- Elsema PentaFOB
- Elsema PentaFOB Waterproof
- Elsema PentaCODE
- Elsema PentaCODE Hardwired
- Elsema PentaFOB Hardwired
- Elsema Penta FOBSwitch
- Elsema PentaFOB Handheld
Not Compatible with:
- Elsema FMT
- Elsema KEY
- Elsema Gigalink
- Elsema MultiCode
Not sure which remote you would like to use? Check out our Comparison Blog Post Here
Ideal Applications:
- Automatic sliding or swing gate control
- Garage door automation
- Outdoor lighting control
- Industrial equipment and machinery activation
- Remote operation of access systems
Dimensions of PCR43301240R (receiver only):
Technical Specifications:
| Supply Voltage | 110 to 240 Volts AC Mains |
| Frequency Band | 433.10 to 433.70Mhz |
| Receiver Sensitivity | Better then 0.316uV (-117dBm) |
| Operating Temperature Range | -5 to 50 |
| Receiver Memory Storage | Unlimited Remotes |
| Decoding System | Encrypted 17 billion codes combinations or onboard 12-way code switch |
| Outputs | Voltage free charge over relay outputs, rated at 8 Amps at 240Volts AC |
| Relay Contacts | Common ( c ) Normally Closed (NC) and Normally Open (NO) |
| Connections | Screw type terminal block |
| IP Rating | IP66 |
| Dimensions | 120 x 80 x 75mm |
| Weight | 330grams |
| Useable Transmitters | PentaFOB and PentaCODE |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
Frequently Asked Questions:
What is the difference between the PCR43301240R and the PCR43301240RE?
| PCR43301240R | PCR43301240RE |
 |
 |
| Receiver Only | Receiver in weather-resistant enclosure |
| Fits inside existing control cabinet | Ready for outdoor installation |
| Lower cost | Better environmental protection |
Is this receiver powered by 240V?
Yes. The PCR43301240RE connects directly to a 110-240V AC mains supply.
Does this receiver output 240V?
No. The relay output is voltage free (dry contact), allowing it to switch many different control voltages depending on your installation.
What is a Voltage-Free Relay?
The PCR43301240RE provides a voltage-free (dry contact) relay output. While the receiver itself is powered by 110-240V AC mains, the relay contacts do not output voltage. Instead, they simply open or close a circuit, allowing the receiver to control equipment operating on 12V, 24V or 240V depending on your application.
Can I use PentaFOB remotes?
Yes.
Can I use PentaCODE remotes?
Yes.
