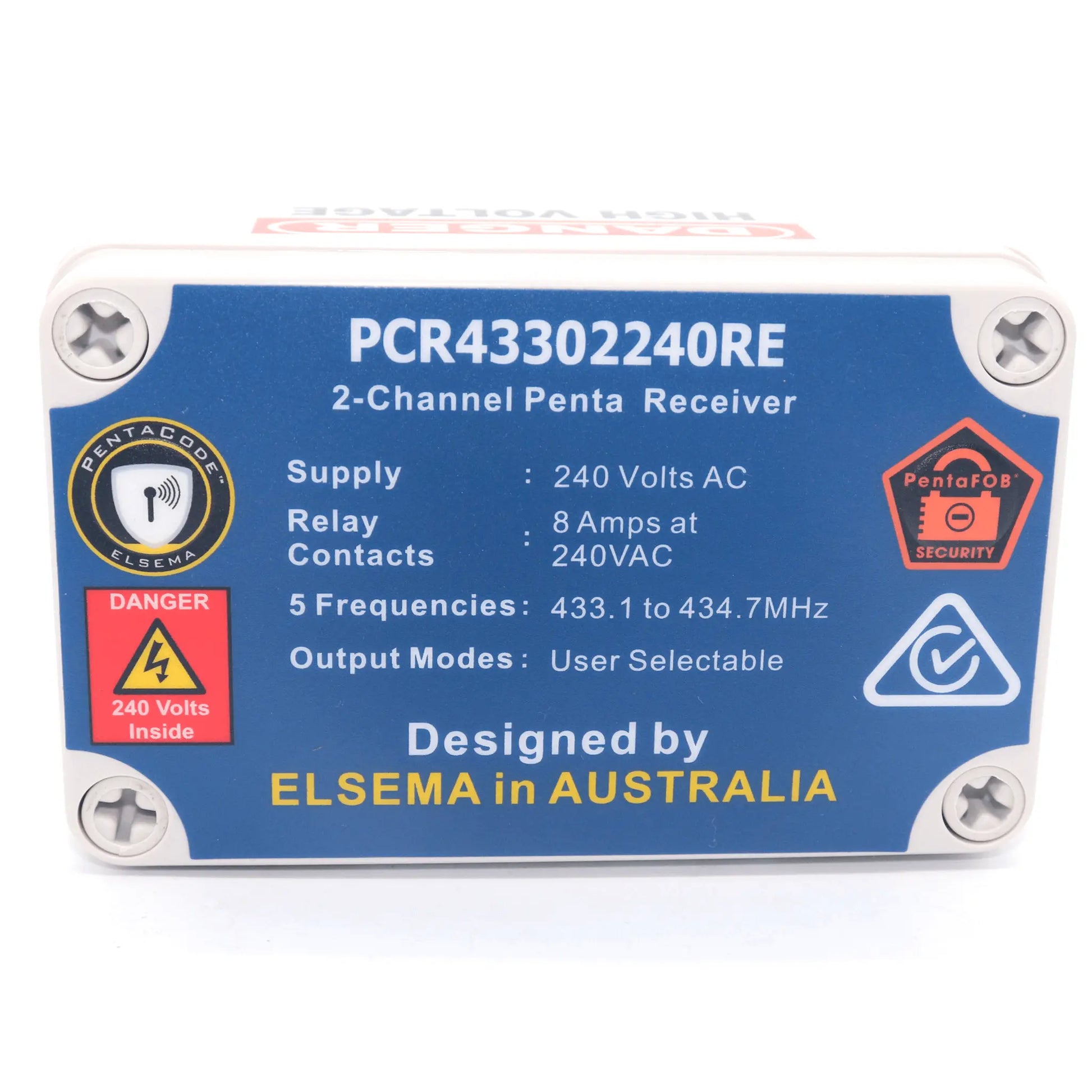

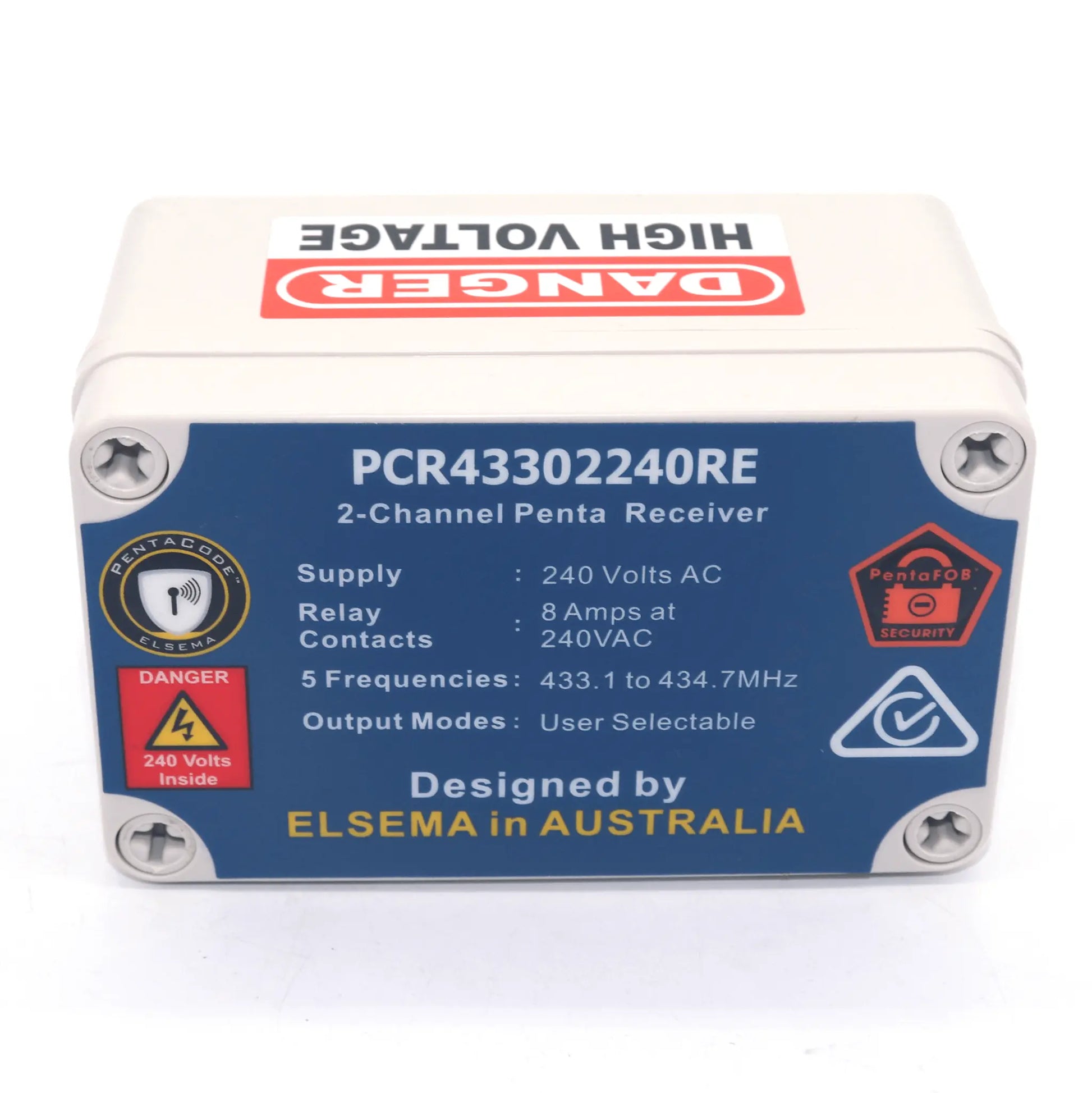

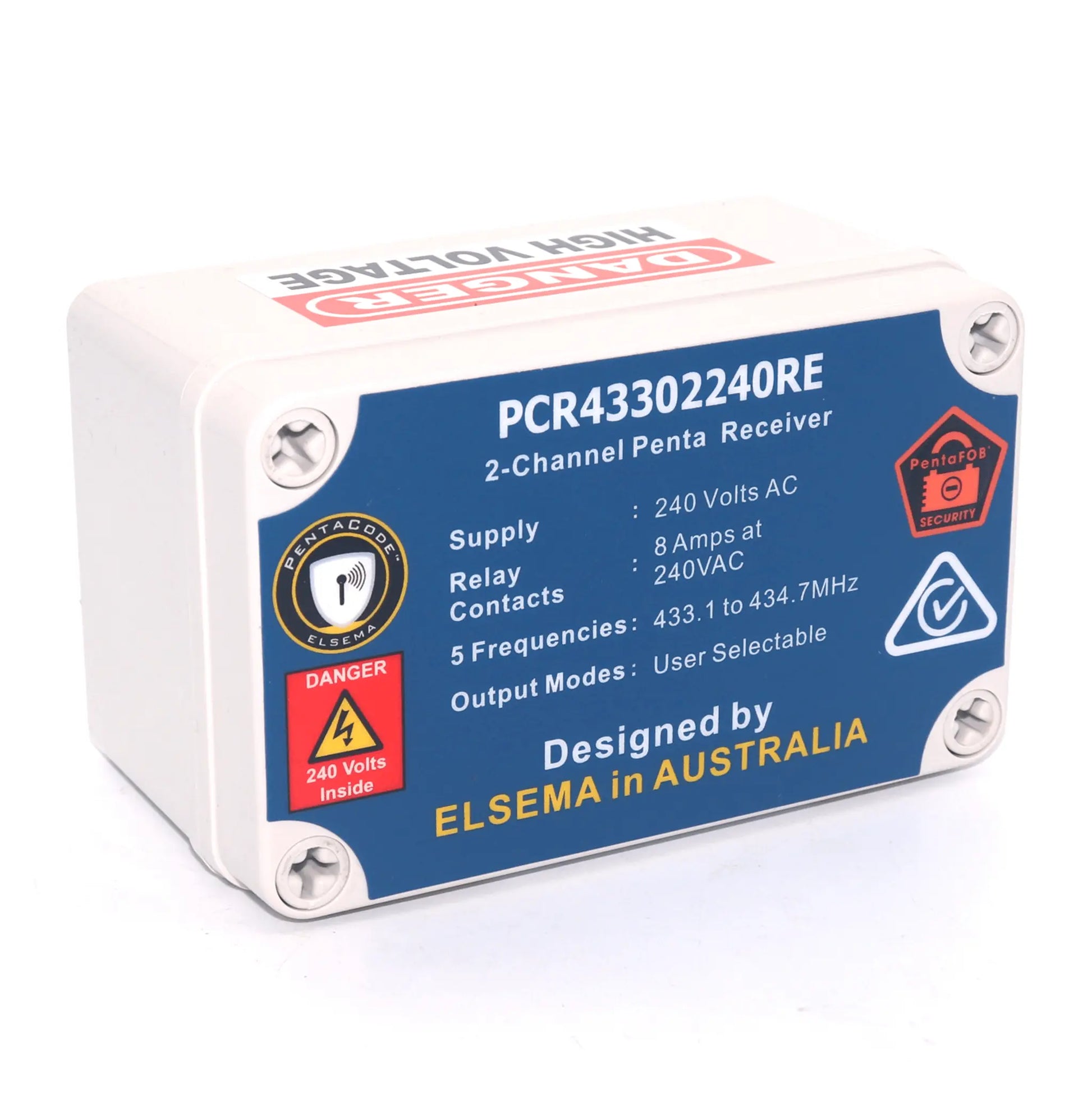

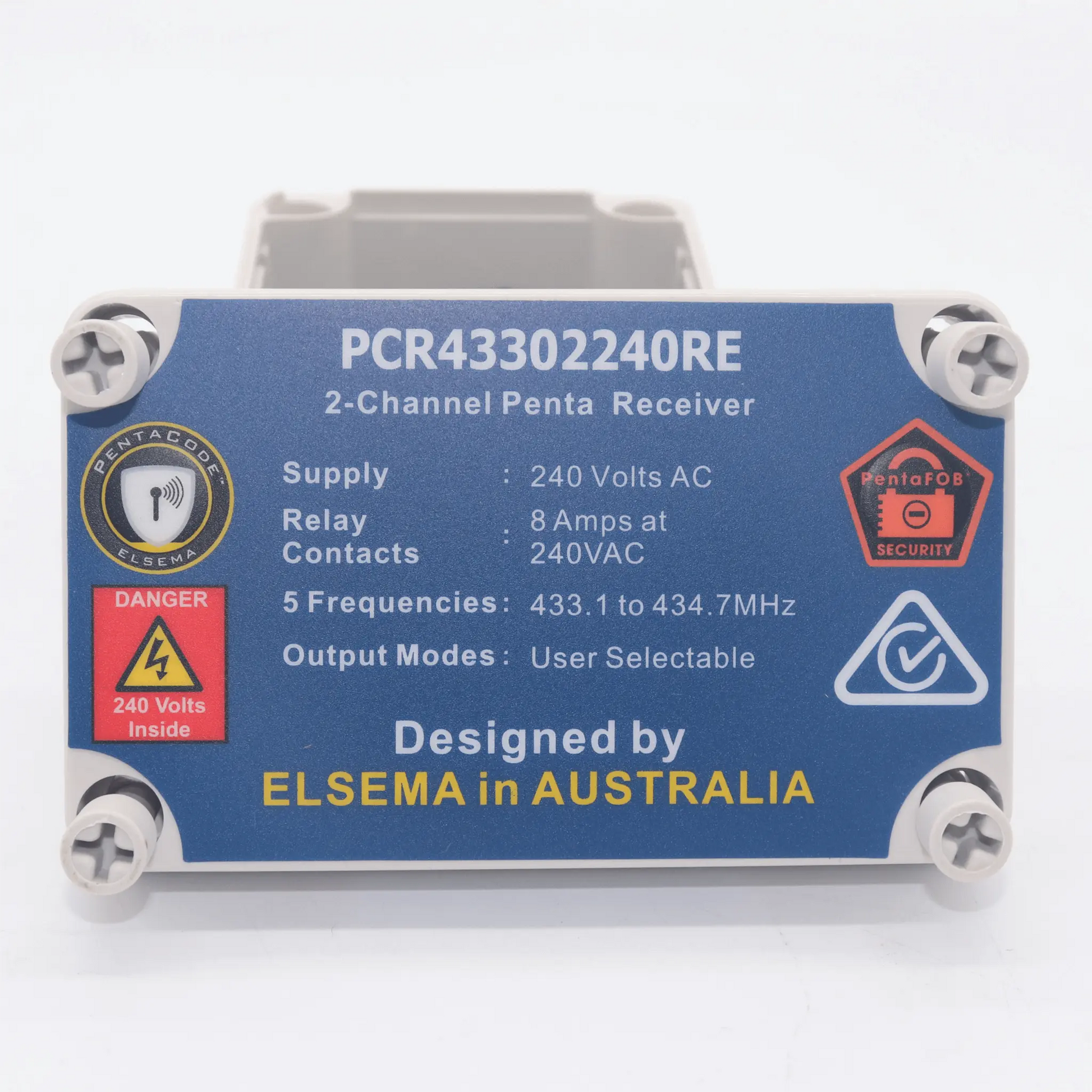

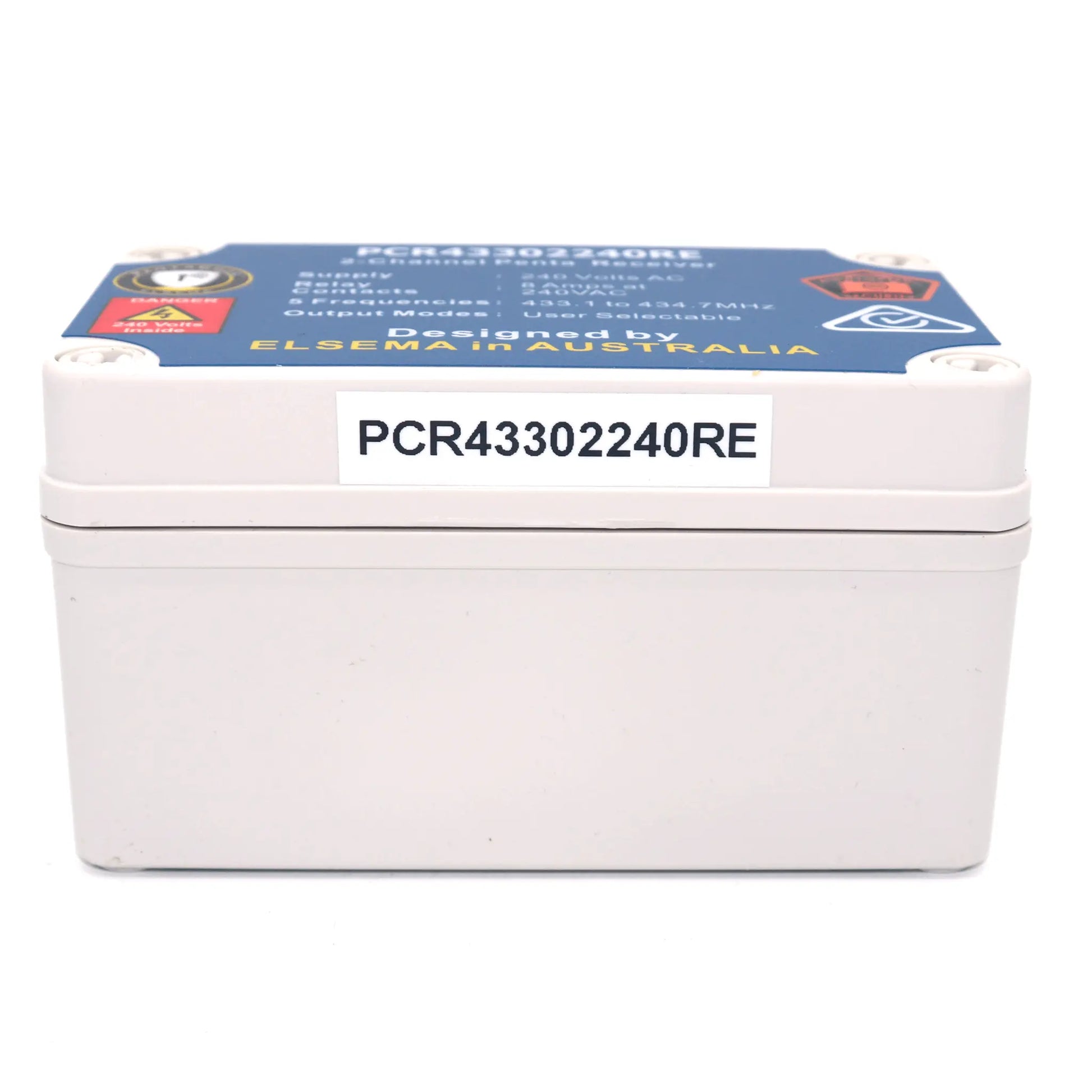

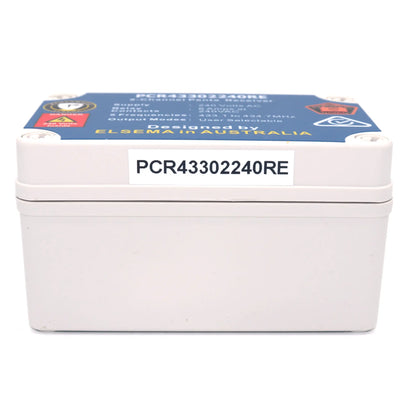

Elsema PCR43302240RE – 2 Channel 240V Penta Receiver in IP66 Enclosure
The Elsema PCR43302240RE is a twochannel, mains powered receiver designed for controlling gates, garage doors, roller shutters, lighting, pumps and other electrical equipment using compatible Elsema Penta remotes.
Operating directly from a 110–240V AC power supply, the receiver provides two independent voltage-free relay outputs. Each channel can be programmed separately, allowing one remote button to operate a gate and another to control a second gate, door, light or auxiliary device.
This model is supplied inside a durable IP66-rated weather-resistant enclosure, making it suitable for protected outdoor, commercial, agricultural and industrial installations. It works with both Elsema PentaFOB and PentaCODE 433MHz remotes.
What’s Included:
- Genuine Elsema PCR43302240RE – 240V 2 Channel Receiver
- Micro Antenna
- IP66 Weatherproof Enclosure
- Programming Instructions
Key Features:
- Two voltage-free changeover relay outputs: Each relay includes Common (C), Normally Open (NO) and Normally Closed (NC) contacts.
- Flexible relay operation: Select momentary, latching, delayed-off or roller-shutter operating modes.
- Dual coding compatibility: Supports PentaCODE encrypted coding and the traditional 12-way code-switch system.
- Frequency-hopping technology: Operates across 433.10–434.70MHz to provide reliable wireless communication.
- High-capacity remote control system: Suitable for residential installations as well as larger commercial or shared-access applications.
- Antenna diversity: Helps improve reception reliability in electrically noisy or challenging environments.
- Diagnostic LEDs: Make programming, operation checks and fault-finding easier.
- Screw-terminal connections: Provides secure wiring connections for professional installation.
Ideal Applications:
- Keyless access control for gates, roller shutters, and garage doors
- Equipment and machinery control in factories and warehouses
- Home automation (garden lighting, swimming pool systems)
- Wireless security and lighting systems
- Industrial and agricultural equipment automation
Connection Diagram for PCR4302240R:
Technical Specifications:
| Frequency | 433.100 to 434.700MHz |
| Supply Voltage | 110 to 240 Volts AC Mains |
| Operating Temperature Range | -5 to 50°C |
| Receiver Memory Storage | Unlimited Remotes |
| Decoding System | Encrypted 17 billion codes combinations or Onboard 12-way code switch |
| Outputs | 2 Voltage free change over relay outputs, rated at 8 Amps at 240Volts AC |
| Relay Contacts | Common (C), Normally Closed (NC) & Normally Open (NO) |
| Connections | Screw type terminal block |
| Dimensions | 125 x 80 x 75mm |
| Weight | 330g |
| Useable Transmitters | PentaFOB and PentaCODE series |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
Frequently Asked Questions:
Which remotes are compatible with this receiver?
This receiver is compatible with Elsema PentaFOB FOB433 series and PentaCODE PCK433 series remotes. It supports both encrypted PentaCODE programming and the traditional 12-way code-switch system.
What can the two channels control?
Each channel has its own relay output and can be operated by a different remote button. For example, channel one could control a driveway gate while channel two operates a garage door, pedestrian gate, light or another auxiliary device.
Does the receiver include a remote control?
No. Compatible Elsema PentaFOB and PentaCODE remotes are sold separately, allowing you to select the number of buttons and remote style that best suits your installation.
What is the difference between the PCR43302240R and PCR43302240RE?

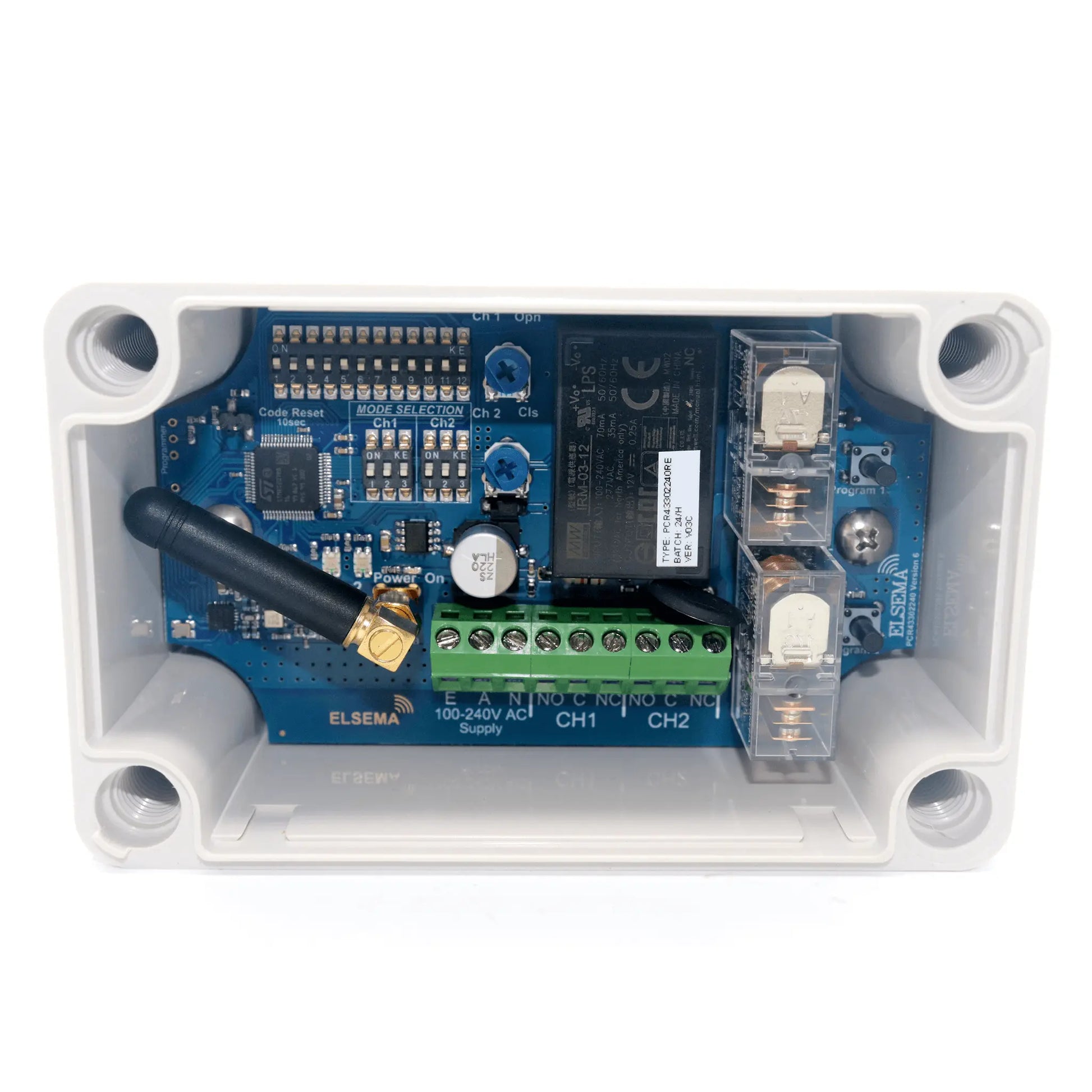

Both models provide two relay channels and operate from a 110–240V AC mains supply. The PCR43302240RE is supplied inside an IP66-rated enclosure, while the PCR43302240R is the receiver board version without the enclosure.
Can this receiver be installed outdoors?
The supplied IP66-rated enclosure provides protection against dust and water ingress when correctly installed. The enclosure, cable entries and seals must be properly fitted to maintain this protection. Installation in a sheltered position is recommended wherever possible.
Does the PCR43302240RE require an electrician?
Yes. This receiver connects to mains voltage and must be installed by a suitably qualified and licensed electrician. The installer must also confirm that its relay outputs are appropriate for the equipment being controlled.
Are the relay outputs powered?
No. The receiver provides two voltage-free changeover relay outputs, with Common, Normally Open and Normally Closed contacts. The relays act as switches and do not supply power to the connected device.

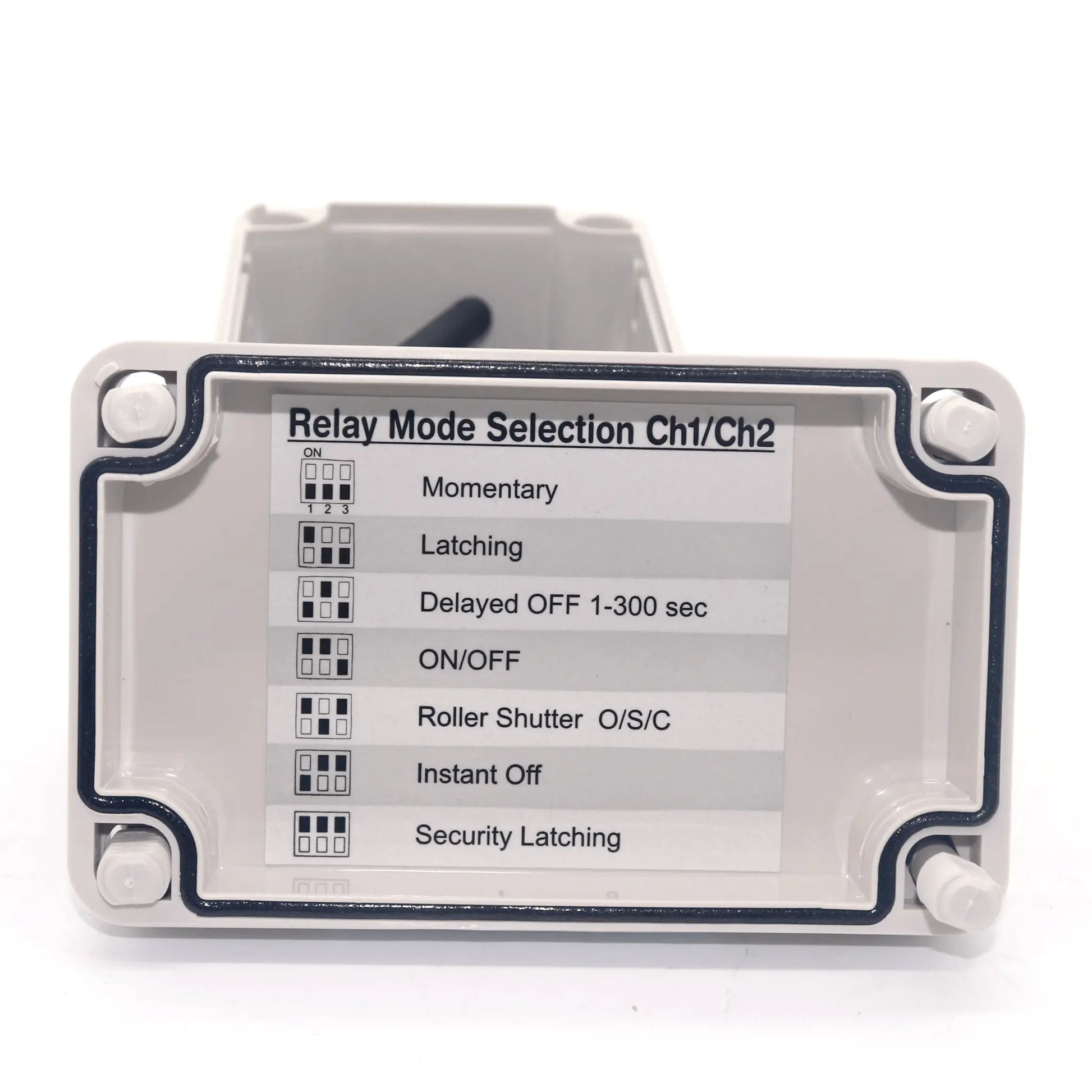

What operating modes are available?
The relay outputs can be configured for several applications, including momentary, latching, delayed-off and roller-shutter operation. The appropriate mode will depend on the equipment and required function.
Can each channel use a different operating mode?
Yes. Each relay channel can be configured to suit its intended function. For example, one channel may be set to momentary operation for a gate controller while the second uses latching or delayed-off operation for lighting.
