Elsema iS3000 Sliding Gate Kit

Elsema iS3000 Sliding Gate Kit

$4,449.95
$4,449.95
Sale Read More
Duties and taxes included. Shipping calculated at checkout.

Stock may need to be sourced from Australian suppliers to fulfil your order. Please allow additional time for dispatch. Contact us for ETA

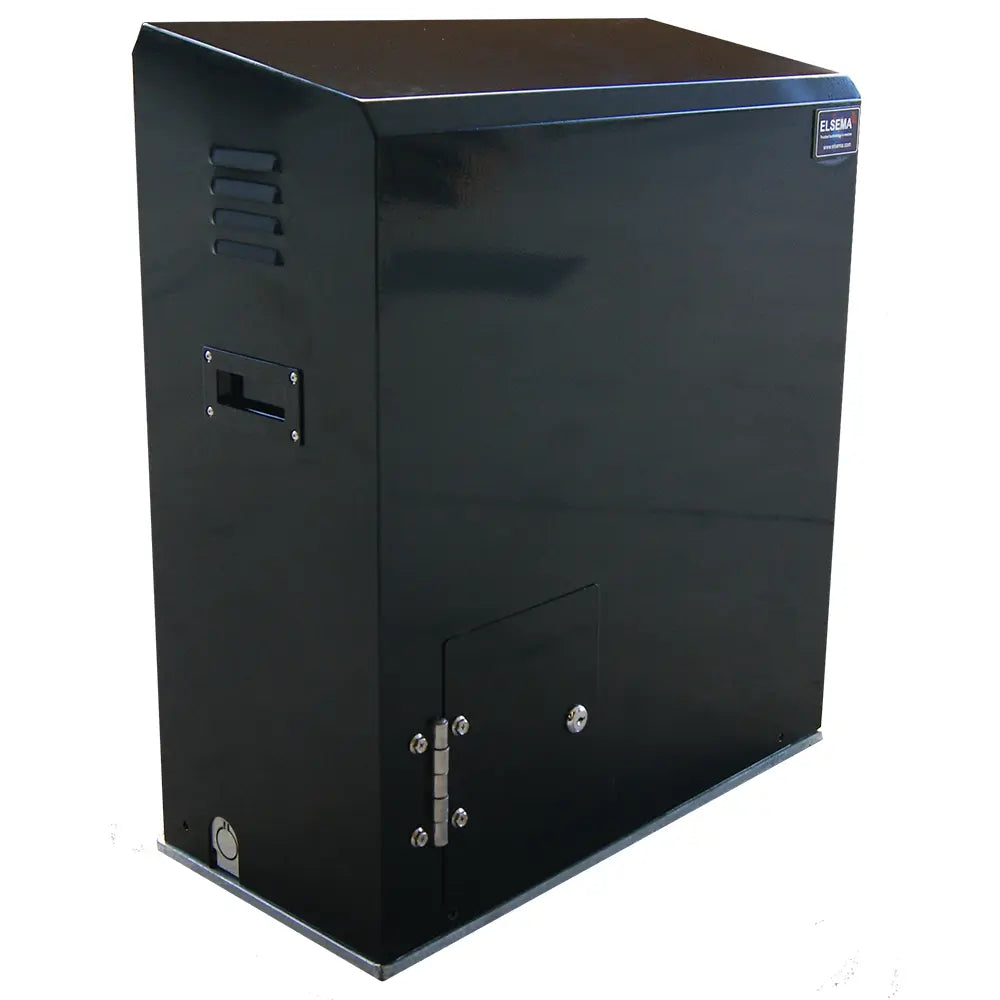

iS3000 - Heavy-Duty Industrial Sliding Gate Automation with Omron VSD

The Elsema iS3000 Sliding Gate Motor Kit is the ultimate heavy-duty solution for automating large industrial gates. Engineered for Australian conditions, this high-speed operator combines exceptional power, precision, and reliability to handle gates up to 3,000 kg with no limitation on gate length.

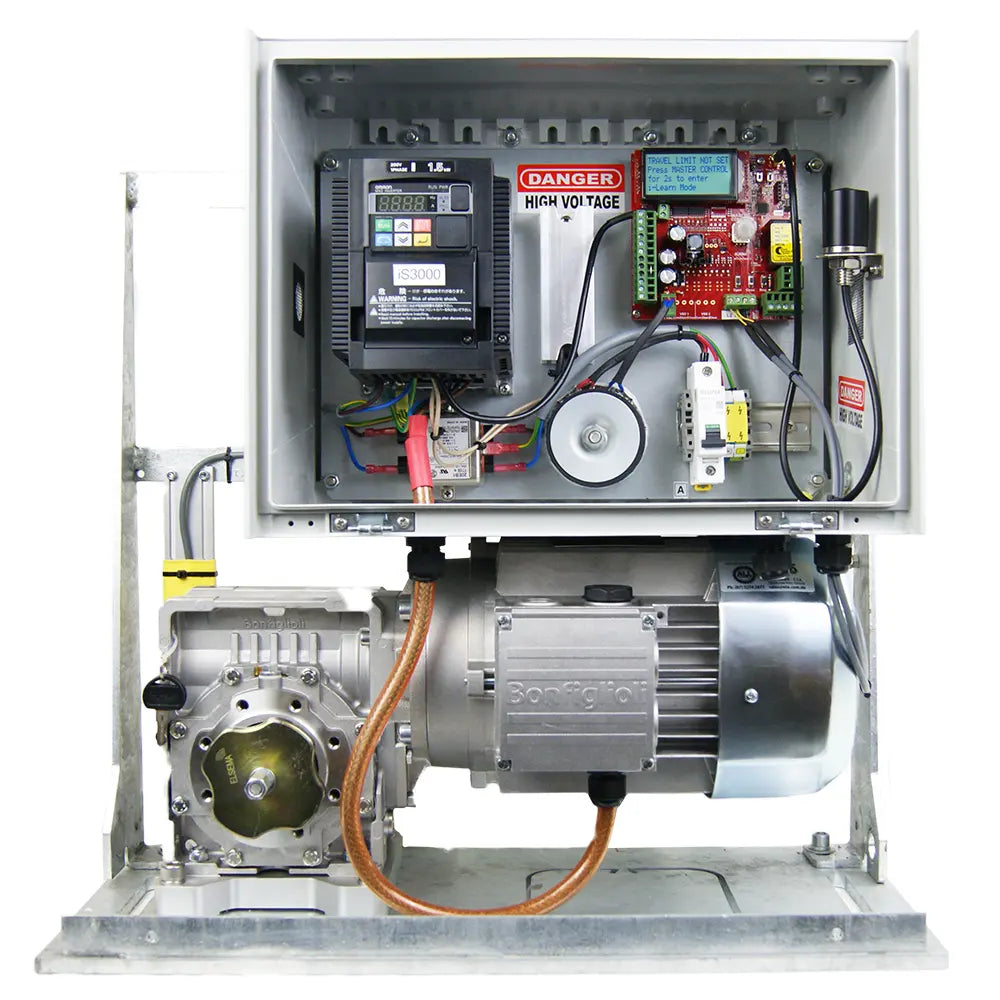

At its core is a powerful 1,100W motor with built-in Omron Variable Speed Drive (VSD) paired with Elsema’s Eclipse® Operating System. This combination delivers precise speed management and smooth, efficient gate movement—opening at speeds up to 19 m/min (315 mm/sec) while maintaining full control with soft start and soft stop functionality.

What’s Included:

  • iS3000 Sliding Gate Motor with built-in Omron VSD
  • 1 x PE3000 Photoelectric Safety Beam
  • 3 x PentaFOB Remotes
  • Vandal-Proof Antenna
  • Mounting Base
  • Manual Release Key
  • Installation Accessory Pack

Key Features:

  • High-Speed Heavy Industrial Gate Operator – Up to 19 m/min travel speed
  • Handles Gates up to 3,000 kg – No limitation on gate length
  • Omron VSD with Eclipse® OS – Smooth motion and simple English menu setup
  • Dual Contactless Limit Switches – Accurate, maintenance-free detection
  • Soft Start and Soft Stop – Reduces wear and increases safety
  • Powder-Coated Metal Cover – Durability in harsh environments
  • Compatible with G4000 4G Gate Opener – Remote control with a free phone call
  • Unlimited Remote Storage – Ideal for high-traffic industrial facilities

Ideal Applications:

  • Logistics hubs and distribution centres
  • Manufacturing plants and warehouses
  • Heavy-duty commercial and industrial sliding gates

Dimensions:

Conduit Layout

Technical Specifications:

Motor Voltage 240 Volts AC motor
Max Absorbed Power 1100 Watts
Power Supply 240 Volts AC
Nominal Input Current 10 Amps
Motor Speed 315 mm/sec
Maximum Gate Weight Up to 3000kg on level ground
Duty Cycle 80% over 12 min
Operating Temp -20°c - +50°c
Motor Kit Weight 70kg
Warranty 12 months Manufacturers Warranty
