Elsema iS600 Sliding Gate Opener Kit – AXIOM Series

The Elsema iS600 Sliding Gate Opener Kit is a complete Australian designed automation package for residential sliding gates weighing up to 600kg on level ground.

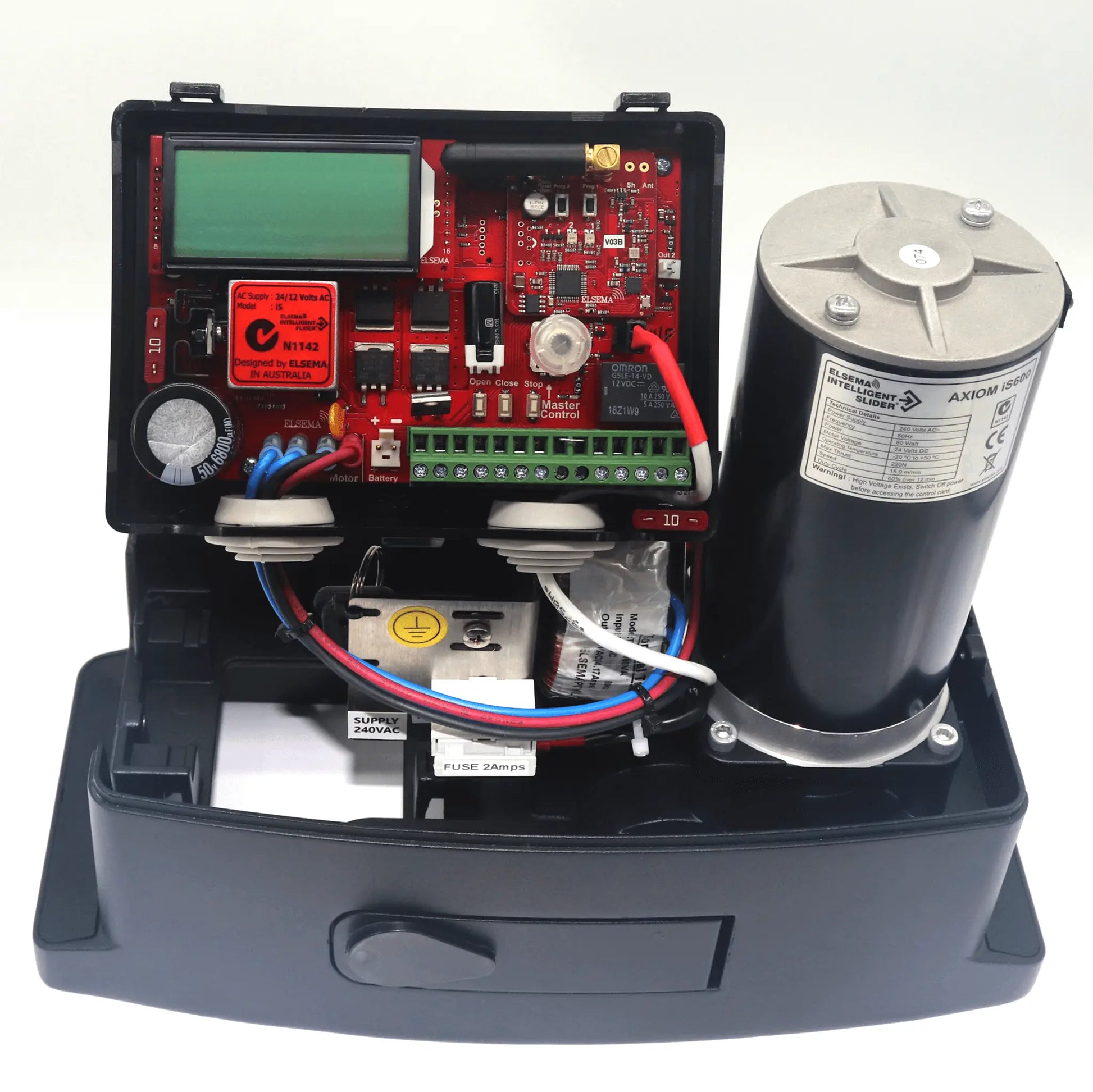

Part of Elsema's AXIOM series, the iS600 combines a 24V DC motor, all-metal gearbox, contactless limit switch and Eclipse® Operating System (EOS) to provide smooth and reliable gate automation.

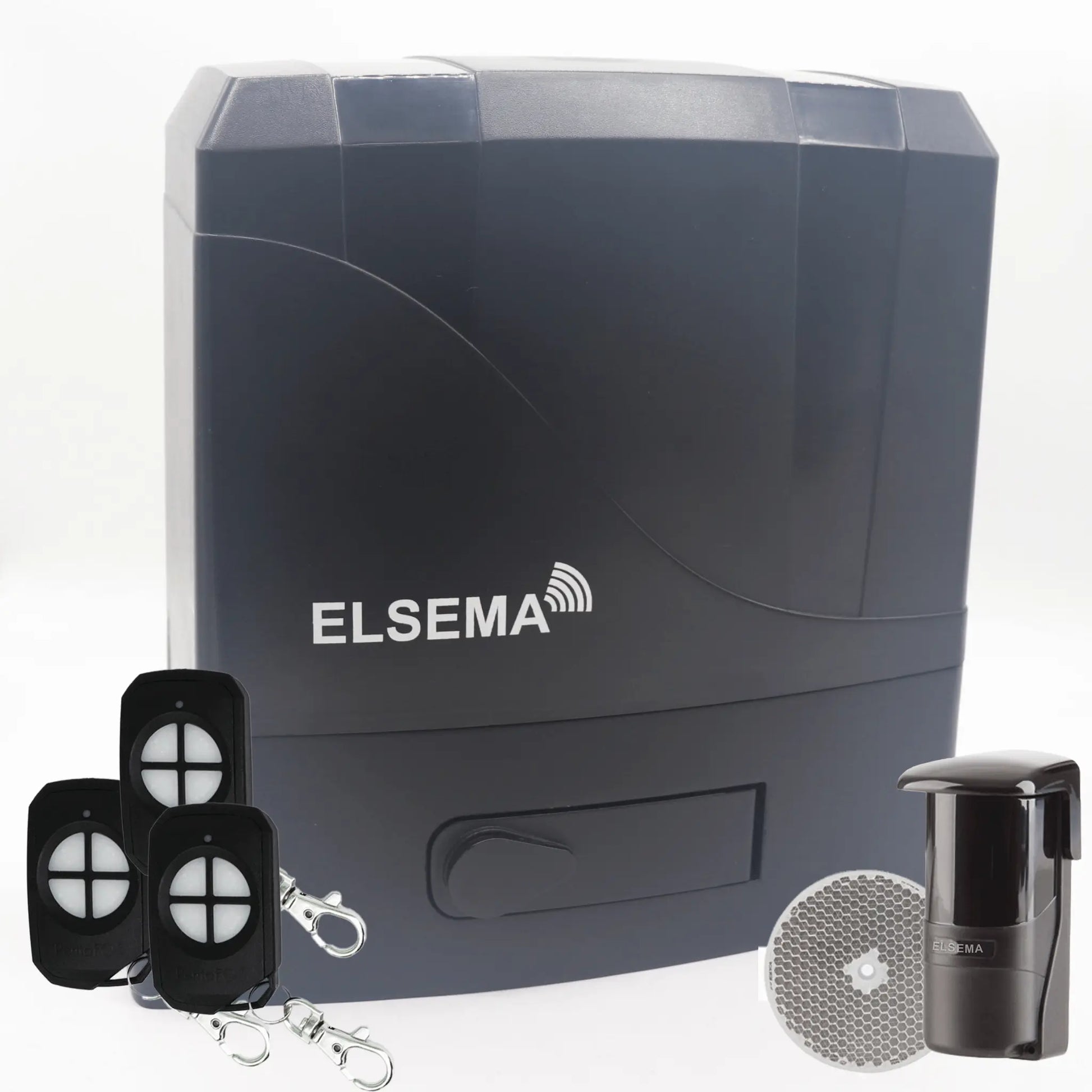

The complete kit includes the iS600 gate motor, 3 x PentaFOB remotes, 4 steel-reinforced nylon gear racks and a long-range photoelectric safety beam, giving you the major automation components needed for a new sliding gate installation.

With soft start and soft stop, adjustable anti-crush settings, pedestrian access and support for accessories including keypads, vehicle detectors, intercoms and GSM/smartphone access, the iS600 is an excellent choice for everyday residential sliding gates.

What’s Included:

• iS600 sliding gate motor
• 4 x Steel reinforced Nylon Gear Rack - 1m length
• Control card with Eclipse Operating System
• 3 x PentaFOB remotes
• Long range reflector type photoelectric beam
• Installation Accessory Pack
• Installation Instructions

Key Features:

• Genuine Elsema AXIOM Series Motor
• Cost-effective automation for sliding gates up to 600kg
• Self-learning intelligent positioning technology
• Soft Start & Stop: Gradually accelerates and slows the gate to provide smoother movement and reduce mechanical shock during everyday operation.
• All-metal gearbox and contactless limit switch for durability
• Eclipse® Operating System (EOS): Elsema's menu-driven control system uses an LCD display to assist with gate setup, adjustments and monitoring of motor and input/output status.
• 15 metres per minute motor speed for quick gate movement
• Adjustable auto-close, pedestrian access, and anti-crush settings
• Compatible with a wide range of access control systems
• Designed for Australian conditions (–20°C to +50°C)

Ideal Applications:

The iS600 is designed primarily for domestic sliding gate automation and is suitable for gates weighing up to 600kg on level ground.

The iS600 is a good choice for:

• Residential driveway sliding gates
• New sliding gate automation installations
• Existing manual sliding gates being converted to automatic operation
• Gates requiring remote, keypad, intercom or smartphone access
• Installations where smooth soft-start and soft-stop operation is preferred
• Homes requiring pedestrian opening as well as full gate operation

Important: The 600kg rating assumes a correctly installed gate operating freely on level ground. Gate condition, track resistance, slope, wind loading and installation requirements should also be considered when selecting a gate motor.

Technical Specifications:

Downloads:

Gate Motor

Control Board

Frequently Asked Questions:

What are the key features of these kits?

Soft start and Soft Stop, contactless limit switch, an all metal gearbox, adjustable anti-crush and Eclipse operating system.

What speed do the motors run?

Typical travel speed is about 15 metres per minute, roughly 250mm per second for smooth residential use.

What power do the motors and controllers use?

The motors are 24 Volts DC while the main supply is 240 volts AC

What comes in a standard kit?

A motor with eclipse controller, 3 x PentaFOB remotes, 4 x Reinforced Gear racks with screws and a long range reflector safety beam.

Is smartphone control supported?

Yes, the kits are compatible with the G4000 4G gate opener for free call entry and remote user management.

How many remotes can be stored?

Remote storage is effectively unlimited on the Eclipse control platform for flexible household access.

What applications are these kits suited for?

They are designed for domestic sliding gates where reliable automation, quiet operate and safety accessories are required.
