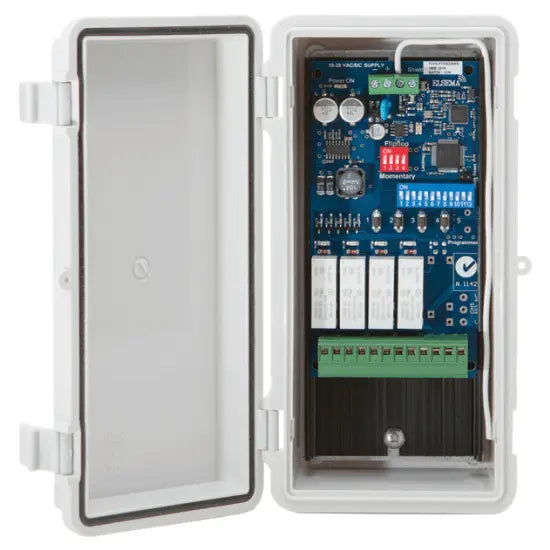

Elsema PCR43304RE 4 Channel Penta Receiver – IP66 Enclosure
The Elsema PCR43304RE is a four-channel Penta receiver supplied inside an IP66 weather-resistant enclosure. Its four independent voltage-free relay outputs allow one receiver to control up to four separate gates, garage doors, lights, pumps or other automation devices.
Operating from 12–24V AC/DC, the receiver is compatible with both Elsema PentaFOB and PentaCODE remotes. Each relay channel can be independently configured for momentary or latching operation, while frequency-hopping technology provides reliable communication in areas affected by radio interference.
The PCR43304RE supports an unlimited number of compatible remotes, making it suitable for residential, commercial, industrial and multi-user access-control installations.
What’s Included:
- 1 × Brand New Genuine PCR43304RE Receiver with Relay Output
- 1 x IP66 Weather-Rated Enclosure
- 1 x Micro Antenna
- 1 Step-by-step Wiring Programming Instructions
Key Features:
- Four independent relay outputs: Control up to four separate gates, doors, lights or automation devices
- Voltage-free changeover contacts: C, NO and NC connections on every channel
- High-capacity relays: Rated at up to 10A at 240VAC per relay
- IP66 weather-resistant enclosure: Suitable for protected outdoor and industrial installations
- 12–24V AC/DC operation: Compatible with many gate, garage-door and access-control systems
- Dual remote compatibility: Works with Elsema PentaFOB® and PentaCODE® transmitters
- Unlimited remote capacity: Suitable for homes, businesses, apartment complexes and gated communities
- Selectable output modes: Configure each channel for momentary or latching operation
- Frequency-hopping technology: Operates across 433.10–434.70MHz to reduce interference
- Diagnostic LEDs: Indicate power, remote reception and relay activation
- Genuine Australian Designed Elsema product
Compatible with:
- Elsema PentaFOB
- Elsema PentaFOB Waterproof
- Elsema PentaCODE
- Elsema PentaCODE Hardwired
- Elsema PentaFOB Hardwired
- Elsema Penta FOBSwitch
- Elsema PentaFOB Handheld
Not Compatible with:
- Elsema FMT
- Elsema KEY
- Elsema Gigalink
- Elsema MultiCode
Not sure which remote you would like to use? Check out our Comparison Blog Post Here
Ideal Applications:
- Multiple automatic gates or garage doors
- Pedestrian and vehicle access
- External or garden lighting
- Pumps and irrigation equipment
- Security and alarm equipment
- Industrial machinery and automation controls
- Apartment complexes and commercial car parks
Connection Diagram for PCR43304R:
Technical Specifications:
| Frequency | 433.100 to 434.700Mhz |
| Code Type | 12-way dipswitch (1-8 sets site code and 10-12 sets remote button position) |
| Body Type | Receiver |
| Number of Channels | 4 |
| Enclosure | IP66 Enclsoure |
| Size | 200 x 100 x 75mm |
| Power Supply | 12 – 24 Volts AC or DC |
| Outputs | 4 change over relay outputs, rated at 10 Amps 240VAC each |
| Standby Current | 15 mA stand by at 24VDC |
| Connection | Supply is a screw type terminal block; Relay outputs are plug-in type terminal block |
| Range | Refer to Remote Control specifications |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
Frequently Asked Questions:
Can I buy the Receiver without the case?
Yes. The PCB is available as receiver only - PCR43304R
Which remotes work with the PCR43304RE?
It is compatible with Elsema PentaFOB FOB433 series and PentaCODE PCK433 series remotes. It does not work with Elsema Gigalink, Multicode, FMT or KEY remotes.
Can the PCR43304RE control four different devices?
Yes. It has four independently controlled relay outputs. For example, it could operate a gate, garage door, light and pump from separate remote buttons.
What power supply does this receiver require?
The receiver requires a 12–24V AC or DC power supply. It must not be connected directly to 240V AC power.
How many remotes can be programmed?
The PCR43304RE supports unlimited remote storage, making it suitable for businesses, gated communities and other multi-user installations.
What output modes are available?
Each relay can be configured for momentary or latching operation. Security-latching operation is also available for suitable alarm and security applications.
