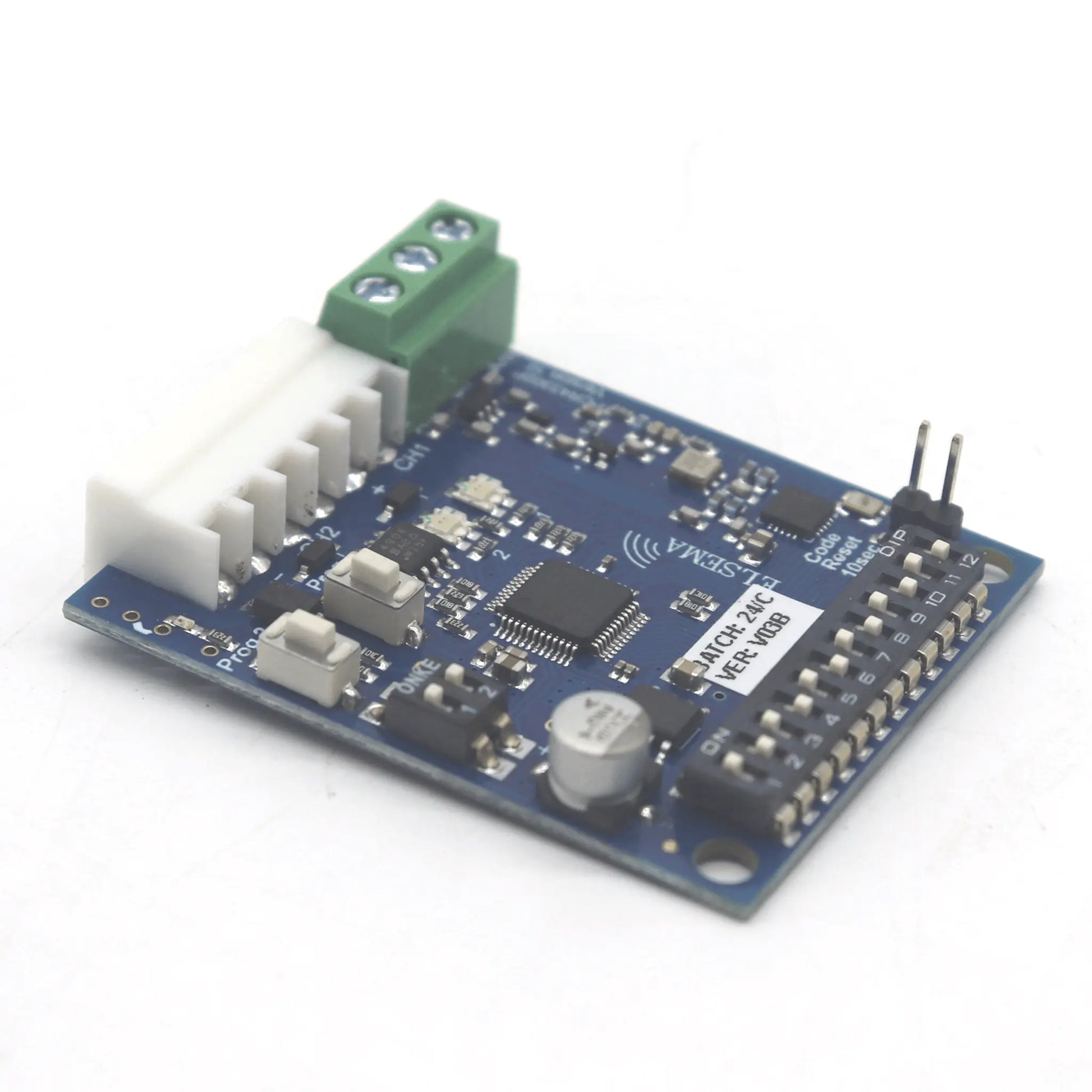

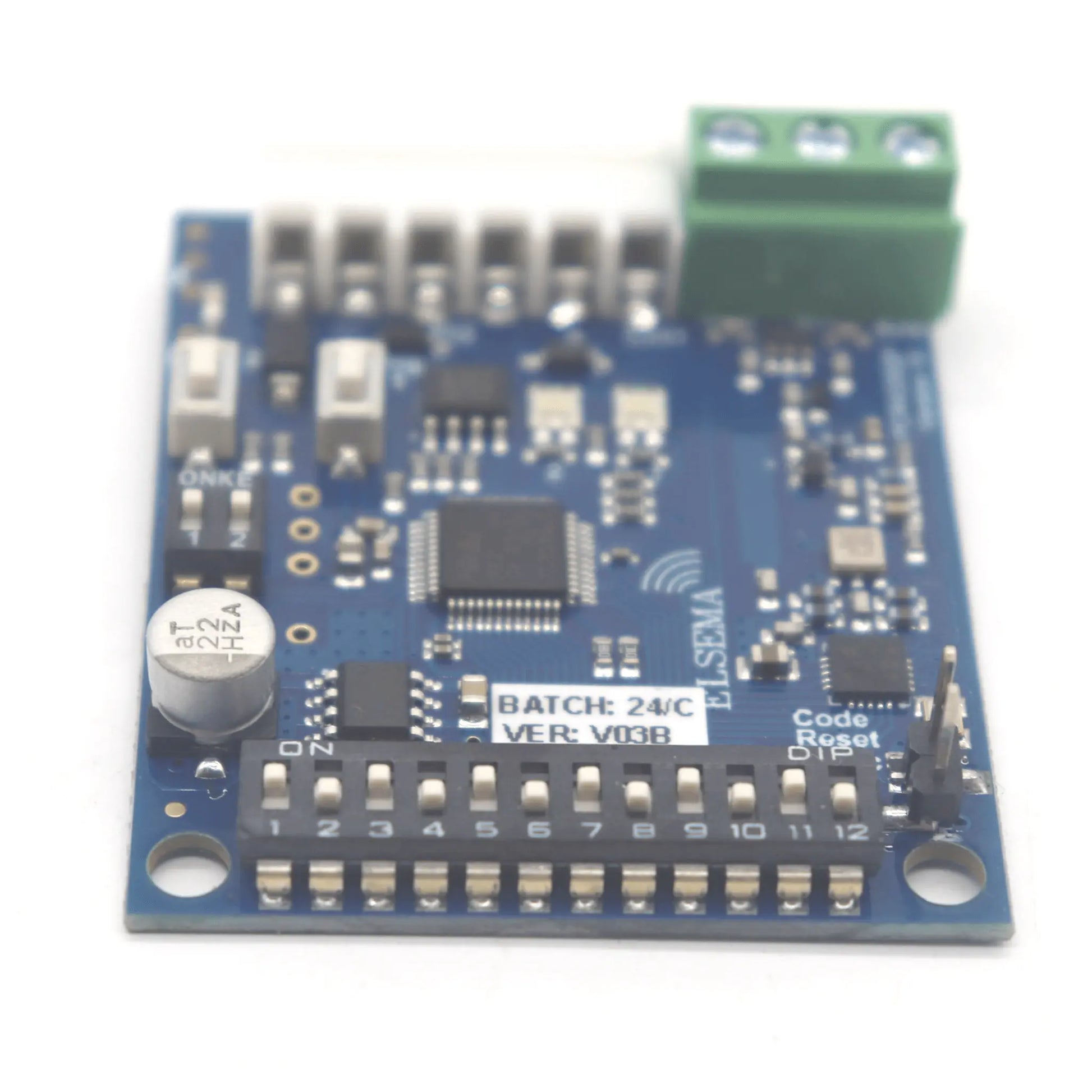

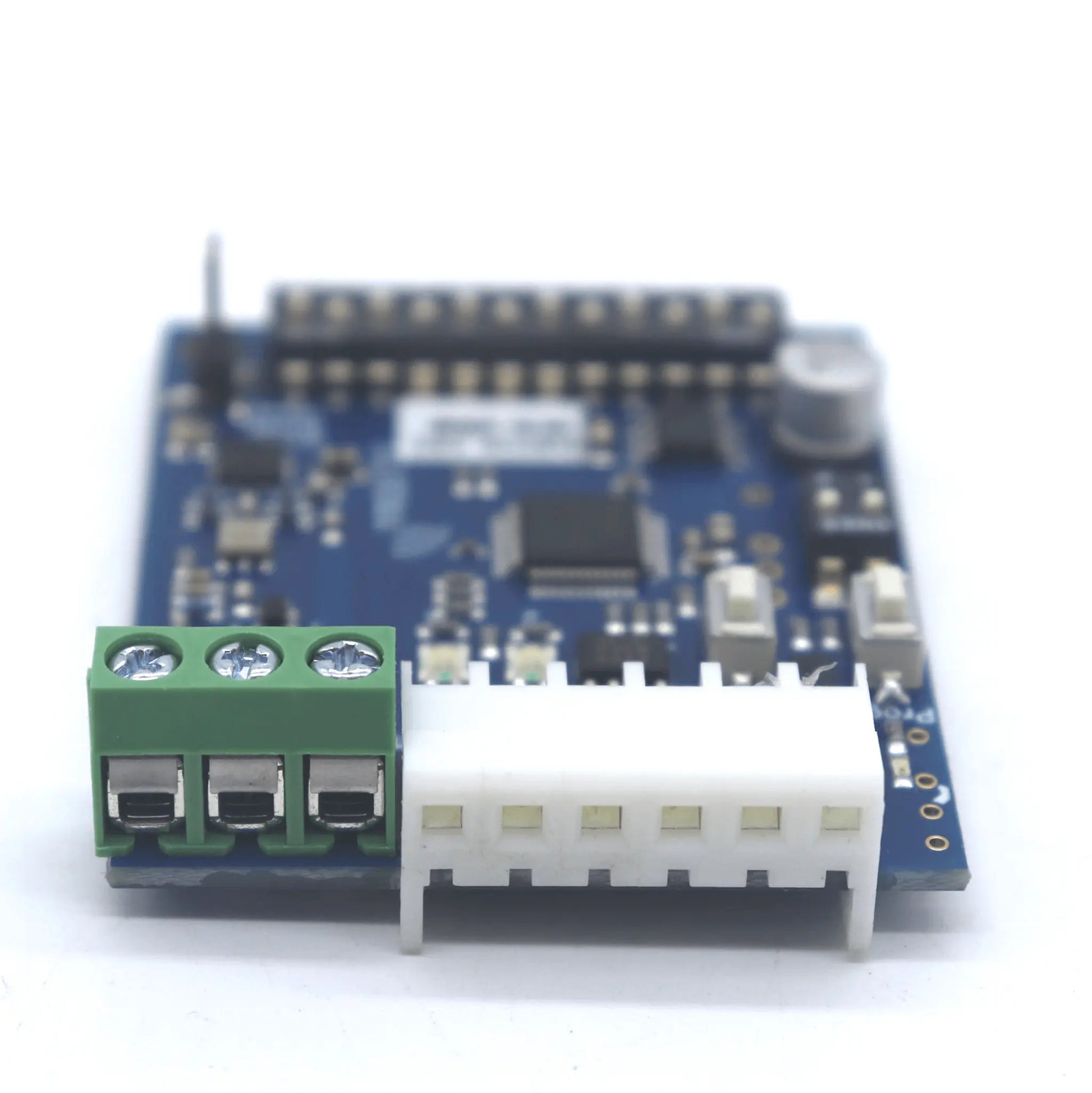

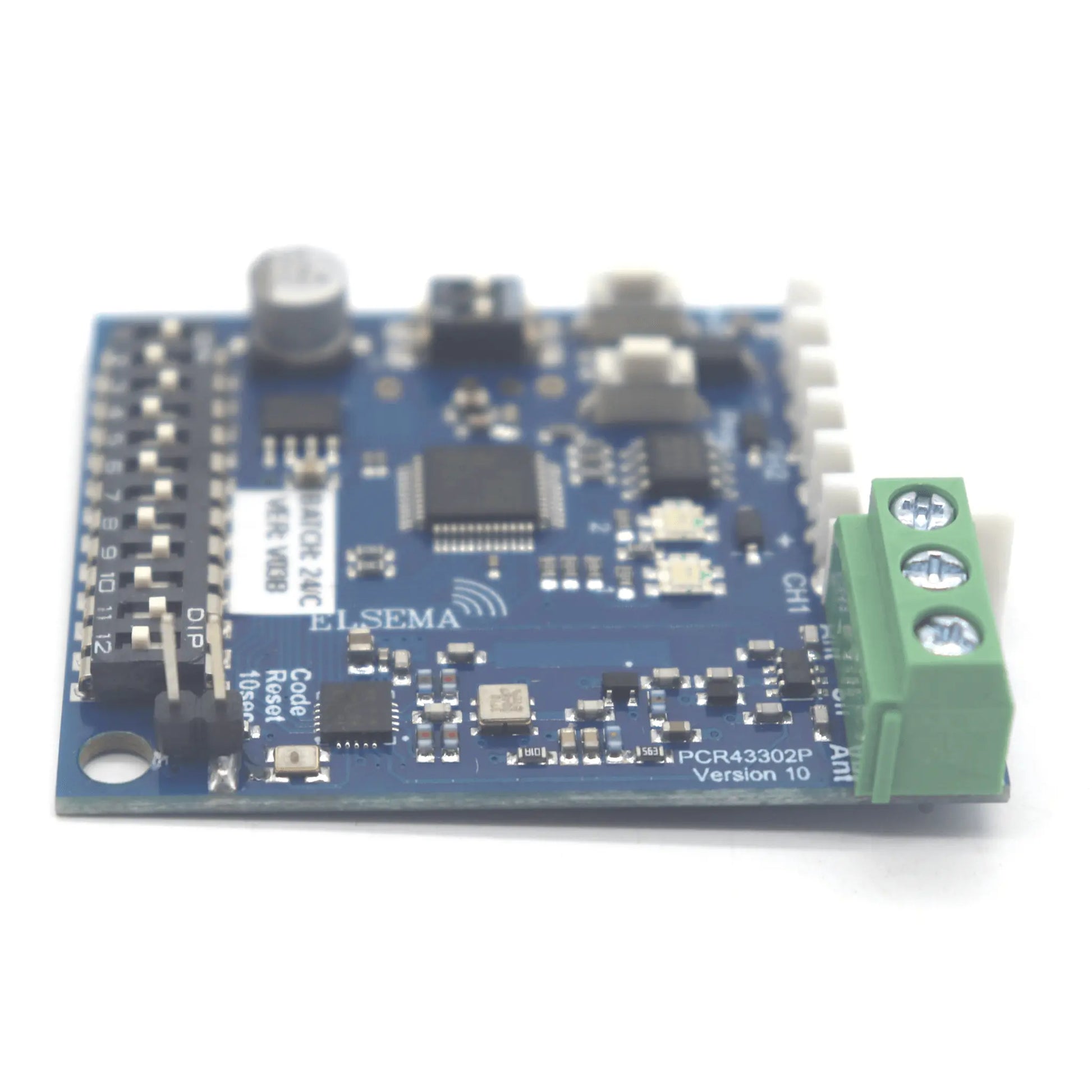

Elsema PCR43302P Receiver

PCR43302P - Penta 2-Channel Plug-in Receiver

The genuine Elsema PCR43302P is a compact 433MHz Penta receiver designed for compatible control boards and custom automation applications requiring a 6-pin plug-in connection. It provides two independently controlled open-collector MOSFET outputs, with each output capable of switching up to 2A at 40VDC.

Compatible with Elsema PentaFOB and PentaCODE remotes, the PCR43302P supports frequency-hopping technology, encrypted coding and traditional 12-way dip-switch coding. Its compact 55 × 44 × 13mm design makes it particularly useful where installation space is limited.

The receiver operates from 7–36VDC and is commonly used in automatic gates, garage doors, access-control systems, alarms and custom machinery control. Because this model uses open-collector outputs rather than dry-contact relays, compatibility should be confirmed before purchase.

What’s Included:

• 1 × Brand New Genuine PCR43302P Plug-in Receiver with Open Collector
• 1 Step-by-step Wiring Programming Instructions

Key Features:

• Genuine Australian-designed Elsema receiver
• Two independent open-collector MOSFET outputs
• Maximum output switching: 2A at 40VDC per channel
• Standard 6-pin female plug-in connector
• Operates from 7–36VDC
• Compatible with PentaFOB and PentaCODE remotes
• Frequency hopping across 433.10–434.70MHz
• Encrypted coding or traditional 12-way dip-switch coding
• Momentary or latching operation selectable per channel
• Unlimited remote storage
• Antenna diversity for improved communication reliability
• Supports external Elsema ANT433-series antennas
• Compact 55 × 44 × 13mm design
• Onboard diagnostic LEDs for power, reception and output status

Compatible with:

• Elsema PentaFOB
• Elsema PentaFOB Waterproof
• Elsema PentaCODE
• Elsema PentaCODE Hardwired
• Elsema PentaFOB Hardwired
• Elsema PentaFOB Handheld

Not Compatible with:

• Elsema FMT
• Elsema KEY
• Elsema Gigalink
• Elsema MultiCode

Not sure which remote you would like to use?  Check out our Comparison Blog Post Here

Ideal Applications:

The Elsema PCR43302P is commonly installed in:

• Commercial automatic gates
• Apartment complexes
• Industrial facilities
• Warehouse roller doors
• Boom gates
• Farm entrances
• Irrigation systems
• Pump control
• Machinery control
• Access control systems

Connection Diagram:

Important connection information: The PCR43302P is a 6-pin plug-in receiver with open-collector outputs. It is designed for compatible control boards or custom electronic integration and is not a universal plug-in replacement for every gate or garage door opener. Check the control board connection, supply voltage and output requirements before ordering. If your equipment requires relay outputs or wired terminals, another Penta receiver may be more suitable.
