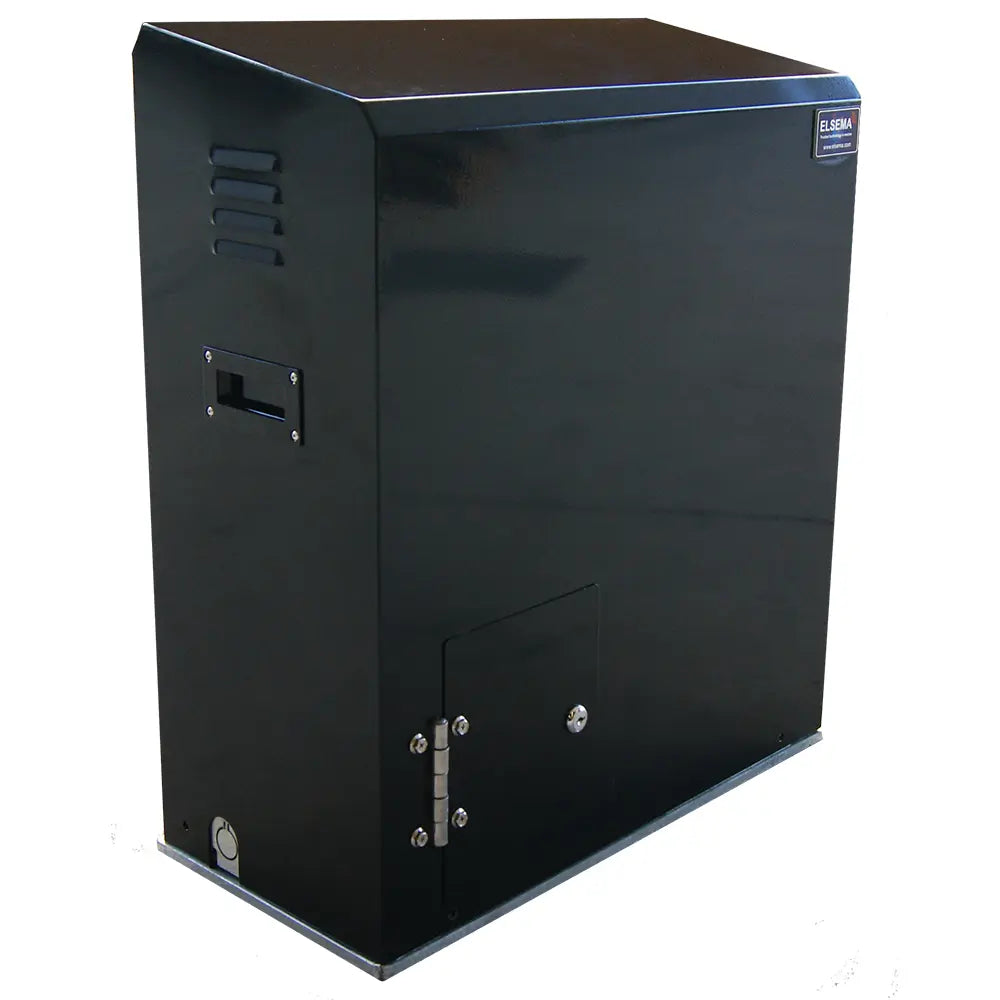

Elsema iS1500LV Sliding Gate Kit

Elsema iS1500LV has been discontinued by Elsema.

New version now available - iS1400

The Elsema iS1500LV Sliding Gate Motor Kit is a low voltage high-speed commercial gate automation solution designed for demanding industrial and commercial environments. Engineered in Australia for Australian conditions, it offers powerful, reliable operation for light industrial sliding gates, warehouses, factories, and other high-traffic applications.

What’s Included:

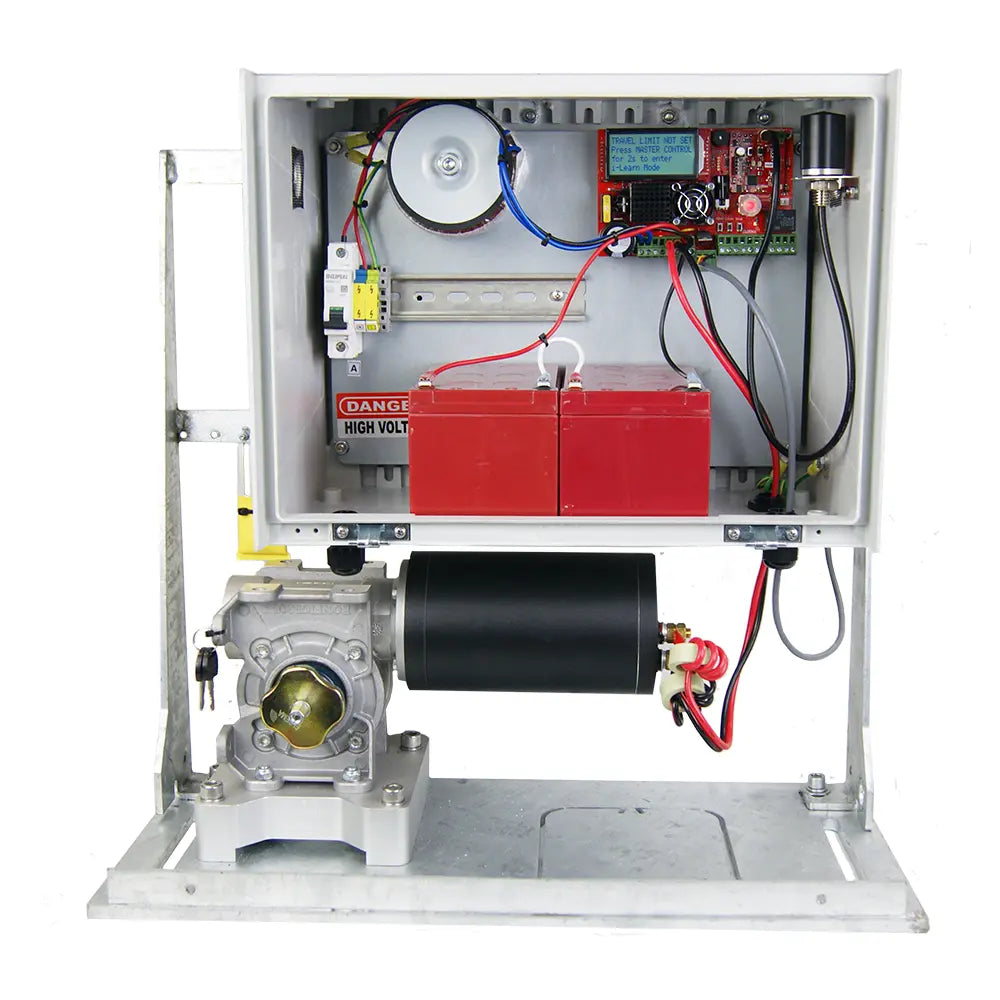

• iS1500LV Sliding Gate Motor with Eclipse® Control Card
• 3 x PentaFOB Remotes
• Vandal-Proof Antenna
• Mounting Base
• Manual Release Key
• 2 x 15Ah Batteries
• Installation Accessory Pack

Key Features:

• High-Speed Commercial Gate Operator – Faster than 20 metres per minute travel speed
• Eclipse® Control Card – Easy installation, profiling, and programming
• Contactless Magnetic Limit Switches – Accurate, maintenance-free operation
• Soft Start and Soft Stop – Smooth motion reduces wear and tear
• Stop or Slow on Limit – Enhanced safety and reliability
• Designed in Australia for Australian Conditions – Robust and weather-resistant build
• Battery Backup Included – Uninterrupted access even during power outages
• Adjustable Anti-Crush Safety – Obstruction detection and automatic stop/reverse

Ideal Applications:

• Light industrial and commercial sliding gates
• Warehouses, factories, and high-traffic facilities
• Sites requiring remote gate operation and secure access control

Dimensions:

Conduit Layout:

Technical Specifications:

Motor Voltage	24 Volts DC motor
Max Absorbed Power	250 Watts
Power Supply	240 Volts AC
Nominal Input Current	10 Amps
Motor Speed	367 mm/sec
Maximum Gate Weight	Up to 1200kg on level ground
Duty Cycle	80% over 12 min
Operating Temp	-20°c - +50°c
Motor Kit Weight	45kg
Warranty	12 months Manufacturers Warranty
