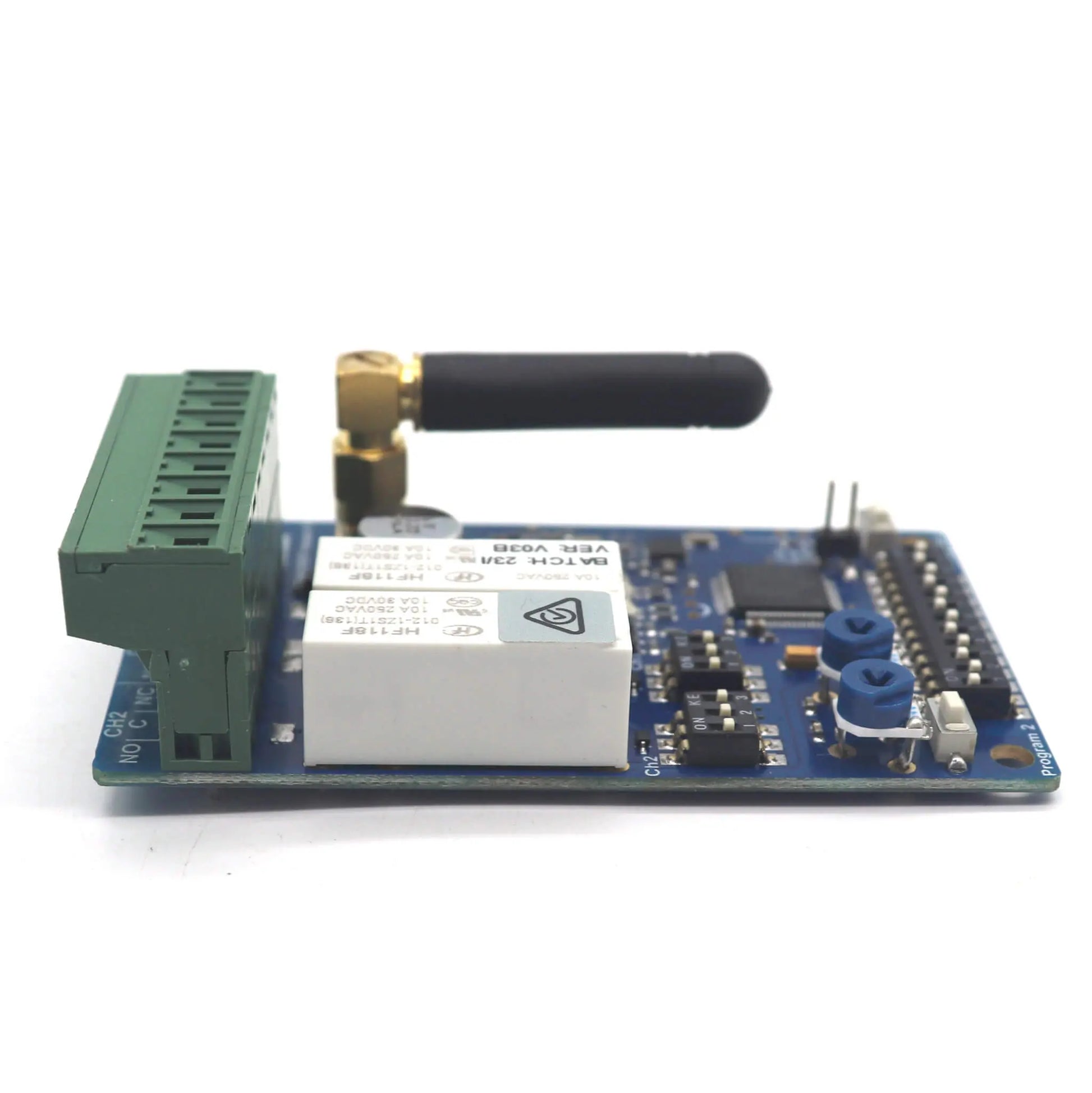

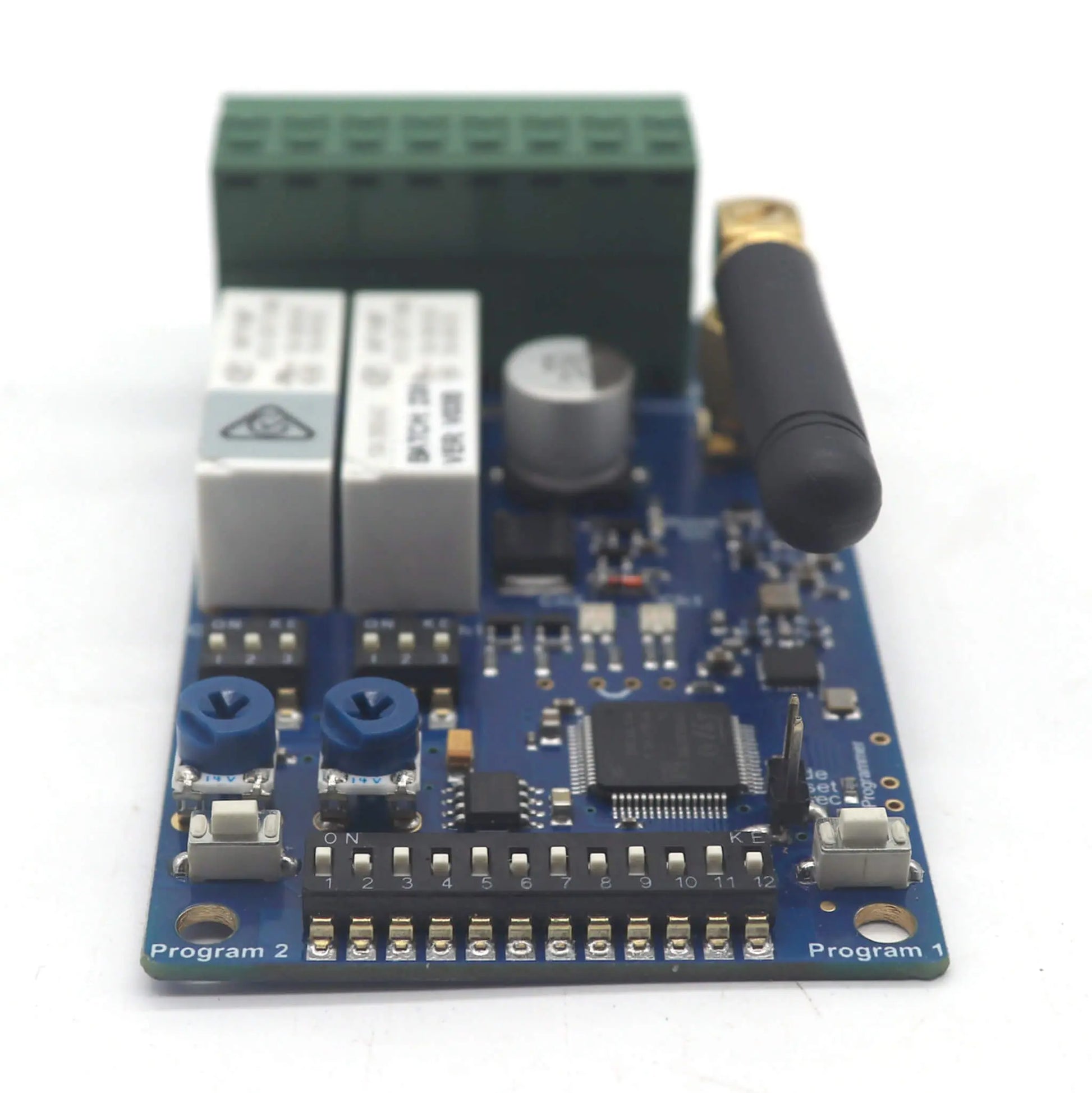

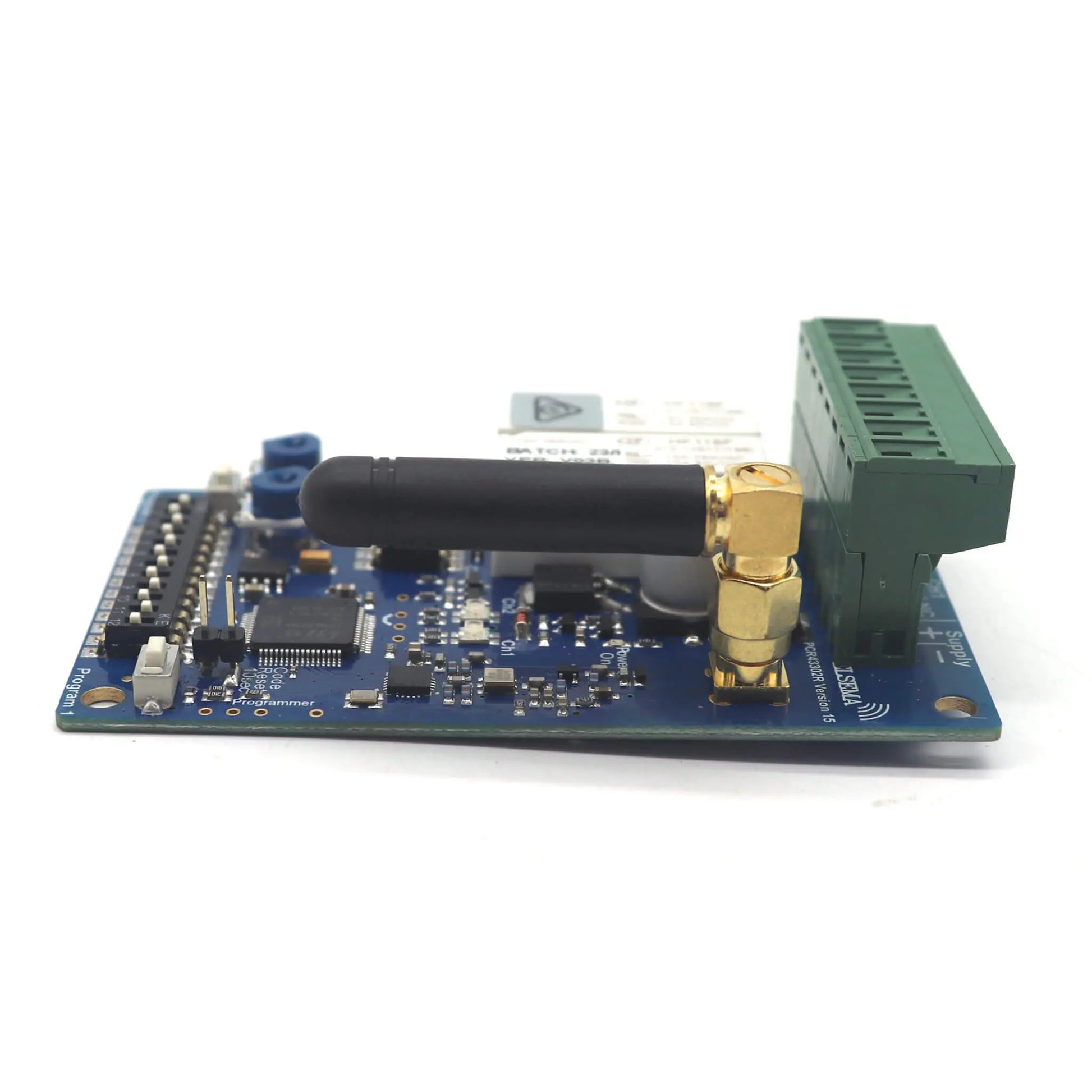

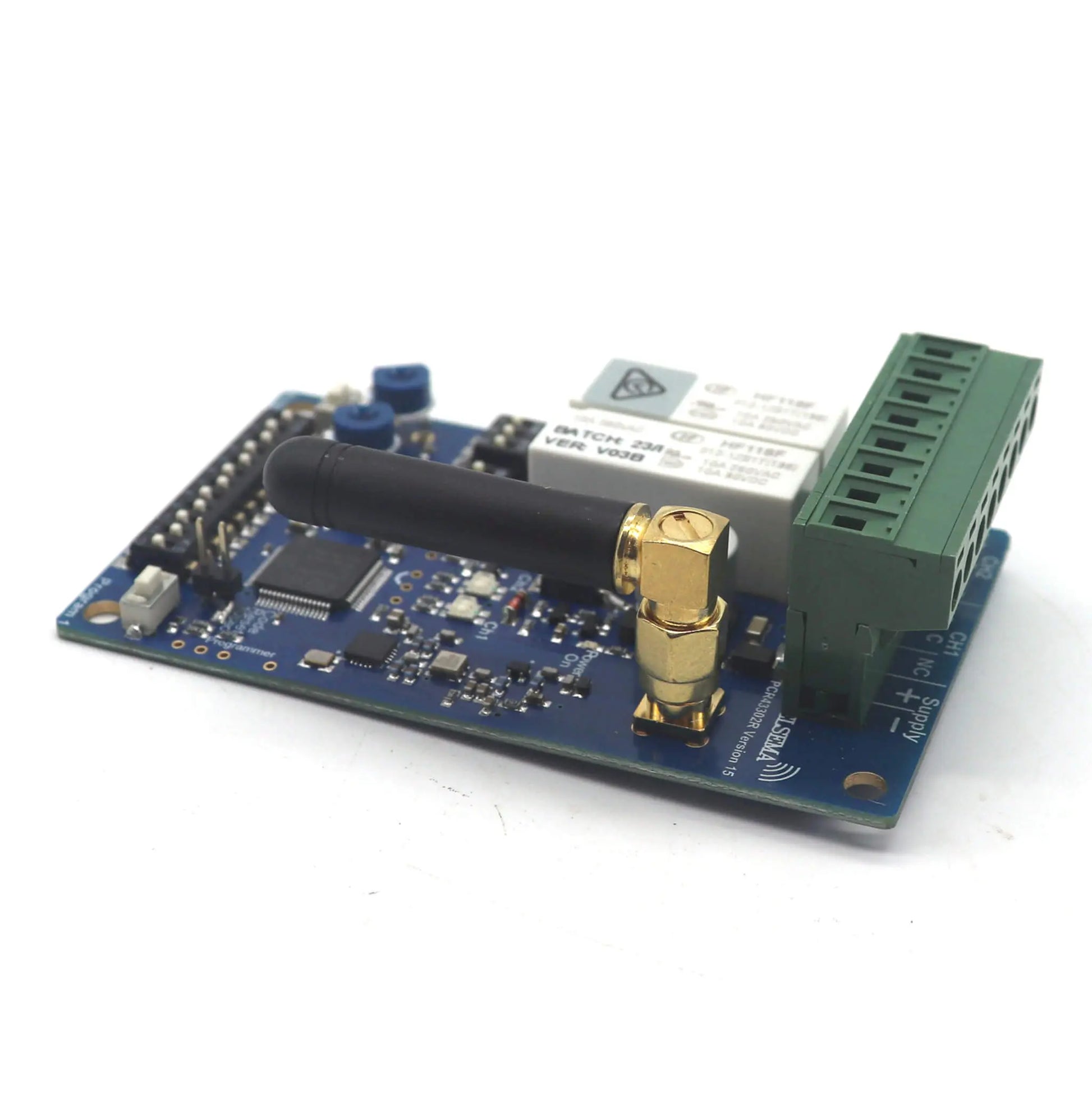

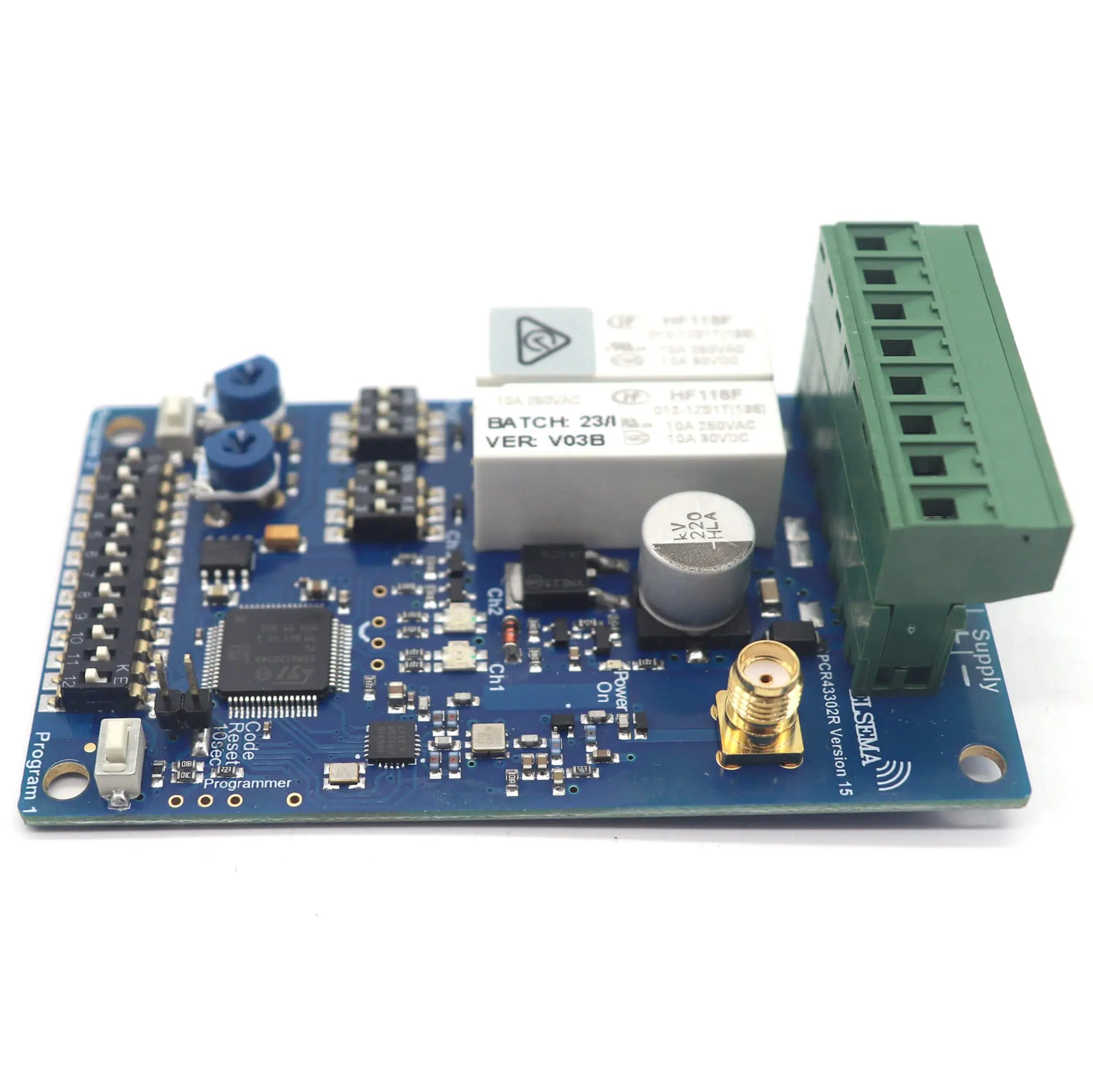

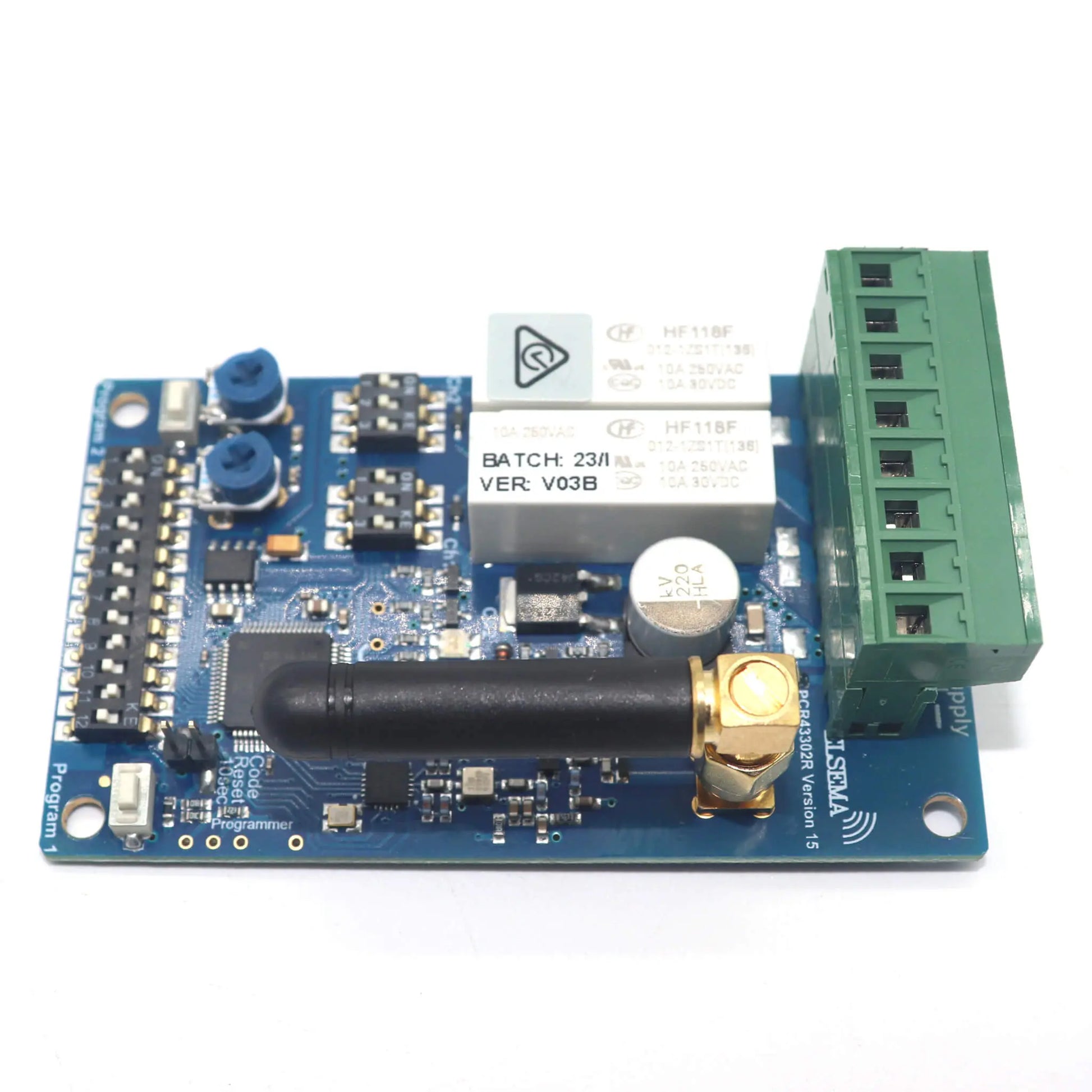

Elsema PCR43302R 2 Channel Penta Receiver | 12-24V Wire-In Receiver
The Elsema PCR43302R is a genuine 2-channel Penta Receiver designed for professional automation installations requiring secure wireless control. Operating from a flexible 12-24V AC/DC power supply, it allows independent control of two relay outputs using either Elsema PentaFOB or PentaCODE transmitters.
Featuring Elsema's advanced Frequency hopping spread spectrum (FHSS) technology, the PCR43302R provides outstanding resistance to interference while delivering reliable long-range performance for residential, commercial and industrial automation systems.
Ideal for automatic gates, garage doors, boom gates, access control, lighting, irrigation, pumps, roller shutters and machinery control.
Includes:
- Genuine Elsema Wire-In 2 Channel Receiver

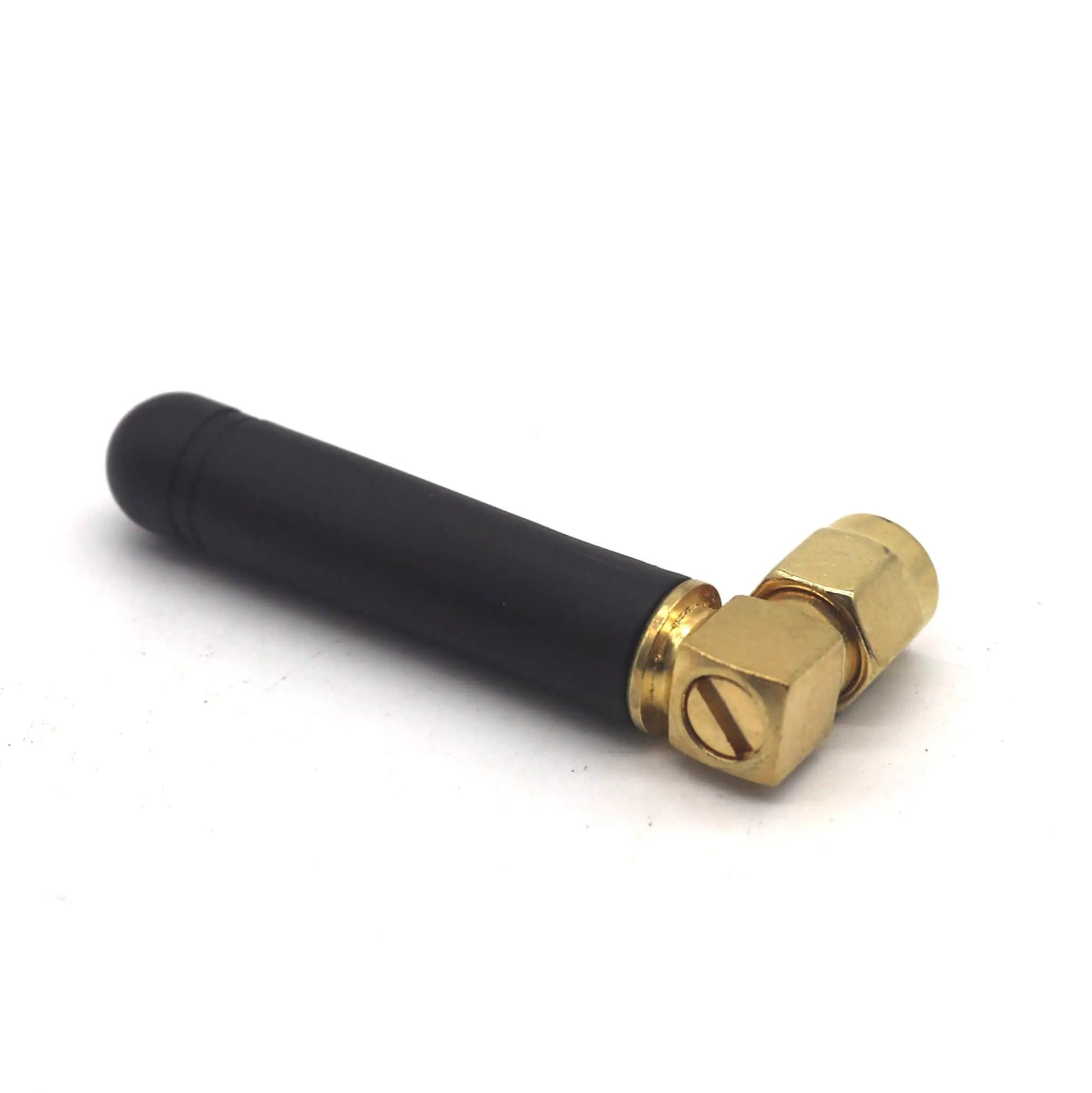

- Micro Antenna
- Programming Instructions
Key Features:
- Genuine Elsema Product
- Five Frequency Hopping between 433.10 to 434.70 MHz
- Compatible with PentaCODE or PentaFOB remote series
- 2 independent channels
- Selectable Output Modes - Momentary, latching, delayed off
- Wide Operating Range: up to 100-200m
- High 10A Relay Output
- Diagnostic LED indicators
Compatible with:
- Elsema PentaFOB
- Elsema PentaFOB Waterproof
- Elsema PentaCODE
- Elsema PentaCODE Hardwired
- Elsema PentaFOB Hardwired
- Elsema Penta FOBSwitch
- Elsema PentaFOB Handheld
Not Compatible with:
- Elsema FMT
- Elsema KEY
- Elsema Gigalink
- Elsema MultiCode
Not sure which remote you would like to use? Check out our Comparison Blog Post Here
Ideal Applications:
- Automatic Gates
- Sliding Gates
- Swing Gates
- Garage Doors
- Boom Gates
- Roller Doors
- Roller Shutters
- Access Control
- Lighting Control
- Irrigation
- Pumps
- Farm Automation
- Industrial Machinery
- Warehouse Doors
- Commercial Buildings
Connection Diagram and Dimensions:
Technical Specifications:
| Supply Voltage | 12 – 24 Volts AC or DC. |
| Standby Current | 21mA standby at 24VDC |
| Frequency Band | 433.100 to 434.700MHz |
| Operating Temperature Range | -5 to 50°C |
| Receiver Memory Storage | Unlimited Remotes |
| Decoding Systems | Encrypted 17 billion codes combinations or On board 12-way code switc |

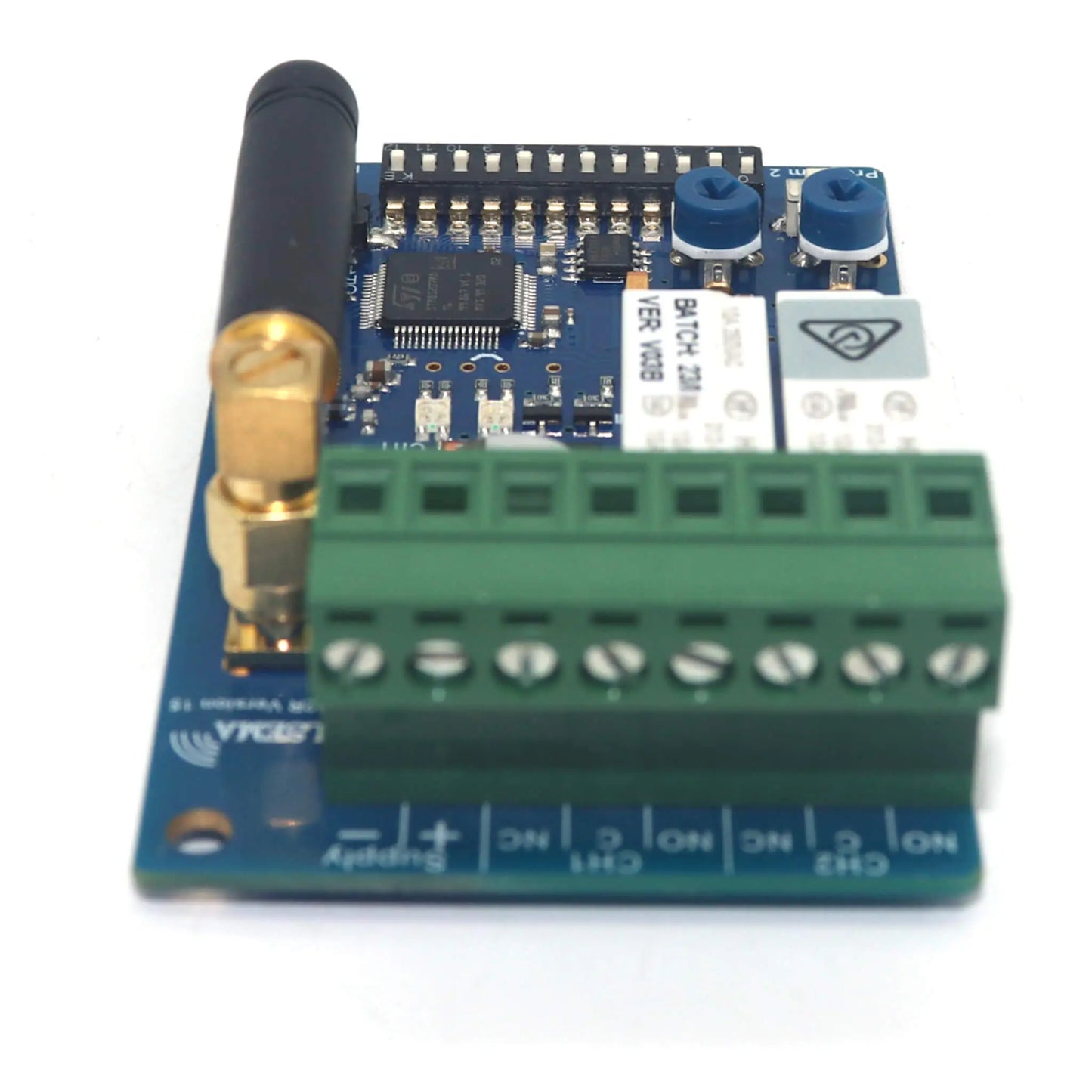

| Connections | Supply & output: 8-way female connector |
| Outputs | Two change over relay outputs, rated at 10 Amps 240VAC. |
| Relay Contacts | Common (C), Normally Closed (NC) & Normally Open (NO) |
| Dimensions | 87 x 52 x 20mm |
| Weight | 60 grams |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
Frequently Asked Questions:
Can I use PentaFOB and PentaCODE together?
Yes, Only if using the PentaCODE in the encrypted rolling code (All dipswitches must be in the OFF position.
Is this suitable for apartment complexes?
Yes, this is a perfect solution for an apartment complex.
How many remotes can be programmed?
Encrypted Rolling Code - Up to 1500 per channel
Dipswitch - Unlimited
Can I delete lost remotes?
If using with the dipswitches - just change your dipswitch settings in the receiver and available remotes - old or lost remotes will no longer work.
If using with the encrypted rolling code, you will need to clear the full memory and reprogram any available remotes.
What voltage does it accept?
12 – 24 Volts AC/DC
Does this receiver include an antenna?
Yes, a micro antenna is included.
Can I use an external antenna?
Yes. Elsema ANT433 antennas can be connected to improve reception where required.
Is the enclosure included?
No. This product is the PCB receiver only. For an enclosed version choose the PCR43302RE.
