Elsema Penta FOBSwitch

Elsema FOBSwitch, Wireless Wall Mount Remote

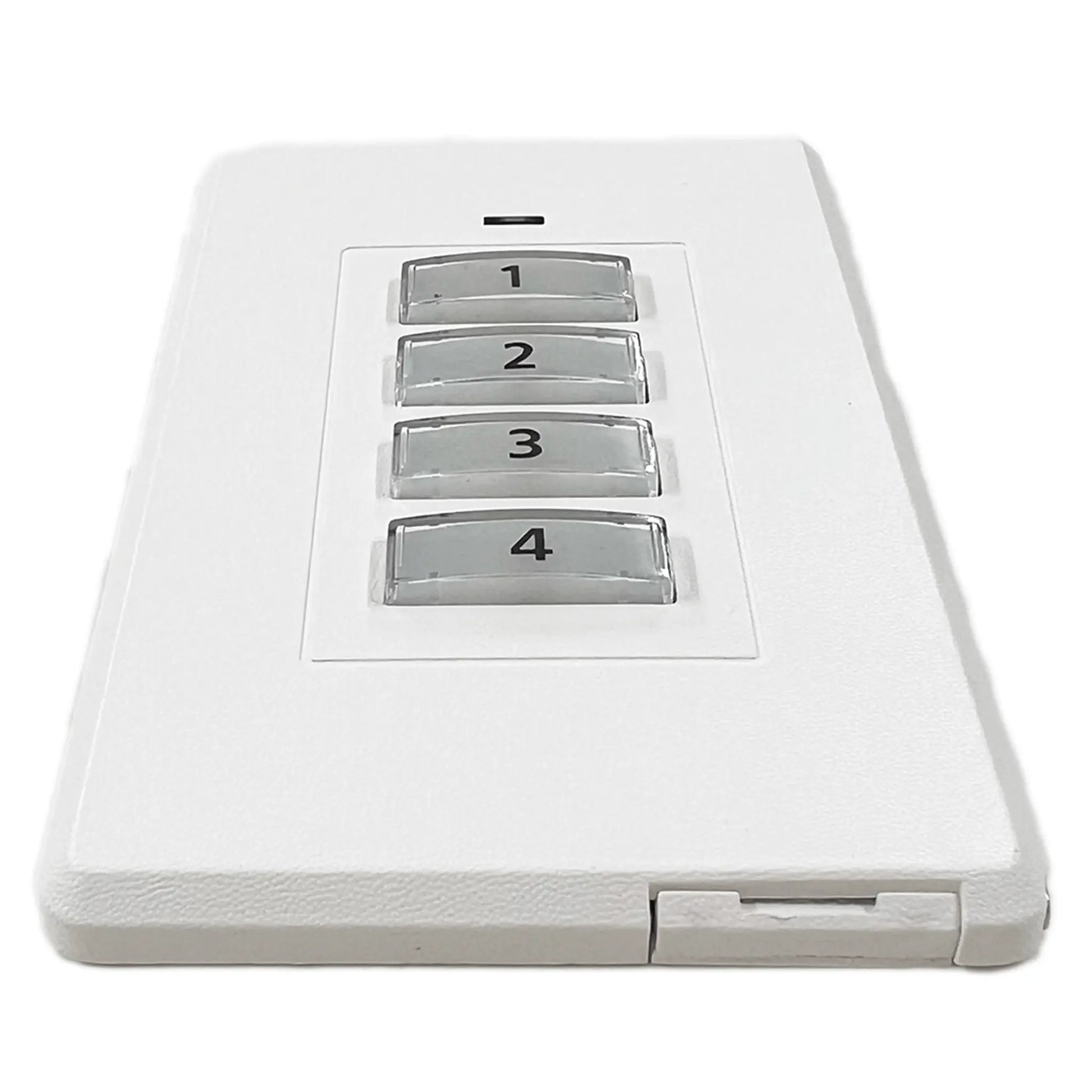

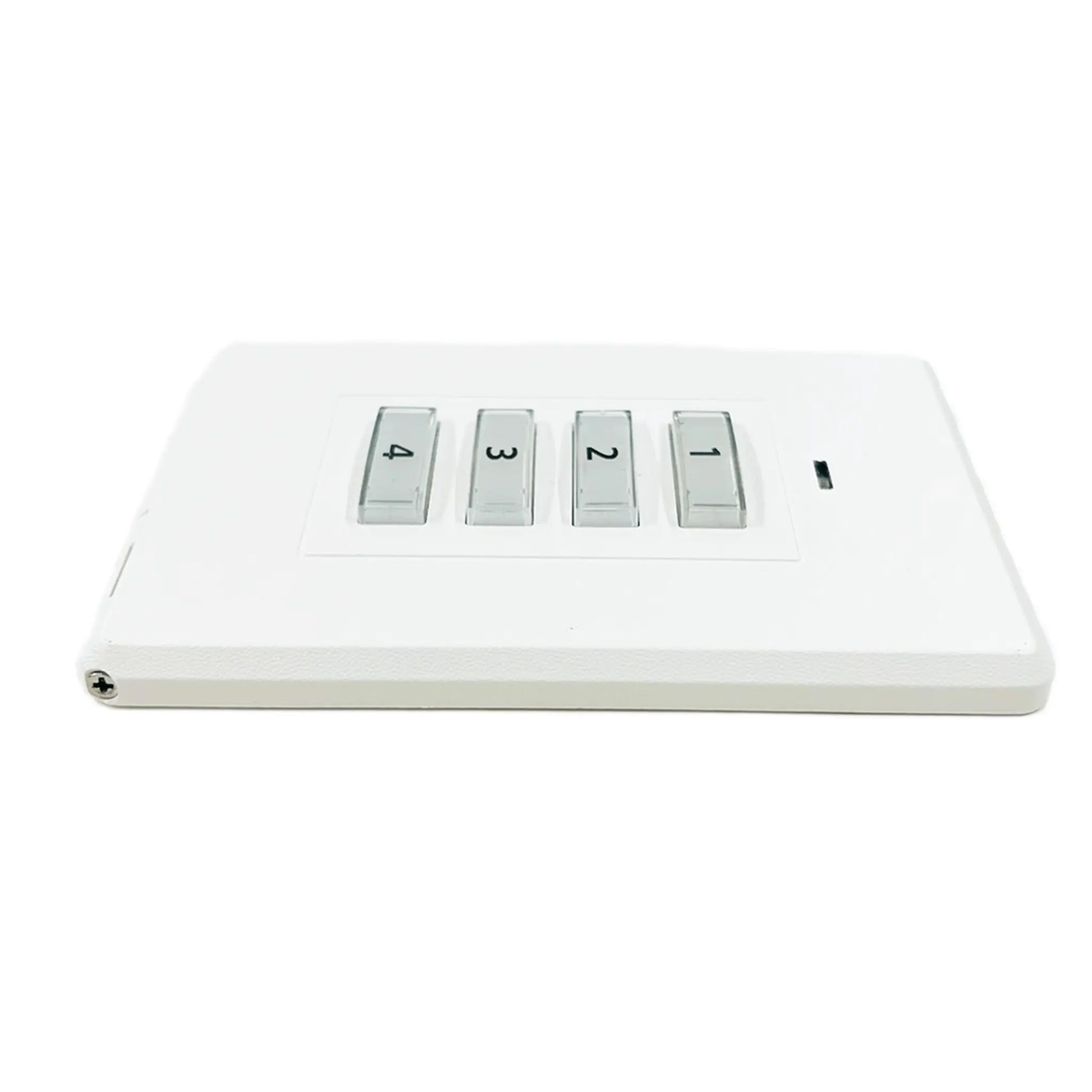

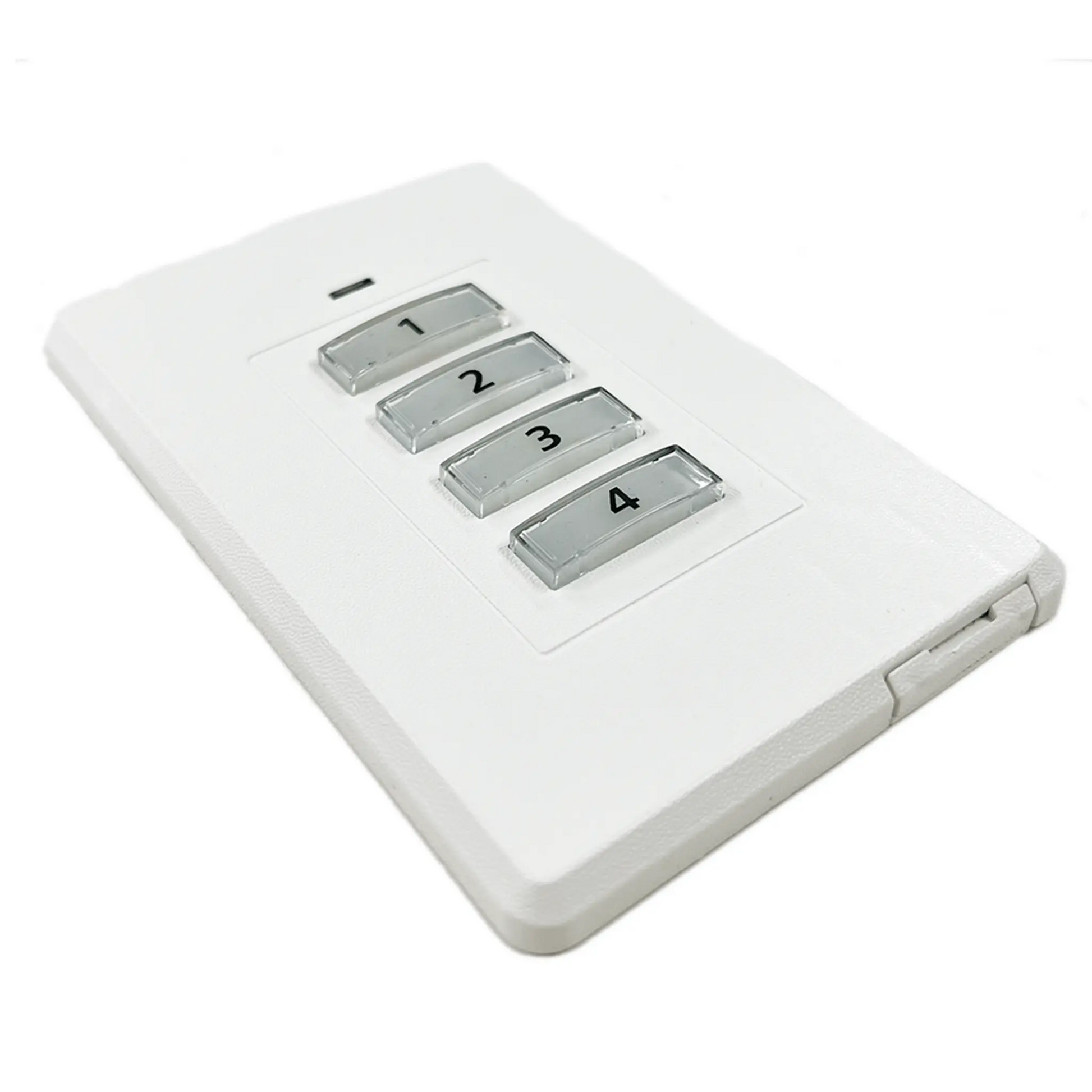

The genuine Elsema FOBSwitch is an ultra-slim, four-button wireless wall remote for compatible Elsema PCR433 Penta receivers. It provides convenient wall mounted control of automatic gates, garage doors, lights and other connected equipment, without running control wiring from the switch to the receiver.

Each button can be programmed to a separate receiver or receiver channel, allowing one wall switch to control up to four functions. Mount it directly onto a flat wall or over a standard single-gang electrical wall box.

Important: The Penta FOBSwitch requires a compatible Elsema PCR433 Penta receiver. It is not a universal wall switch and does not connect directly to every gate motor or garage door opener.

What's Included:

• Genuine Elsema Penta Wall Switch remote
• 1 × CR2032 Battery (pre-installed)
• Easy to Follow Programming Instructions

Key Features:

• Four programmable buttons: Control up to four receiver channels or separate compatible devices.
• Completely wireless operation: No control cable is required between the wall switch and receiver.
• PentaFOB technology: Uses encrypted, five-frequency hopping transmission for secure and reliable operation.
• Compatible with PCR433 receivers: Works with Elsema Penta receivers operating in encrypted PentaFOB mode.

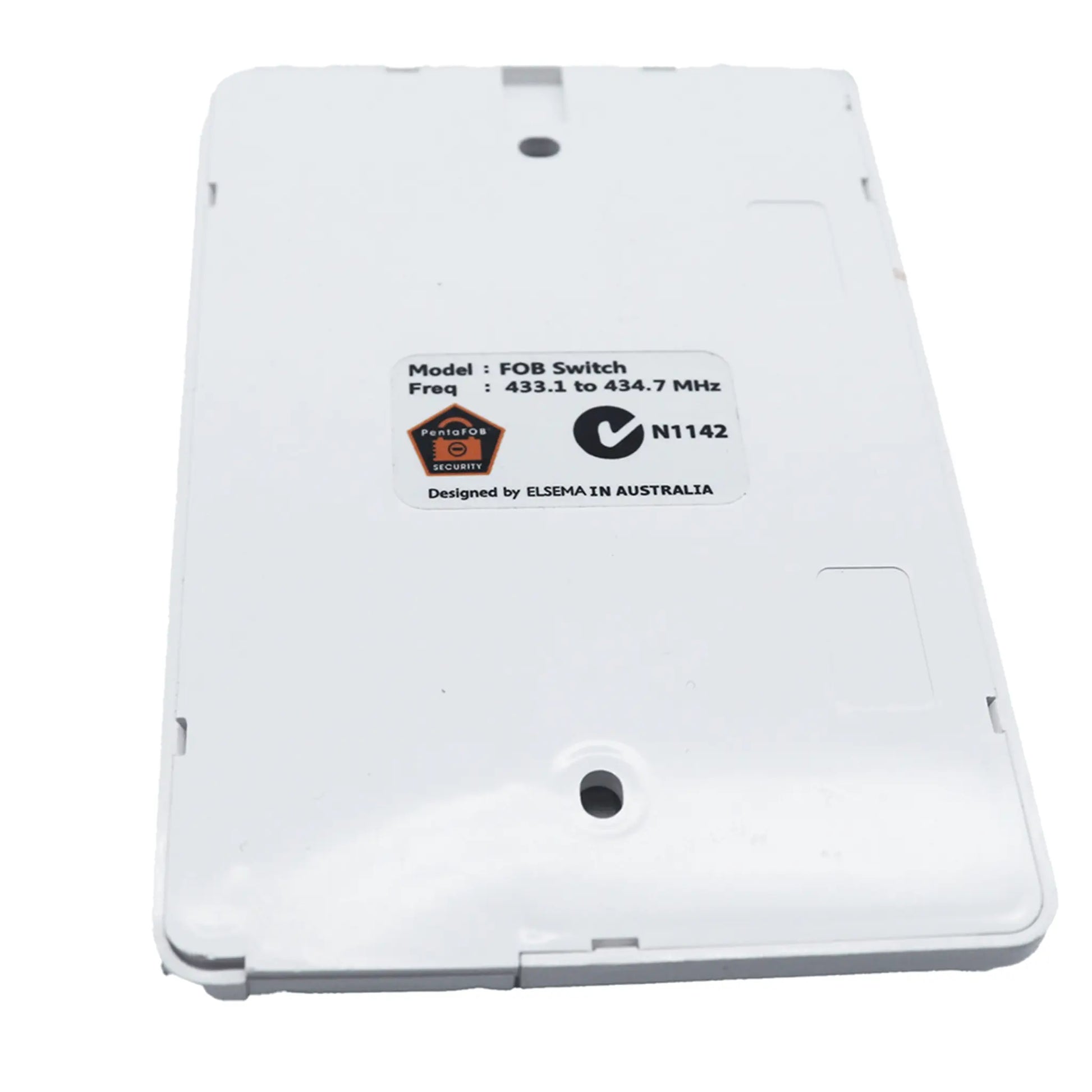

• Flexible installation: Mount directly onto a flat wall or a standard single-gang electrical wall box.
• Ultra-slim design: Only 10.6mm deep for a neat, low-profile installation.
• Up to 100m operating range: Maximum line-of-sight range; actual performance depends on the receiver, antenna, walls and local interference.
• Replaceable CR2032 battery: Battery is pre-installed and the compartment requires a tool to open.
• Genuine Elsema product: Designed in Australia.

Compatible with:

The PentaFOB series is supplied and compatible with all Elsema Gate motors

• iS600/900
• iS400
• iS330
• iS1500/2000/3000/1500LV

In addition this remote is compatible with all Elsema PCR Stand-Alone Receivers

• • PCR43301RE
  • PCR43302R
  • PCR43302P
  • PCR43302RE
  • PCR43304R
  • PCR43304RE
  • PCR43305R
  • PCR43305RE
  • PCR43308R
  • PCR43308RE
  • PCR43301240R
  • PCR43301240RE
  • PCR43302240R
  • PCR43302240RE

Please note: All 12 dip switches on the compatible Penta receiver must be set to OFF for encrypted PentaFOB operation. The FOBSwitch is not compatible with Elsema PentaCODE receivers operating in 12-way dip-switch mode.

Dimensions:

Technical Specifications:

Button/coin batteries can cause severe injuries or even death when swallowed. Keep batteries out of reach of children. If you suspect a child has swallowed or inserted a button/coin battery, seek medical attention immediately.

Programming Instructions:

Frequently Asked Questions:

Does the Elsema FOBSwitch require wiring?

No. The wall switch is battery powered and sends a wireless signal to a compatible Elsema PCR433 Penta receiver. The receiver must be wired to the gate, door, light or other equipment being controlled.

Can each button control a different device?

Yes. Each of the four buttons can be programmed to a separate receiver or a different channel on a multi-channel Penta receiver. For example, one switch could control a driveway gate, pedestrian gate, garage door and outdoor lighting.

Is the FOBSwitch compatible with PentaCODE?

The FOBSwitch uses encrypted PentaFOB coding. It can operate with a PCR433 receiver when all 12 receiver dip switches are set to OFF. It cannot operate in PentaCODE 12-way dip-switch mode.

What battery does it use?

The FOBSwitch uses one CR2032 3V coin-cell battery. A battery is supplied pre-installed, and a screwdriver is required to access the secured battery compartment.

What range will I get?

The maximum stated range is up to 100 metres line of sight. Buildings, metal structures, electrical interference, receiver location and antenna installation can reduce the effective range.
