Elsema PentaCODE PCK43304W - Elsema PentaCODE External Input Transmitter

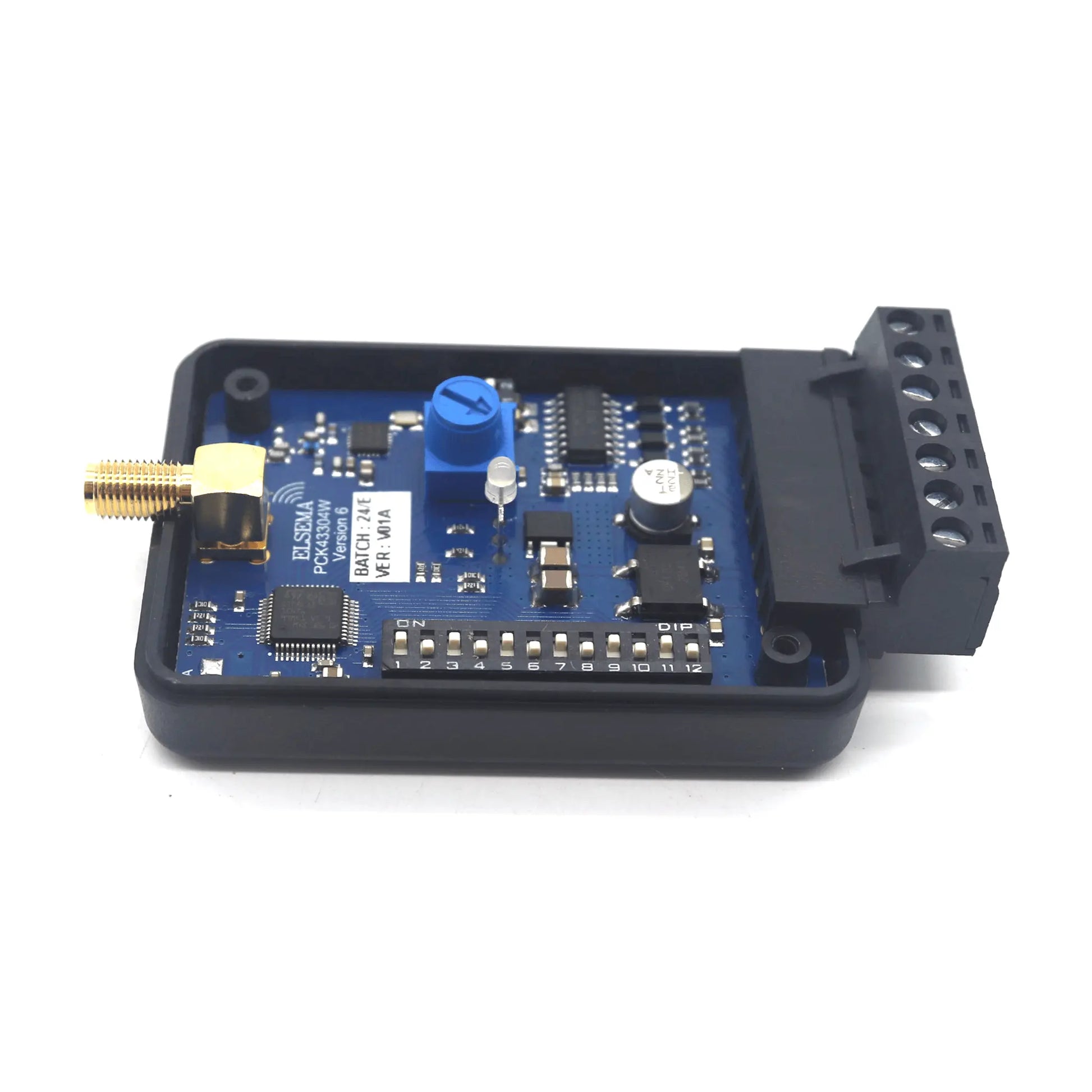

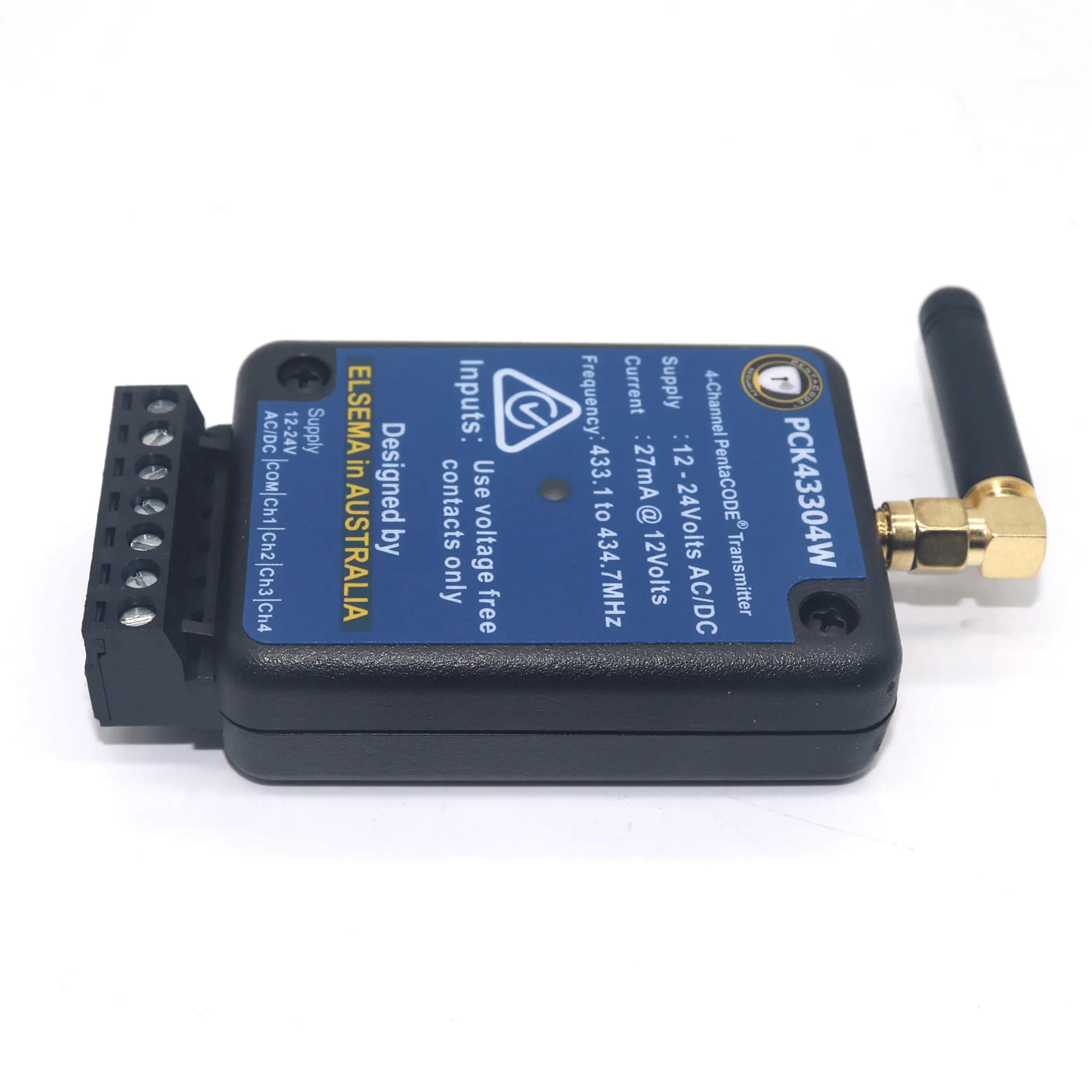

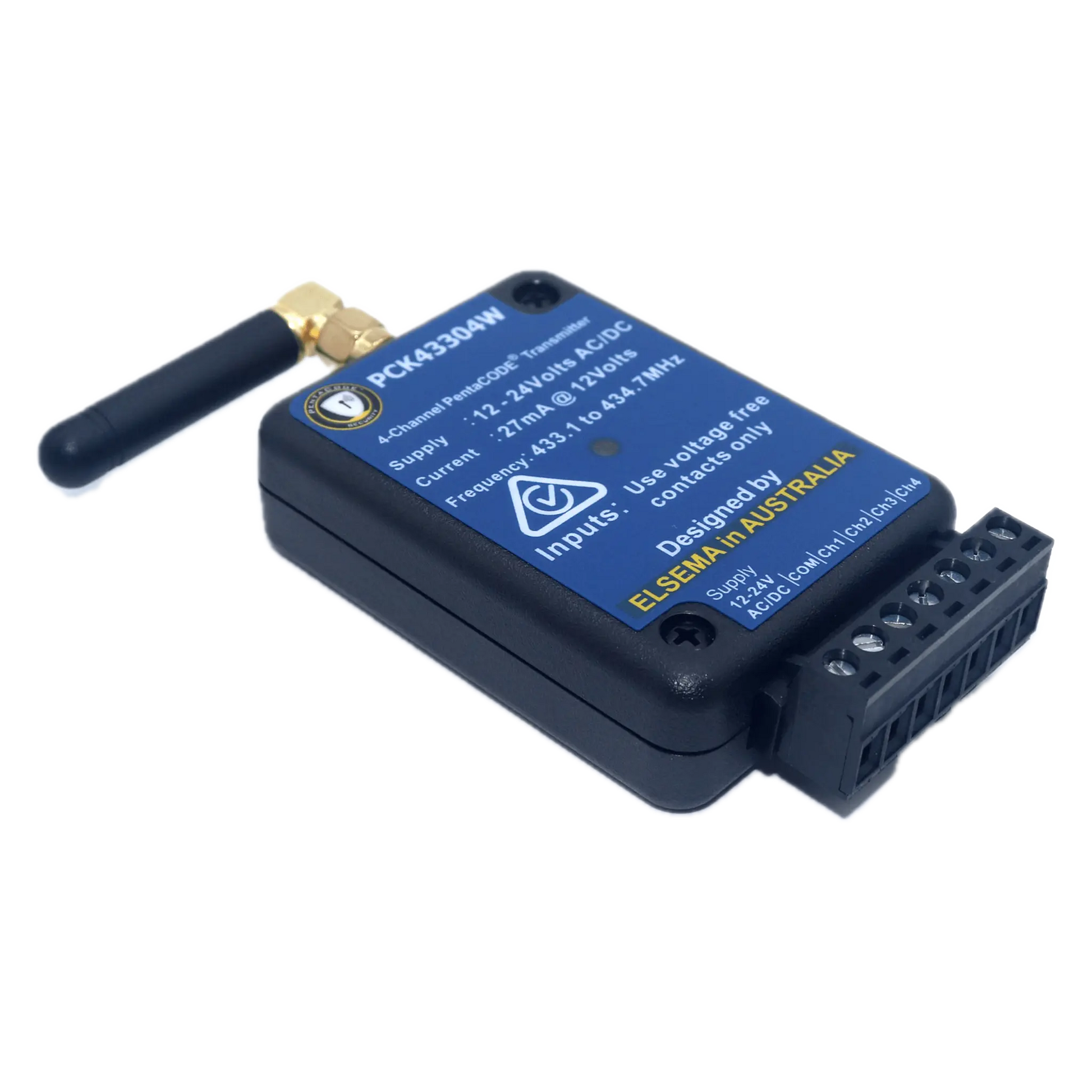

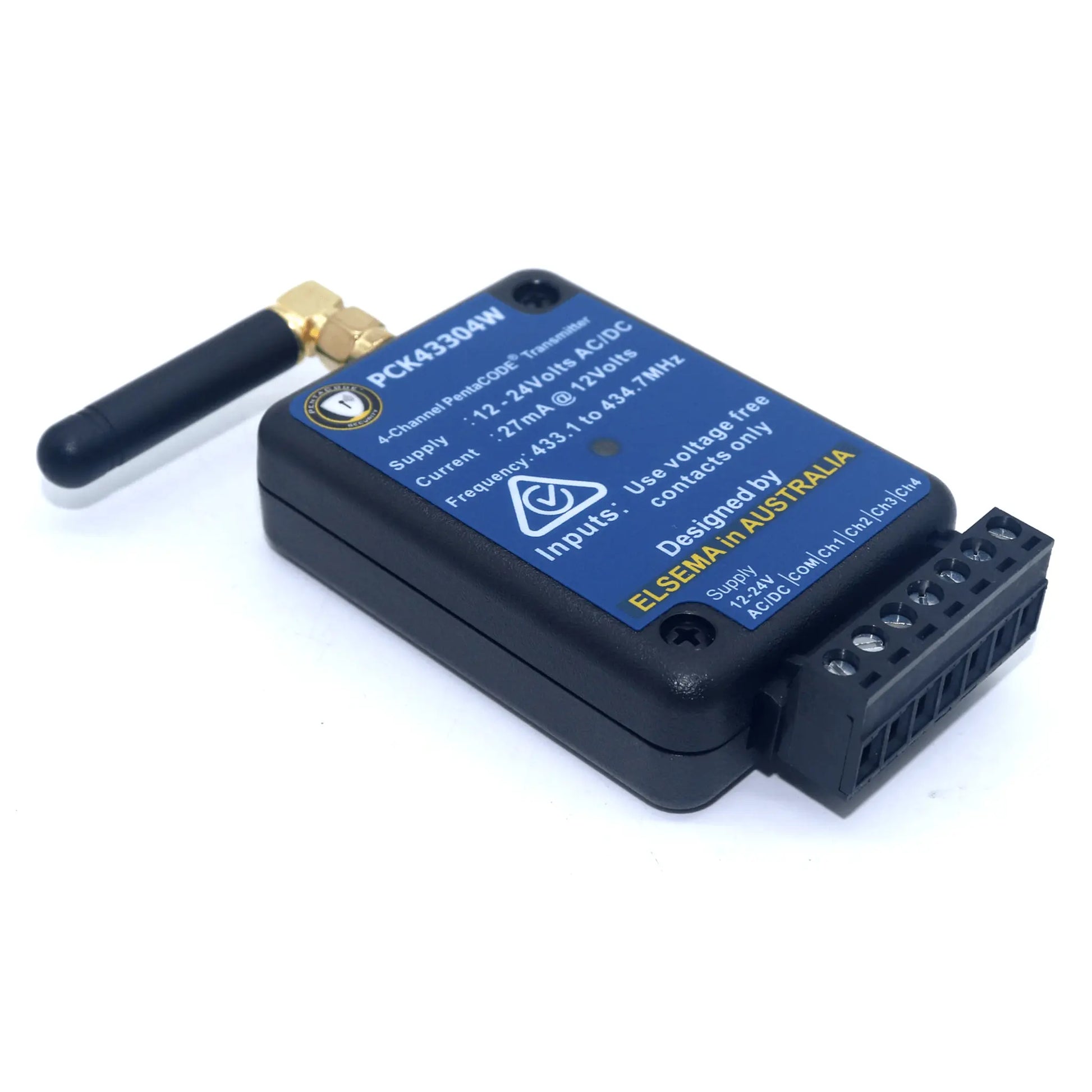

The Elsema PCR43304W is a four-channel, 433MHz PentaCODE wire-in transmitter that converts voltage-free contact closures into secure wireless signals.  Connect push buttons, keypads, intercoms, relay contacts, alarm panels or PLC outputs to control a compatible Elsema PCR433 receiver without running control cable between the two locations.

Designed for fixed installation, the PCK43304W accepts four independent normally open dry-contact inputs and supports simultaneous channel transmission.  It is ideal for gate access, industrial automation, security, duress buttons and other applications where installing a physical control cable would be difficult or expensive.

What’s Included:

• 1 x Genuine Elsema PentaCODE PCK43304W Transmitter
• Step-by-step Wiring and Programming Instructions

Key Features:

• Genuine Elsema PCK43304W transmitter
• Four optically isolated, voltage-free dry-contact inputs
• Accepts normally open push buttons, switches and relay contacts
• Converts hard-wired control signals into wireless PentaCODE signals
• Compatible with Elsema PCR433 Penta receivers
• Five-frequency hopping between 433.10 and 434.70MHz

• More than 17 billion encrypted code combinations
• Supports simultaneous transmission of multiple channels

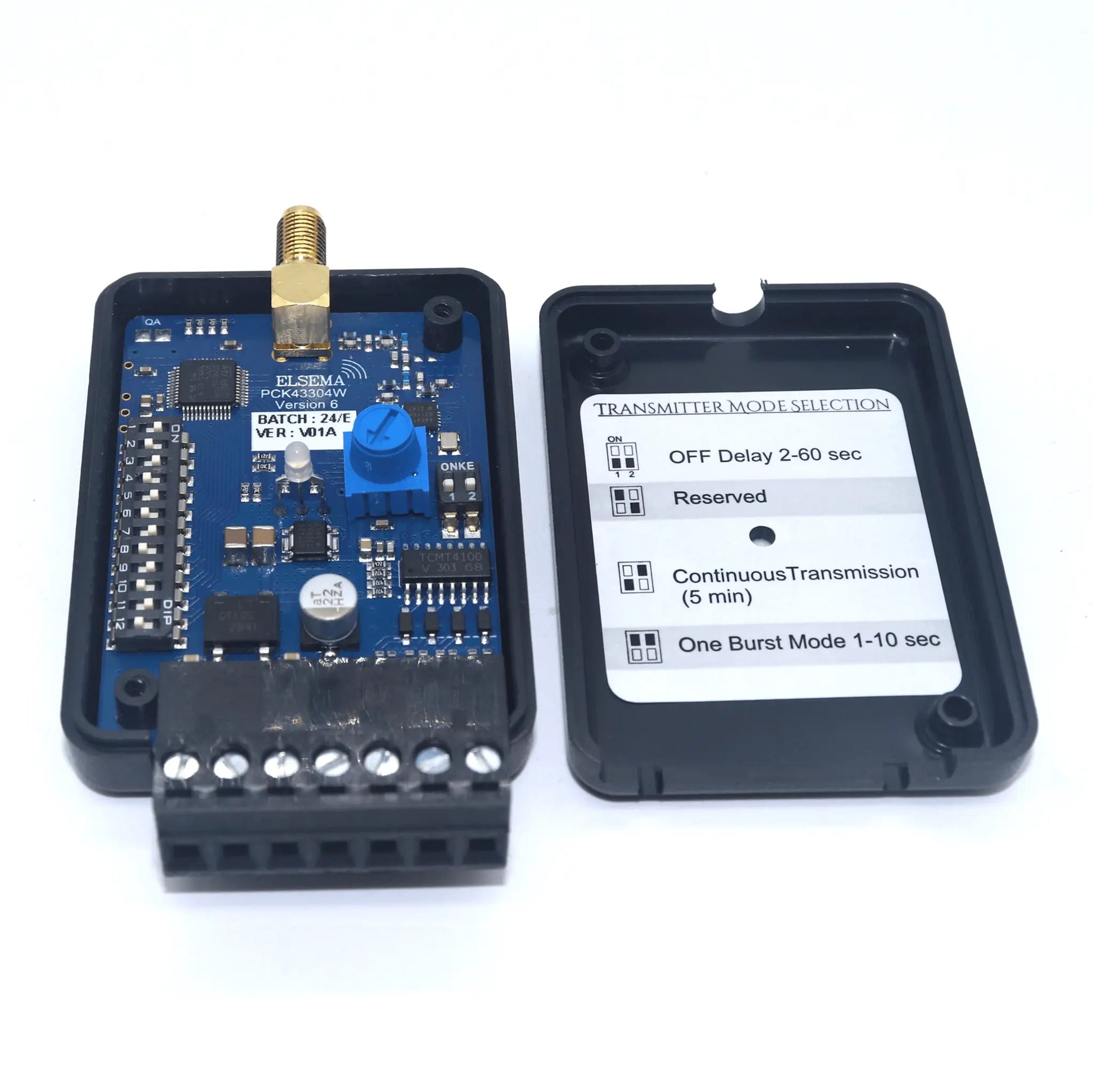

• Adjustable off-delay and continuous transmission modes
• Low standby current suitable for battery-powered applications
• Pluggable screw terminal connections
• Transmission indicator LED
• Up to 500m line-of-sight range with a suitable ANT433M antenna
• Compact dimensions: 70 × 55 × 25mm
• Australian designed and manufactured Elsema product

Compatible with:

This remote is compatible with all Elsema PCR Stand-Alone Receivers

• PCR43301RE
• PCR43302R
• PCR43302P
• PCR43302RE
• PCR43304R
• PCR43304RE
• PCR43305R
• PCR43305RE
• PCR43308R
• PCR43308RE
• PCR43301240R
• PCR43301240RE
• PCR43302240R
• PCR43302240RE

Ideal Applications:

• Wireless gate or door activation
• Remote push-button stations
• Keypads and intercom systems
• PLC-controlled wireless switching
• Alarm and security panels
• Duress or emergency buttons
• Industrial machinery control
• Wireless ON/OFF control
• Sites where running control cable is difficult or uneconomical

Remote Dimensions:

Technical Specifications:

Programming Instructions:

Frequently Asked Questions:

What does the Elsema PCK43304W do?

It converts a voltage-free signal from a hard-wired device—such as a push button, keypad, relay or PLC—into a wireless PentaCODE signal for a compatible Elsema PCR433 receiver.

Does the PCK43304W provide relay outputs?

No. It is a transmitter with four input channels. A compatible Elsema PCR433 receiver is required at the equipment being controlled.

What type of inputs can be connected?

Each channel accepts a voltage-free, normally open dry contact. Suitable devices include push buttons, relay contacts, toggle switches, limit switches and compatible PLC or alarm-panel outputs.

Can multiple channels transmit simultaneously?

Yes. More than one input can be activated and transmitted at the same time.

Which receivers are compatible?

The PCK43304W works with Elsema PCR433 Penta series receivers. It does not work directly with Elsema Gigalink, Multicode or FMT receivers.

Does it require a power supply?

Yes. The transmitter requires a 12–24V AC or DC supply.

Can it transmit up to 500 metres?

Up to 500m may be achieved under ideal line-of-sight conditions when a suitable external antenna, such as the Elsema ANT433M, is used. Buildings, metal structures, electrical interference and antenna placement can reduce the operating range.

Does it need an enclosure?

Yes. The circuit board should be installed inside a suitable enclosure appropriate for the installation environment.
