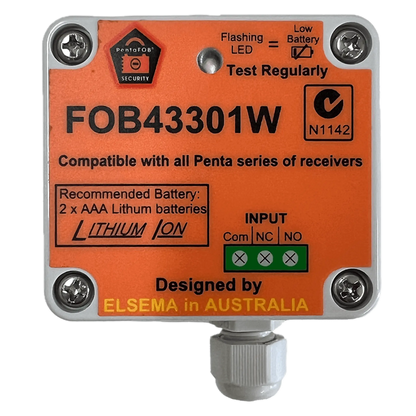

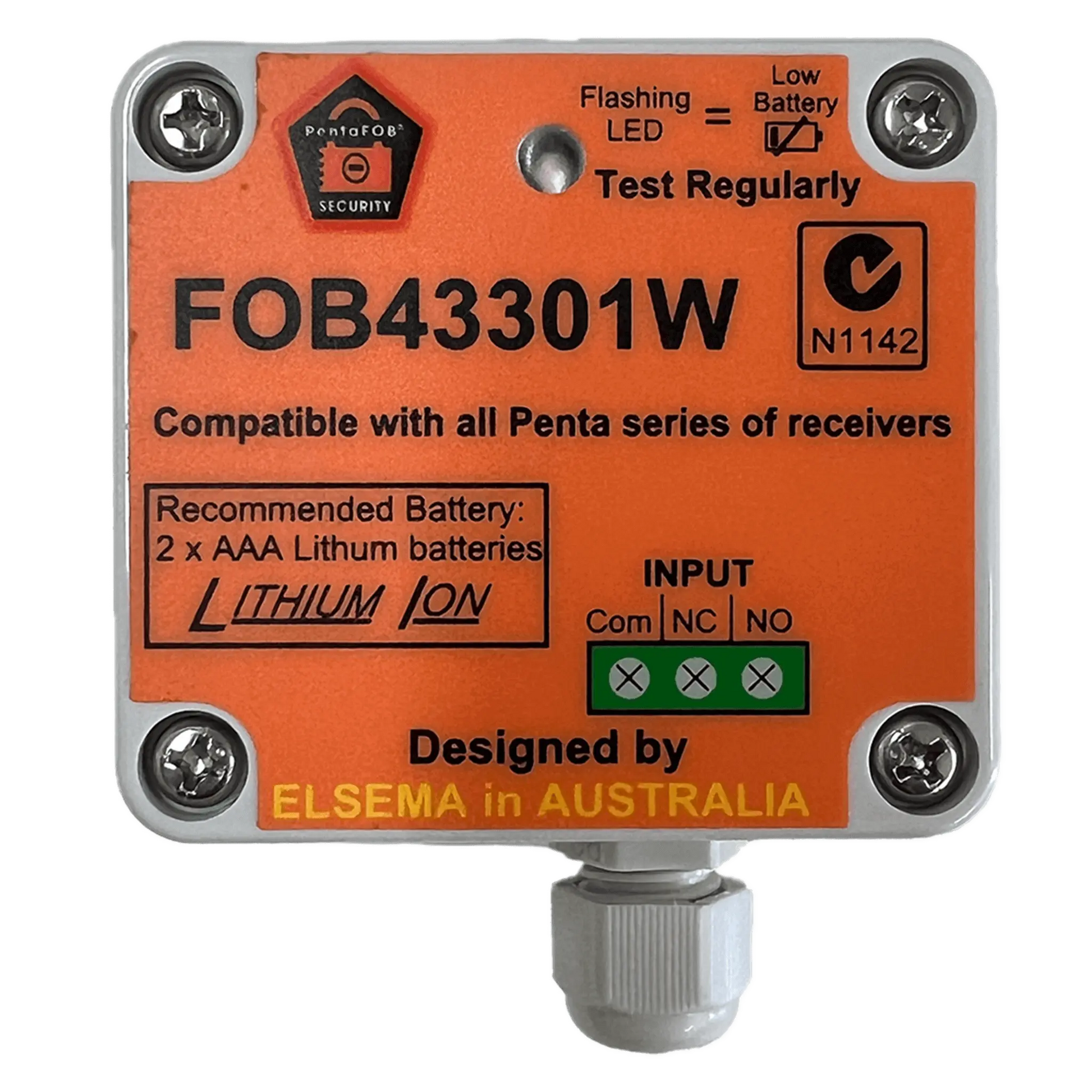

• Elsema FOB43301W hardwired transmitter for Penta 433MHz receivers

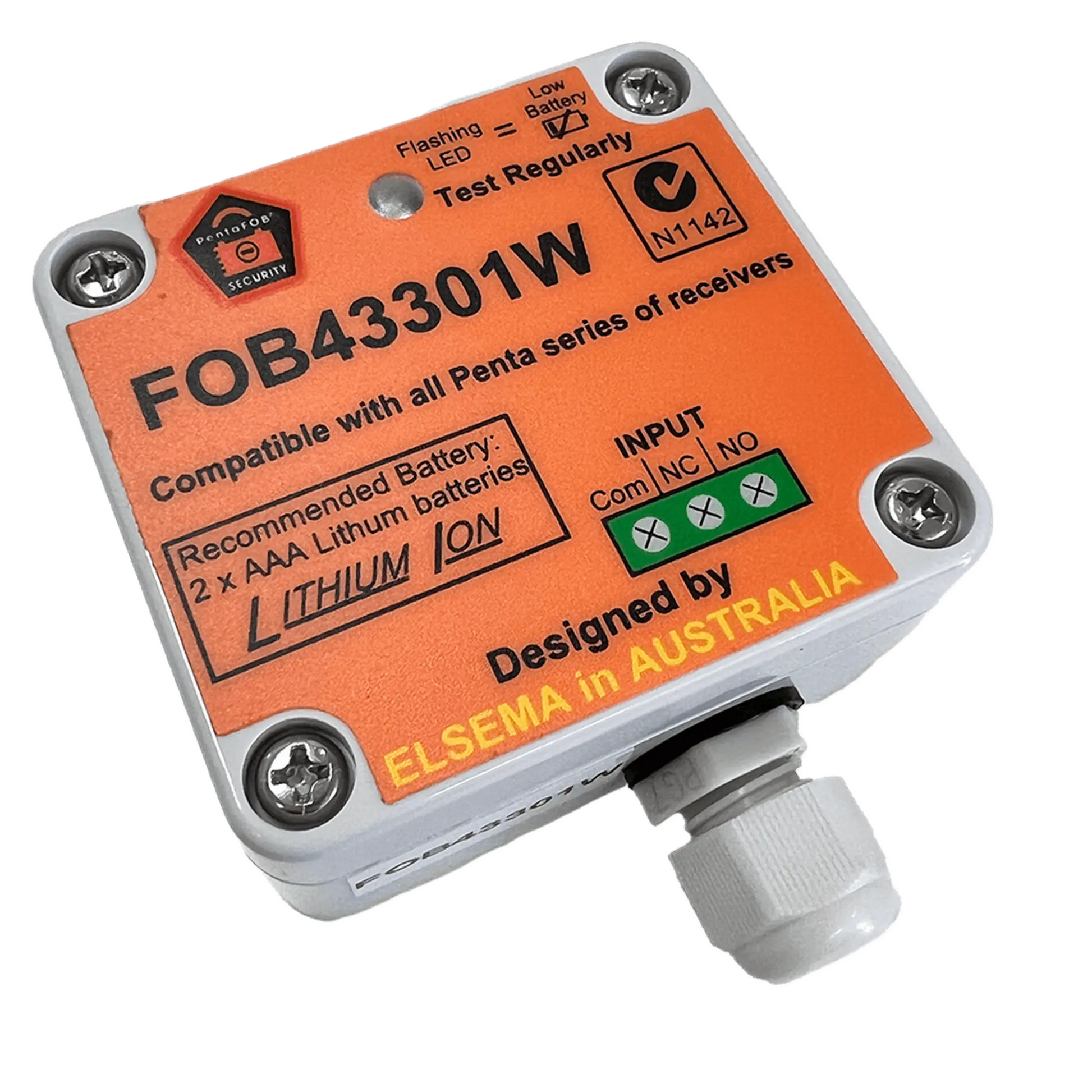

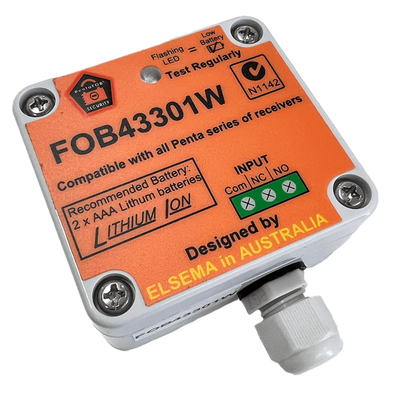

  • Elsema FOB43301W hardwired transmitter showing screw terminal connections

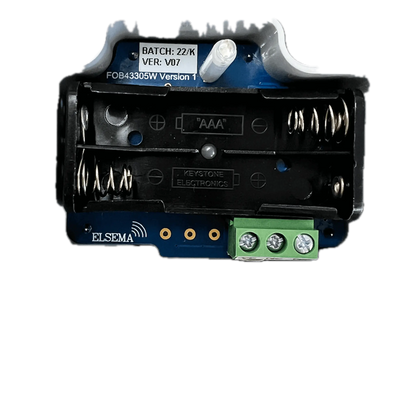

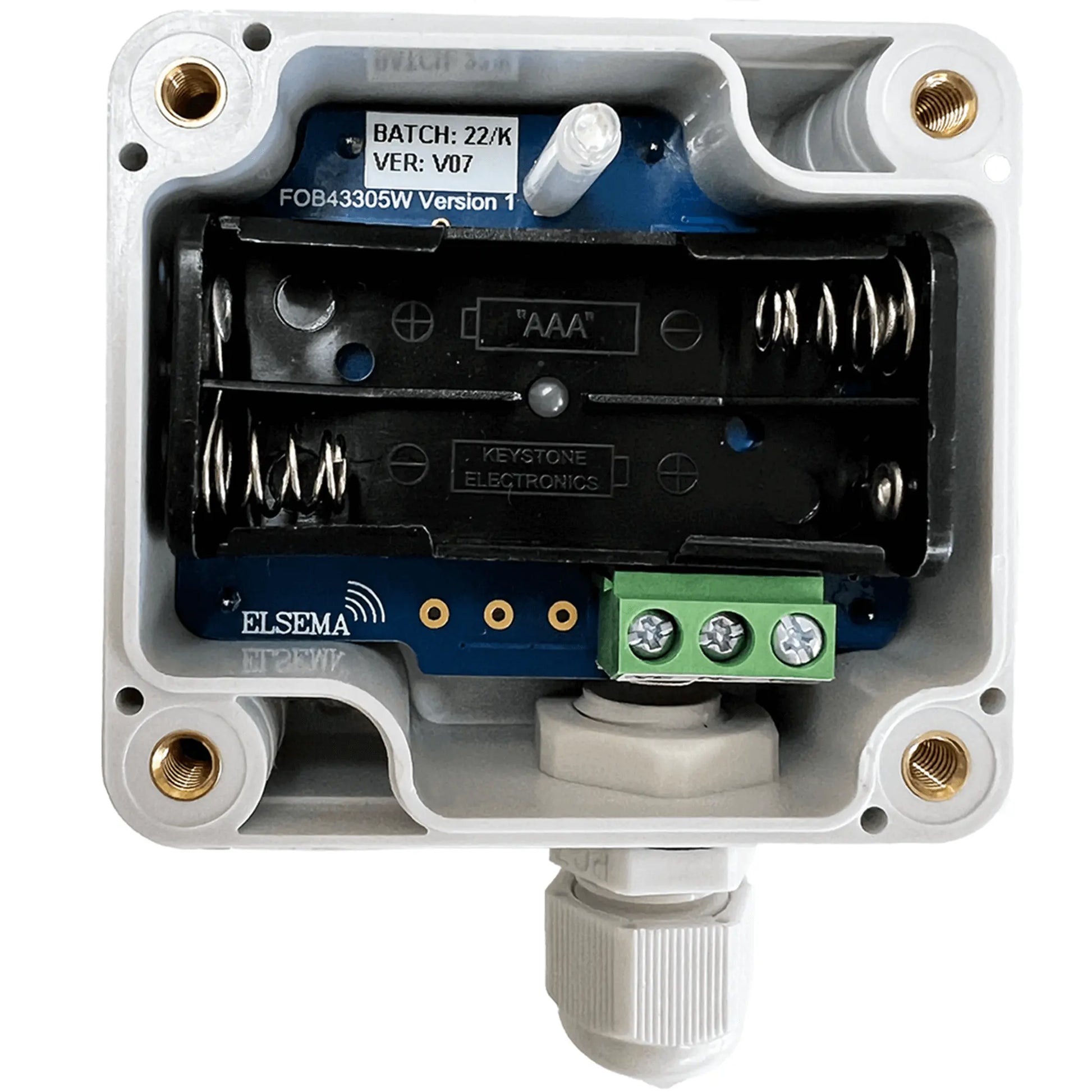

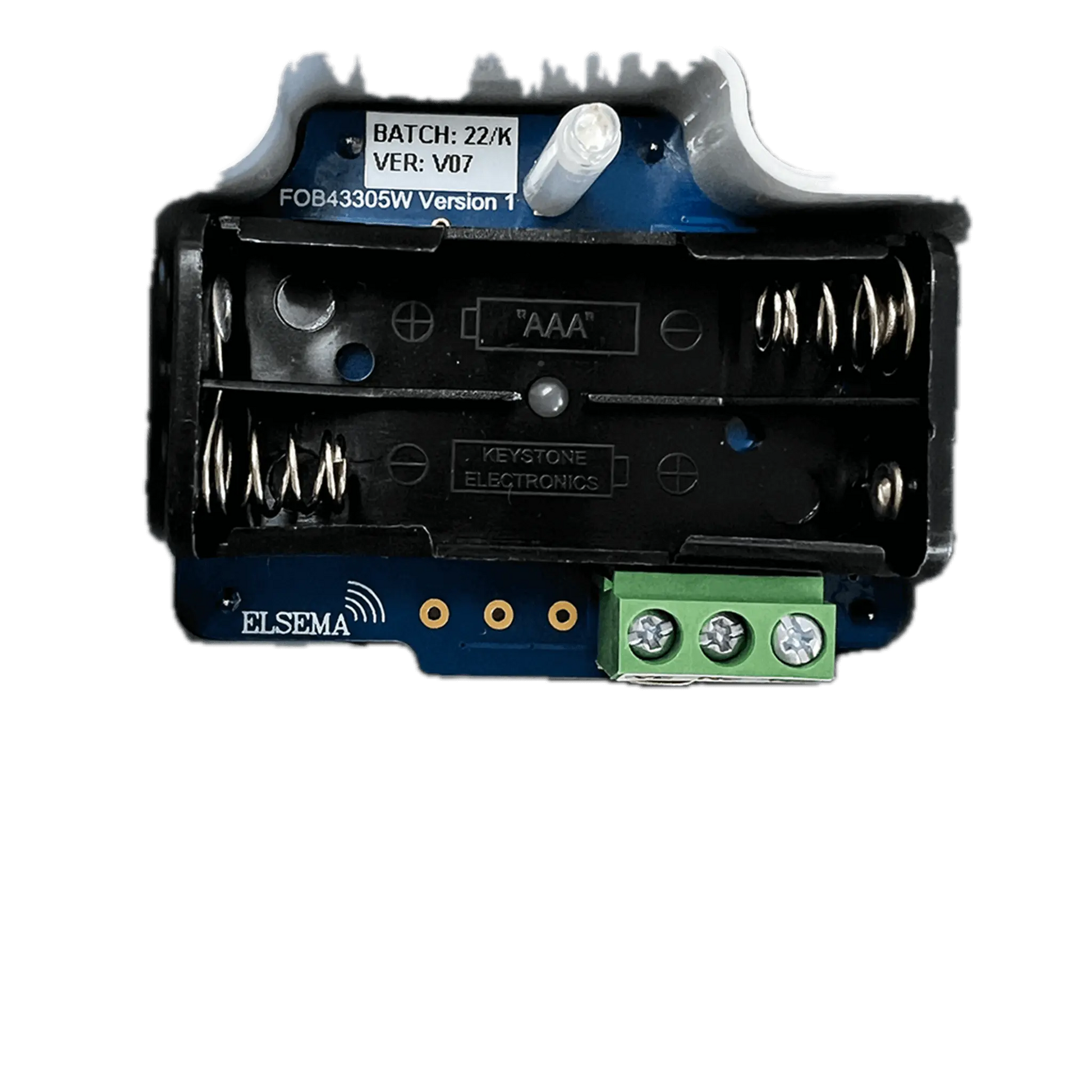

  • nside Elsema FOB43301W transmitter showing battery compartment and wiring terminals
1 3

Elsema FOB43301W Hardwired Transmitter

Elsema FOB43301W Hardwired Transmitter

58104

$87.95
$87.95
Sale Read More
Duties and taxes included. Shipping calculated at checkout.

FOB43301W - Elsema PentaFOB  433Mhz Transmitter with External Inputs

 The Elsema FOB43301W is a battery-powered, single-channel wireless transmitter than allows an external push button, switch, relay or compatible PLC output to activate an Elsema Penta recevier.

When the connected input changes state, the FOB43301W transmits an encrypted 433MHz PentaFOB signal wireless to the receiver.  This makes it ideal for adding wireless control where running a cable between the switch and control equipment would be difficult, disruptive or expensive.

The external input supports both Normally Open (NO) and Normally Closed (NC) contacts.  The transmitter operates from two AAA batteries (not included) and has a range of up to 100 metres, depending on the installation environment.

Important: This product requires a compatible Elsema Penta/PCR receiver. It does not directly switch a gate motor, door opener or other electrical equipment.

What’s Included:

    • 1 x Genuine Elsema FOB43301W Hardwired Transmitter
    • Programming Instructions
    • Screw Type Terminal Block for Easy Connections

    Please note: Batteries (2 x AAA) are not included.

    Key Features:

    • Genuine Elsema FOB43301W transmitter
    • Single-channel wireless transmitter with external input
    • Accepts Normally Open or Normally Closed contacts
    • Compatible with push buttons, switches, dry-contact relays and suitable PLC outputs
    • Encrypted PentaFOB coding
    • Five-frequency hopping between 433.10 and 434.70MHz
    • Wireless range up to 100m, subject to site conditions
    • Compatible with Elsema PCR433-series Penta receivers
    • Battery-powered—no mains supply required
    • Uses two readily available AAA batteries
    • Low-battery diagnostic LED
    • Compact enclosure for fixed installation
    • Suitable for commercial, industrial, agricultural and access-control applications
    • Designed and engineered in Australia

    Compatibile With:

    The Elsema FOB43301W hardwired transmitter works with all Elsema Penta receivers when used in the PentaFOB function with all dipswitches turned off, including:

    Ideal Applications:

    • Wireless gate push buttons
    • Industrial machinery controls
    • PLC outputs
    • Boom gate activation
    • Machinery start or auxiliary control inputs
    • Non-safety critical reset or activation buttons
    • Wireless status or control inputs
    • Security and duress buttons
    • Roller door activation
    • Access control systems
    • Agricultural automation
    • Remote switching applications

    Connection Diagram:

    FOB43301W Connection Diagram

    Technical Specifications:

    Frequency 433.10 to 434.70Mhz
    Code Type Rolling Code
    Body Type Transmitter in Enclosure with External Inputs
    Case Colour White
    Number of Channels 1 Channel
    Button Colour Not Applicable
    Remote Dimensions

    65 x 60 x 35 mm
    Range Up to 100m (line of sight)
    Item Contains Lithium Coin/Button Battery No
    Battery Type 2 x AAA (not included)
    Access Type Tool Required
    AS62368.1 Compliant Not Applicable
    Warranty 12 Months Manufacturers Warranty


    Downloads:



    Frequently Asked Questions:

    Can I connect a push button?

    Yes. The FOB43301W is designed specifically for connecting external push buttons and dry contact switches.



    Does it work with Normally Open switches?

    Yes.



    Does it work with Normally Closed switches?

    Yes.



    Is it compatible with all Elsema Penta receivers?

    Yes, when programmed in PentaFOB mode (All 12-dipswitches in the OFF position)



    Does it need mains power?

    No.



    What batteries does it use?

    2 × AAA batteries.



    Can it be mounted inside an enclosure?

    Yes, however this may reduce operating range



    What is the maximum operating range?

    Up to 100 metres line of sight.
