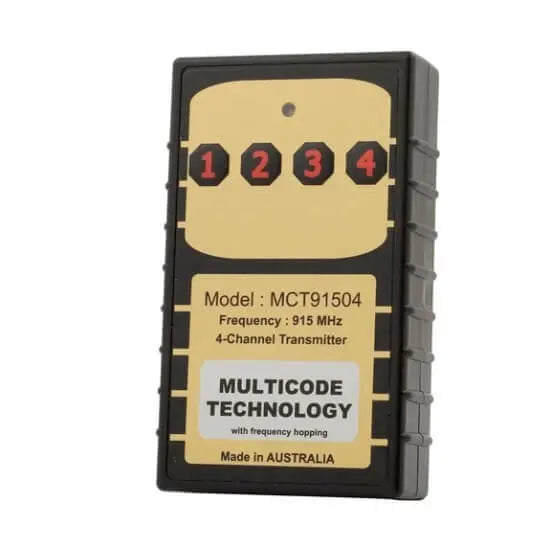

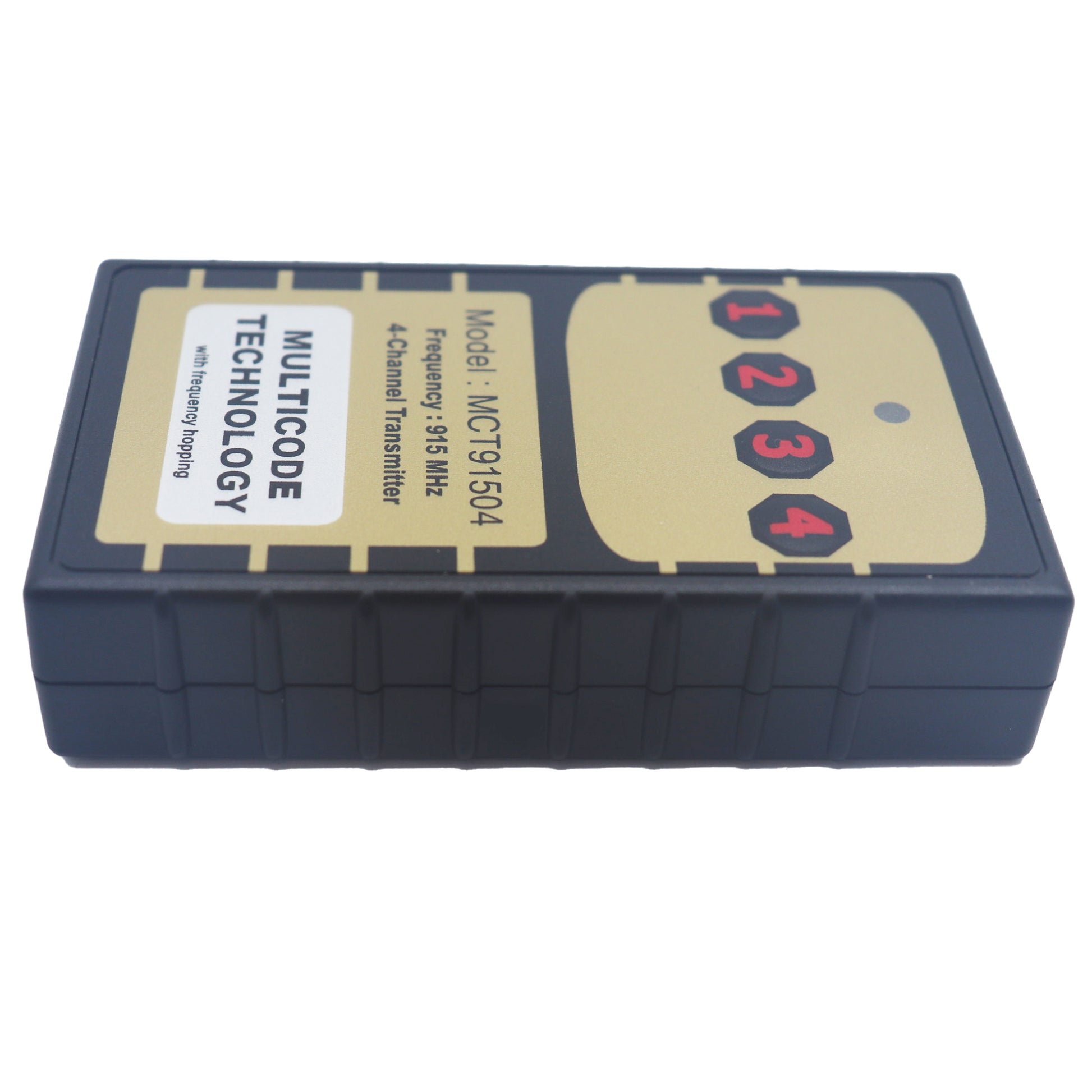

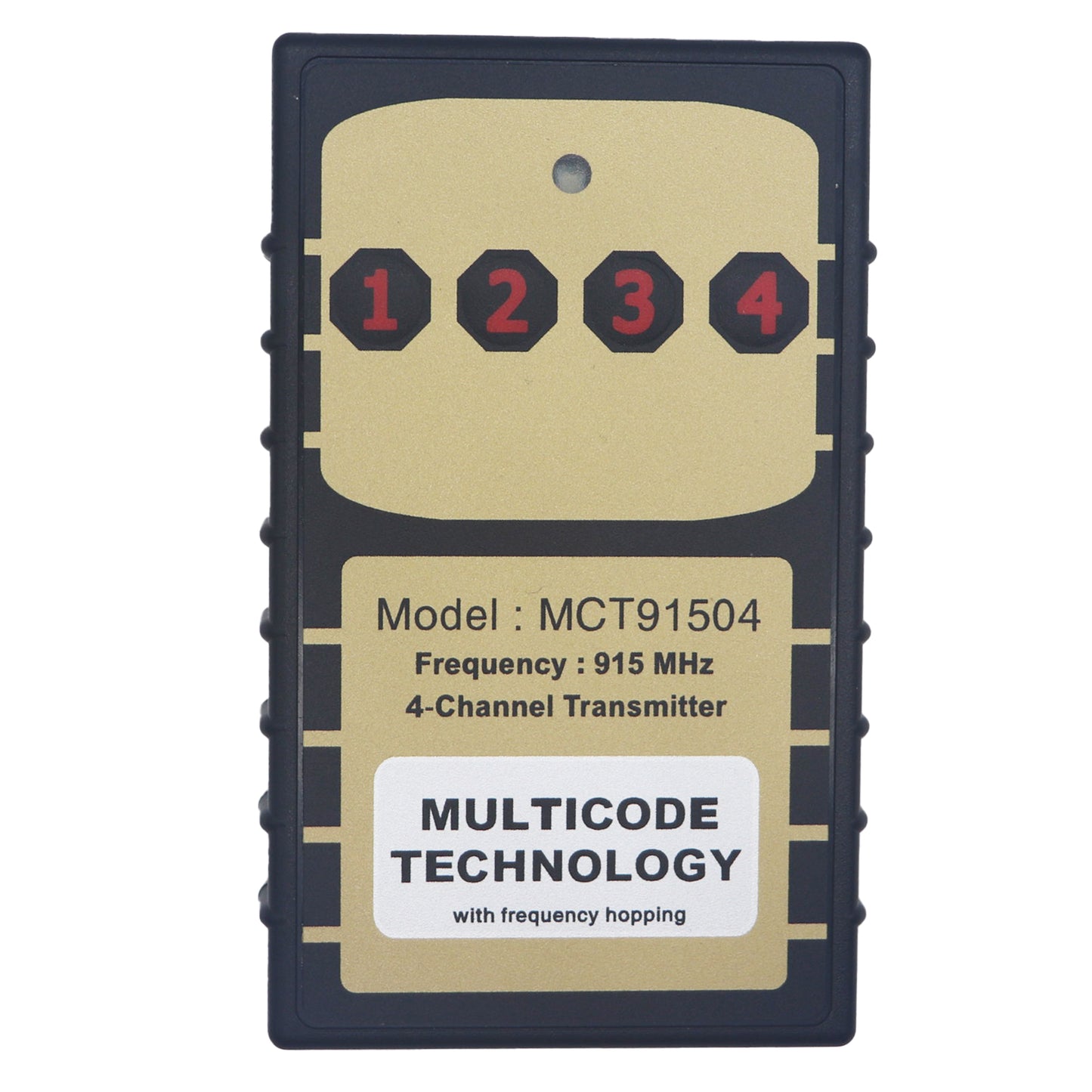

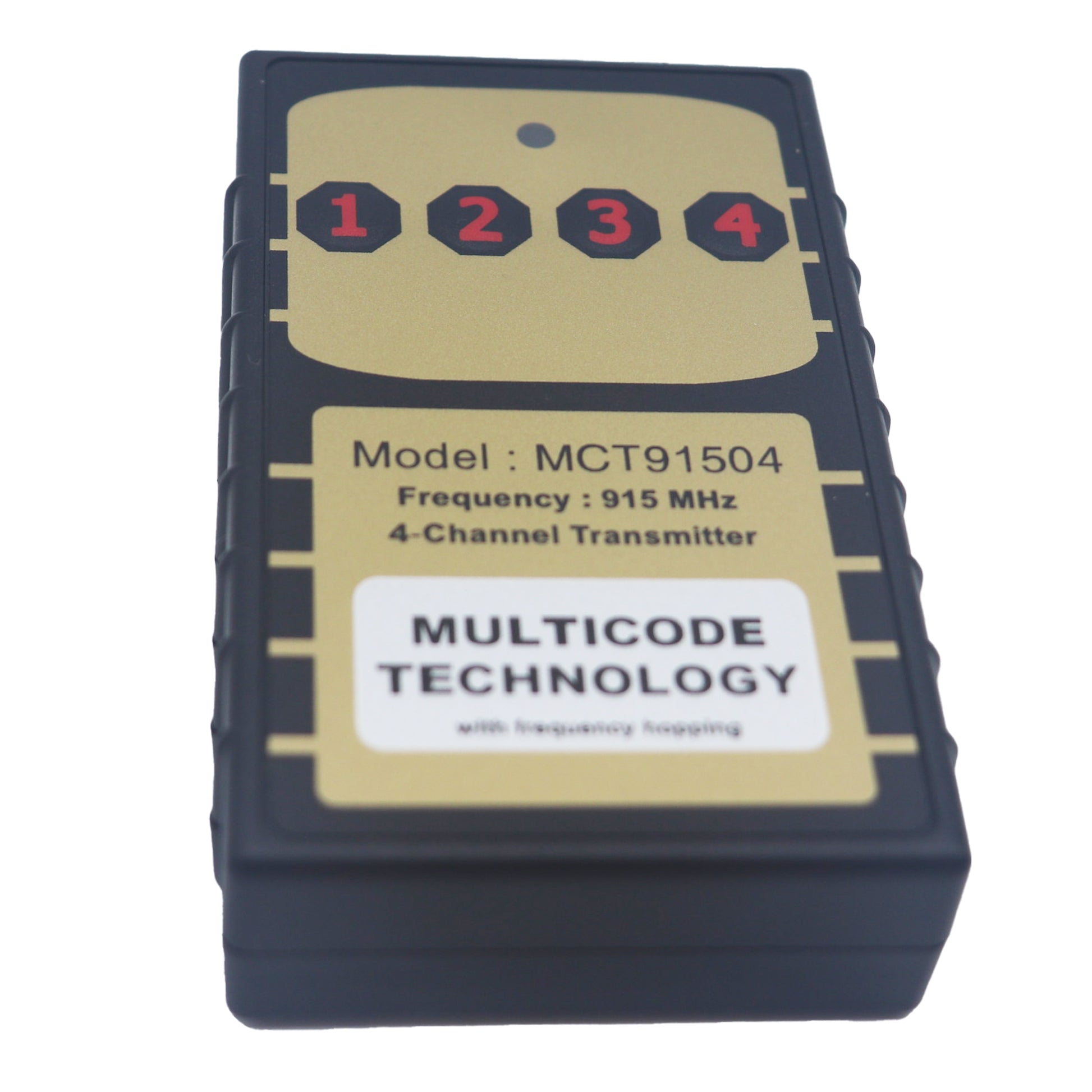

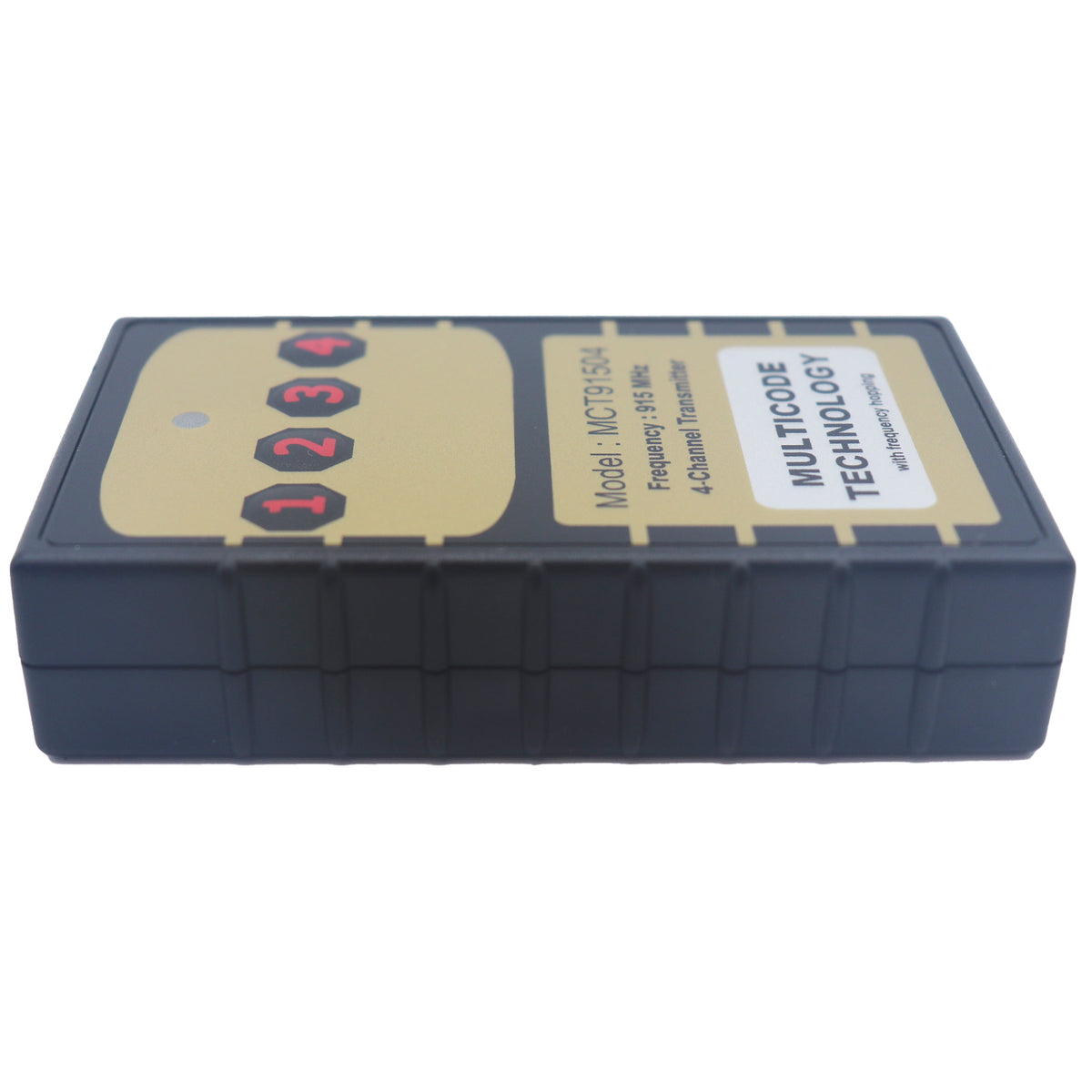

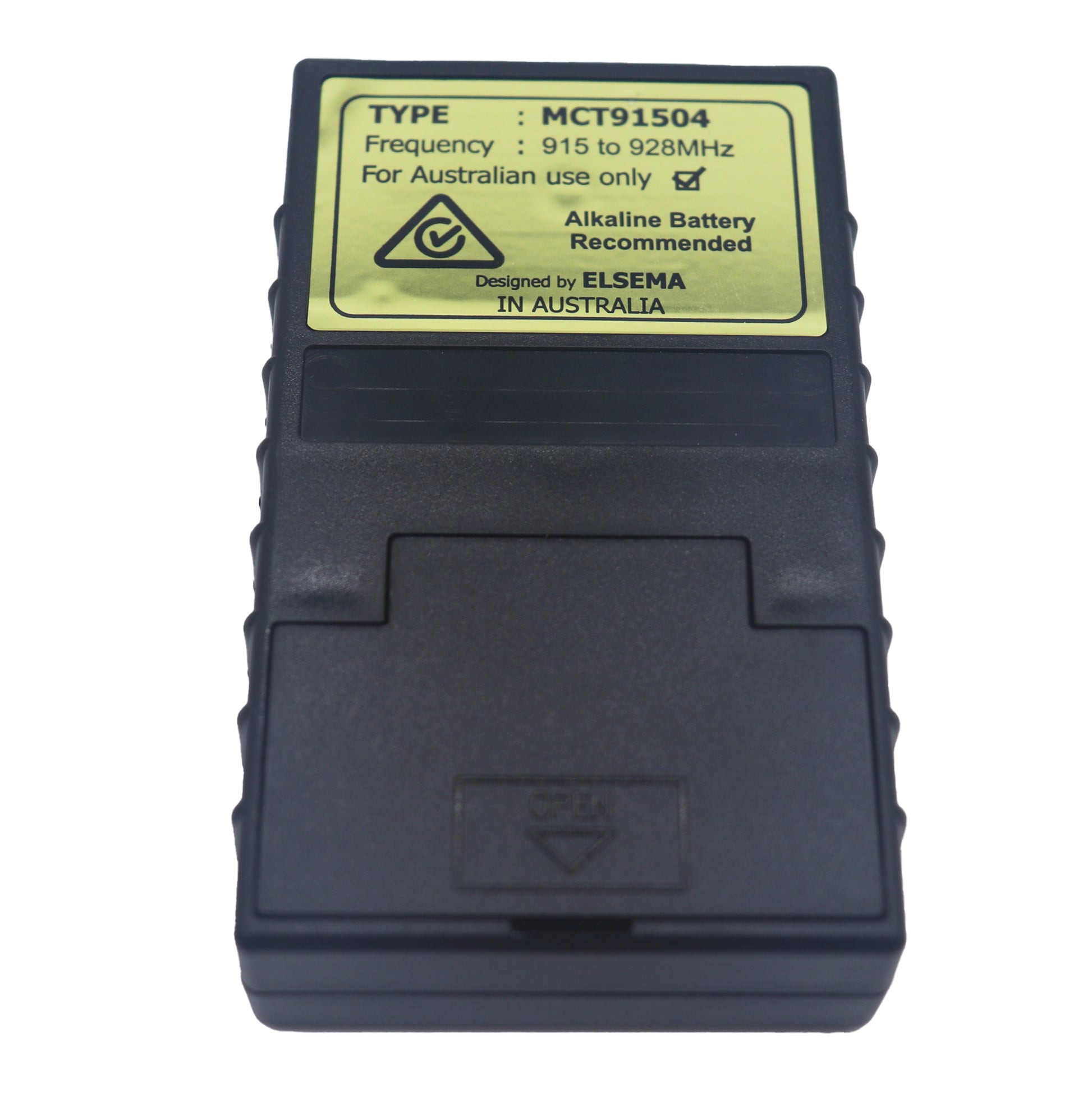

Elsema Multicode MCT91504 Remote with Cover and Battery

Elsema MCT91504 Multicode 915MHz 4 Button Remote

The Elsema MCT91504 is a genuine 4-button handheld transmitter designed for use with Elsema Multicode 915MHz receivers. Each button can operate a separate receiver channel, device or automation function, making it ideal for applications requiring control of multiple gates, doors, machinery or equipment from one remote.

Using Elsema's Multicode Technology, the MCT91504 supports both 12-way dipswitch coding and encrypted coding with over 16 million code combinations. Fast Frequency Hopping helps provide reliable operation in environments where electrical interference may be present and allows multiple transmitters to operate in the same area.

Includes:

• Genuine Elsema 915MHz Handheld Transmitter
• 1 x Silicone Cover
• 1 x  9V Alkaline Battery
• Programming Instructions

Key Features:

• 4 Button / 4 Channel Control – Each button can operate a separate Multicode receiver channel or function.
• 915MHz Multicode Technology – Designed specifically for compatible Elsema MCR915 series receivers.

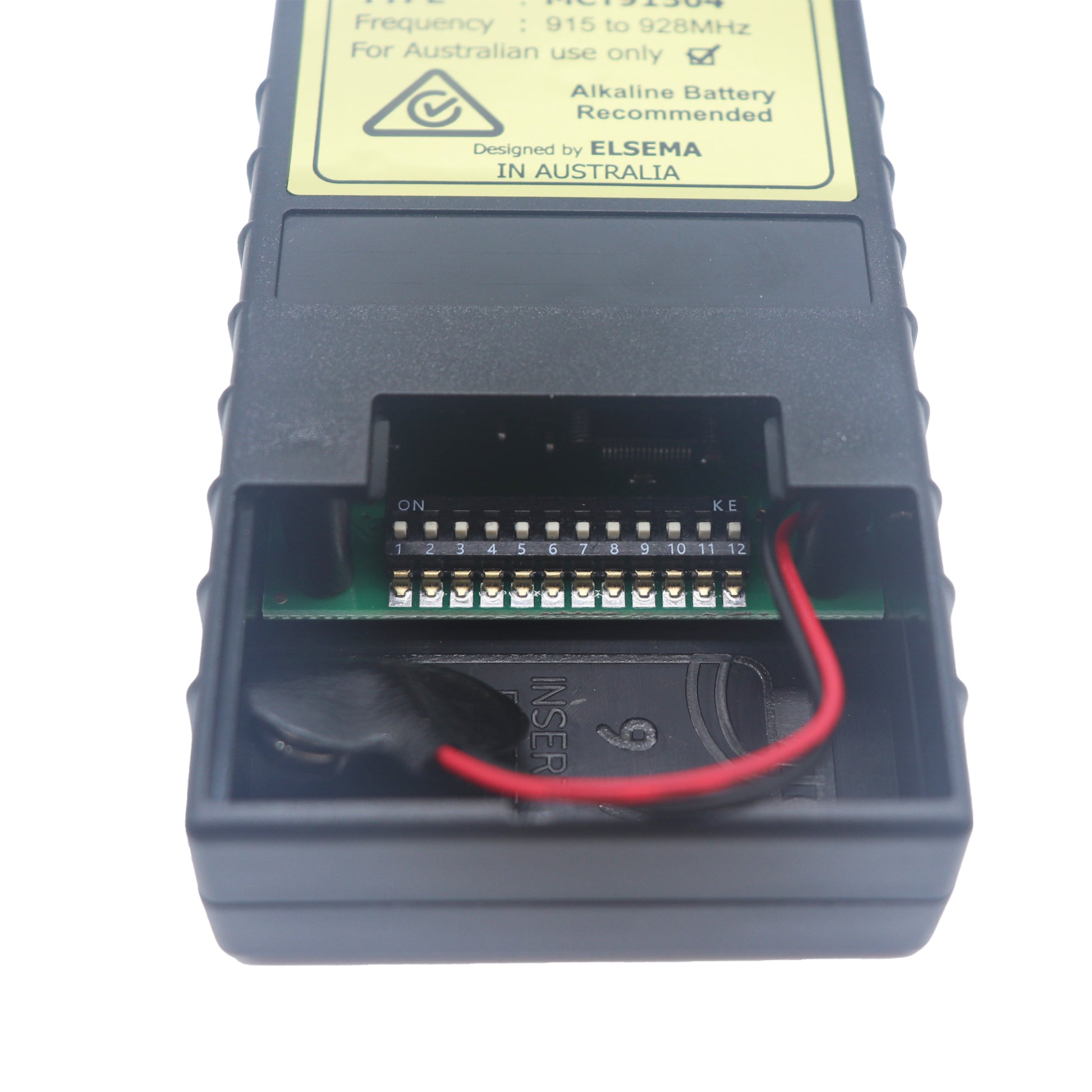

• Dual Coding Options – Supports simple 12-way dipswitch coding or encrypted coding with over 16 million combinations.
• Fast Frequency Hopping – Helps reduce interference and allows multiple transmitters to operate within the same area.
• Long Operating Range – Up to 400 metres line-of-sight depending on receiver, antenna and installation conditions.
• Simultaneous Transmission – Multiple buttons can be transmitted simultaneously for applications requiring more than one output to operate at once.
• Industrial Handheld Design – Designed for demanding commercial and industrial applications.
• Internal Antenna – No protruding antenna on the handheld transmitter.

Compatible with:

This remote is compatible with the Elsema Multicode 915Mhz Receivers:

• MCR91501R
• MCR91502R
• MCR91502P
• MCR91502PT
• MCR91504R
• MCR91504RE
• MCR91508R
• MCR91508SS
• MCR91508POS
• MCR91512R
• MCR91516R
• MCR91516SS

Ideal Applications:

• Automatic gates and access control
• Commercial and industrial doors
• Roller shutters
• Pumps and irrigation equipment
• Industrial machinery and equipment
• Lighting and auxiliary controls
• Multi-gate or multi-device installations

Technical Specifications:

Downloads:

Frequently Asked Questions:

What receivers work with the Elsema MCT91504?

The MCT91504 is designed for compatible Elsema Multicode MCR915 series receivers.

Can the four buttons control different devices?

Yes. Each button can operate a different channel or compatible Multicode receiver, allowing one transmitter to control several automation functions.

What is the range of the MCT91504?

Elsema specifies an operating distance of up to 400 metres. Actual range can vary depending on the receiver, antenna, surrounding structures and local conditions.

Does the MCT91504 use dipswitches?

Yes. Multicode supports 12-way dipswitch coding as well as encrypted coding.

Can multiple buttons be pressed at once?

Yes. The MCT series supports simultaneous transmission, allowing multiple corresponding channels to be transmitted at the same time.

Does the remote come with a protective cover?
Yes. A silicone protective cover is included.
