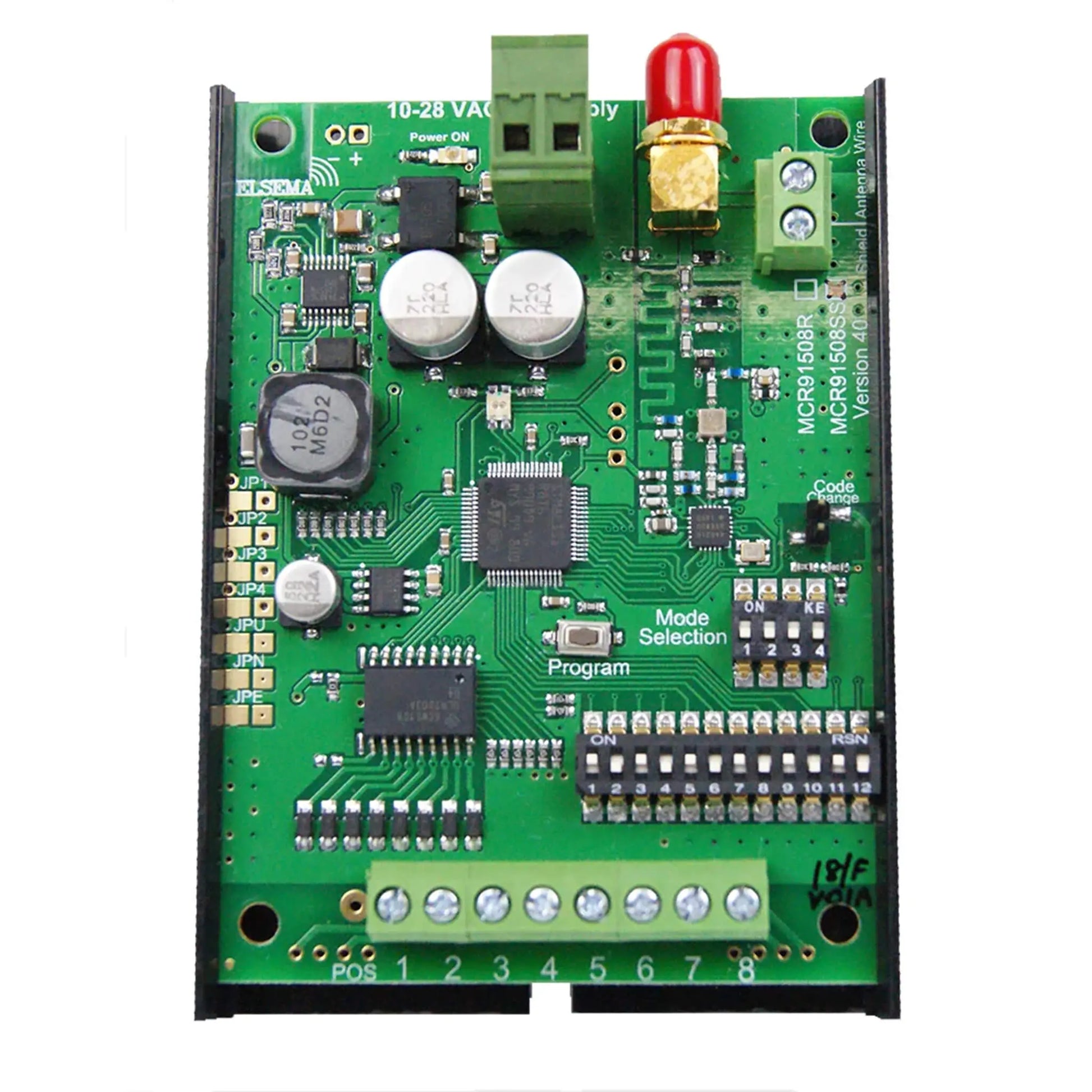

Elsema MCR91508SS Receiver with Open Collector

Elsema MCR91508SS Receiver with Open Collector

$122.95
$122.95
Sale Sold out
Shipping calculated at checkout.

Stock may need to be sourced from Australian suppliers to fulfil your order. Please allow additional time for dispatch. Contact us for ETA

MCR91508SS - Elsema Multicode 8 Channel Receiver with Open Collector Outputs

The Elsema MCR91508SS Multicode Receiver is an 8-channel 915MHz wireless receiver featuring open collector outputs for low-voltage switching and automation control. With long-range capability up to 400m, dual coding options (dipswitch or encrypted), selectable output modes, and low power consumption, it's ideal for gates, access control, lighting, security and industrial remote switching applications.

What’s Included:

  • 1 × Brand New Genuine MCR91508SS – 8 channels with open collector outputs
  • 1 x Quickmount
  • Step-by-step Wiring Programming Instructions

Key Features:

  • 8 Open Collector Outputs: Suitable for switching low-voltage circuits directly (instead of relays).
  • Frequency Hopping: Operates between 915-929MHz for reliable performance
  • Dual Coding Options: Choose between 12-way dipswitch coding or encrypted wireless coding (over 16 million codes)
  • Selectable Output Modes: Momentary or latching, configurable via dipswitch
  • Long Range: Up to 400m  operating distance with Elsema MCT915 series transmitters and Antennas
  • High Stability: Crystal-controlled for accuracy and consistent performance
  • LED Signal Indicatory: On-board red LED confirms signal reception
  • Wide Power Range: Operates on 10-28 VAC or 11-36 V DC with low current draw
  • Australian Compliance: Meets local frequency regulations for Australia*

Compatible with:

  • MCT91501
  • MCT91502
  • MCT91504
  • MCT91508
  • MCT91512
  • MCT91516

Ideal Applications:

  • Automatic Gates and Garage Doors
  • Wireless Security Activation
  • Lighting Control
  • Industrial Automation; control machinery, equipment, or processes remotely, enabling efficient and convenient operation
  • Access Control: Controlling entry points, such as doors or gates, ensuring secure access with compatible remote controls
  • Remote Switching: With its multiple output options, including relay, open collector it can be used for remote switching applications in various settings, such as turning on/off pumps, motors, or other devices wirelessly.

Connection Diagram:

MCR91508SS Connection Diagram

Technical Specifications:

Frequency 915 to 928 MHz
Code Type 12-way code switch (4096 Codes) or Encrypted Coding (Over 16 Million Codes)
Body Type Receiver
Number of Channels 8
Enclosure Not Included
Size 95 x 70 x 27mm
Power Supply 12 – 24 Volts AC or DC
Current Consumption  30 mA stand by at 12 VDC
Connection Pluggable Terminal Block
Output Eight outputs can be ON simultaneously with each output being 125mA.  Outputs can hold 40 Volts in OFF state.
Range Up to 400m in clear line of sight
Warranty 12 months Manufacturers Warranty


Downloads:
