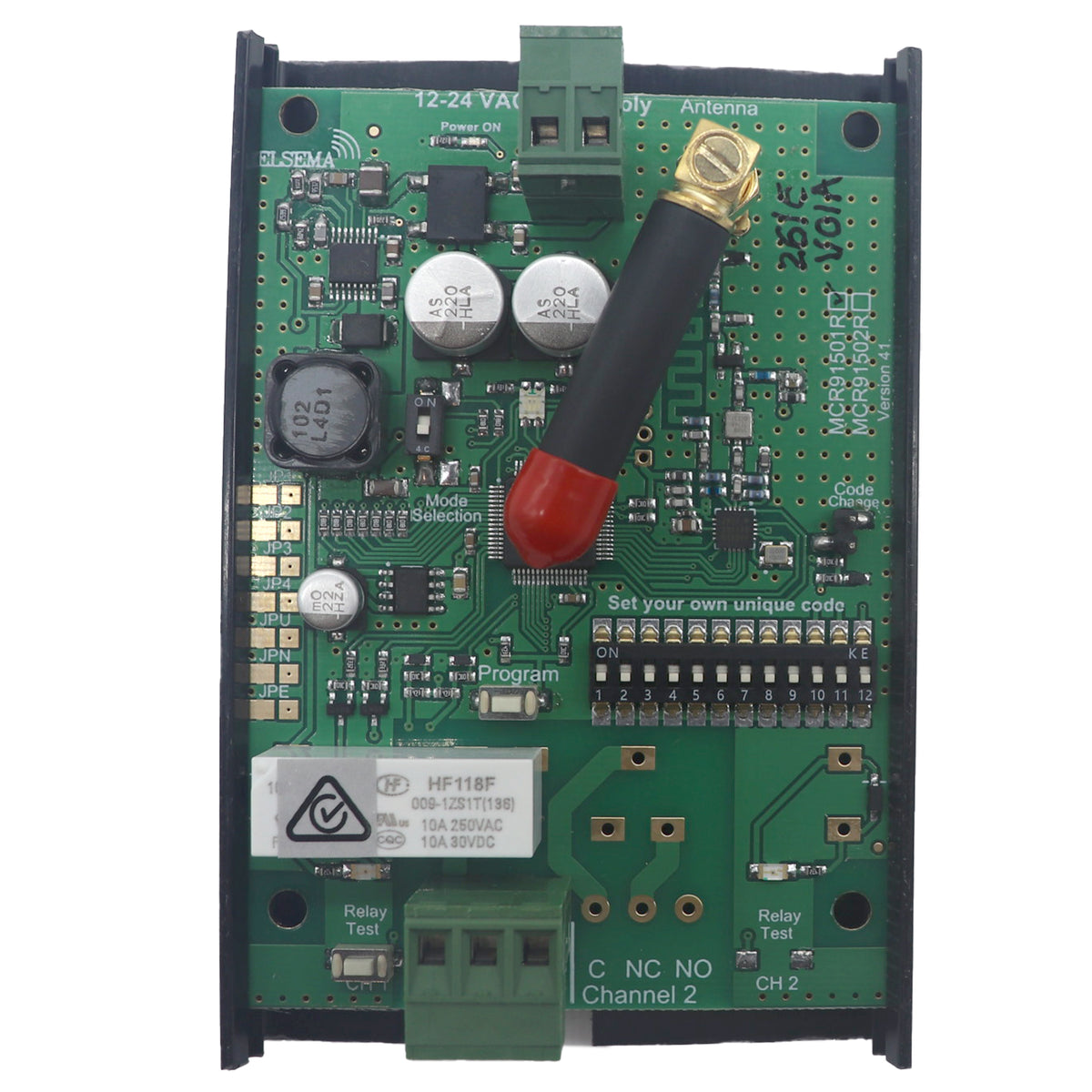

• Elsema MCR91501R Multicode 915MHz 1 channel receiver
  • Elsema MCR91501R 1 channel relay output receiver Australia

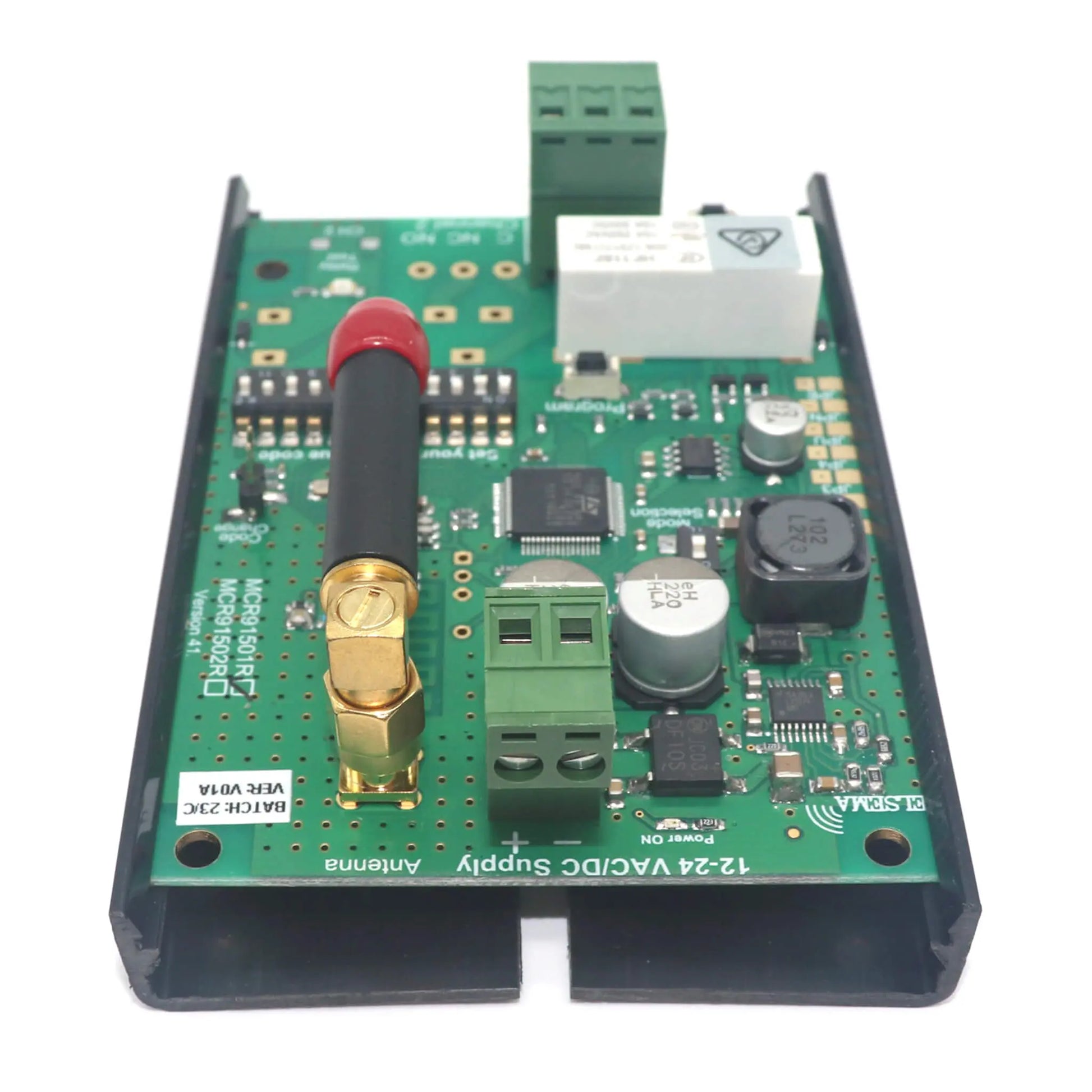

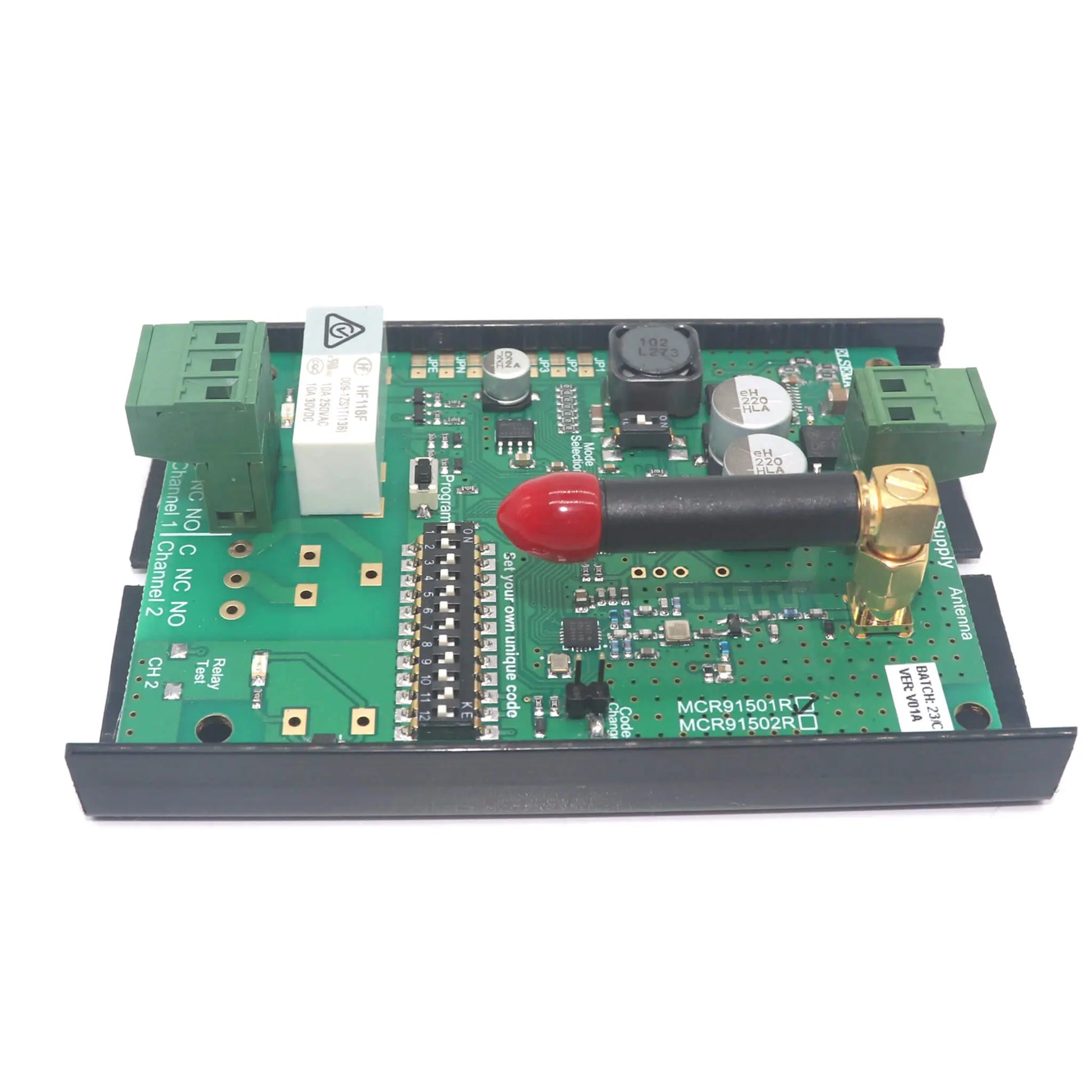

  • MCR91501R Elsema Multicode receiver with micro antenna
  • Elsema 915MHz MCR91501R receiver for gates and garage doors

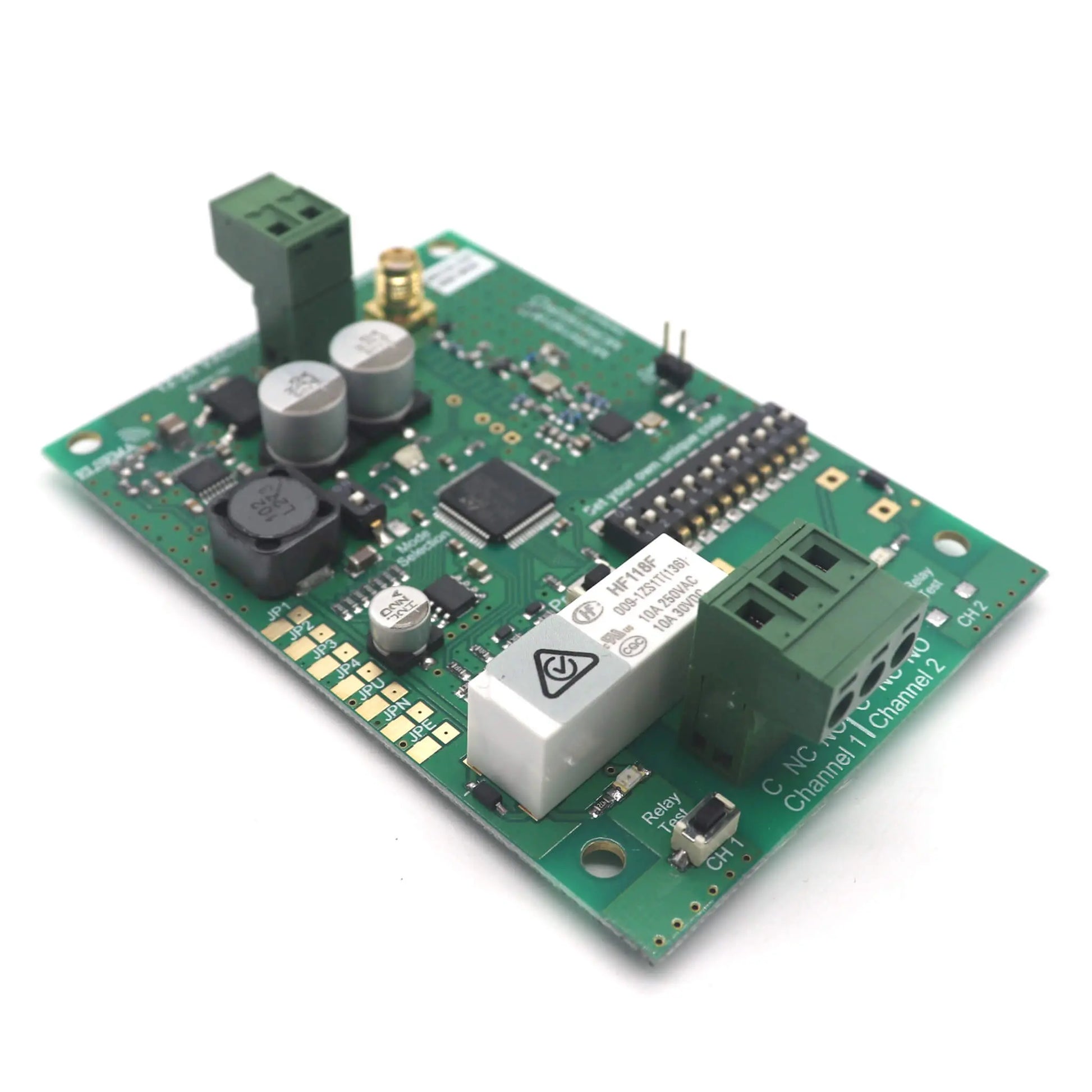

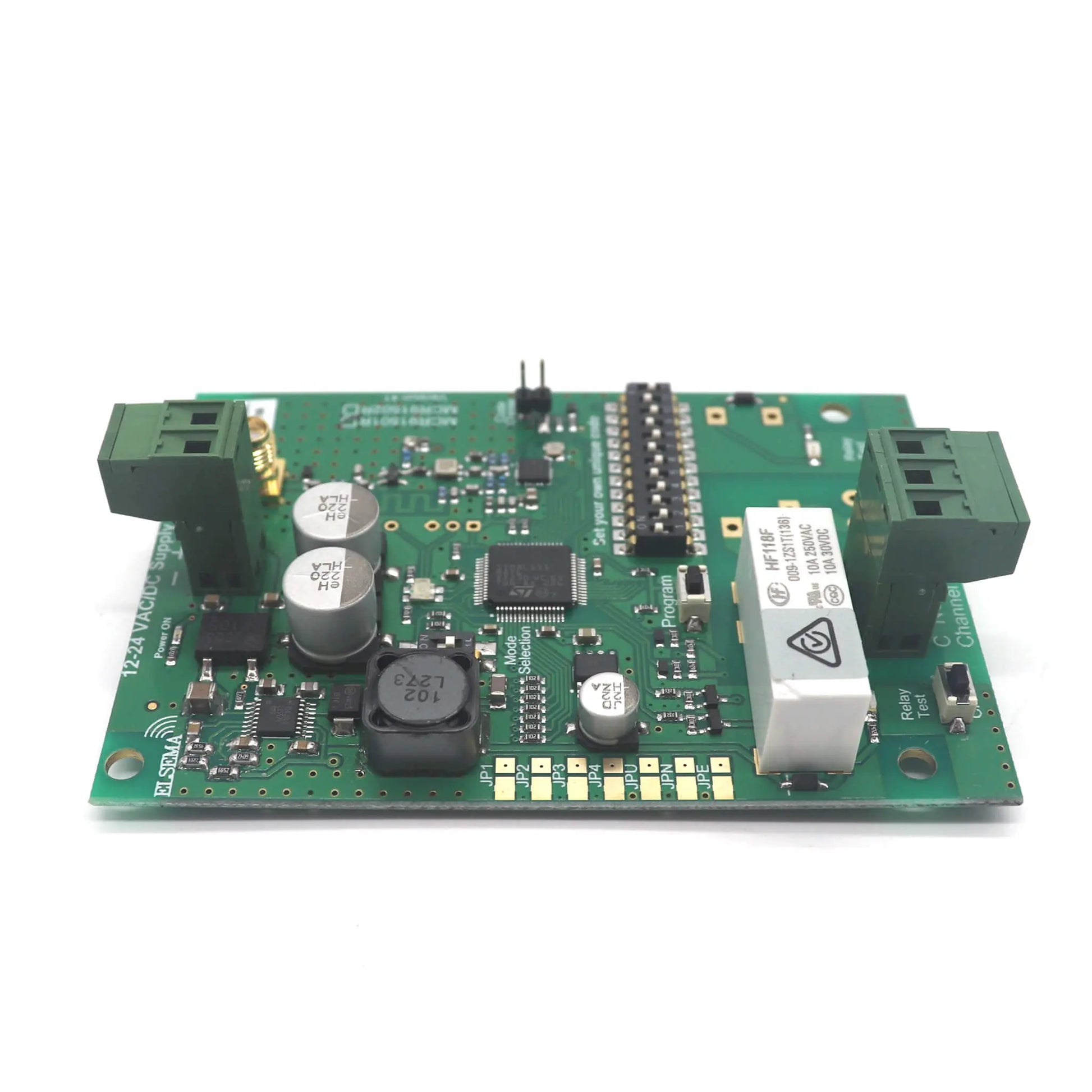

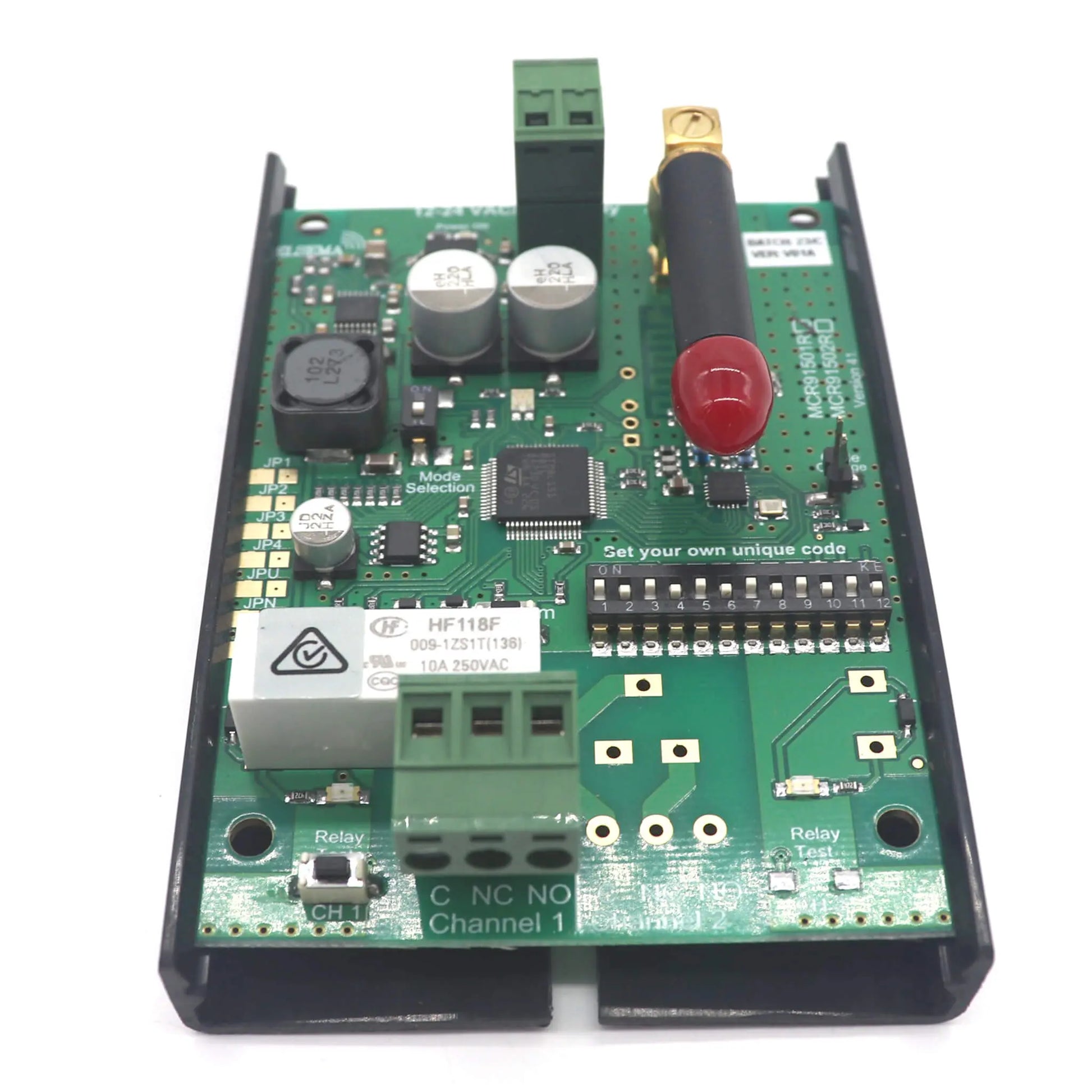

  • Elsema MCR91501R receiver board with 8A relay output
  • MCR91501R 12 to 24V AC DC wireless receiver

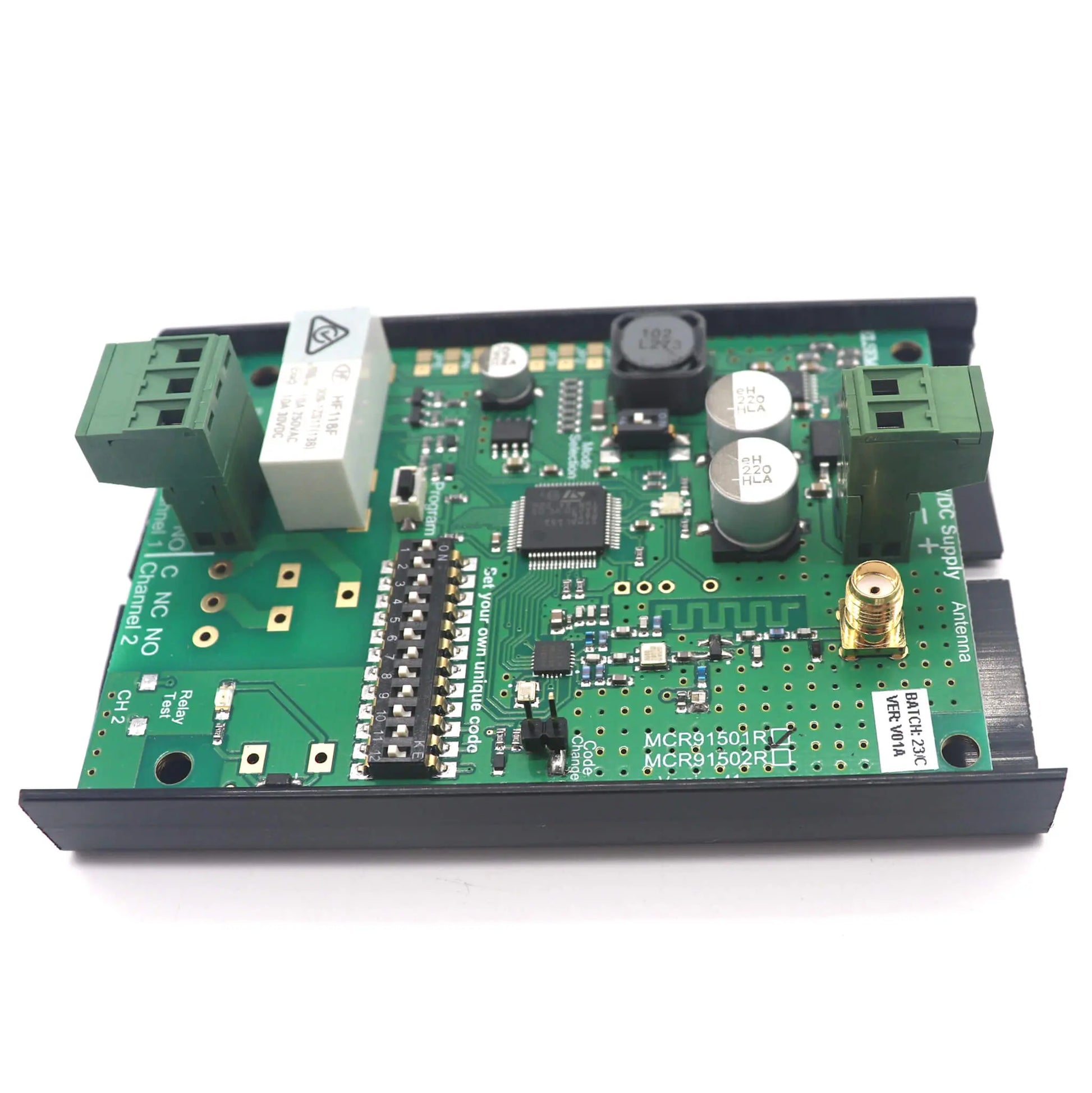

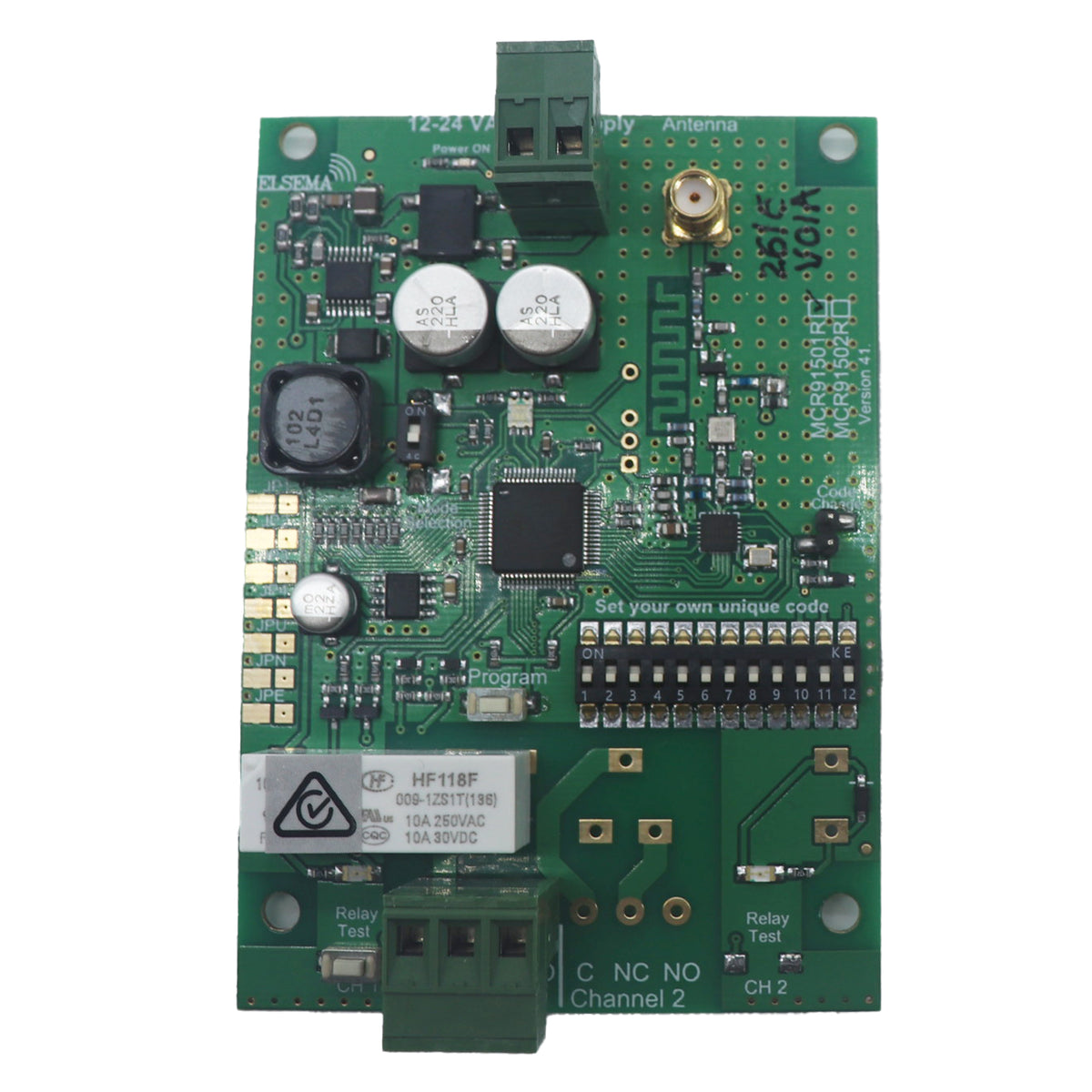

  • Elsema Multicode 915MHz receiver with 12 way code switch

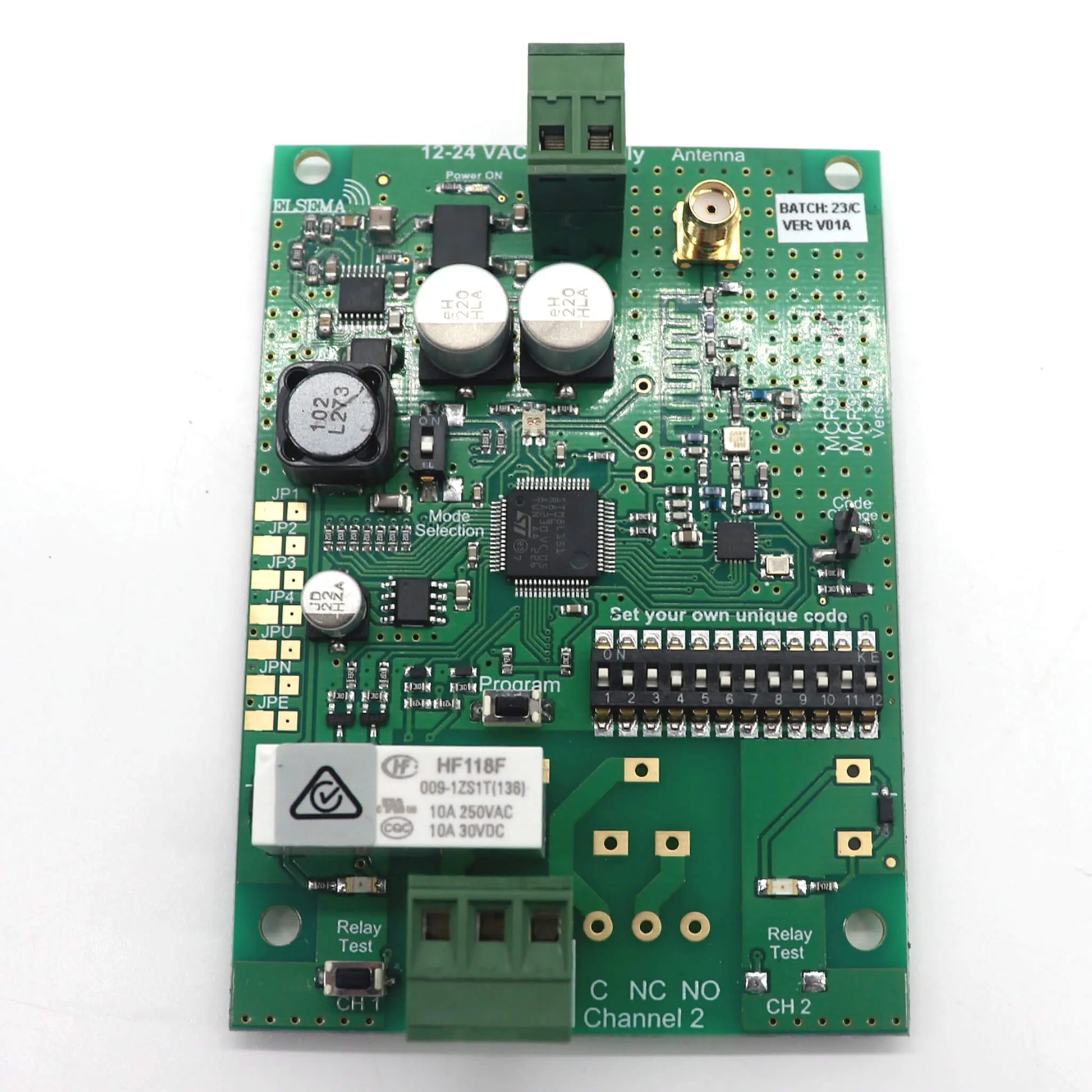

  • MCR91501R receiver relay terminals and programming controls

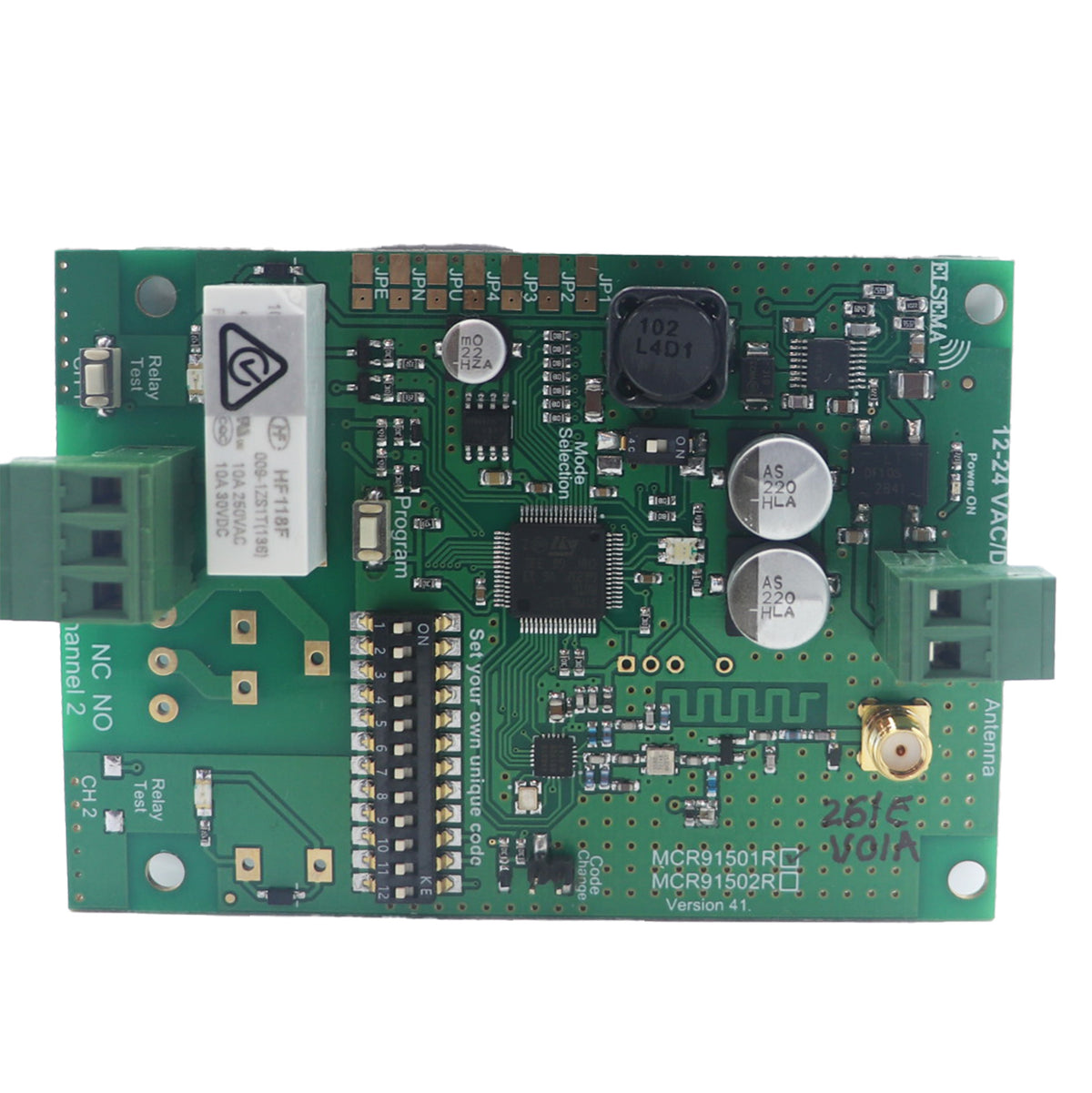

  • Elsema MCR91501R single channel remote control receiver

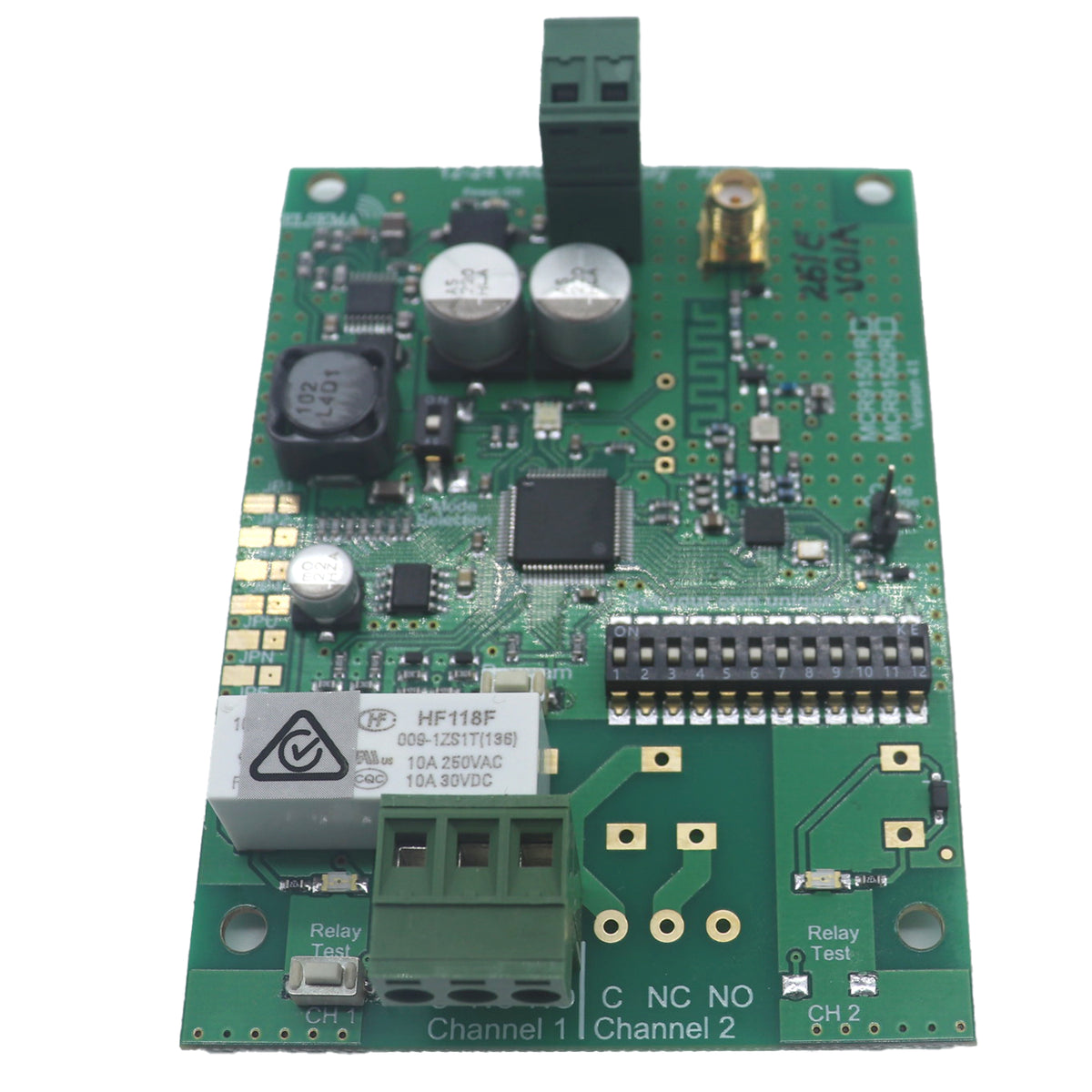

  • Elsema 915MHz receiver for pumps gates lighting and machinery
  • MCR91501R Multicode receiver compatible with Elsema MCT915 remotes
  • Elsema MCR91501R Receiver Elsema
  • Elsema MCR91501R Receiver Elsema
1 13

Elsema Multicode MCR91501R – 1 Channel Relay Output Receiver

Elsema Multicode MCR91501R – 1 Channel Relay Output Receiver

$111.95
$111.95
Sale Read More
Duties and taxes included. Shipping calculated at checkout.

This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.

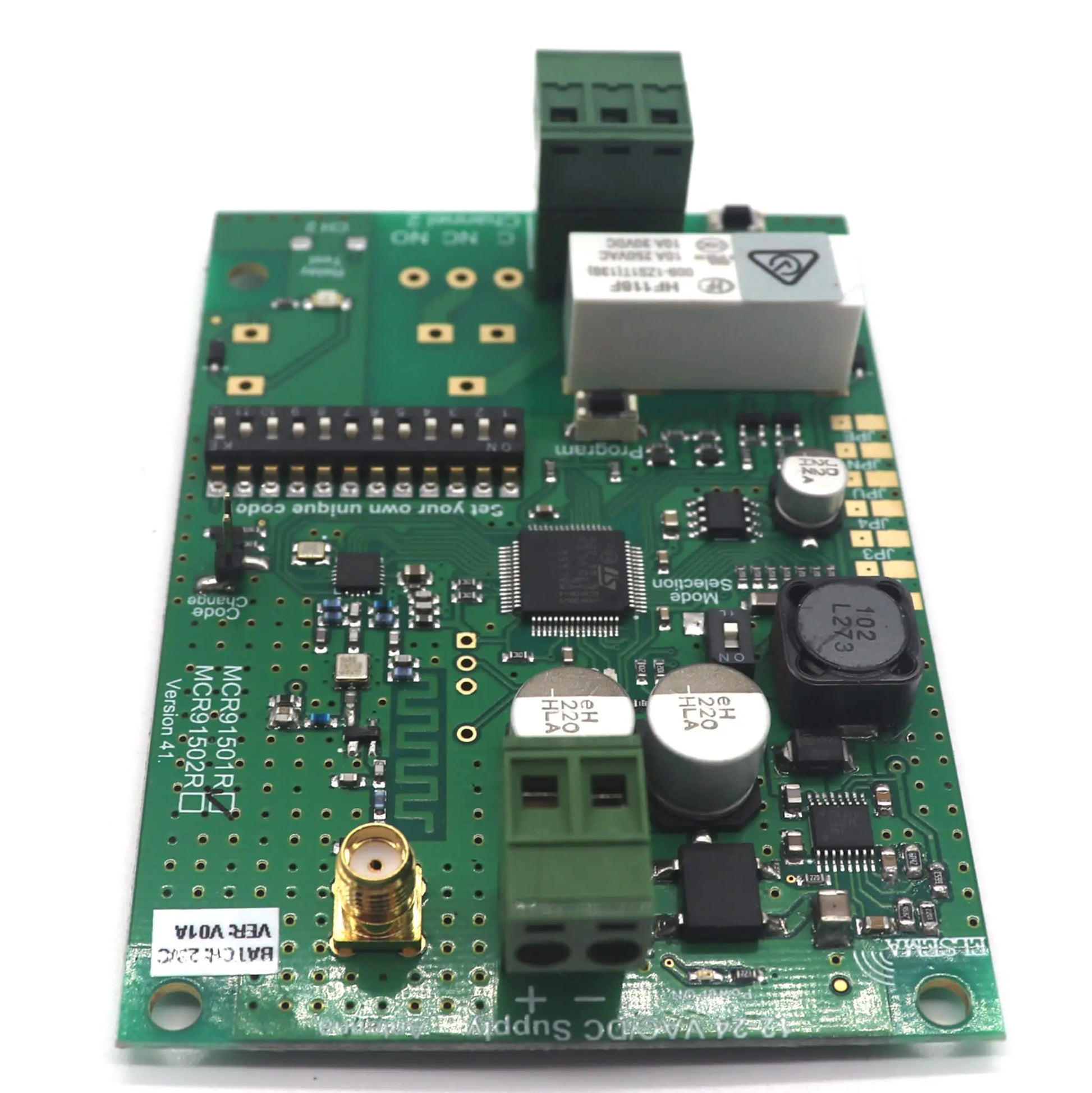

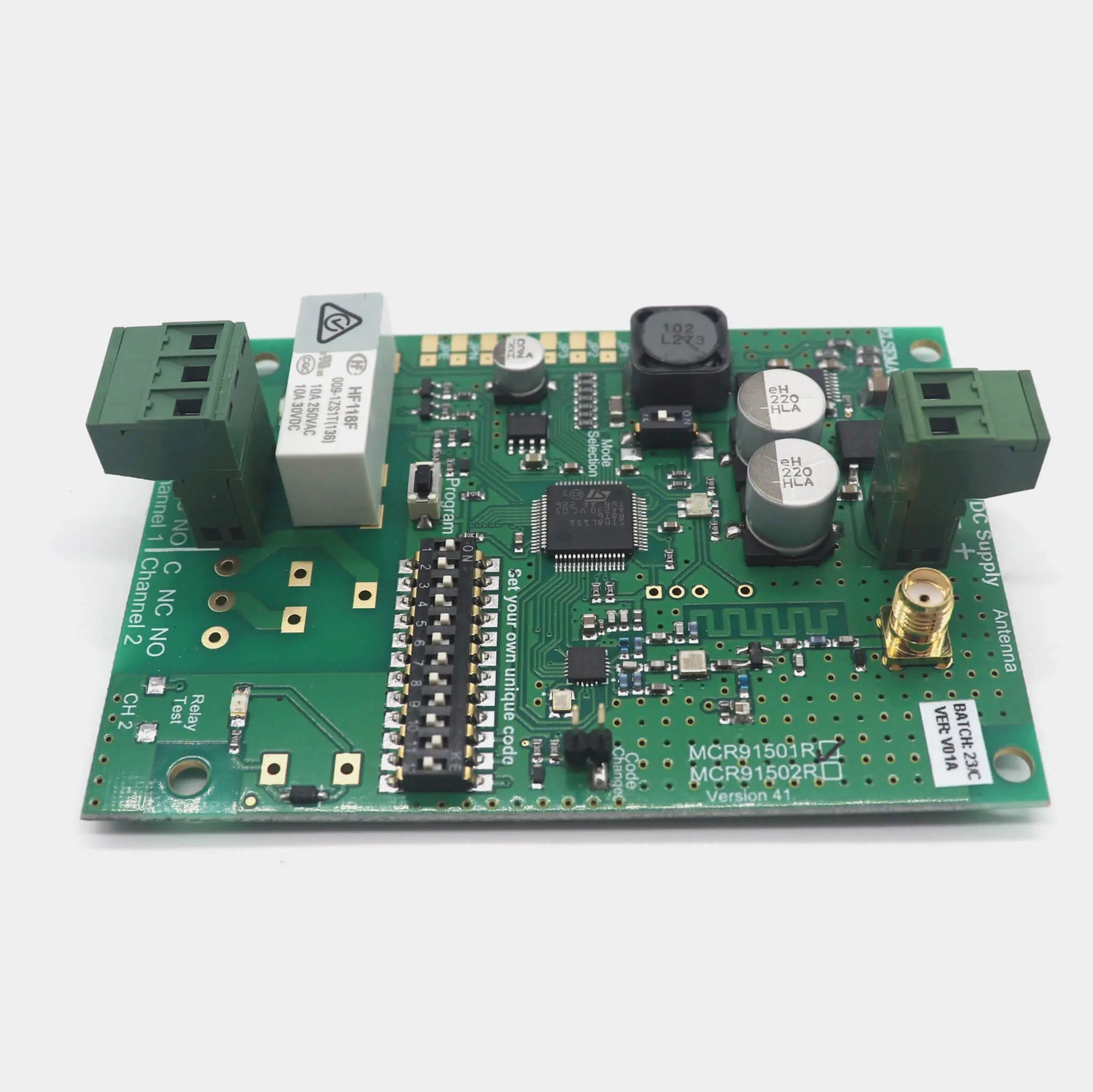

MCR91501R - Elsema Multicode 1 Channel Receiver with Relay Output

The Elsema MCR91501R is a 1 channel Multicode 915MHz receiver with a voltage-free relay output, designed for gate automation, garage doors, access control and industrial remote switching applications. Compatible with Elsema MCT915 series remotes, the receiver operates from 12–24V AC/DC and offers both 12-way dip switch coding and encrypted wireless coding.

With Frequency Hopping Spread Spectrum (FHSS), selectable momentary or latching operation and an operating range of up to 400 metres under ideal conditions, the MCR91501R is suitable for residential, commercial and industrial installations requiring reliable long-range remote control.

What’s included:

  • Genuine Elsema MCR91501R – 1 Channel Receiver with Relay Output
  • 1 x Quickmount
  • 1 x Micro Antenna
  • Easy-To-Follow Detailed Programming Instructions

Key Features:

  • Frequency Hopping: Operates between 915-929MHz for reliable performance
  • Dual Coding Options: Choose between 12-way dipswitch coding or encrypted wireless coding (over 16 million codes)
  • Selectable Output Modes: Momentary or latching, configurable via dipswitch
  • Long Range: Up to 400m  operating distance with Elsema MCT915 series transmitters and Antennas
  • High Stability: Crystal-controlled for accuracy and consistent performance
  • LED Signal Indicatory: On-board red LED confirms signal reception
  • Flexible Power: Wide voltage range (12-24V AC/DC) with low current consumption
  • Robust Relay Output: 1 x changeover relay (C, NC, NO) rated at 8A @ 240VAC
  • Australian Compliance: Meets local frequency regulations for Australia*

Compatible with:

Ideal Applications:

  • Automatic gates and garage doors
  • Access control and security systems
  • Pumps, irrigation and motor control
  • Lighting and remote switching
  • Industrial machinery and automation
  • Agricultural and commercial equipment
  • Long-range remote control applications

Connection Diagram:

MCR91501R Connection Diagram

Technical Specifications:

Supply Voltage 12 – 24 Volts AC or DC
Current Consumption 30 mA stand by at 12VDC
Frequency Band 915 to 928 MHz for Australia
Operating Temperature Range -5 to 50°C
Decoding Systems On board 12-way code switch (4096 Codes) Encrypted coding (Over 16 million codes)
Outputs One change over relay outputs, rated at 8 Amps 240VAC

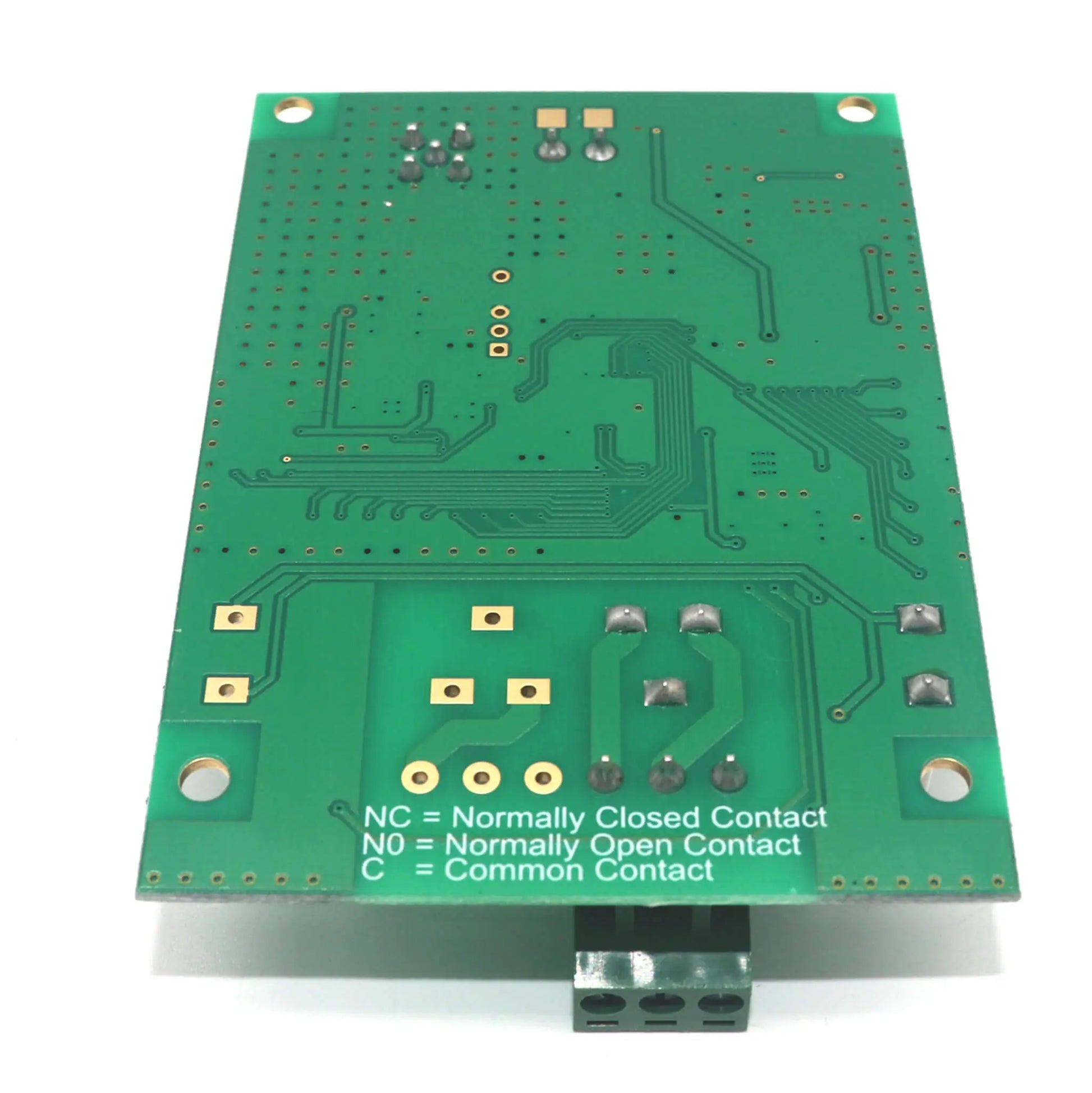

Relay Contacts Common (C), Normally Closed (NC) & Normally Open (NO)
Operating Range Up to 400m
Mounting Hole Size 3.97 mm or 5/32"
Dimensions 95 x 70 x 30 mm
Warranty 12 Months Manufacturers Warranty
