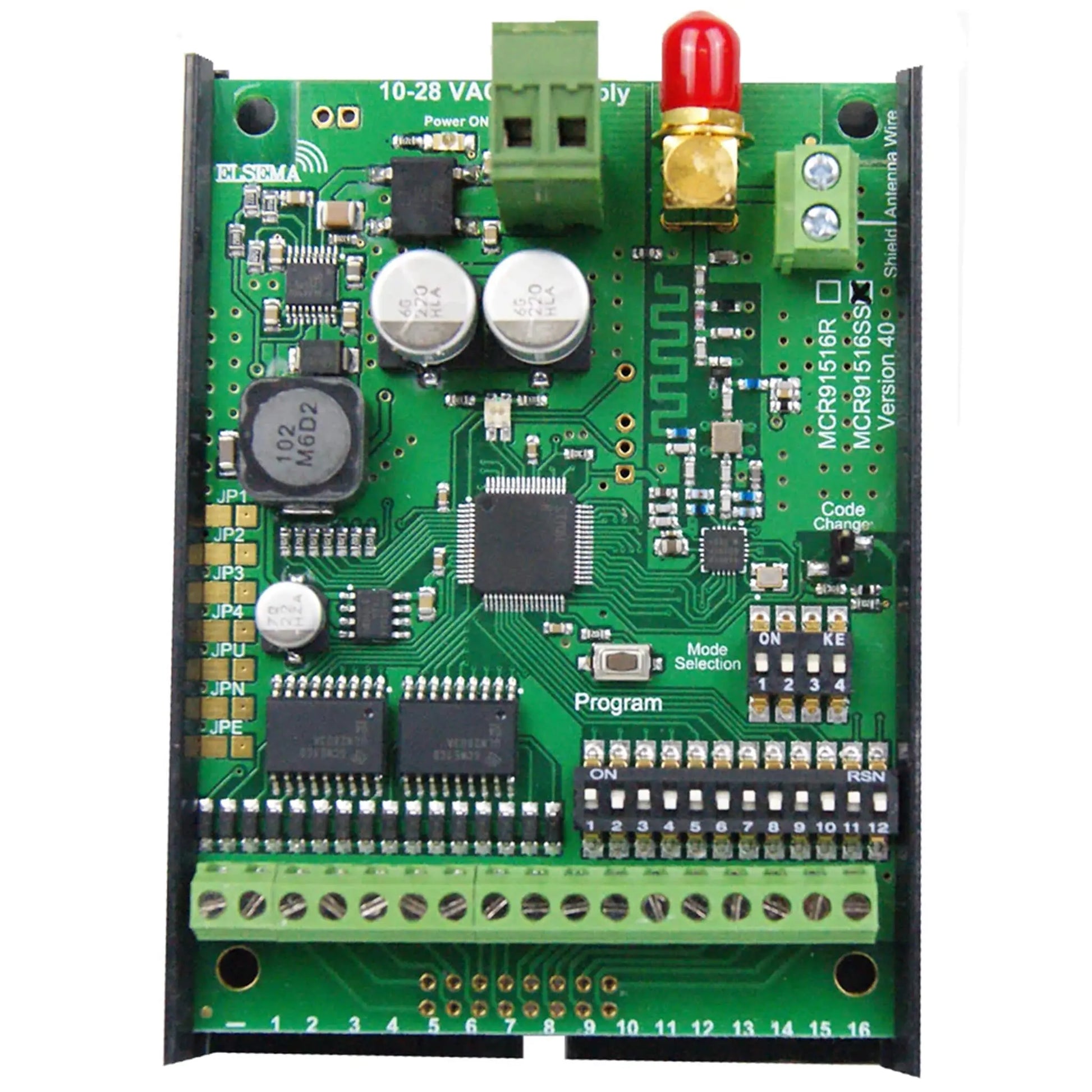

Elsema MCR91516SS Receiver with Open Collector

Elsema MCR91516SS Receiver with Open Collector

$144.95
$144.95
Sale Read More
Duties and taxes included. Shipping calculated at checkout.

This is a low demand item - Stock will need to be sourced from Australian suppliers to fulfil your order. Please allow additional time for dispatch. Contact us for ETA Prior to ordering if required urgently.

MCR91516SS - Elsema Multicode 16 Channel Receiver with Open Collector Output

The Elsema MCR91516SS Multicode Receiver is a 16-channel 915MHz wireless receiver featuring open collector outputs for electronic control, automation and switching applications. With long-range performance up to 400m, selectable momentary or latching output modes, and support for both dipswitch and encrypted coding, it’s ideal for gates, security, industrial automation, lighting control and remote switching systems.

What’s Included:

  • 1 × Brand New Genuine MCR91516SS – 16 channels with Open Collector
  • 1 x Quick Mount
  • Step-by-step Wiring Programming Instructions

Key Features:

  • 16 Open Collector Outputs: Designed for low-voltage switching and electronic control systems.
  • Frequency Hopping: Operates between 915-929MHz for reliable performance
  • Dual Coding Options: Choose between 12-way dipswitch coding or encrypted wireless coding (over 16 million codes)
  • Selectable Output Modes: Momentary or latching, configurable via dipswitch
  • Long Range: Up to 400m  operating distance with Elsema MCT915 series transmitters and Antennas
  • High Stability: Crystal-controlled for accuracy and consistent performance
  • LED Signal Indicatory: On-board red LED confirms signal reception
  • Flexible Power Supply: Operates on 12-24V AC/DC with low current consumption

Compatible with:

  • MCT91501
  • MCT91502
  • MCT91504
  • MCT91508
  • MCT91512
  • MCT91516

Ideal Applications:

  • Automatic Gates and Garage Doors
  • Wireless Security Activation
  • Lighting Control
  • Industrial Automation; control machinery, equipment, or processes remotely, enabling efficient and convenient operation
  • Access Control: Controlling entry points, such as doors or gates, ensuring secure access with compatible remote controls
  • Remote Switching: With its multiple output options, including relay, open collector it can be used for remote switching applications in various settings, such as turning on/off pumps, motors, or other devices wirelessly.

Connection Diagram:

MCR91516SS Connection Diagram

Technical Specifications:

Frequency 915 to 928 MHz
Code Type 12-way code switch (4096 Codes) or Encrypted Coding (Over 16 Million Codes)
Body Type Receiver
Number of Channels 16
Enclosure Not Included
Size 95 x 70 x 27
Power Supply 12 – 24 Volts AC or DC
Current Consumption  30 mA stand by at 12 VDC
Connection Terminal Block
Output 16 Open Collector Outputs.  All outputs can be ON simultaneously with each output current being 125mA.  Outputs can hold 40 Volts in “OFF” state.
Range Up to 400m in clear line of sight
Warranty 12 months Manufacturers Warranty
