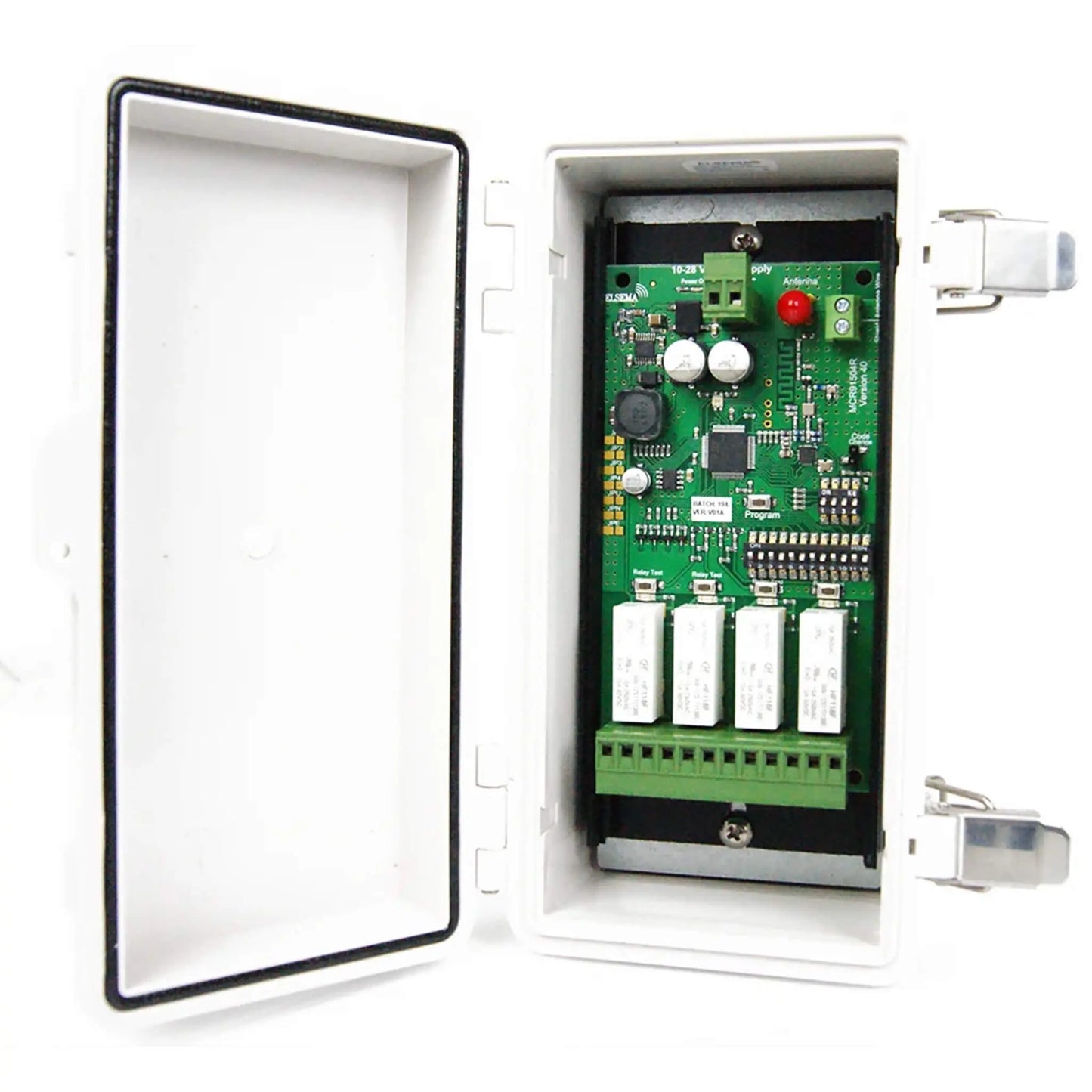

Elsema MCR91504RE Receiver with Enclosure

Elsema MCR91504RE Receiver with Enclosure

$244.95
$244.95
Sale Read More
Duties and taxes included. Shipping calculated at checkout.

This is a low demand item - Stock will need to be sourced from Australian suppliers to fulfil your order. Please allow additional time for dispatch. Contact us for ETA Prior to ordering if required urgently.

MCR91504RE - Elsema Multicode 4 Channel Receiver with Relay Outputs and Enclosure

The Elsema MCR91504RE Multicode Receiver is a 4-channel 915MHz relay receiver supplied in an IP66 weatherproof enclosure for reliable indoor or outdoor installations. Featuring heavy-duty 8A relays, dual coding options, long-range performance up to 400m, and selectable momentary/latching output modes, it’s ideal for automation, access control, lighting, pumps, machinery and industrial remote switching applications.

What’s Included:

  • 1 × Brand New Genuine MCR91504R – 4 channel with Relay Output
  • 1 x IP66 Weatherproof Enclosure
  • 1 x Quick Mount
  • 1 x Micro Antenna
  • Step-by-step Wiring Programming Instructions

Features:

  • Four Relay Outputs: Rated at 8A @ 240VAC each, with changeover contacts (C, NO, NC).
  • IP66 Weatherproof Enclosure: Designed for reliable outdoor and harsh environment use.
  • Frequency Hopping: Operates between 915-929MHz for reliable performance
  • Dual Coding Options: Choose between 12-way dipswitch coding or encrypted wireless coding (over 16 million codes)
  • Selectable Output Modes: Momentary or latching, configurable via dipswitch
  • Long Range: Up to 400m  operating distance with Elsema MCT915 series transmitters and Antennas
  • High Stability: Crystal-controlled for accuracy and consistent performance
  • LED Signal Indicatory: On-board red LED confirms signal reception
  • Flexible Power: Wide voltage range (7.0-36V DC)

Compatible with:

  • MCT91501
  • MCT91502
  • MCT91504
  • MCT91508
  • MCT91512
  • MCT91516

Ideal Applications:

  • Automatic Gates and Garage Doors
  • Wireless Security Activation
  • Lighting Control
  • Industrial Automation; control machinery, equipment, or processes remotely, enabling efficient and convenient operation
  • Access Control: Controlling entry points, such as doors or gates, ensuring secure access with compatible remote controls
  • Remote Switching: With its multiple output options, including relay, open collector it can be used for remote switching applications in various settings, such as turning on/off pumps, motors, or other devices wirelessly.

Connection Diagram for MCR91504R

MCR91504R Connection Diagram

Technical Specifications:

Frequency 915 to 928 MHz
Code Type 12-way code switch (4096 Codes) or Encrypted Coding (Over 16 Million Codes)
Body Type Receiver
Number of Channels 4
Enclosure IP66 Enclosure
Size 130 x 70 x 27 mm
Power Supply 12 – 24 Volts AC or DC
Current Consumption 90mA with 3 relays “ON”110mA with 4 relays “ON”
Connection Pluggable Terminal Block
Output 4 change over relay outputs, rated at 8 Amps 240VAC each
Range Up to 400m in clear line of sight
Warranty 12 months Manufacturers Warranty
