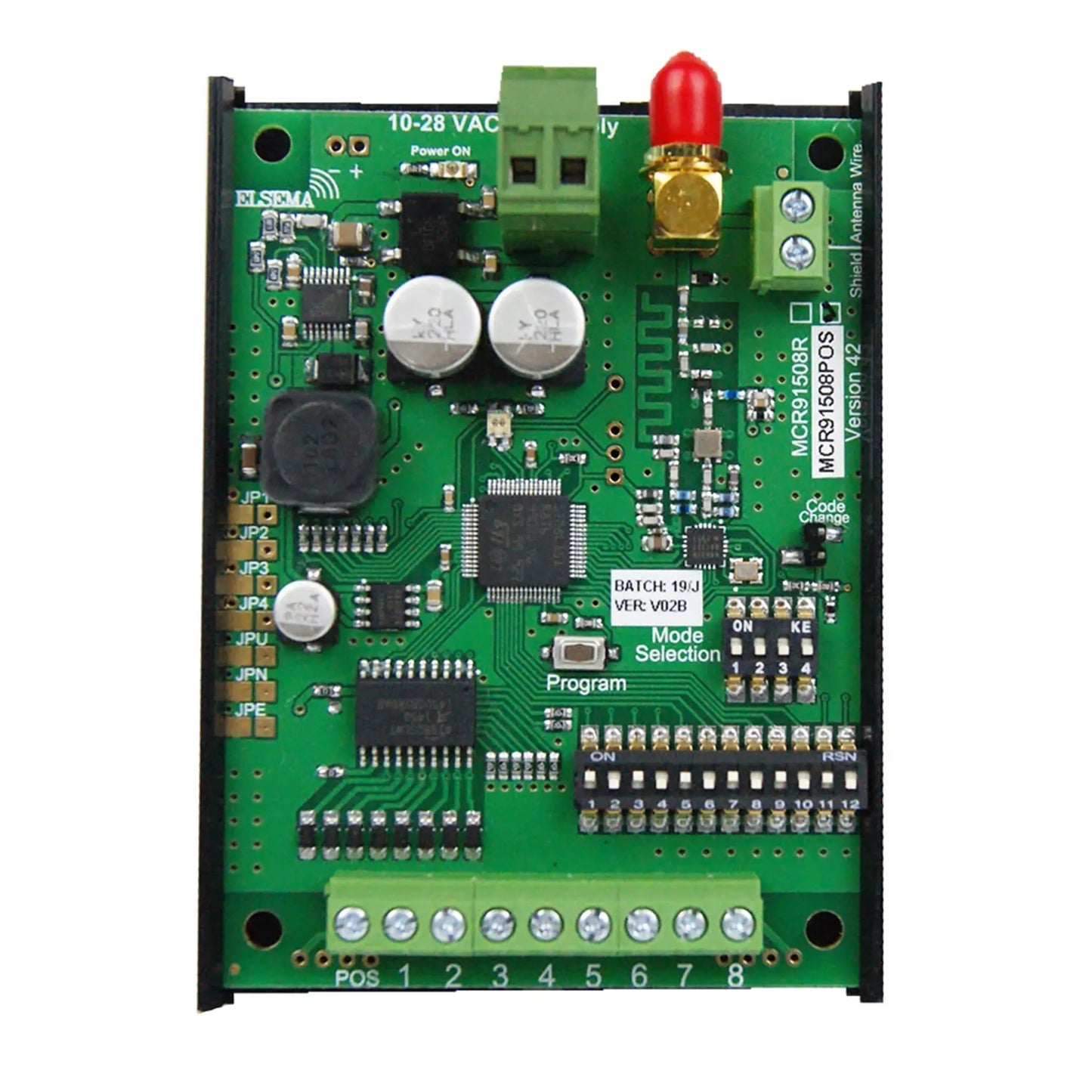

Elsema MCR91508POS Receiver with Positive Switching

MCR91508POS Elsema Multicode 8 Channel Receiver with Positive Switching Outputs

The Elsema MCR91508POS Multicode Receiver is an 8-channel 915MHz wireless receiver with positive switching outputs, ideal for industrial, security, and automation control. Featuring dual coding (dipswitch or encrypted), selectable momentary/latching modes, long-range operation up to 400m, and support for unlimited transmitters, it delivers reliable switching for machinery, gates, alarms, and equipment management.

What’s Included:

• 1 × Brand New Genuine MCR91508POS
• 1 x Quickmount
• Step-by-step Wiring Programming Instructions

Features:

• Frequency Hopping Technology: Operates between 915MHz and 928MHz, providing exceptional resistance to interference and jamming.
• Eight Channels: Allows simultaneous reception across all channels, enabling seamless control of multiple devices.
• Dual Digital Coding:
  • 12-Way Dipswitch: Simple programming by matching transmitter and receiver settings.
  • Encrypted Coding: Offers over 16 million unique codes for high-security applications.
• Open Collector Outputs: 50 Volts, 120 mA with all outputs ON
• Selectable Output Modes:
  • Momentary: Outputs remain active while the transmitter button is pressed.
  • Latching: Outputs toggle on/off with each button press.
  • Security Latching: Outputs stay active until power to the receiver is interrupted.
• Wide Voltage Range: Operates on 12–24V DC, making it compatible with various power supplies.
• LED Indicators: On-board red LED provides visual feedback for signal reception.
• Expandable System: Supports unlimited transmitter connections, ensuring scalability for growing needs.

Ideal Applications:

• Industrial Automation: Ideal for controlling cranes, winches, and cement truck operations.
• Equipment and Machinery Control: Ensures reliable operation in heavy-duty environments.
• Security Systems: Perfect for alarms, gates, and advanced access control.
• Home Automation: Use it to control gates, garden lights, swimming pools, and more.

Connection Diagram:
