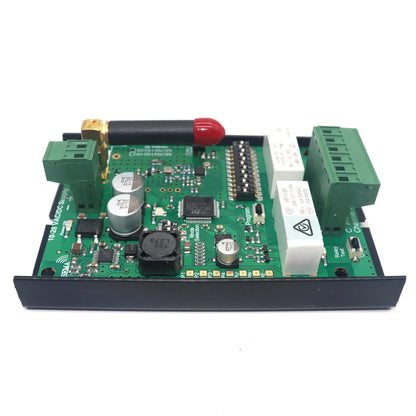

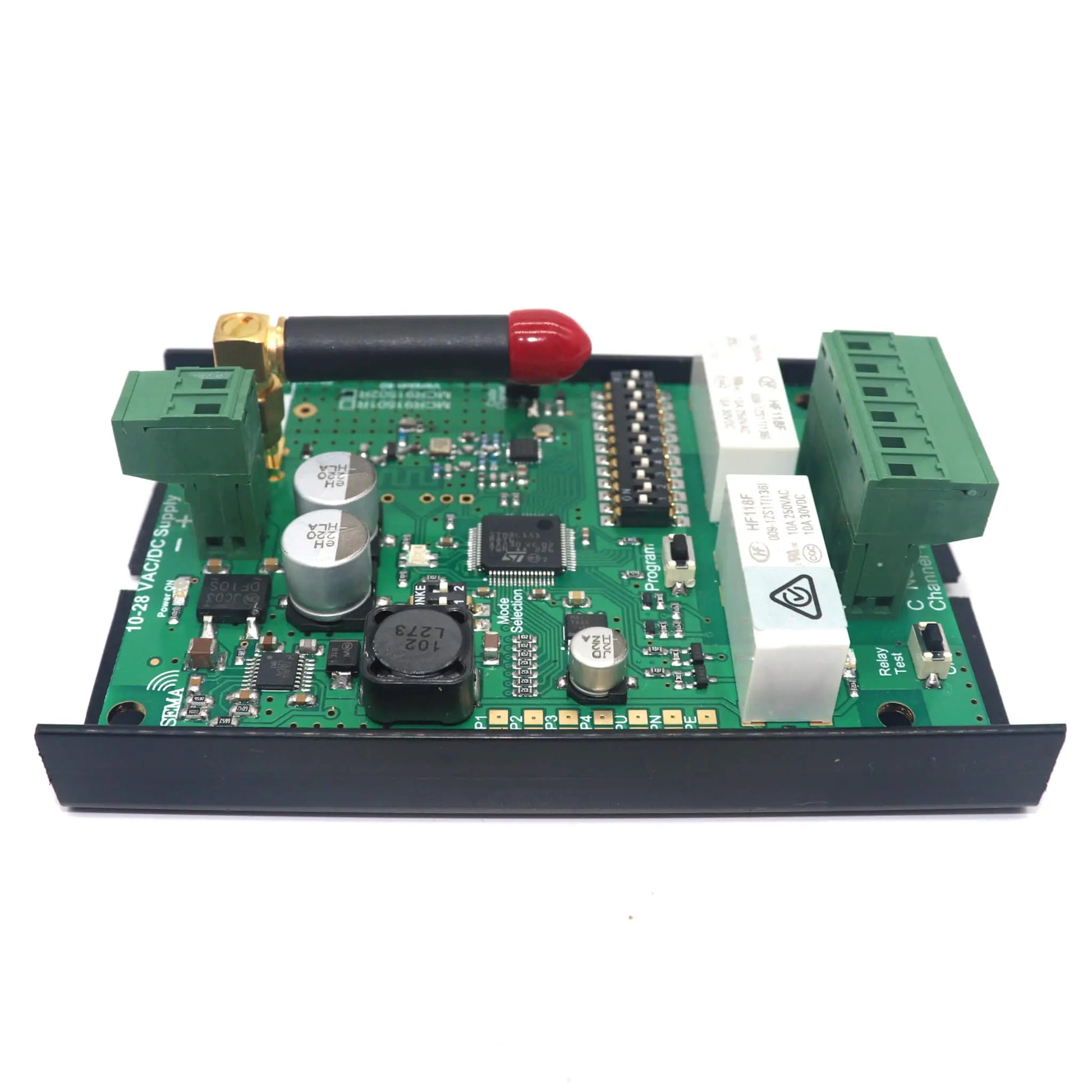

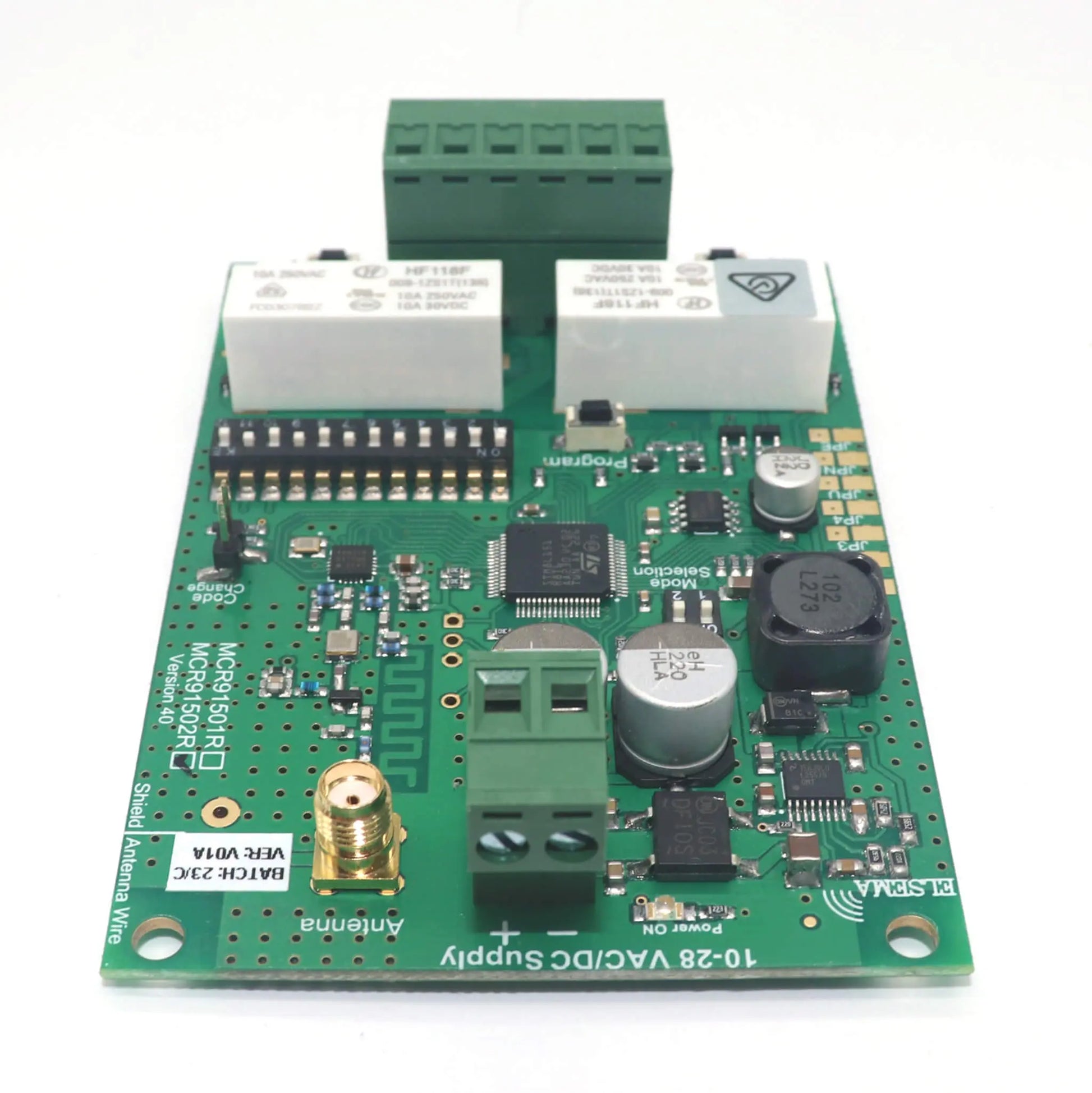

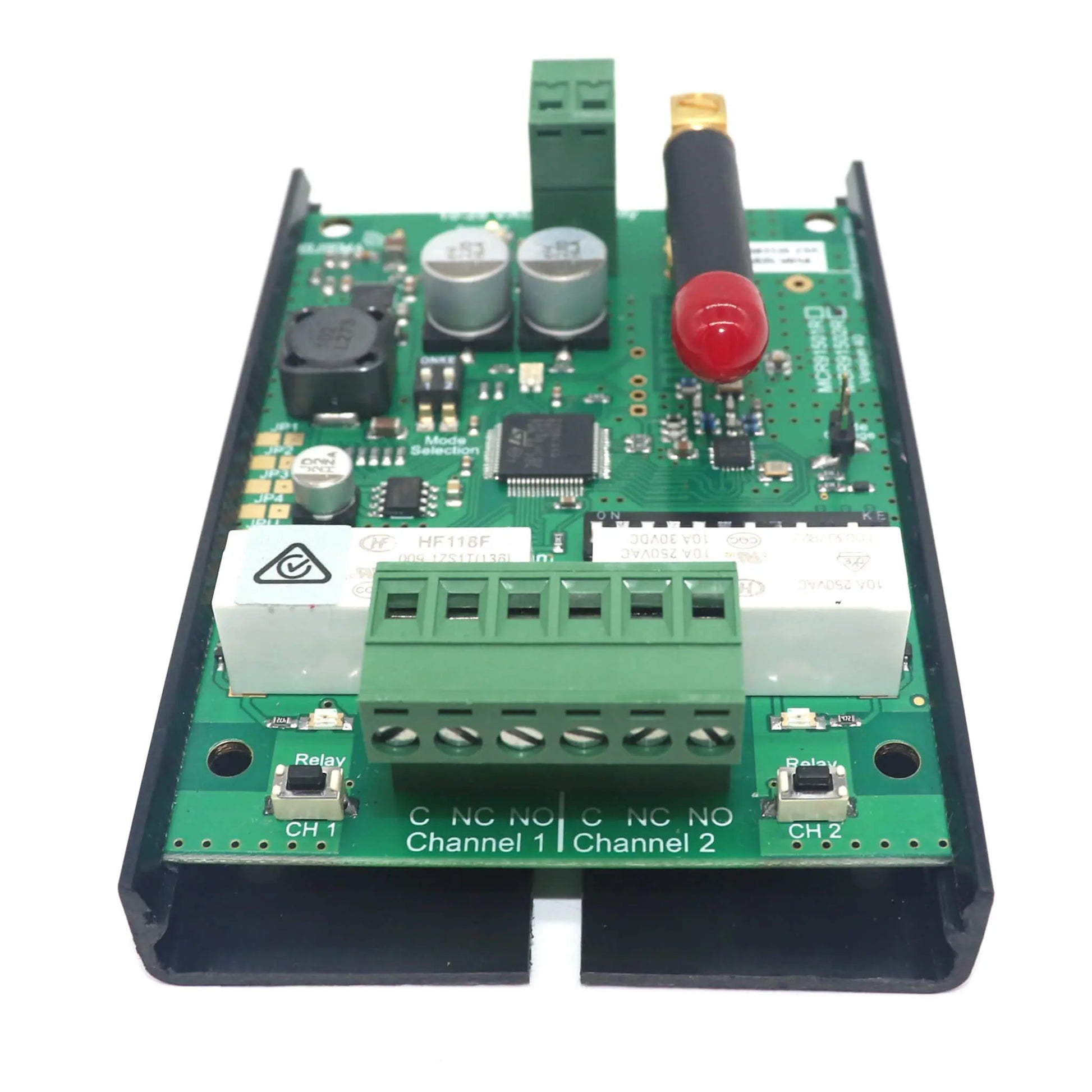

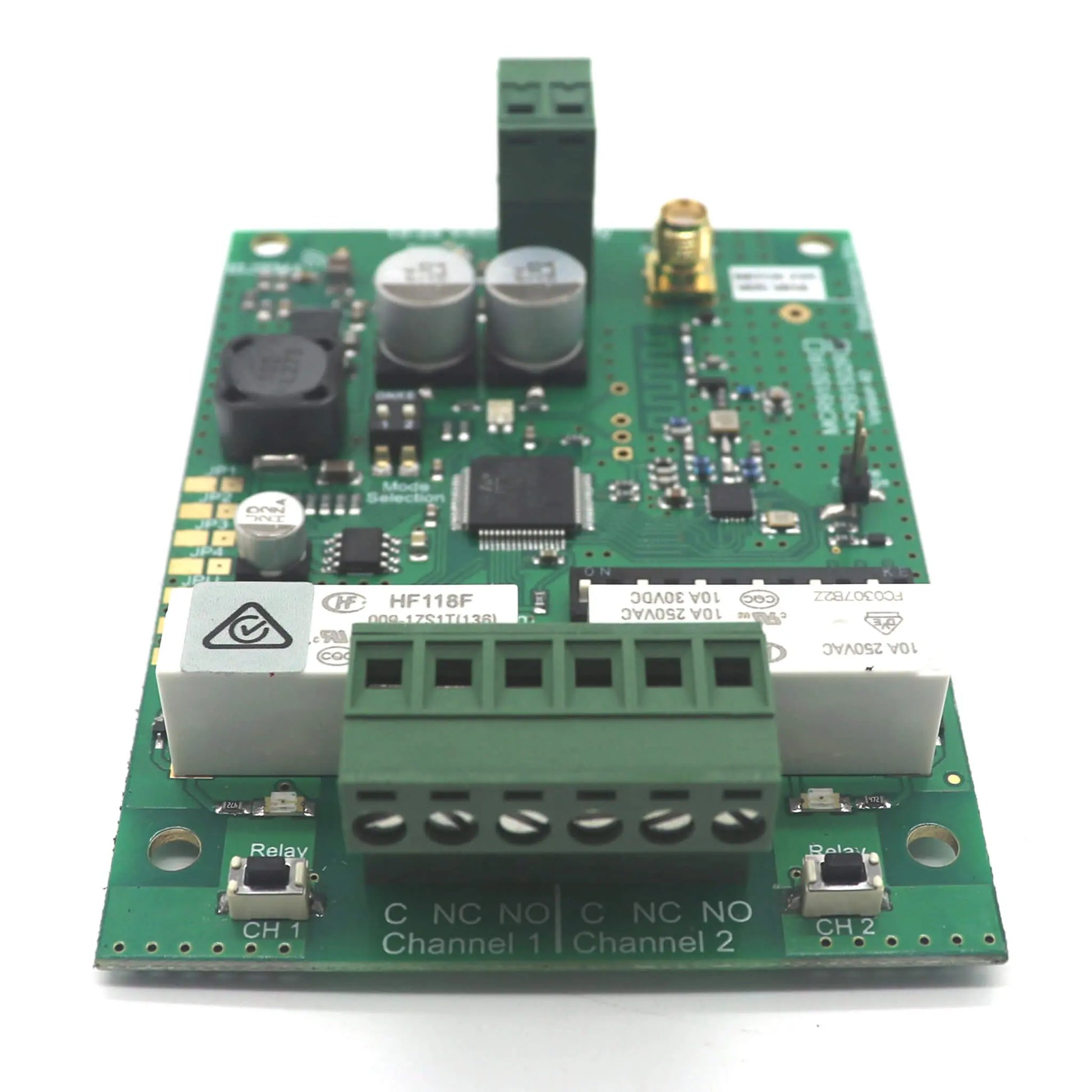

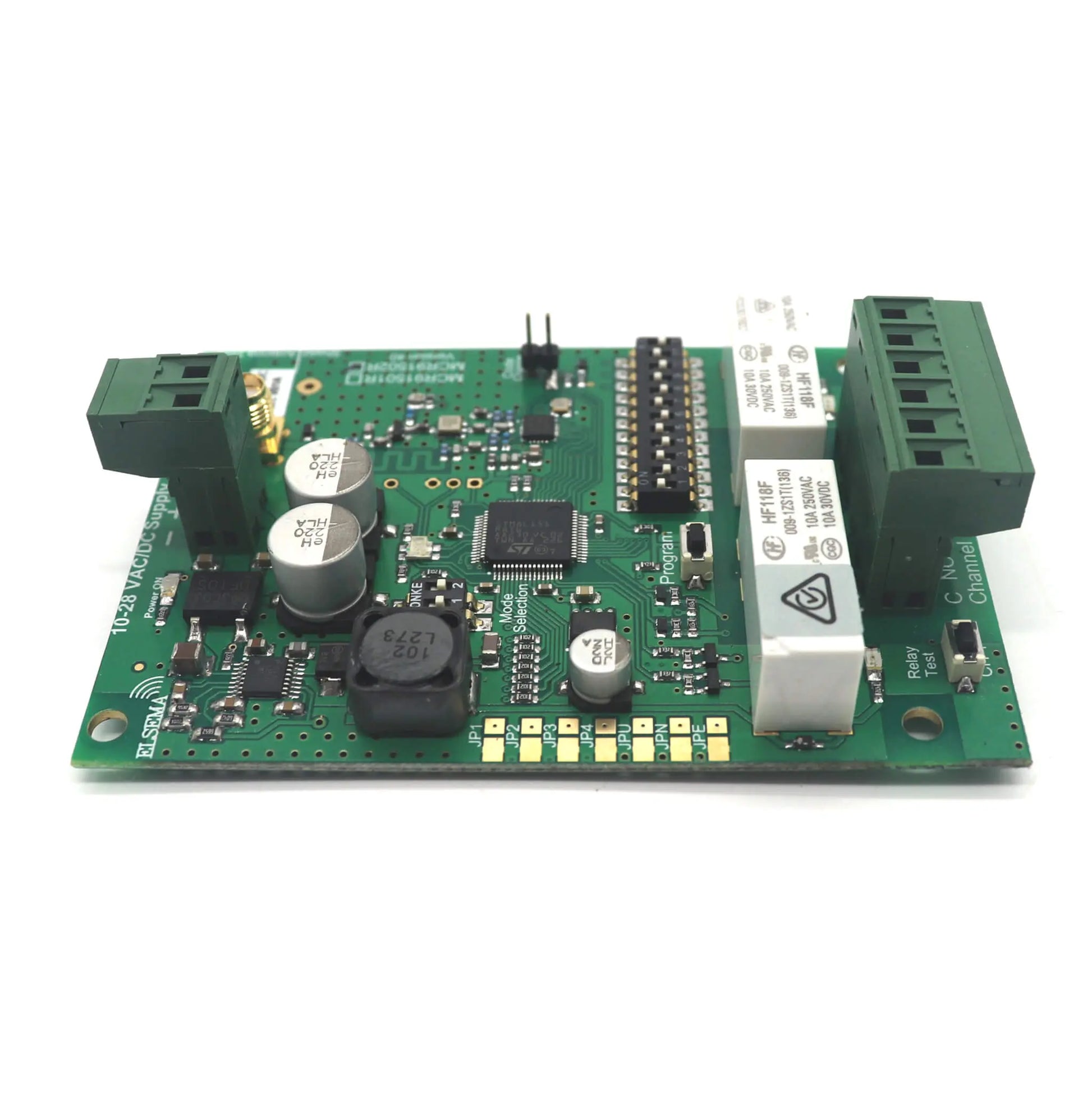

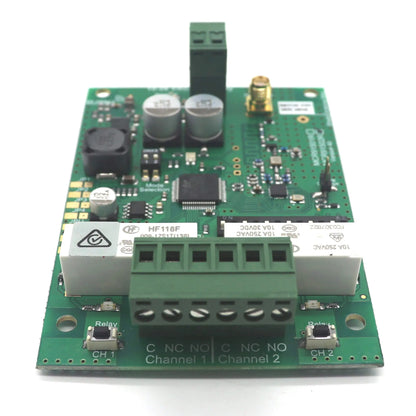

MCR91502R - Elsema Multicode 2 Channel Receiver with Relay Output
The Elsema MCR91502R Multicode Receiver is a 2-channel 915MHz relay output receiver designed for remote switching and automation control. Featuring dual 8A relays, long-range capability up to 400m, dual coding (dipswitch or encrypted), and selectable momentary/latching outputs, it’s ideal for gates, lighting, pumps, alarms, access systems, irrigation and industrial equipment control.
Includes:
- 1 × Brand New Genuine MCR91502R – 2 channel with Relay Output
- 1 x Quickmount
- 1 x Micro Antenna
- Step-by-step Wiring Programming Instructions
Key Features:
- Dual Relay Outputs: Two changeover relays rated at 8A @ 240VAC
- Frequency Hopping: Operates between 915-929MHz for reliable performance
- Dual Coding Options: Choose between 12-way dipswitch coding or encrypted wireless coding (over 16 million codes)
- Selectable Output Modes: Momentary or latching, configurable via dipswitch
- Long Range: Up to 400m operating distance with Elsema MCT915 series transmitters and Antennas
- High Stability: Crystal-controlled for accuracy and consistent performance
- LED Signal Indicatory: On-board red LED confirms signal reception
- Flexible Power: Wide voltage range (7.0-36V DC)
- Australian Compliance: Meets local frequency regulations for Australia*
Compatible with:
- MCT91501
- MCT91502
- MCT91504
- MCT91508
- MCT91512
- MCT91516
Ideal Applications:
- Automatic Gates and Garage Doors
- Wireless Security Activation
- Lighting Control
- Industrial Automation; control machinery, equipment, or processes remotely, enabling efficient and convenient operation
- Access Control: Controlling entry points, such as doors or gates, ensuring secure access with compatible remote controls
- Remote Switching: With its multiple output options, including relay, open collector it can be used for remote switching applications in various settings, such as turning on/off pumps, motors, or other devices wirelessly.
Connection Diagram:
Technical Specifications:
| Supply Voltage | 12 – 24 Volts AC or DC |
| Current Consumption | 30 mA stand by at 12VDC 70mA with 2 relays “On” |
| Frequency Band | 915 to 928 MHz for Australia |
| Operating Temperature Range | -5 to 50°C |
| Decoding Systems | On board 12-way code switch (4096 Codes) Encrypted coding (Over 16 million codes) |
| Outputs | Two change over relay outputs, rated at 8 Amps 240VAC each |
| Relay Contacts | Common (C), Normally Closed (NC) & Normally Open (NO) |
| Operating Range | Up to 400m |
| Mounting Hole Size | 3.97 mm or 5/32" |
| Dimensions | 95 x 70 x 30 mm |
| Warranty | xv12 Months Manufacturers Warranty |
