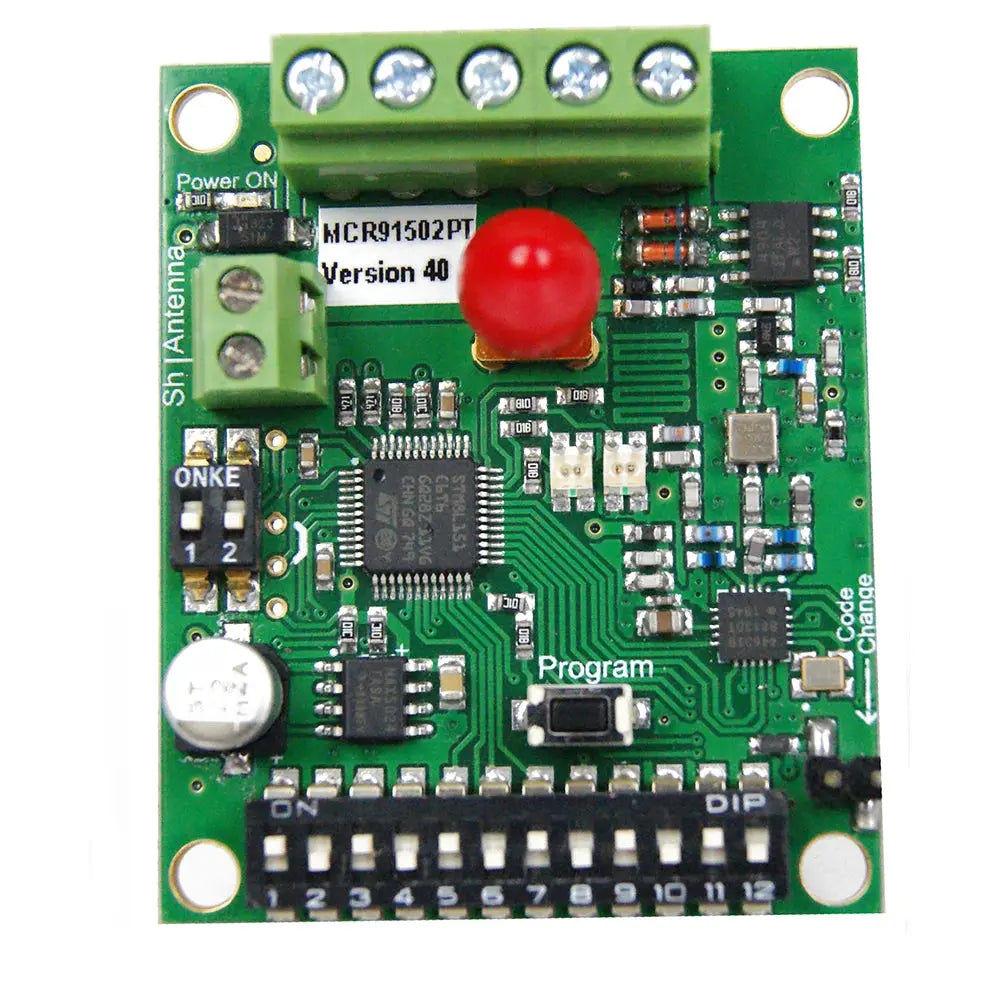

Elsema MCR91502PT with Terminal Block

Elsema MCR91502PT with Terminal Block

$66.95
$66.95
Sale Sold out
Shipping calculated at checkout.

Stock may need to be sourced from Australian suppliers to fulfil your order. Please allow additional time for dispatch. Contact us for ETA

MCR91502PT - Elsema Multicode 2 Channel Receiver with Open Collector Outputs

The Elsema MCR91502PT Multicode Receiver is a compact 2-channel 915MHz wireless receiver with open collector outputs and secure screw terminal connection. Offering dual coding options, long-range performance up to 400m and selectable momentary or latching output modes, it's ideal for gates, access control, lighting, security activation and industrial automation requiring low-voltage switching.

What’s Included:

  • 1 × Brand New Genuine MCR91502PT – 2 channel with Terminal Block
  • 1 x Micro Antenna
  • Step-by-step Wiring Programming Instructions

Key Features:

  • Secure 5-way Screw Terminal Block: Allows direct wiring for supply, antenna and outputs
  • Frequency Hopping: Operates between 915-929MHz for reliable performance
  • Dual Coding Options: Choose between 12-way dipswitch coding or encrypted wireless coding (over 16 million codes)
  • Selectable Output Modes: Momentary or latching, configurable via dipswitch
  • Long Range: Up to 400m  operating distance with Elsema MCT915 series transmitters and Antennas
  • High Stability: Crystal-controlled for accuracy and consistent performance
  • LED Signal Indicatory: On-board red LED confirms signal reception
  • Flexible Power: Wide voltage range (7.0-36V DC)

Compatible with:

  • MCT91501
  • MCT91502
  • MCT91504
  • MCT91508
  • MCT91512
  • MCT91516

Ideal Applications:

  • Automatic Gates and Garage Doors
  • Wireless Security Activation
  • Lighting Control
  • Industrial Automation; control machinery, equipment, or processes remotely, enabling efficient and convenient operation
  • Access Control: Controlling entry points, such as doors or gates, ensuring secure access with compatible remote controls
  • Remote Switching: With its multiple output options, including relay, open collector it can be used for remote switching applications in various settings, such as turning on/off pumps, motors, or other devices wirelessly.

Connection Diagram:

MCR91502PT Connection Diagram

Technical Specifications

Frequency 915 to 928 MHz
Code Type 12-way code switch (4096 Codes) or Encrypted Coding (Over 16 Million Codes)
Body Type Receiver
Number of Channels 2
Enclosure Not Included
Size 54.3 x 43 x 13mm
Power Supply 7.0 - 36 Volts DC. (Note: DC ONLY)
Current Consumption  30 mA stand by at 12 VDC
Connection 5-way screw type terminal block
Output Open Collector: Maximum-switching 2 Amps/ 40VDC
Range Up to 400m in clear line of sight
Warranty 12 months manufacturers warranty
