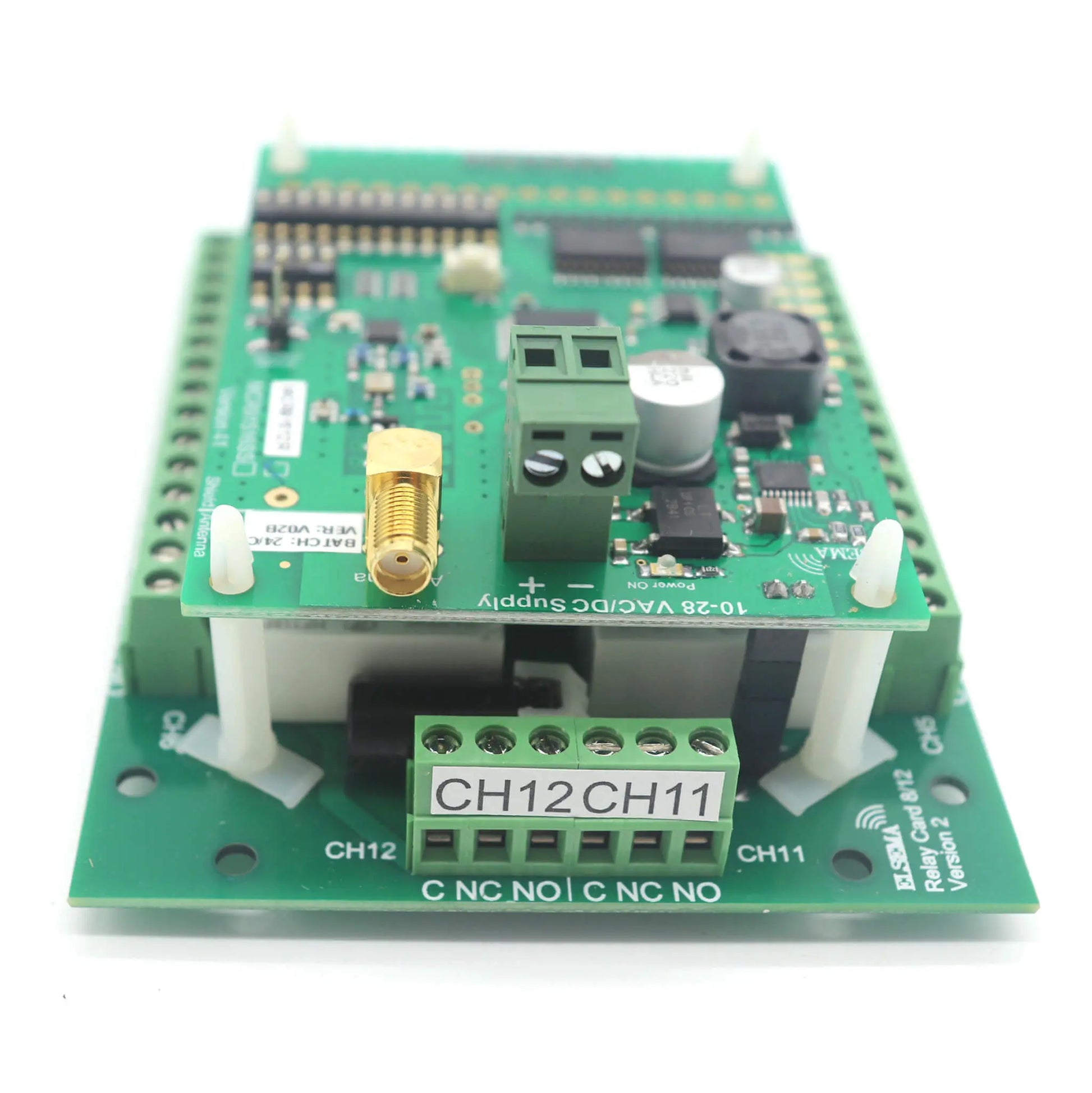

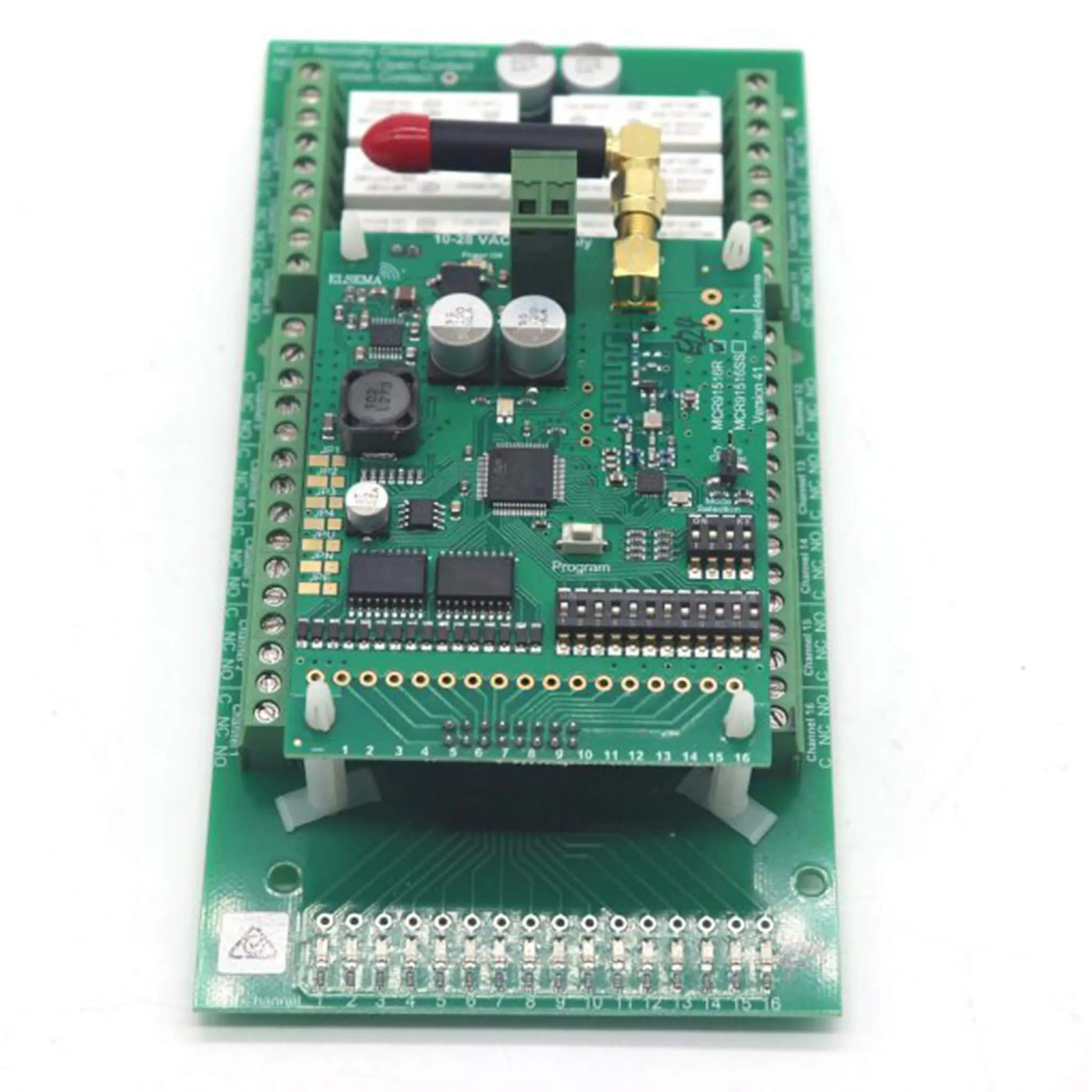

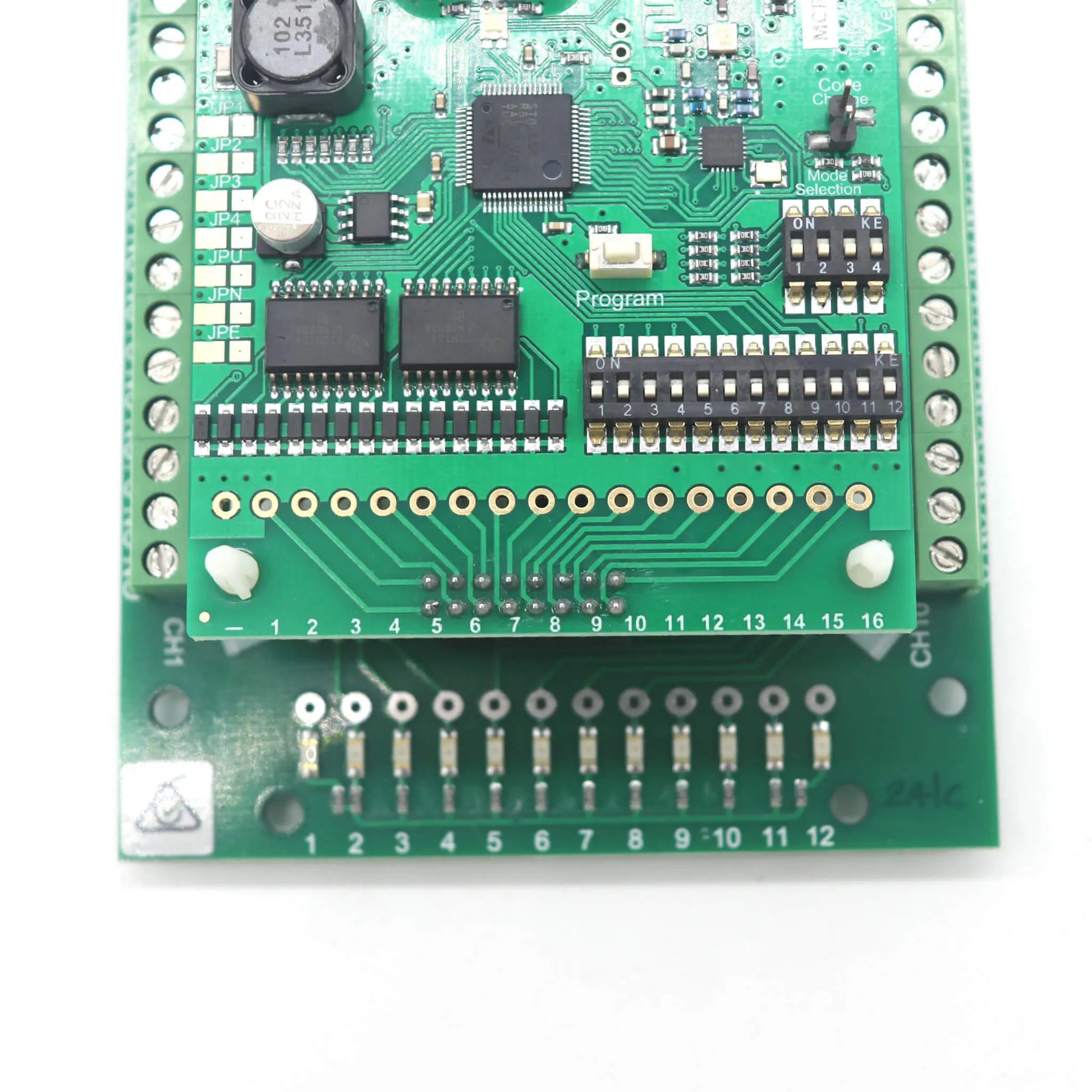

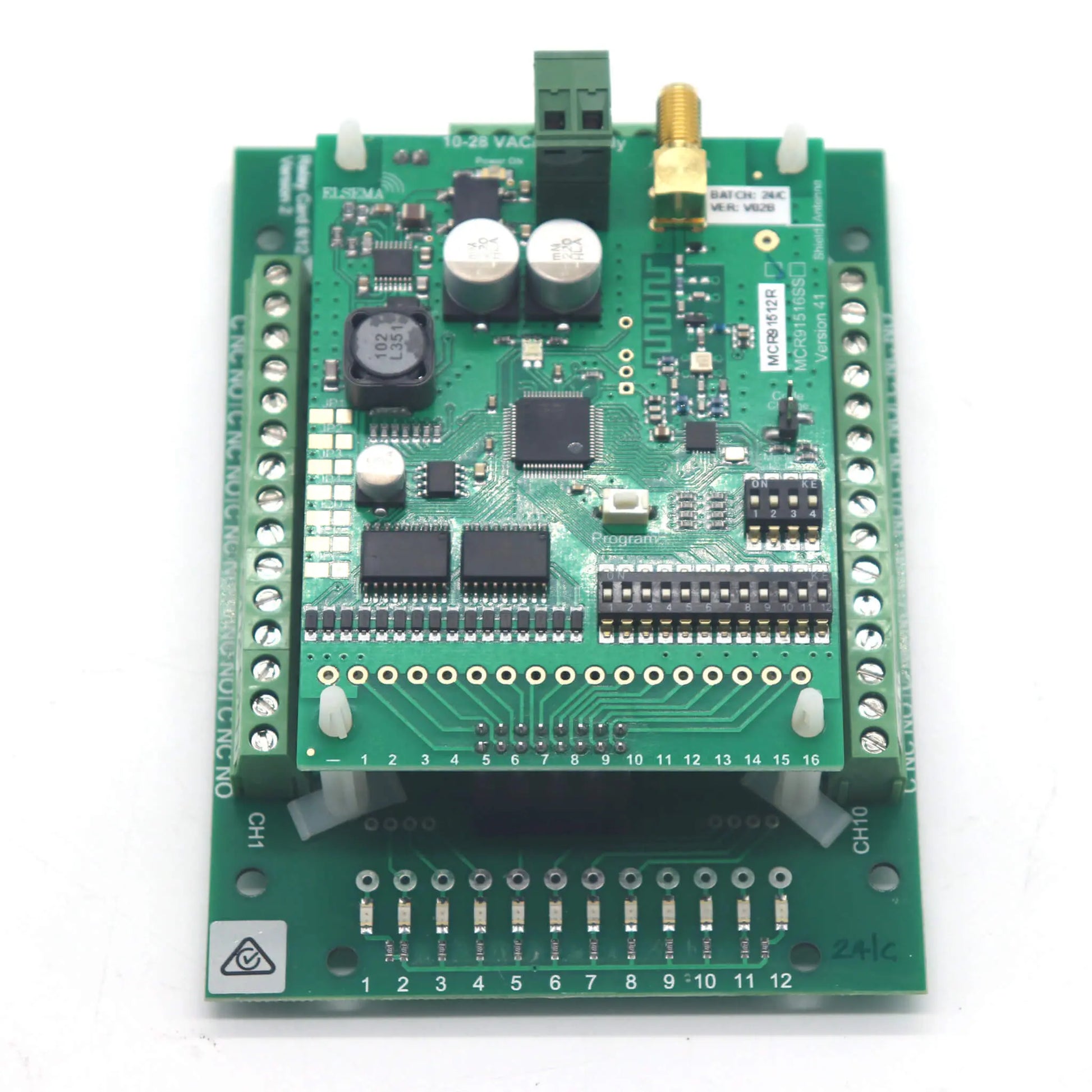

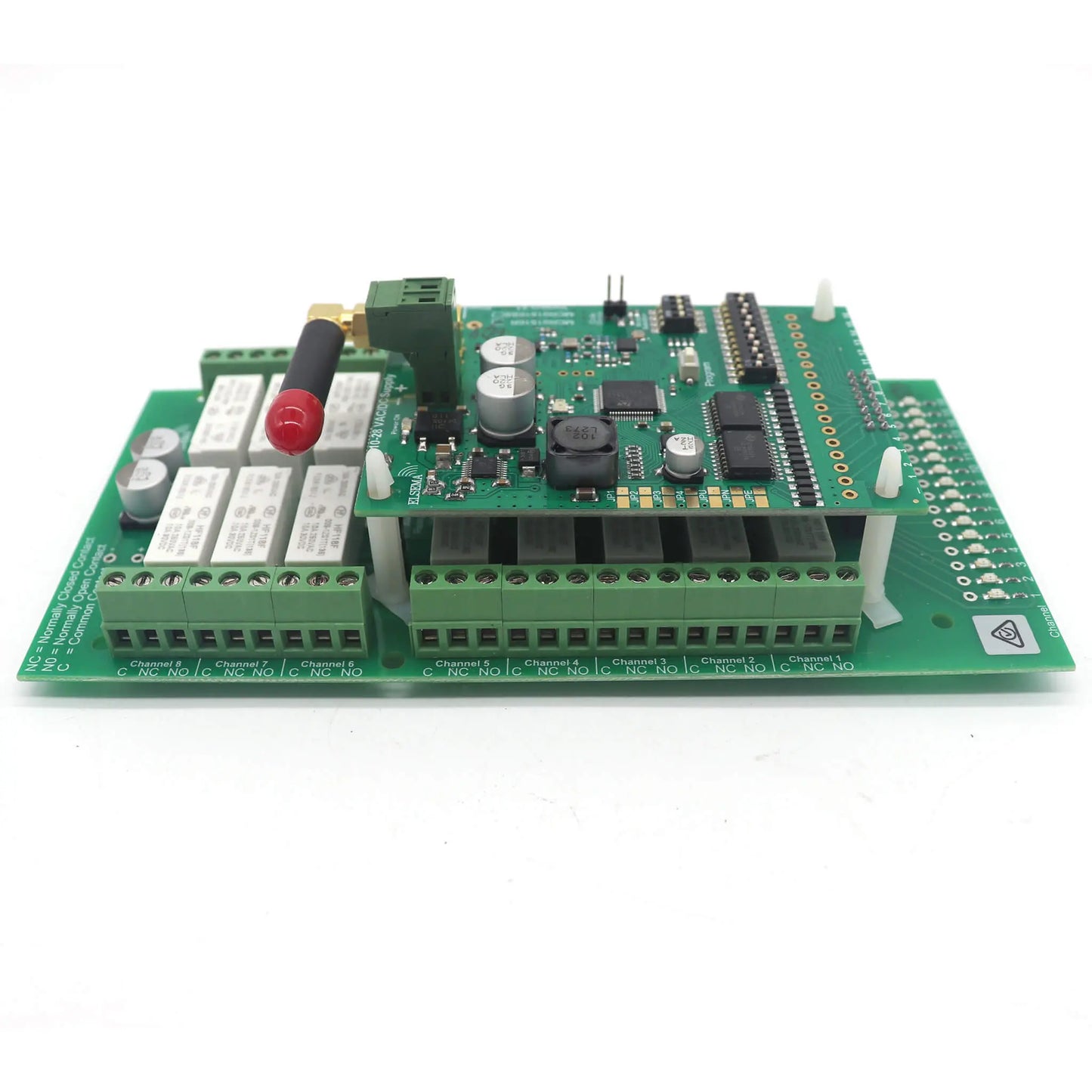

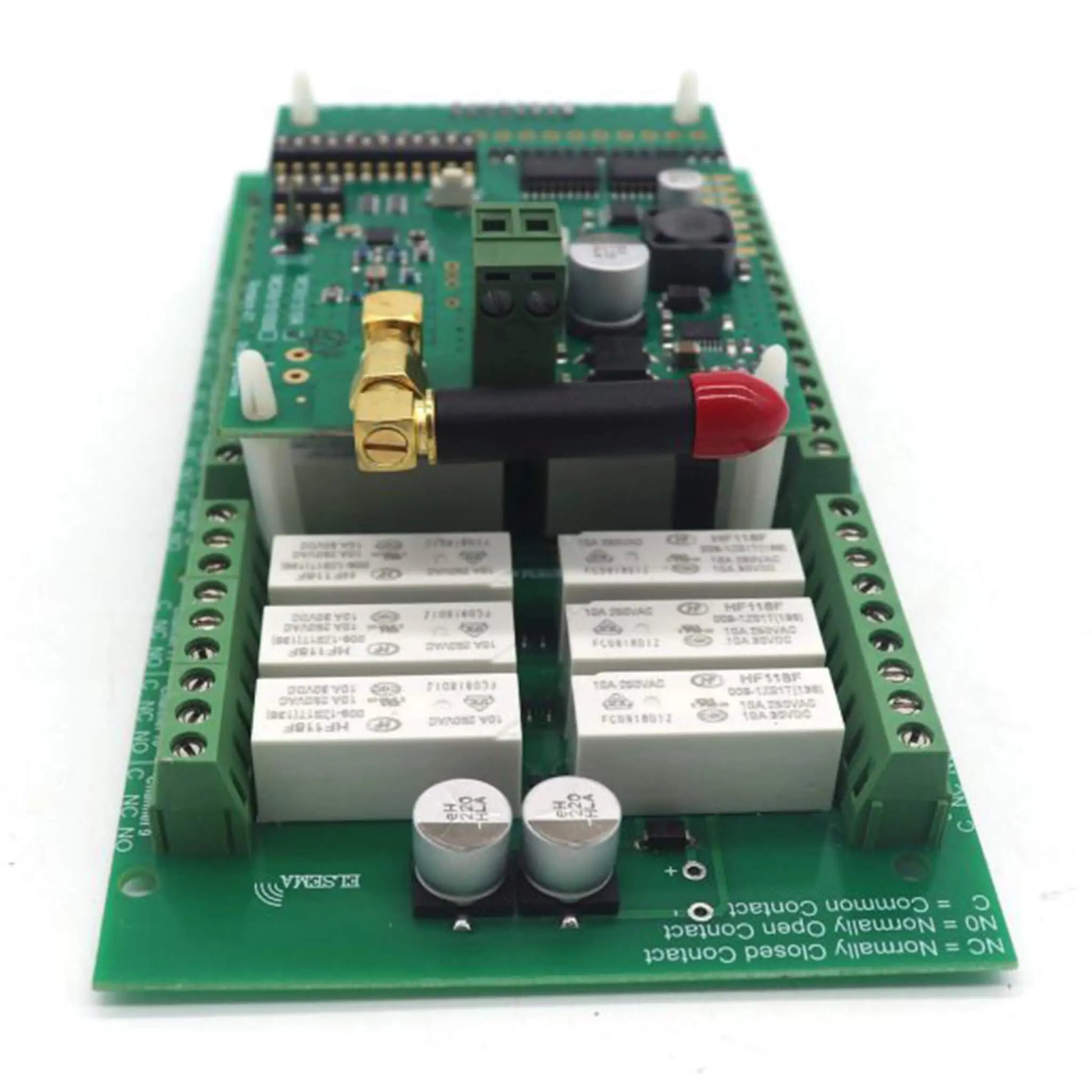

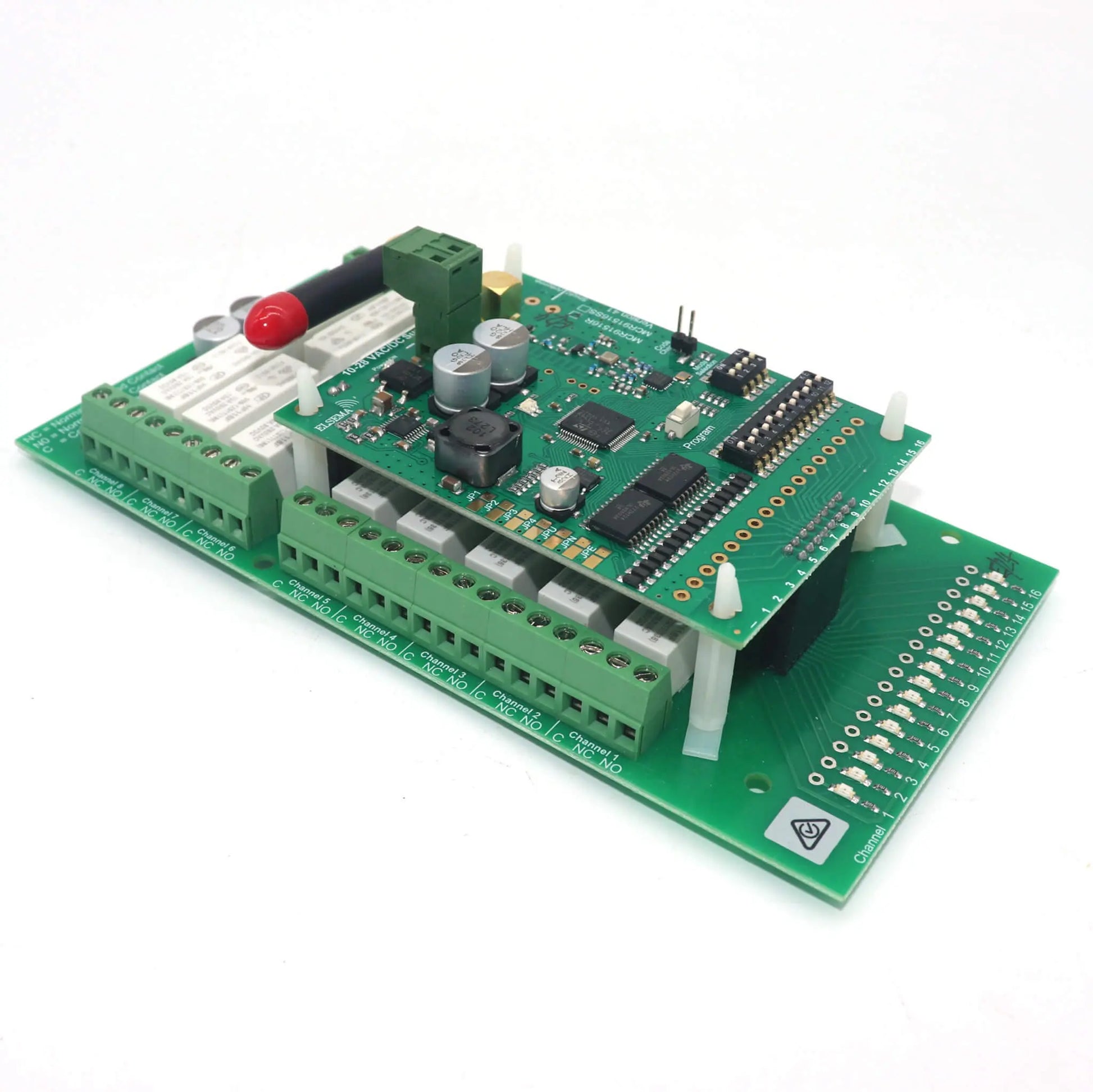

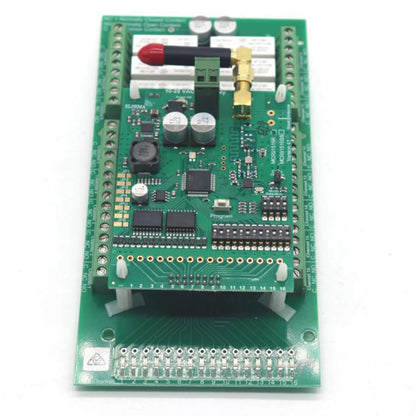

Elsema MCR91516R Receiver

Elsema MCR91516R Receiver

$214.95
$214.95
Sale Sold out
Shipping calculated at checkout.

This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.

MCR91516R - Elsema Multicode 16 Channel Receiver with Relay Output

The Elsema MCR91516R Multicode Receiver is a 16-channel 915MHz relay output receiver designed for heavy-duty automation and remote switching. Featuring 16 relays rated at 8A @240VAC, dual coding options, long-range operation up to 400m, and selectable momentary/latching modes, it’s ideal for controlling gates, lighting, machinery, pumps, automation equipment and high-capacity industrial systems.

What’s Included:

  • 1 × Brand New Genuine MCR91516R – 16 channels with relay output
  • 1 x Micro Antenna
  • Step-by-step Wiring Programming Instructions

Key Features:

  • 16 Relay Outputs: Each rated at 8A @240VAC, supporting simultaneous multi-device control.
  • Frequency Hopping: Operates between 915-929MHz for reliable performance
  • Dual Coding Options: Choose between 12-way dipswitch coding or encrypted wireless coding (over 16 million codes)
  • Selectable Output Modes: Momentary or latching, configurable via dipswitch
  • Long Range: Up to 400m  operating distance with Elsema MCT915 series transmitters and Antennas
  • High Stability: Crystal-controlled for accuracy and consistent performance
  • LED Signal Indicatory: On-board red LED confirms signal reception
  • Flexible Power Supply: Operates on 12-24V AC/DC with low current consumption
  • Australian Compliance: Meets local frequency regulations for Australia*

Compatible with:

  • MCT91501
  • MCT91502
  • MCT91504
  • MCT91508
  • MCT91512
  • MCT91516

Ideal Applications:

  • Automatic Gates and Garage Doors
  • Wireless Security Activation
  • Lighting Control
  • Industrial Automation; control machinery, equipment, or processes remotely, enabling efficient and convenient operation
  • Access Control: Controlling entry points, such as doors or gates, ensuring secure access with compatible remote controls
  • Remote Switching: With its multiple output options, including relay, open collector it can be used for remote switching applications in various settings, such as turning on/off pumps, motors, or other devices wirelessly.

Connection Diagram:

MCR91516R Connection Diagram

Technical Specifications:

Supply Voltage 12 – 24 Volts AC or DC
Current Consumption 30 mA stand by at 12VDC & 350mA with 16 relays “On”
Frequency Band 915 to 928 MHz for Australia
Operating Temperature Range -5 to 50°C
Decoding Systems On board 12-way code switch (4096 Codes) Encrypted coding (Over 16 million codes)
Outputs Sixteen change over relay outputs, rated at 8 Amps 240VAC
Operating Range Up to 400m
Mounting Hole Size 3.97 mm or 5/32"
Dimensions 185 x 94 x 55 m
Warranty 12 Months Manufacturers Warranty
