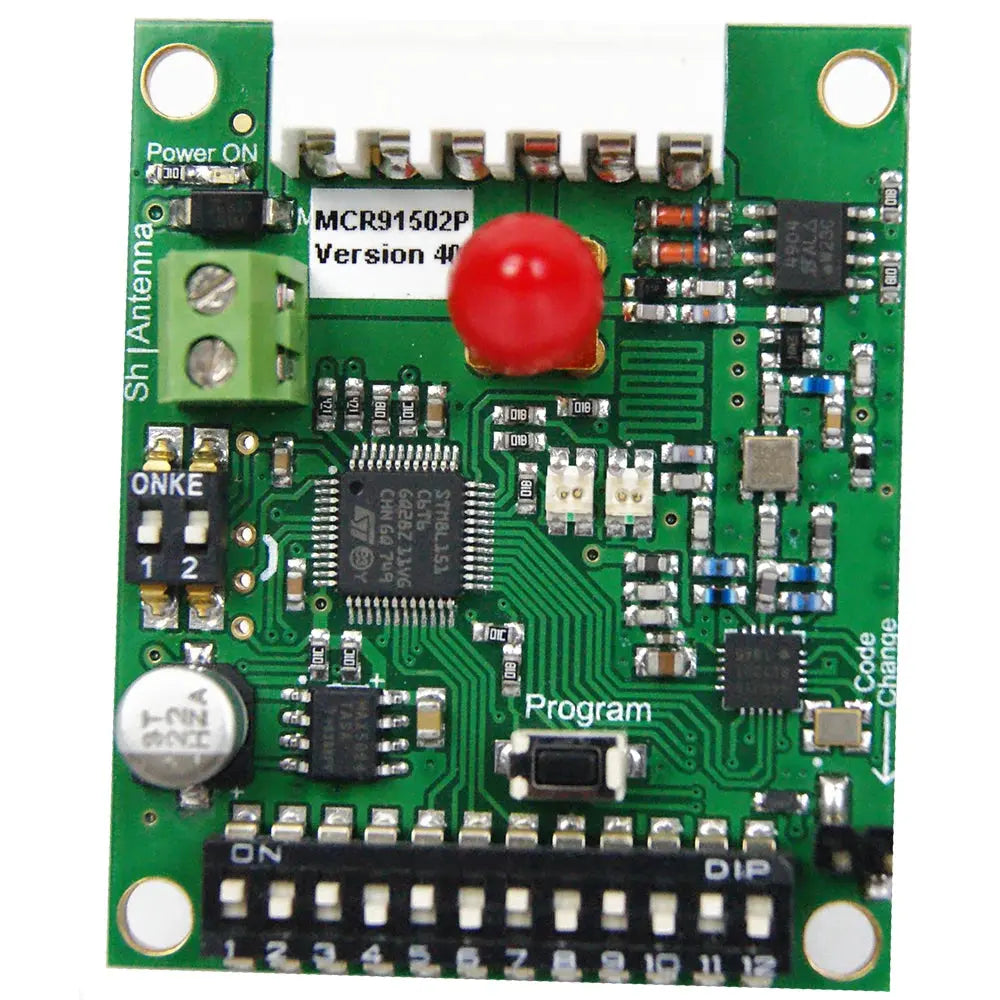

Elsema MCR91502P Plugin Receiver

Elsema MCR91502P Plugin Receiver

$99.95
$99.95
Sale Sold out
Shipping calculated at checkout.

Stock may need to be sourced from Australian suppliers to fulfil your order. Please allow additional time for dispatch. Contact us for ETA

MCR91502P - Elsema Multicode 2 Channel Plug-In Receiver

The Elsema MCR91502P Multicode Receiver is a compact 2-channel 915MHz plug-in receiver designed for quick integration into automation systems using a 6-pin connector. It features open collector outputs, dual coding (dipswitch or encrypted), selectable momentary/latching modes, and long-range performance up to 400m. Ideal for gates, garage doors, industrial machinery, lighting control, agriculture, and remote switching applications.

What’s Included:

  • 1 × Brand New Genuine MCR91502P – 2 channel plug-in 6 pin receiver
  • 1 x Micro Antenna
  • Step-by-step Wiring Programming Instructions

Key Features:

  • Compact Design: Ultra-small size for easy integration into control systems with a plug-in type with 6-pin connector.
  • Frequency Hopping: Operates between 915-929MHz for reliable performance
  • Dual Coding Options: Choose between 12-way dipswitch coding or encrypted wireless coding (over 16 million codes)
  • Selectable Output Modes: Momentary or latching, configurable via dipswitch
  • Long Range: Up to 400m  operating distance with Elsema MCT915 series transmitters and Antennas
  • High Stability: Crystal-controlled for accuracy and consistent performance
  • LED Signal Indicatory: On-board red LED confirms signal reception
  • Flexible Power: Wide voltage range (7.0-36V DC)
  • Australian Compliance: Meets local frequency regulations for Australia*

Compatible with:

  • MCT91501
  • MCT91502
  • MCT91504
  • MCT91508
  • MCT91512
  • MCT91516

Ideal Applications:

  • Domestic & Residential Use - Automatic Gates, Garages, Roller Shutters, Garden Lighting and Home Security
  • Industrial Applications - Factory Automation, Machinery Equipment
  • Construction Industry - Concrete Pumps, Heavy Machinery operation, Site Lighting
  • Commercial Applications - Security Systems, Lighting, Access Control
  • Agricultural Applications - Irrigation systems, Pump and Motor Control, Spraying reels, gates and machinery
  • Healthcare Applications - Nurse and Emergency Calls,
  • Entertainment Applications - Stage Lighting, Field Lighting, Scoreboards
  • Transport and Marine - Remote operation of car stackers, winch operation, anchors and marine equipment control
  • Mining and Quarrying - Water cart filling and spraying shaft roads, equipment control
  • Solar Farms and Energy - Remote switchover of solar grids

Connection Diagram:

MCR91502P Connection Diagram

Technical Specifications:

Frequency 915 to 928 MHz
Code Type 12-way code switch (4096 Codes) or Encrypted Coding (Over 16 Million Codes)
Body Type Receiver
Number of Channels 2
Enclosure Not Included
Size 54.3 x 43 x 13mm
Power Supply 7.0 - 36 Volts DC. (Note: DC ONLY)
Current Consumption  30 mA stand by at 12 VDC
Connection Supply and Output: 6 way female connector
Output Open Collector: Maximum-switching 2 Amps/ 40VDC
Range Up to 400m in clear line of sight
Warranty 12 months Manufacturers Warranty
