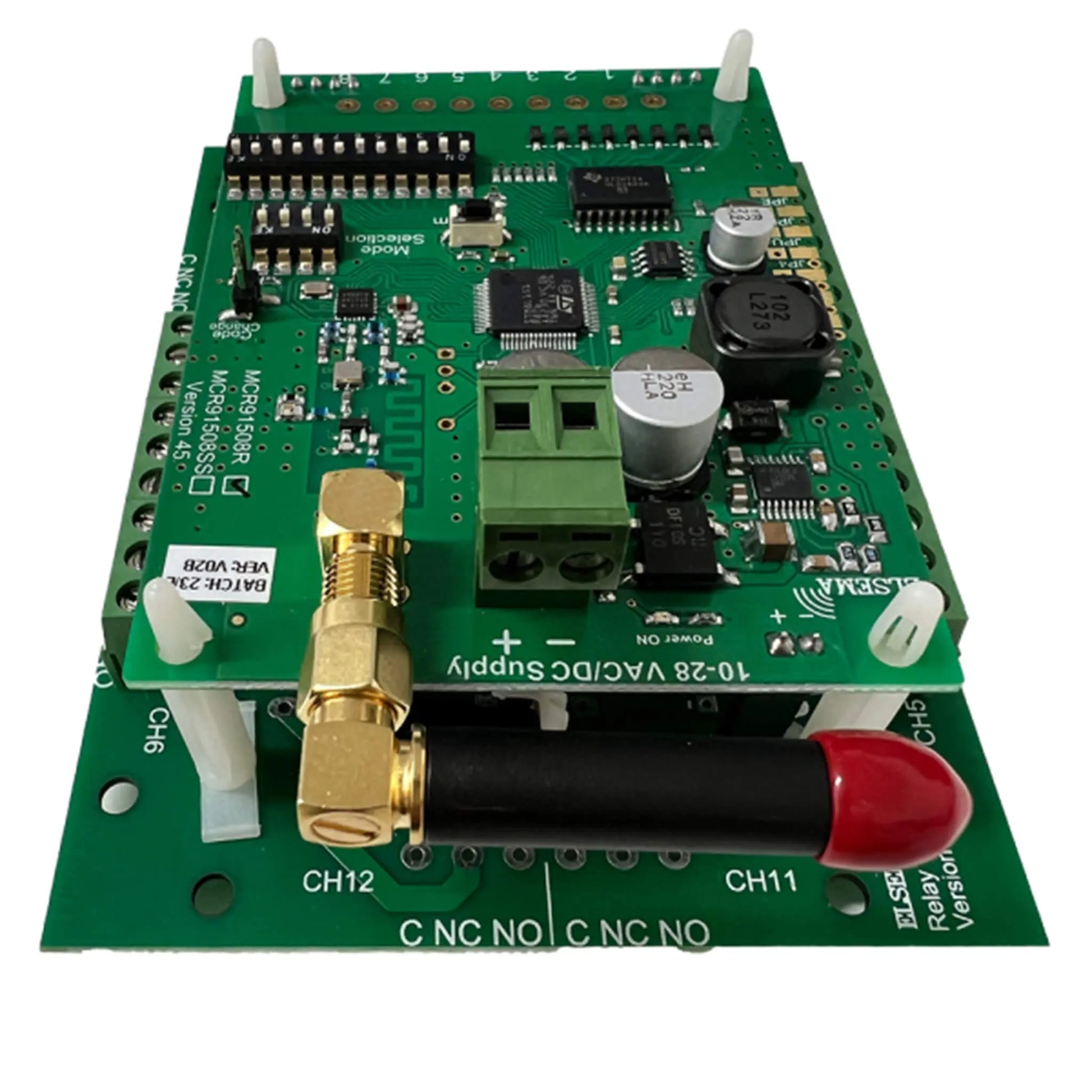

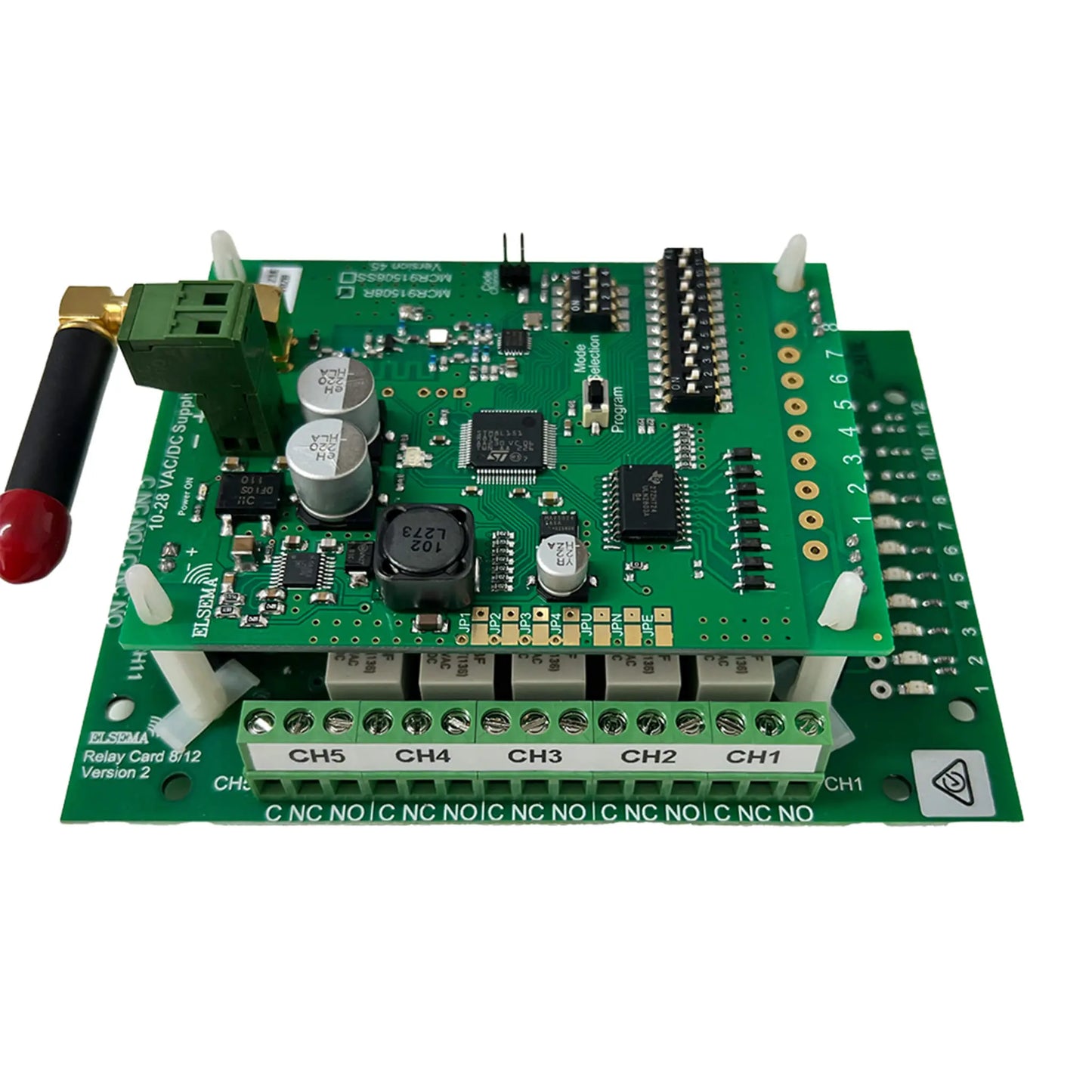

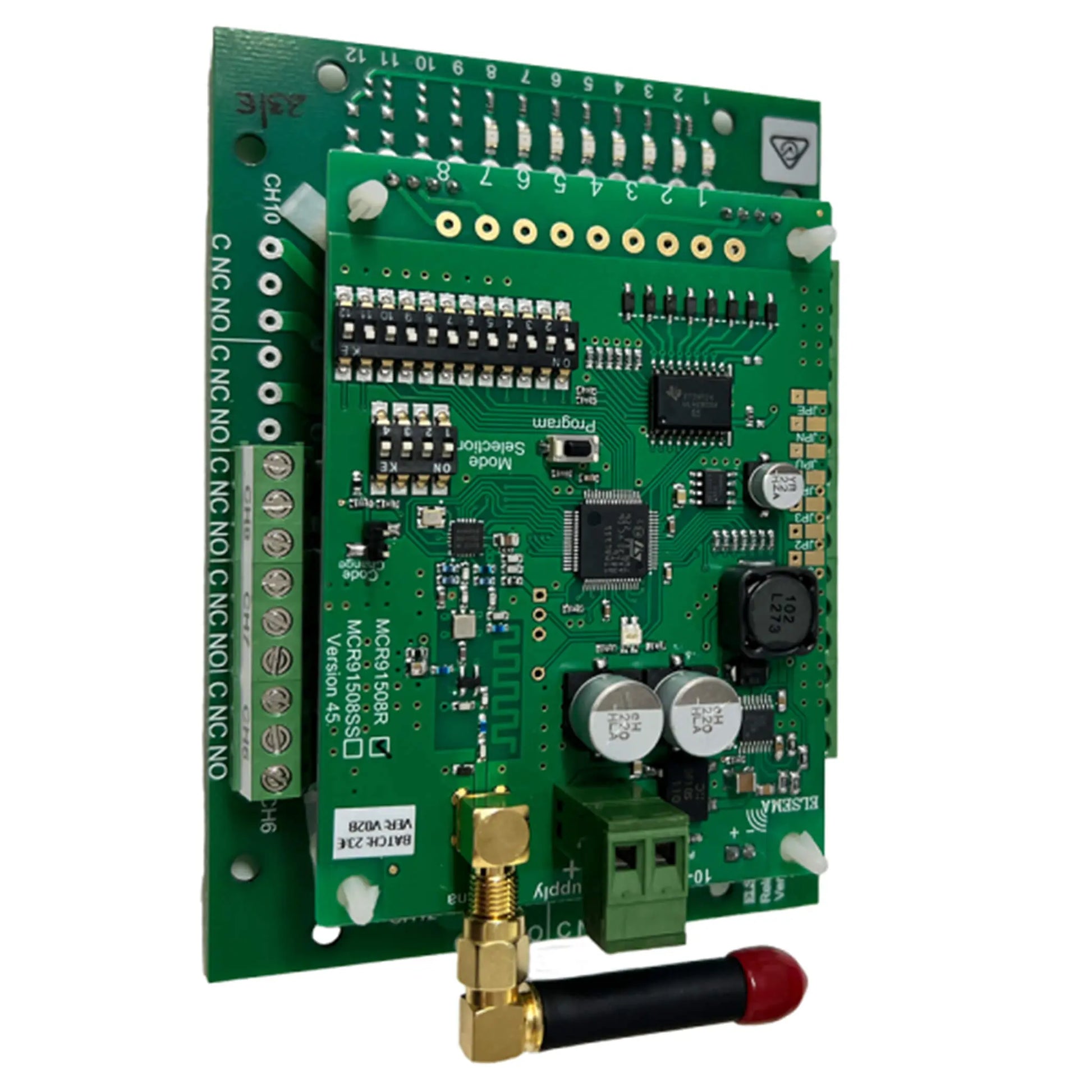

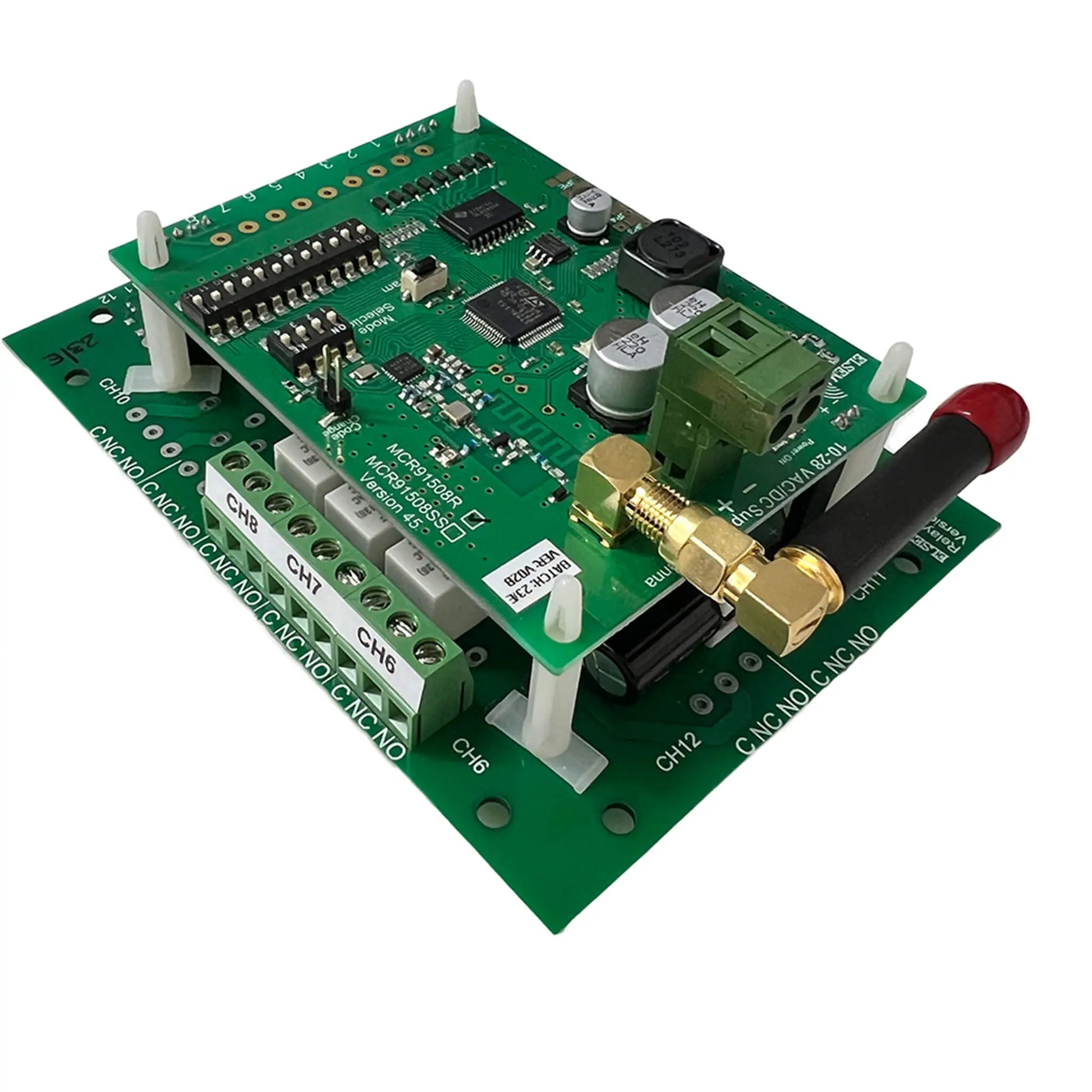

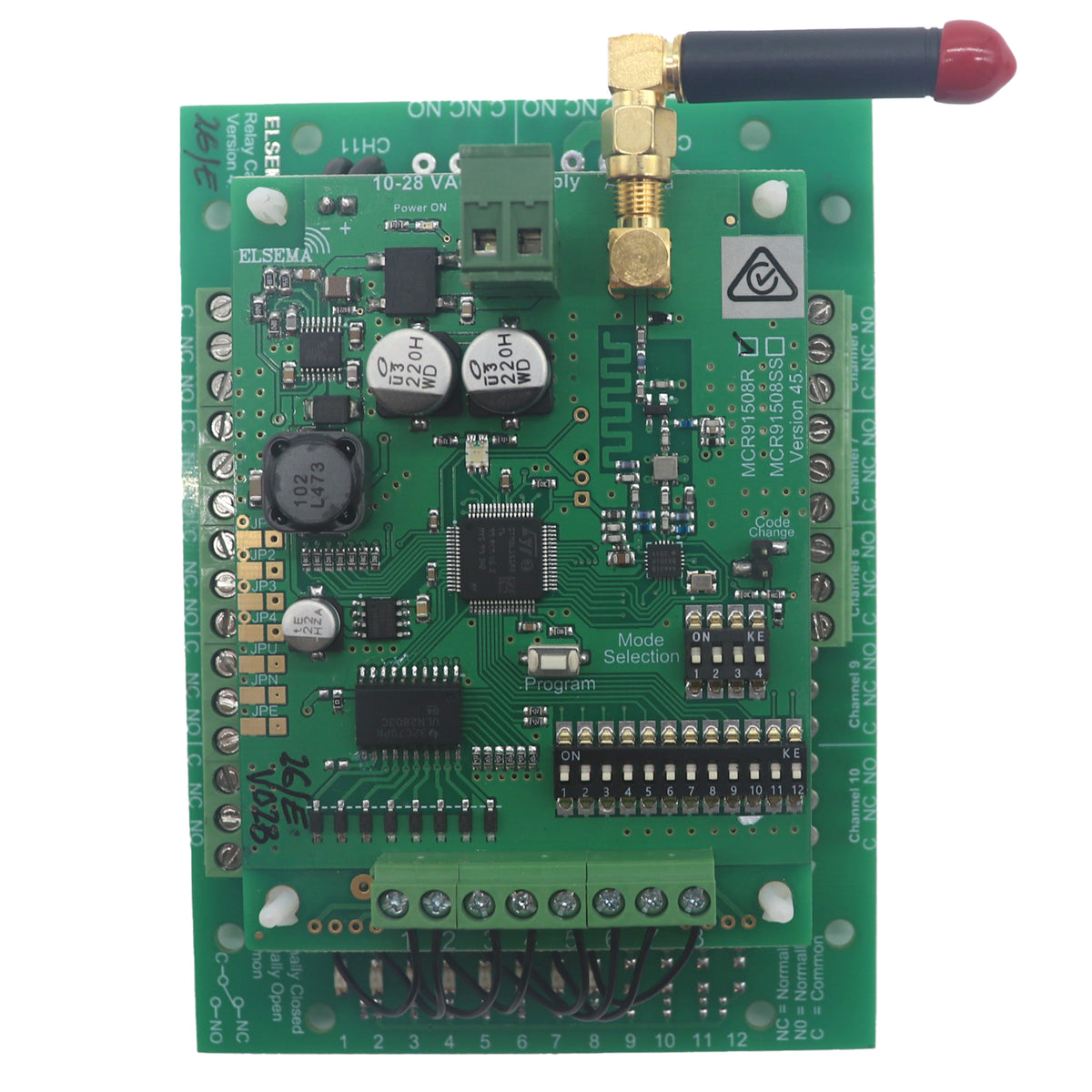

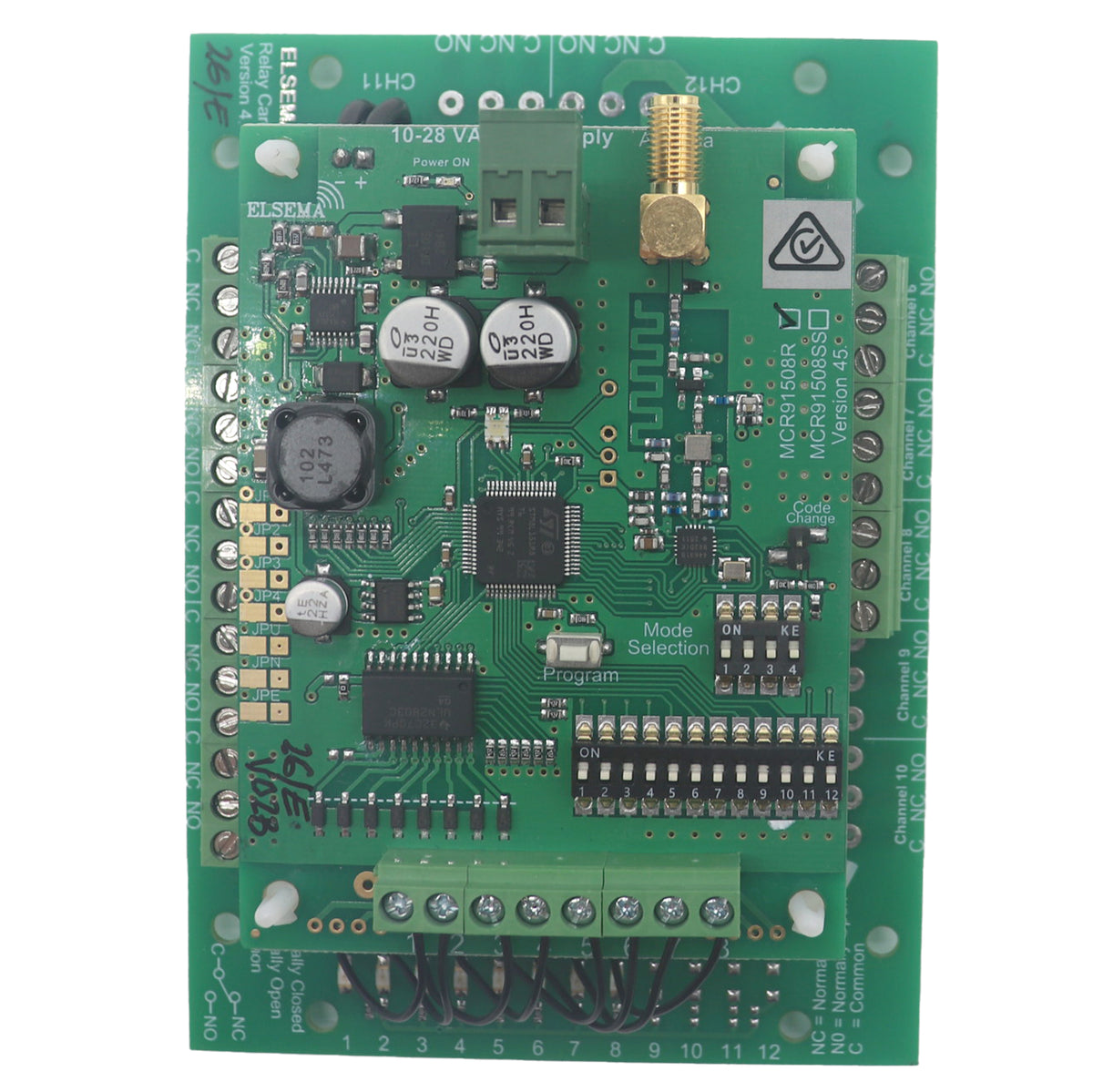

MCR91508R - Elsema Multicode 8 Channel Receiver with Relay Outputs
The Elsema MCR91508R Multicode Receiver is an 8-channel 915MHz relay output receiver built for automation and remote switching applications. With heavy-duty 8A relays, long-range wireless performance up to 400m, dual coding options, and selectable output modes, it’s ideal for gates, lighting, machinery control, irrigation, access systems and industrial automation where reliable high-load switching is required.
What’s Included:
- 1 × Brand New Genuine MCR91508R – 8 channels with relays
- 1 x Micro Antenna
- Step-by-step Wiring Programming Instructions
Key Features:
- Eight Heavy-Duty Relay Channels: Each Channel offers reliable 8A @ 240VAC switching
- Frequency Hopping: Operates between 915-929MHz for reliable performance
- Dual Coding Options: Choose between 12-way dipswitch coding or encrypted wireless coding (over 16 million codes)
- Selectable Output Modes: Momentary or latching, configurable via dipswitch
- Long Range: Up to 400m operating distance with Elsema MCT915 series transmitters and Antennas
- High Stability: Crystal-controlled for accuracy and consistent performance
- LED Signal Indicatory: On-board red LED confirms signal reception
- Low Power Consumption: Operates efficiently on 12-24V AC/DC
- Australian Compliance: Meets local frequency regulations for Australia*
Compatible with:
- MCT91501
- MCT91502
- MCT91504
- MCT91508
- MCT91512
- MCT91516
Ideal Applications:
- Automatic Gates and Garage Doors
- Wireless Security Activation
- Lighting Control
- Industrial Automation; control machinery, equipment, or processes remotely, enabling efficient and convenient operation
- Access Control: Controlling entry points, such as doors or gates, ensuring secure access with compatible remote controls
- Remote Switching: With its multiple output options, including relay, open collector it can be used for remote switching applications in various settings, such as turning on/off pumps, motors, or other devices wirelessly.
Connection Diagram:
Technical Specifications:
| Frequency | 915 to 928 MHz |
| Code Type | 12-way code switch (4096 Codes) or Encrypted Coding (Over 16 Million Codes) |
| Body Type | Receiver |
| Number of Channels | 8 |
| Enclosure | Not Included |
| Size | 130 x 94 x 55mm |
| Power Supply | 12 – 24 Volts AC or DC |
| Current Consumption | 30 mA stand by at 12 VDC & 190mA with 8 relays “ON” |
| Connection | Pluggable Terminal Block |
| Output | Eight Change over relay outputs, rated at 8 Amps 240 VAC |
| Range | Up to 400m in clear line of sight |
| Warranty | 12 Months Manufacturers Warranty |
