Elsema Multicode MCT91516 Remote
Elsema Multicode MCT91516 Remote
This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.
Couldn't load pickup availability

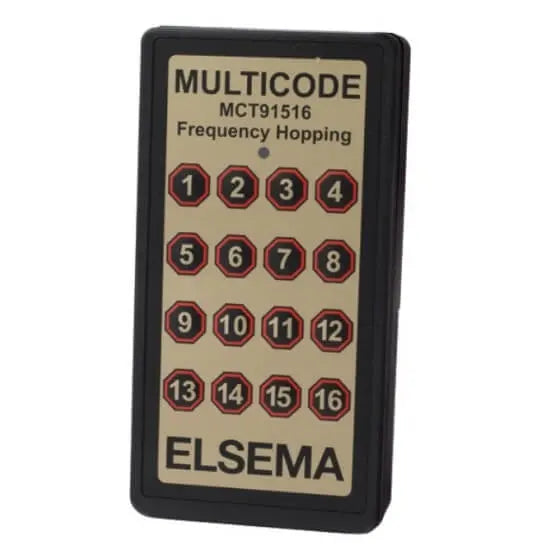

MCT91516 - Multicode 915Mhz 16 Button Transmitter
The Elsema MCT91516 Multicode Transmitter is a 16-button industrial-grade remote designed for multi-device automation control. With dual coding (dipswitch or encrypted), Fast Frequency Hopping technology, extended range up to 400m, and compatibility with Elsema 915MHz Multicode receivers, it’s ideal for cranes, machinery, pumps, access control, lighting, and large-scale automation systems.
What’s Included:
- Genuine Elsema MCT91516 16 Button Multicode Remote
- Protective Rubber Boot
- 1 x 9V Alkaline Battery
- Programming Instructions
Key Features:
- 16-Channel Handheld Remote – Control up to 16 devices or functions independently.
- Dual Digital Coding – Program via 12-way dipswitch (4096 codes) or switch to encrypted coding with over 16 million unique combinations for maximum security.
- Fast Frequency Hopping (FFH) – Minimises interference and jamming, even with multiple transmitters operating side by side.
- Extended Range – Connect to Elsema’s ANT915 Mini Antenna via the SMA connector to increase range up to 350 metres.
- Industrial-Grade Security – FFH technology is typically used in military and medical applications, providing superior signal protection.
- Simultaneous Channel Transmission – Press multiple buttons at once to control different receivers simultaneously.
- LED Indicators – Red LED warns of low battery; Orange LED confirms encrypted programming.
- Compact & Robust Design – Built to withstand industrial use while remaining easy to program and operate.
Compatible with:
This remote is compatible with the Elsema Multicode 915Mhz Receivers:
- MCR91501R
- MCR91502R
- MCR91502P
- MCR91502PT
- MCR91504R
- MCR91504RE
- MCR91508R
- MCR91508SS
- MCR91508POS
- MCR91512R
- MCR91516R
- MCR91516SS
Ideal Applications:
- Industrial Machinery Control – Cranes, hoists, winches, conveyor systems, and automated plant equipment.
- Construction Sites – Concrete pumps, heavy equipment, and multi-function control systems.
- Agriculture – Irrigation systems, pumps, harvesters, and spraying reels.
- Security & Access Control – Manage gates, roller shutters, alarms, and multi-zone access points.
- Commercial & Large-Scale Automation – Lighting, signage, multi-system operations, and warehouse automation.
Technical Specifications:
| Supply Voltage | 9-Volt Alkaline Battery |
| Current Consumption | 52.00mA |
| Standby Current | 8 uA |
| Frequency Band | 915 to 928 MHz |
| Operating Temperature Range | -5° to +50° Celsius |
| Decoding Systems | 12-way dip switch (4096 Codes) or Encrypted coding (Over 16 million codes) |
| LED | Flashing Red LED: Replace battery
Orange LED flashes: encrypted code successfully programmed |
| Dimensions | 130 x 67 x 27mm |
| Weight | 50g without battery |
| Operating Range | Up to 400m |
| Warranty | 12 Months Manufacturers Warranty |
