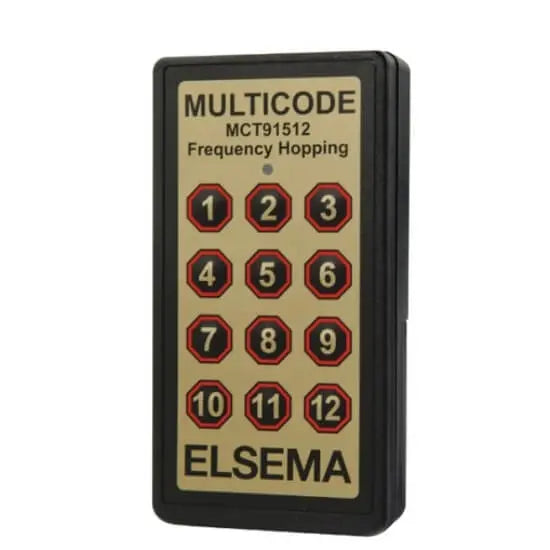

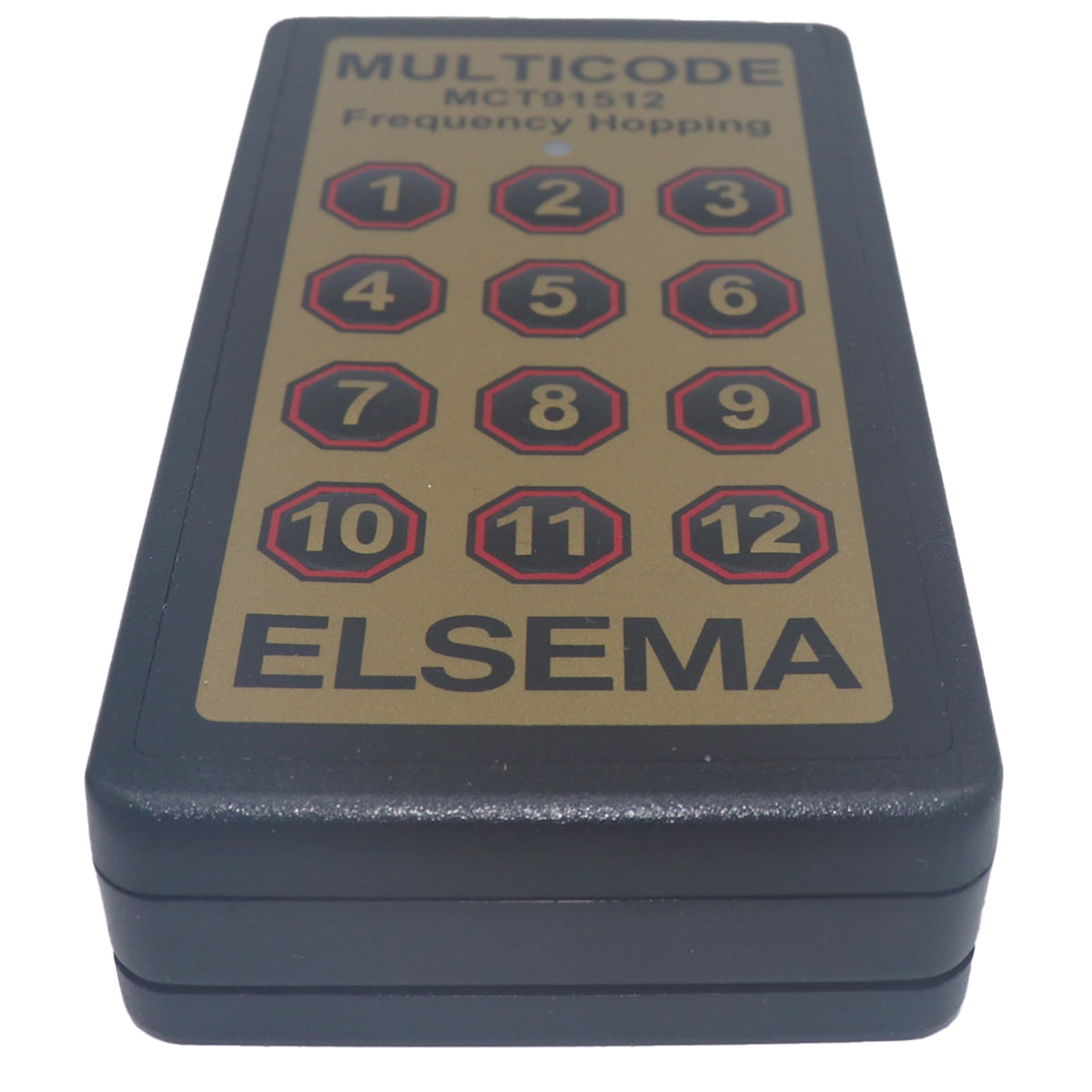

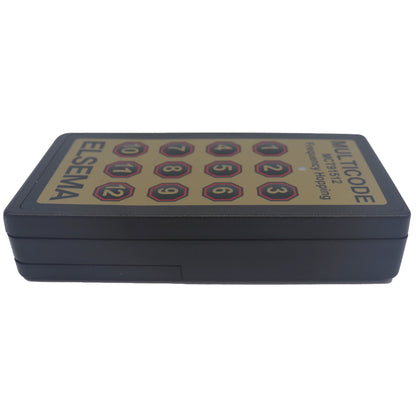

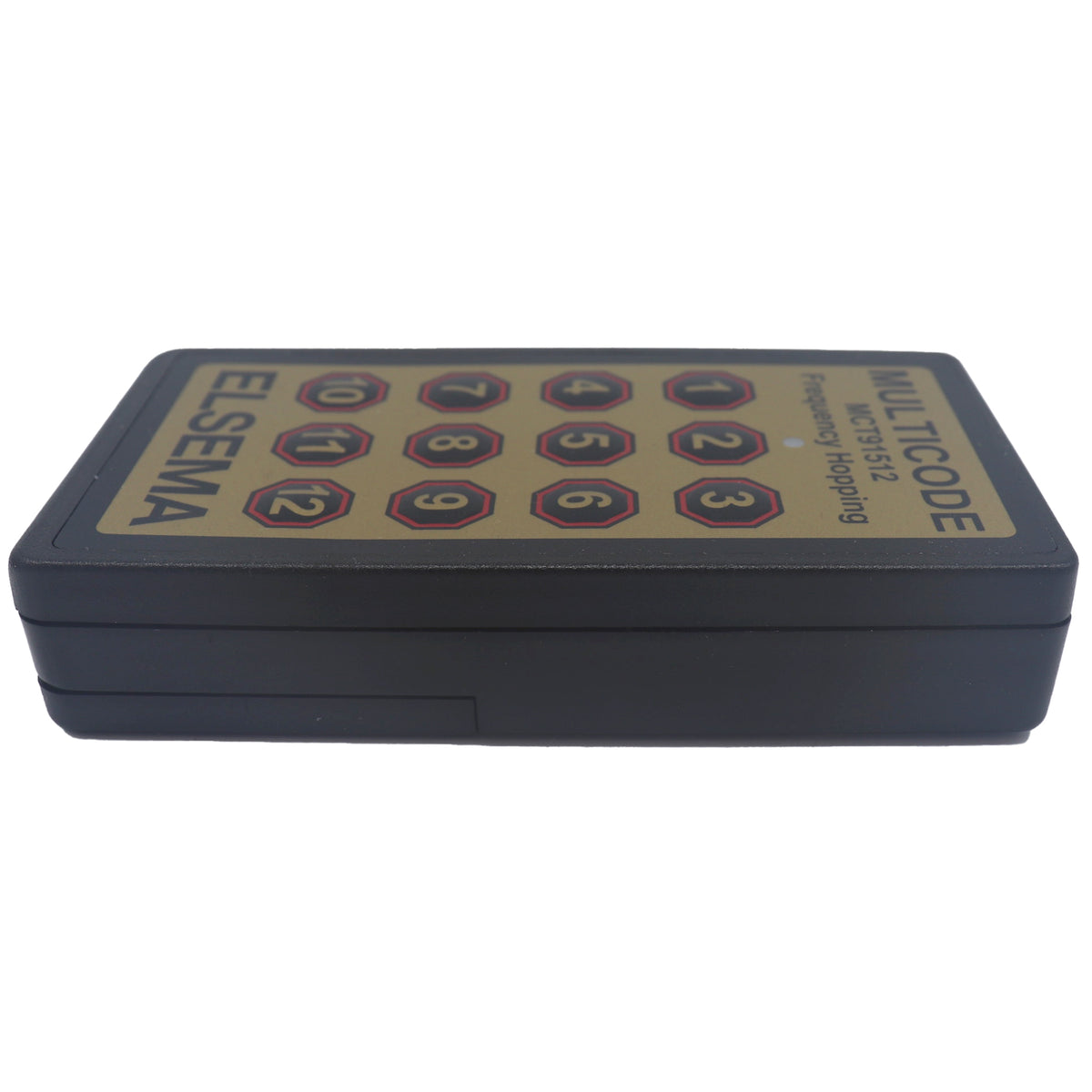

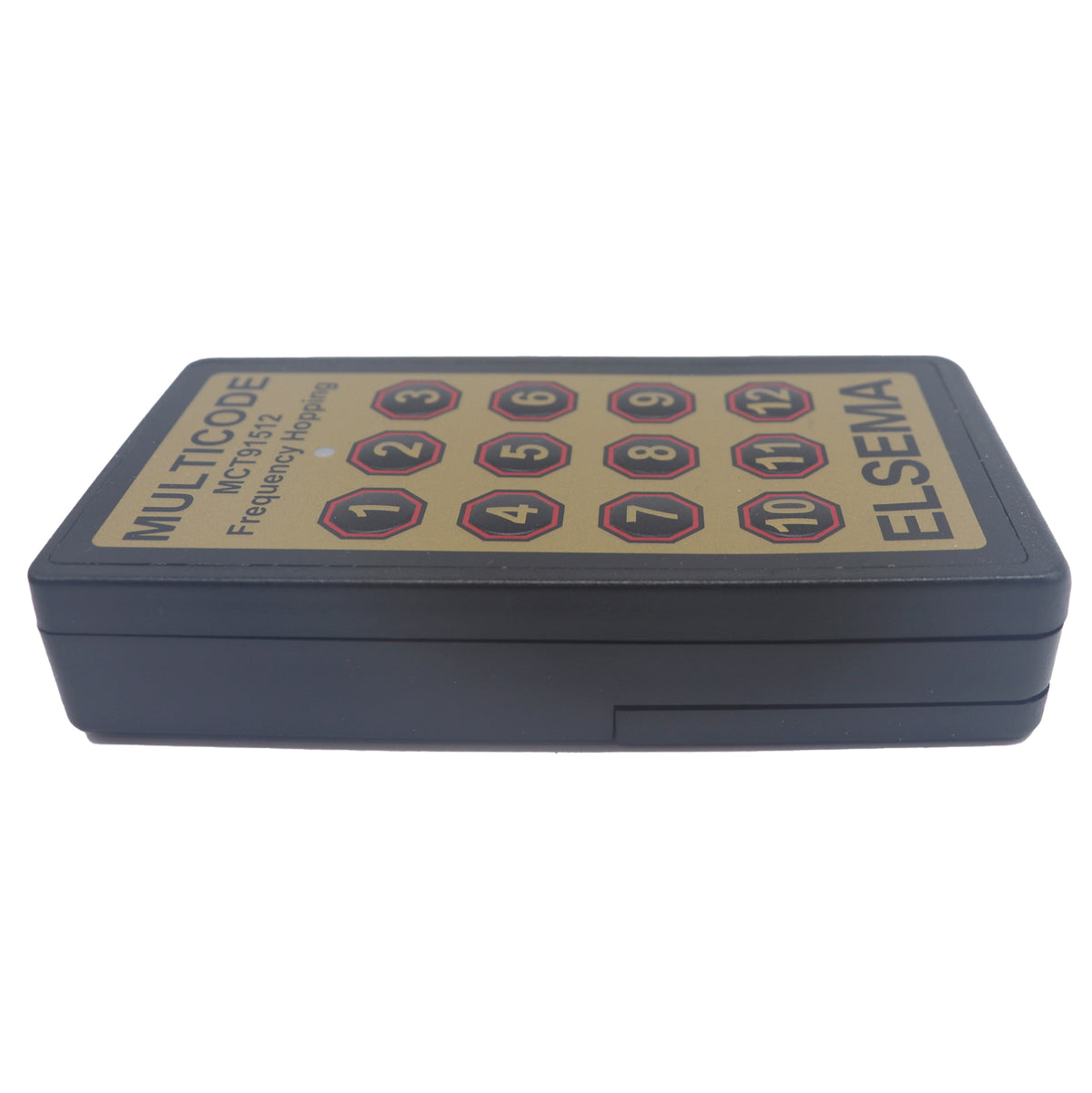

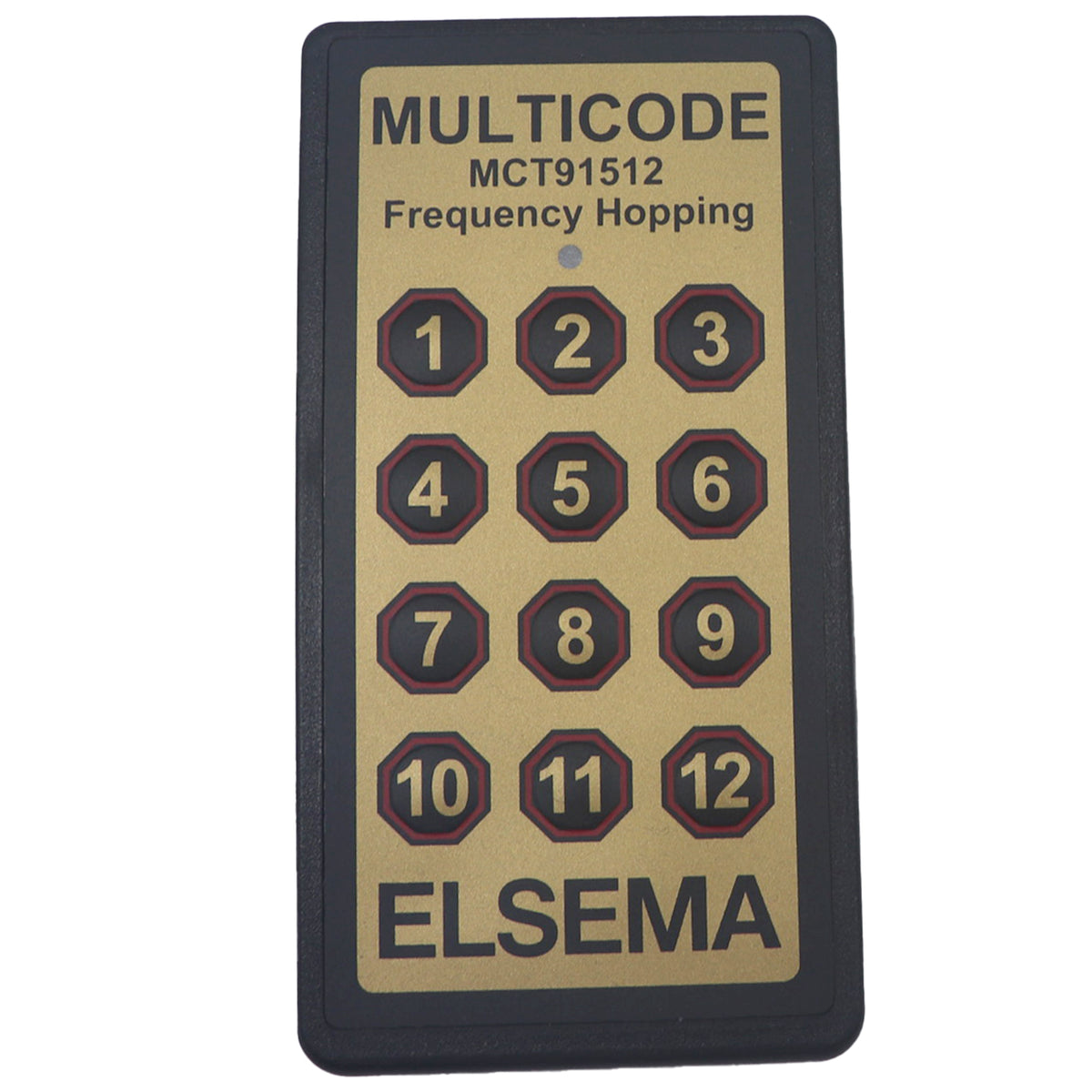

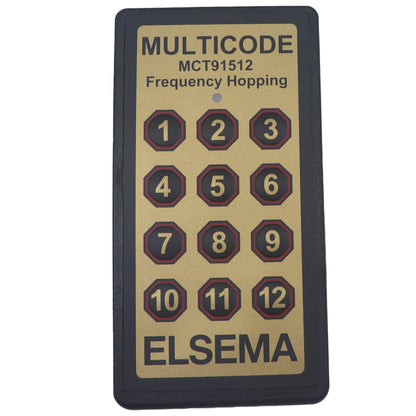

MCT91512 – Elsema Multicode 12 Button Remote
The Elsema MCT91512 is a 12-button Multicode remote transmitter designed for commercial, industrial and multi-device automation applications. Operating on the Australian 915–928MHz frequency band, it allows up to 12 individual functions to be controlled from a single handheld remote.
With Fast Frequency Hopping technology and an operating range of up to 400 metres in clear line-of-sight conditions, the MCT91512 is ideal for controlling multiple gates, doors, pumps, lighting, machinery, irrigation systems and other equipment using compatible Elsema MCR915 series receivers.
What’s Included:
- Genuine Elsema MCT91512 12 Button Multicode Remote

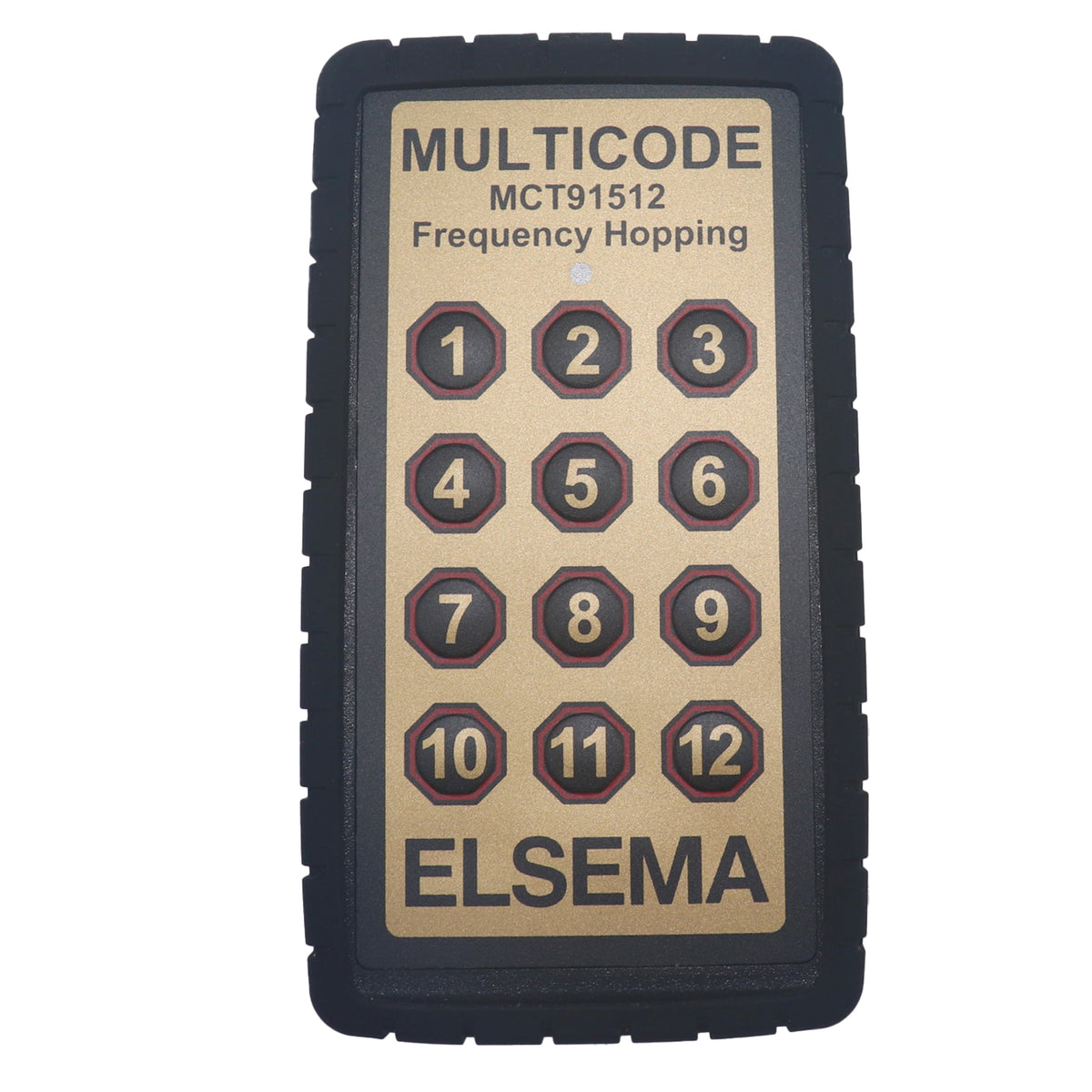

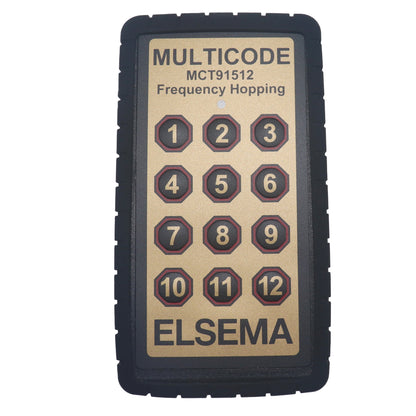

- Rubber Boot
- 1 x 9V Alkaline Battery
- Programming Instructions
Key Features:
- 12 Button Transmitter – Independently control up to 12 different devices or functions.

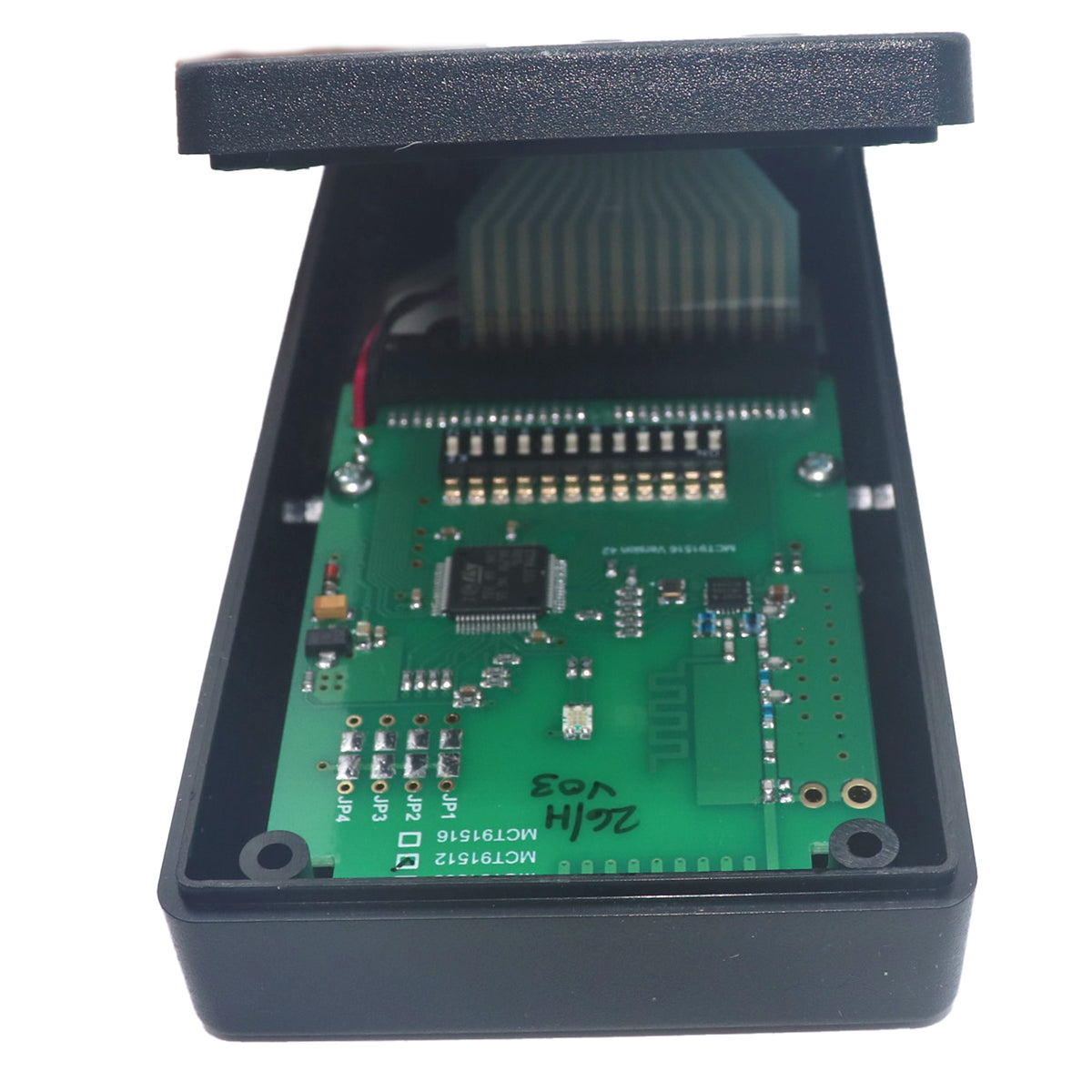

- Dual Digital Coding – Choose between 12-way dipswitch coding (4096 codes) or encrypted coding with over 16 million possible combinations for advanced security.
- Fast Frequency Hopping (FFH) – Provides strong resistance to interference and allows multiple transmitters to operate nearby without signal issues.
- Simultaneous Channel Operation – Multiple buttons can be pressed at once, enabling simultaneous control of equipment.
- Extended Range – Connect to Elsema’s ANT915 Mini Antenna via the SMA connector to extend range beyond 350 metres.
- Military-Grade Security – FFH technology is typically found in high-end military and medical systems, now available in an industrial remote.
- LED Status Indicators – Red LED signals low battery; Orange LED flashes confirm successful encrypted programming.

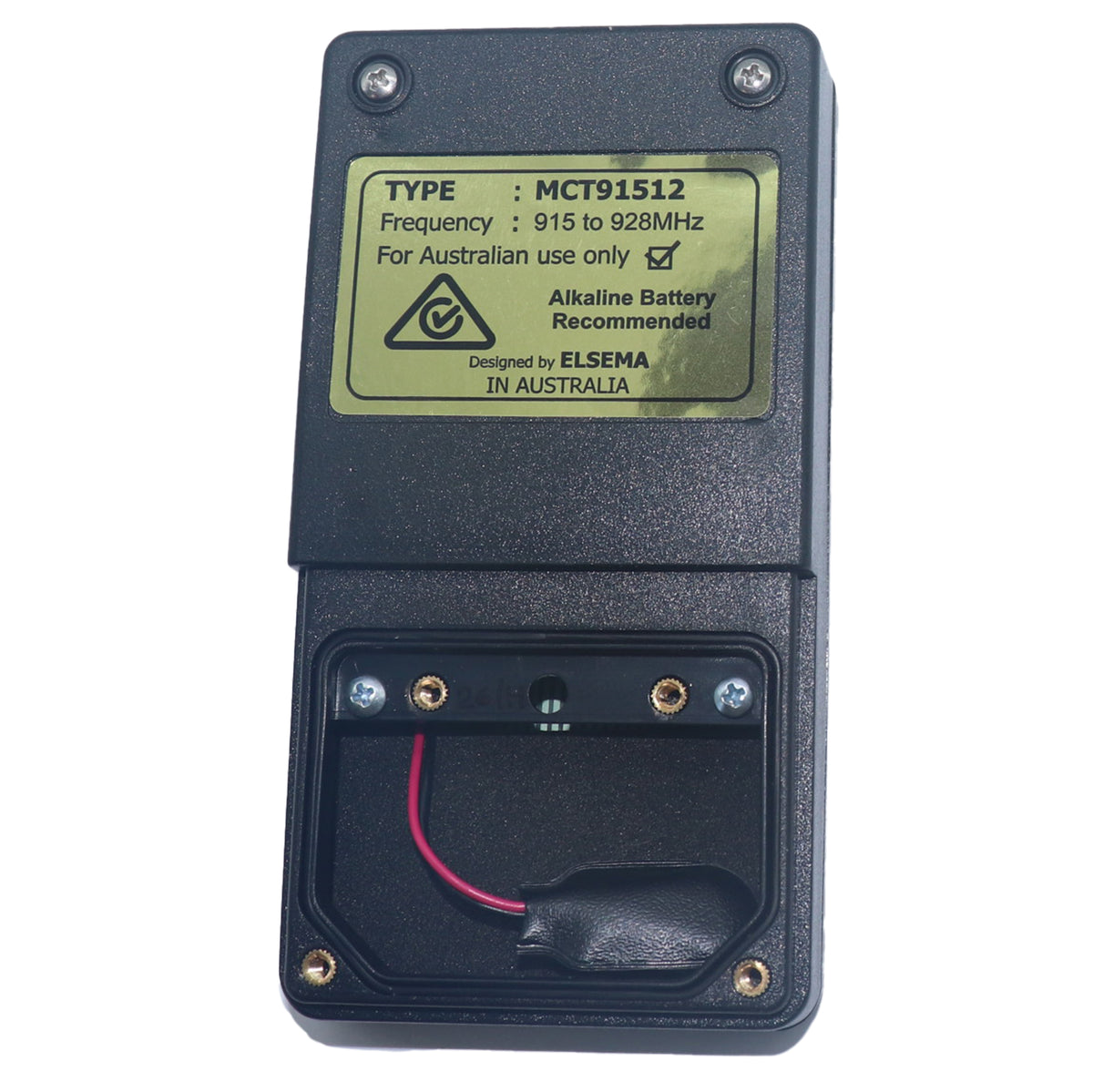

- Power Efficient – Operates on a standard 9V alkaline battery with low standby current for long service life.
Compatible with:
- MCR91501R
- MCR91502R
- MCR91502P
- MCR91502PT
- MCR91504R
- MCR91504RE
- MCR91508R
- MCR91508SS
- MCR91508POS
- MCR91512R
- MCR91516R
- MCR91516SS
Ideal Applications:
- Automatic gates and garage doors
- Wireless security activation and alarms
- Lighting and shutter control
- Pumps, irrigation, and small agricultural devices
- Custom-designed automation systems
Technical Specifications:
| Supply Voltage | 9-Volt Alkaline Battery |
| Current Consumption | 52.00mA |
| Standby Current | 8 uA |
| Frequency Band | 915 to 928 MHz |
| Operating Temperature Range | -5° to +50° Celsius |
| Decoding Systems | 12-way dip switch (4096 Codes) or Encrypted coding (Over 16 million codes) |
| LED | Flashing Red LED: Replace battery
Orange LED flashes: encrypted code successfully programmed |

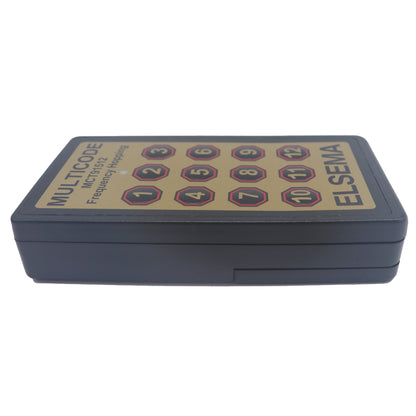

| Dimensions | 130 x 67 x 27mm |
| Weight | 50g without battery |
| Operating Range | Up to 400m |
| Warranty | 12 Months Manufacturers Warranty |
