Elsema Gigalink GLT43304 Remote with Cover and Battery
Elsema Gigalink GLT43304 Remote with Cover and Battery
SKU:58224
Couldn't load pickup availability
GLT43304 – Elsema Gigalink 4-Button Long-Range Remote
The Elsema GLT43304 is a genuine four button Gigalink remote control designed for compatible Elsema GLR433MHz receivers. Its four independently programmable buttons allow one transmitter to operate multiple receiver channels, gates or control functions.
Each button can be programmed individually to a compatible single-channel receiver, or the remote can be programmed across a multi-channel Gigalink receiver. Actual operating range depends on the receiver, antenna, installation and surrounding environment.
What’s Included:
- Genuine Elsema GLT43304 4 Button Transmitter
- 1 x 9V Battery
- 1 x Silicone Protective Case
- Programming Instructions

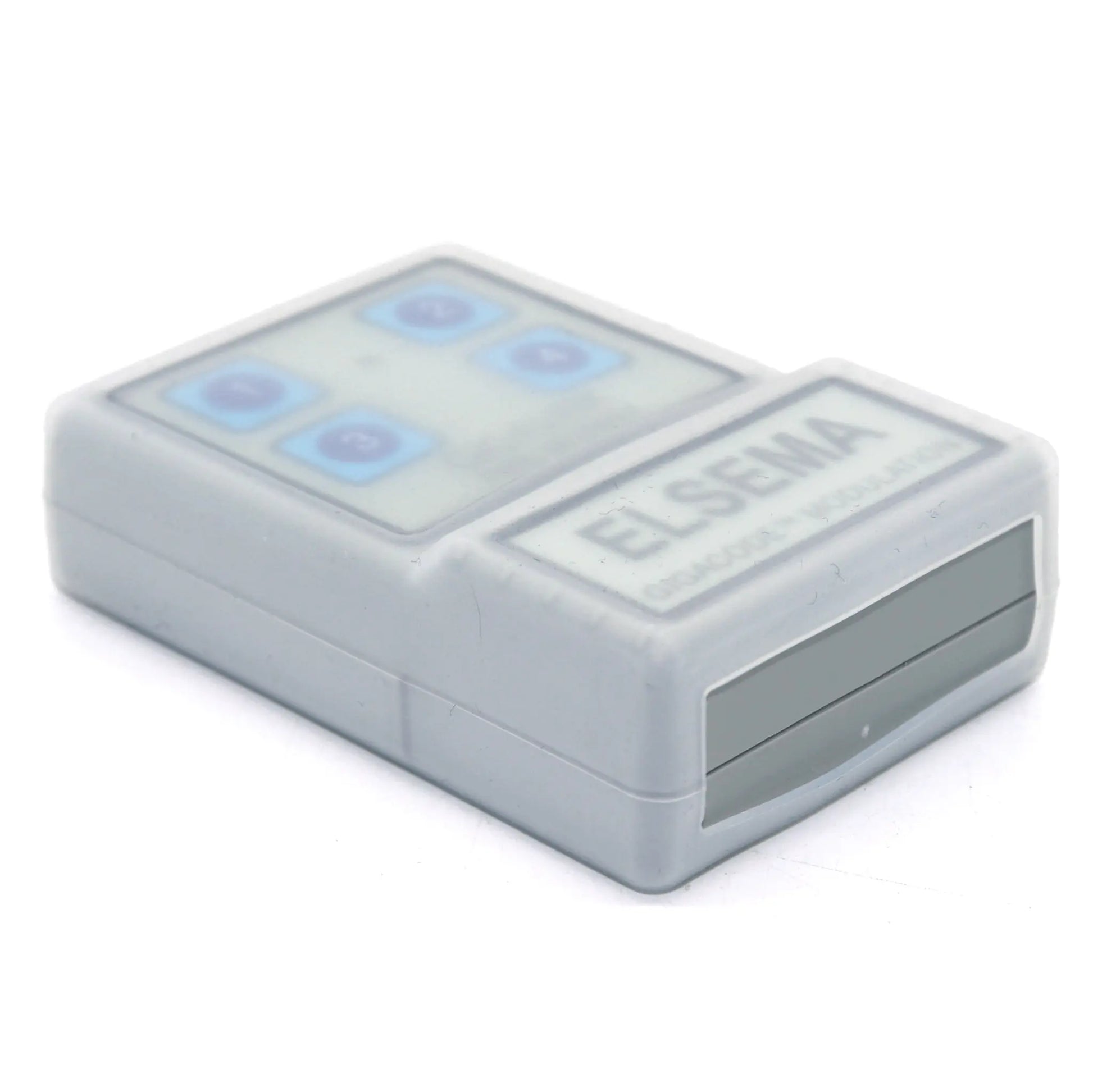

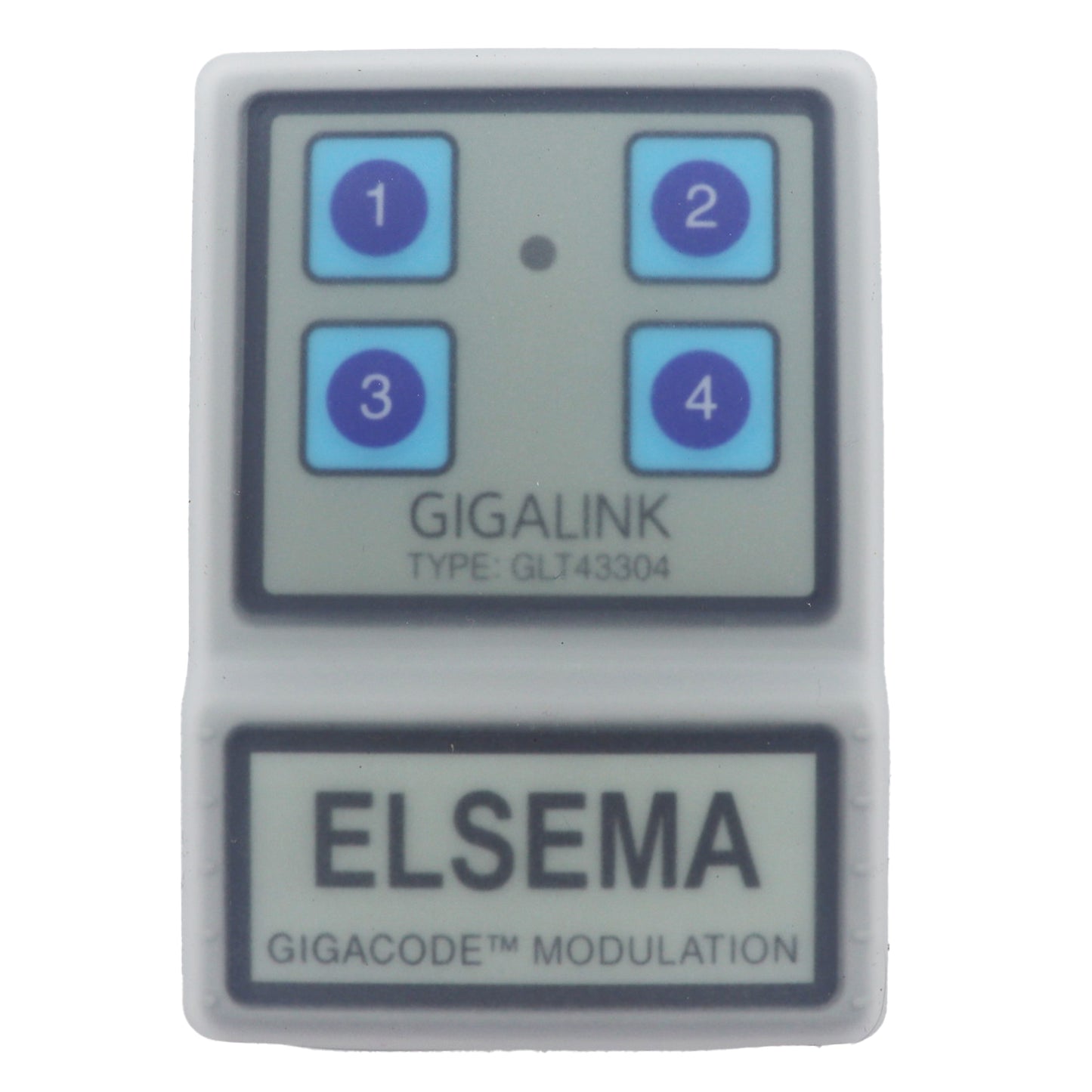

Every Elsema Gigalink remote purchased from Retro Remotes includes a battery and genuine Elsema silicone protective case at no extra charge, so it's ready to use straight out of the box.
Key Features:
- Four independent buttons – Control up to four receiver channels or functions
- Long operating range – Up to 350 metres with a suitable receiver and antenna
- Encrypted coding – Approximately 4.3 billion possible code combinations
- Flexible programming – Program buttons individually or to a multi-channel receiver
- Low-battery warning – The red LED flashes when battery voltage is low
- Gigalink compatibility – Designed for Elsema GLR433MHz receivers
- Ready to use – Battery, silicone protective case and instructions included
Compatible with:
- Elsema GLR43301
- Elsema GLR43301E
- Elsema GLR43302
- Elsema GLR43304
- Elsema GLR43308
- Elsema GLR43308R
- Elsema GLR43308RE
- Elsema GLR43301240
- Elsema GLR43301240E
- Elsema GLR43302240
- Elsema GLR43302240E
- Elsema GLR43304240
- Elsema GLR43304240E
- Elsema GLR43302SS
- Elsema GLR43302SST
Ideal Applications:
- Automatic gate and garage door access
- Commercial and industrial doors
- Alarm activation or panic functions
- Lighting and pump control through a compatible receiver
- Agricultural and industrial automation
Technical Specifications:
| Power Supply | 9V Battery |
| Current Consumption | Max 35mA at 8VDC (Only when transmitting) |
| Standby Current | 10uA (Typical) |
| Battery Monitor | LED flashes at 1Hz, during transmission, when battery voltage is at 6.5V (flat 9V battery) |
| Operating Frequency | 433.92Mhz |
| Operating Temperature Range | -5 to 50°C |
| Code Combination | Approximately 4.3 billion |
| Dimensions | 81 x 56 x 24mm |
| Weight | 51g without battery |
| Useable operating range | Up to 350m; depending on receiver antenna and location |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
 |
 |
Video:
Frequently Asked Questions:
What battery does it use?
These remotes use a 6F22 Battery
Can each button operate a different device?
Yes. Each button can be programmed to a different compatible Gigalink receiver or receiver channel, depending on the installation.
Will it work with any 433MHz receiver?
No. Matching frequency is not enough. The GLT43304 is designed for Elsema GLR433MHz Gigalink receivers and is not compatible with Penta or unrelated 433MHz systems.
Is the GLT43304 compatible with the older GLT2704?
No. The GLT2704 belongs to the discontinued 27MHz Gigalink system. Changing to the GLT43304 requires a compatible 433MHz Gigalink receiver.
What range can I expect?
The GLT43304 can achieve up to 350 metres under suitable line-of-sight conditions. Buildings, metal structures, electrical interference, receiver position and antenna selection can reduce the practical range.
Are the battery and silicone case included?
Yes. Retro Remotes supplies the GLT43304 with a 9V battery and clear silicone protective case.
