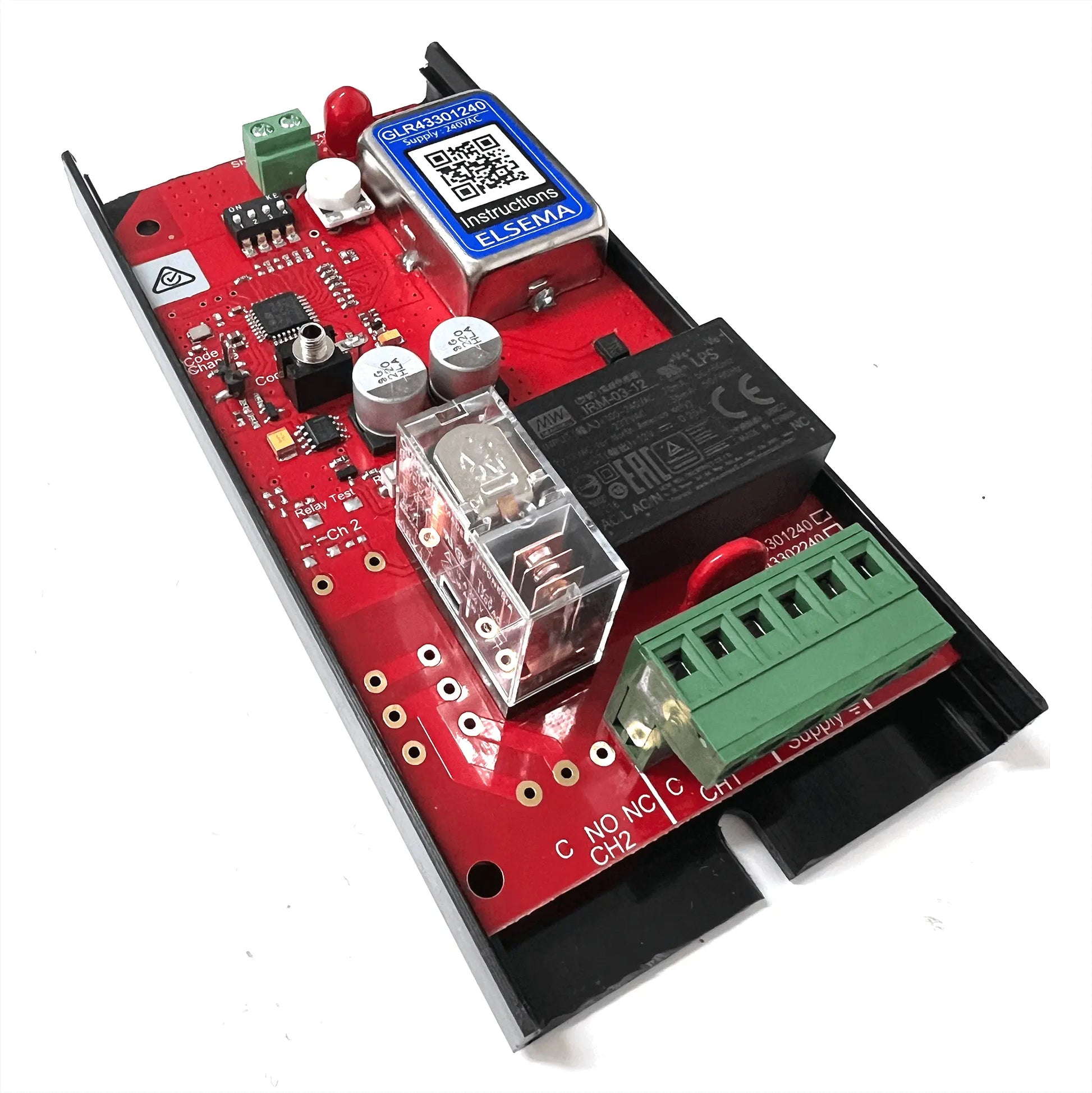

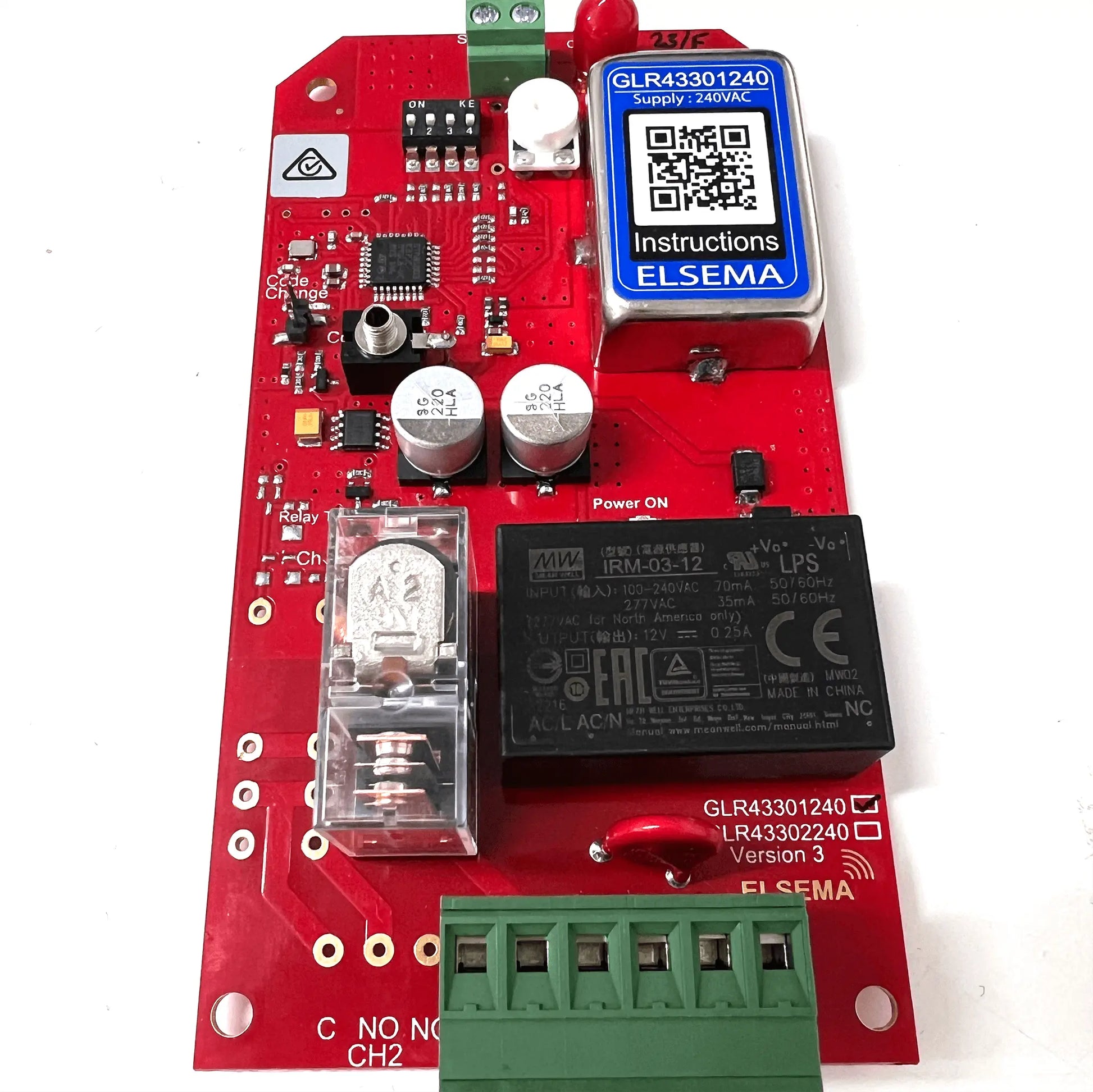

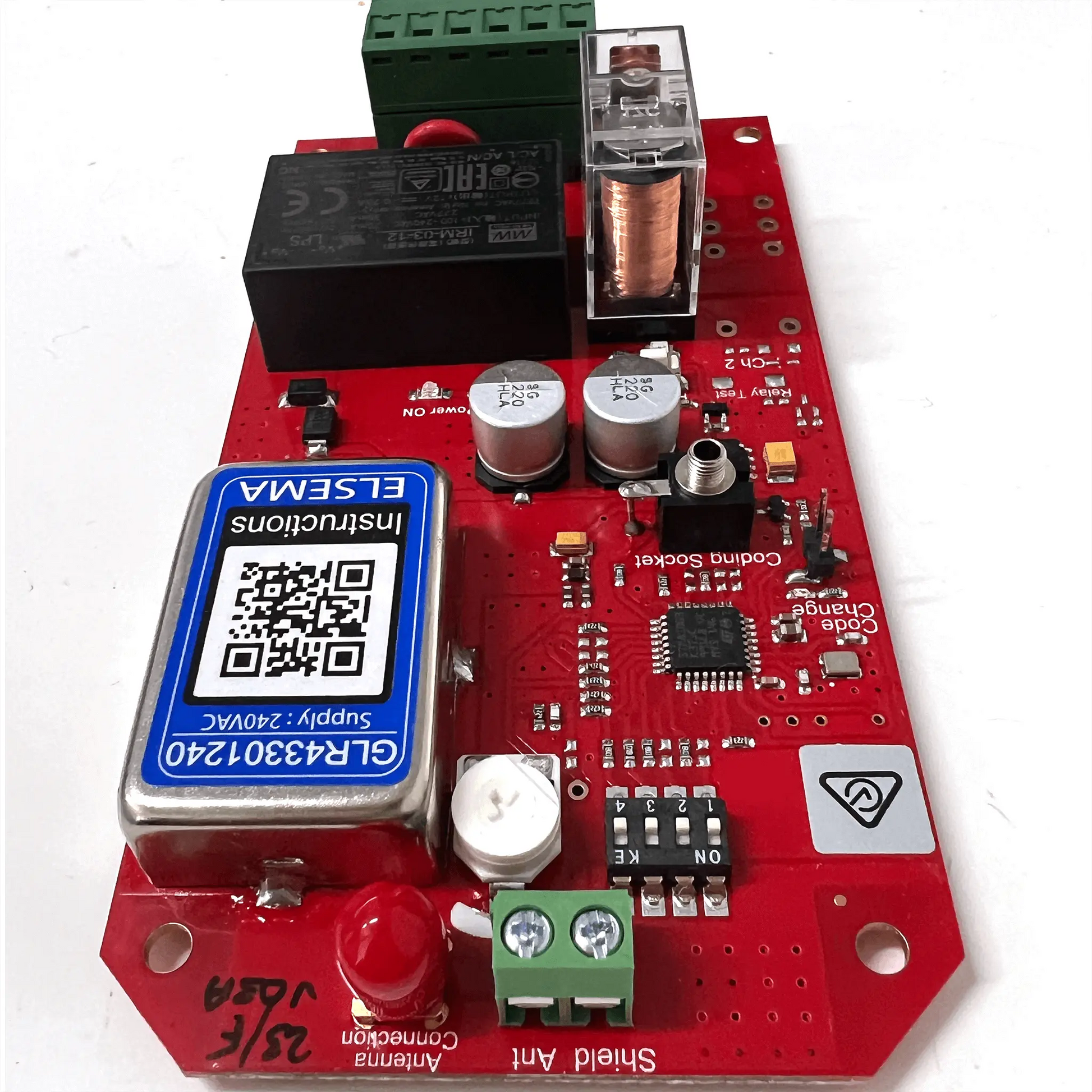

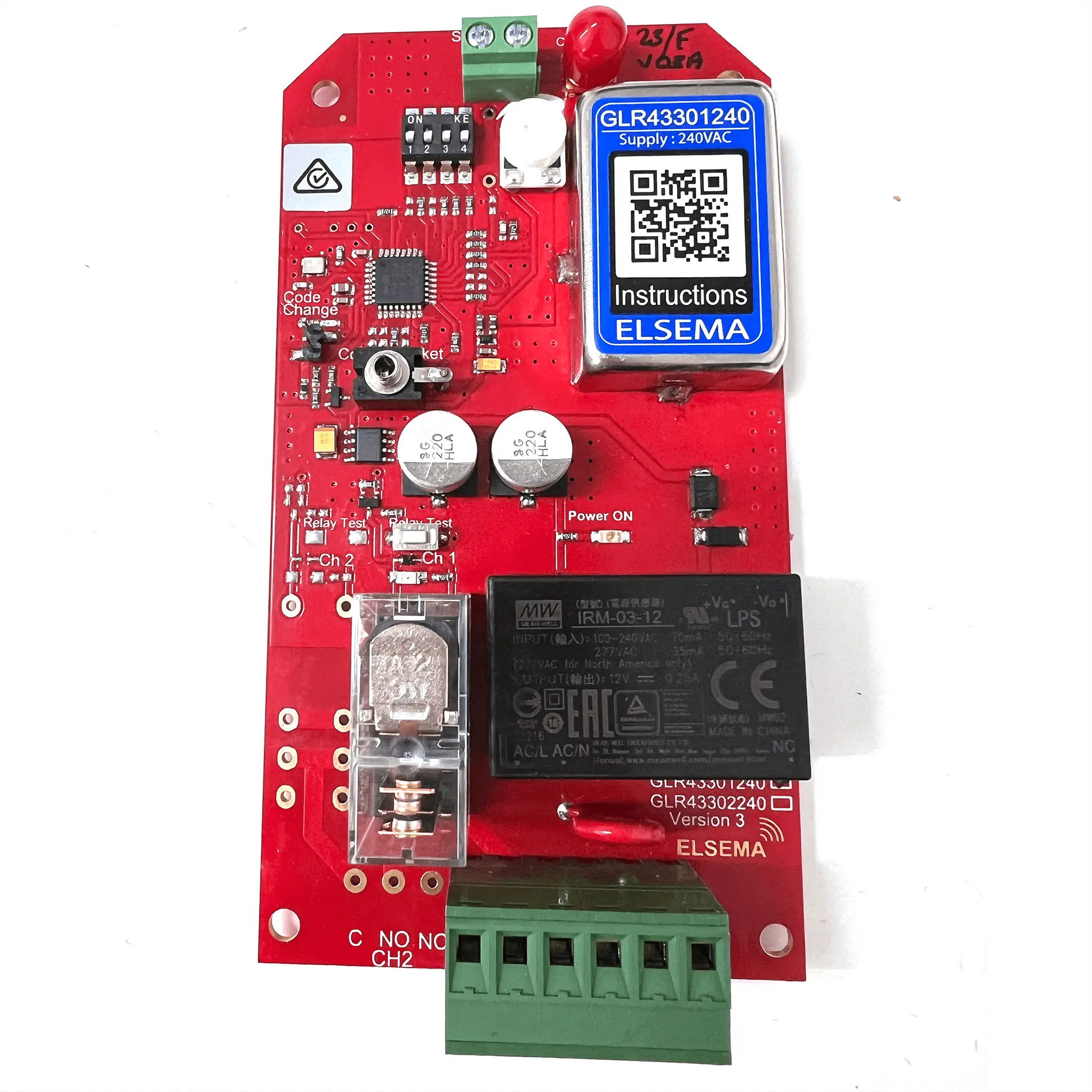

Elsema GLR43301240 240V Gigalink Receiver
The Elsema GLR43301240 is a genuine 433.92MHz Gigalink receiver designed for direct connection to a 110–240V AC mains supply. Featuring one heavy duty voltage free changeover relay output, it provides reliable wireless control for pumps, lighting, alarms, agricultural equipment and other automation systems.
Compatible with Elsema GLT433 Gigalink remotes, the GLR43301240 uses secure encrypted coding with more than four billion possible code combinations. It supports an unlimited number of compatible transmitters, making it suitable for both individual installations and sites requiring access for many users.
The receiver offers multiple selectable operating modes, including momentary, latching, delayed-off, pulsing, security latching and dedicated on/off control. Its relay is rated for up to 16A resistive or 8A inductive loads, allowing the receiver to switch suitable electrical equipment directly when installed correctly.
What’s Included:
- 1 × Brand New Genuine GLR43301240
- 1 x QM150 Quickmount
- 1 x Gigalink Coding Cable
- Step-by-step Wiring Programming Instructions
Key Features:
- Direct mains power: Operates from a 110–240V AC supply
- One heavy-duty relay output: Rated up to 16A resistive or 8A inductive
- Voltage-free changeover contacts: Suitable for a wide range of switching applications
- Secure encrypted coding: More than four billion possible code combinations
- Unlimited transmitter capacity: Suitable for installations with many users
- Long-range reception: Up to 350 metres in clear line-of-sight conditions with a suitable antenna
- Multiple operating modes: Momentary, latching, delayed-off, pulsing, security latching and on/off
- Status indicators: Power and relay-operation LEDs
- Manual test button: Allows the relay output to be tested at the receiver
- Pluggable terminal blocks: Helps simplify wiring and servicing
Compatible with:
Ideal Applications:
- Pump and irrigation control
- Agricultural equipment
- Lighting control
- Security and alarm systems
- Machinery switching
- Water-level and basic telemetry applications
- Commercial and industrial automation
- Other remote on/off control applications
Connection Diagram:
Technical Specifications:
| Frequency | 433.920MHz |
| Code Type | Encrypted Code |
| Body Type | Receiver |
| Number of Channels | 1 |
| Enclosure | Not Included |
| Size | 130 x 70 x 37mm |
| Power Supply | 110 – 240 Volts AC Mains |
| Current Consumption | 18mA, on 240V AC |
| Connection | Supply & Outputs – pluggable type terminal blocks |
| Output | Change over relay output, rated at 16 Amps of resistive load and up to 8 Amps of inductive load. |
| Range | Up to 350m in clear line of sight |
| Warranty | 12 months Manufacturers Warranty |
Downloads:
 |
 |
Frequently Asked Questions:
What is the difference between the GLR43301240 and GLR43301?
The GLR43301240 connects directly to a 110–240V AC mains supply and has a heavy-duty relay rated up to 16A for resistive loads. The standard GLR43301 requires a 12–24V AC/DC power supply and has an 8A relay output.
Which remotes work with the GLR43301240?
The GLR43301240 works with Elsema GLT433-series Gigalink remotes, including the GLT43301, GLT43302, GLT43304 and GLT43308. It is not compatible with Elsema GLT27 (27MHz), Multi-Code, PentaFOB, PentaCODE, FMT or KEY remotes
Does it work with PentaFOB or PentaCODE remotes?
No. Gigalink and Penta are separate Elsema systems. This receiver works only with compatible GLT433 Gigalink transmitters.
How many remotes can be used with this receiver?
The receiver supports an unlimited number of compatible Gigalink transmitters. The supplied coding cable is used to transfer the receiver’s code to the remotes.
Can it control a pump or lighting directly?
Its relay can switch suitable loads up to the stated resistive or inductive rating. An electrician must confirm the connected equipment’s starting current, load type and installation requirements.
Does it include a weatherproof enclosure?
No. The receiver board does not include a weatherproof enclosure and must be installed in an enclosure appropriate for its location and environmental conditions.
What operating range can I expect?
Up to 350 metres may be possible in clear line-of-sight conditions with a suitable antenna. Buildings, metal structures, electrical interference, terrain and antenna placement can reduce the practical range.
