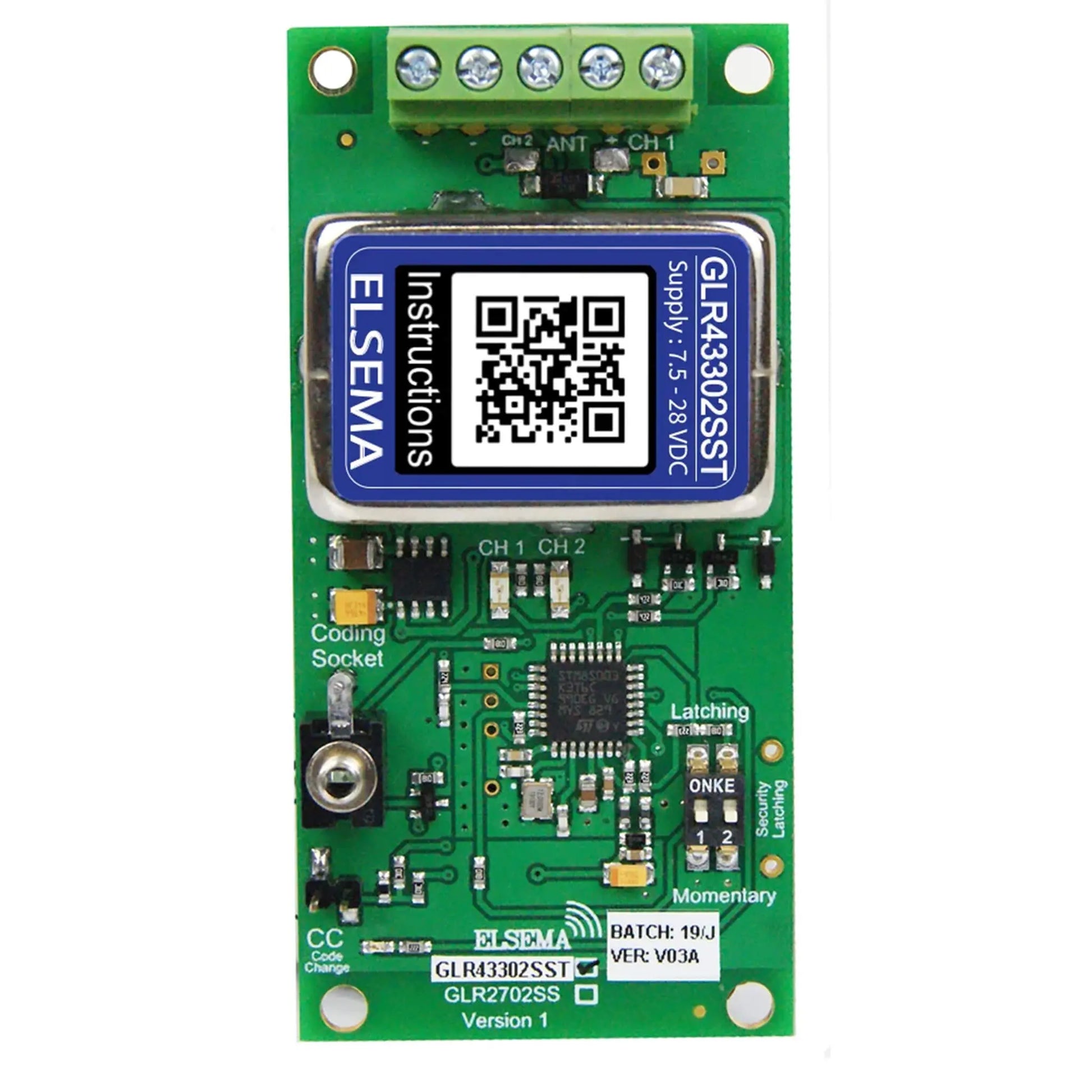

Elsema GLR43302SST Gigalink 2 Channel Open Collector Receiver
The Elsema GLR43302SST is a genuine 433.92MHz Gigalink receiver featuring two independent open collector outputs and a convenient 5-way screw terminal connection.
Designed for low-current switching applications, each output switches to ground and is rated at up to 100mA at 40V DC. This makes the receiver suitable for connecting to compatible gate controllers, access-control equipment, alarm inputs, automation systems and other electronic control inputs.
The GLR43302SST works with Elsema GLT433-series Gigalink remotes and uses secure encrypted 32-bit coding with more than four billion possible code combinations. It supports an unlimited number of compatible transmitters, making it suitable for both small installations and larger commercial or industrial systems.
Unlike the GLR43302SS, which uses a 6-pin plug-in connector, the GLR43302SST has a 5-way screw terminal block for direct field wiring. A Gigalink programming cable is included.
What’s Included:
- 1 × Brand New Genuine GLR43302SST – 2 channel receiver with open collector outputs (Screw Terminal Block)
- 1 x Gigalink Coding Cable
- Step-by-step Wiring Programming Instructions
Key Features:
- Two Open Collector Outputs: 100mA at 40VDC, simultaneous operation supported
- 5-way screw terminal block: Secure, Field-Ready wiring connections
- Secure Gigalink Technology: encrypted 32-bit coding with over 4 billion combinations
- Unlimited transmitter Storage: scalable for large systems
- Multiple Output Modes: momentary, latching, security latching
- Long Range Performance: up to 350m line-of-sight with compatible transmitters
- Crystal-controlled stability: for reliable, interference-resistant operation
- Australian Compliance: Meets local frequency regulations for Australia*
Compatible with:
Ideal Applications:
- Automatic gate and garage-door controller inputs
- Access-control systems
- Alarm and security inputs
- Low-current industrial controls
- Lighting-control inputs
- Remote switching and automation equipment
Technical Specifications:
| Frequency | 433.920MHz |
| Code Type | Encrypted Code |
| Body Type | Receiver |
| Number of Channels | 2 |
| Enclosure | Not Included |
| Size | 88 x 43 x 15mm |
| Power Supply | 7.5 to 28.0 Volts DC
Supply lines should be less than 3 metres long to comply with Radio Frequency Authorities |
| Current Consumption | 11 mA on standby at 12 VDC supply |
| Connection | Five way screw type terminal block |
| Output | Two open Collector Output |
| Range | Up to 350m in clear line of sight |
| Warranty | 12 months Manufacturers Warranty |
Downloads:
 |
 |
Frequently Asked Questions
What is the difference between the GLR43302SST and GLR43302SS?
Both receivers have two open collector outputs. The GLR43302SST uses a 5-way screw terminal block for direct wiring, while the GLR43302SS uses a 6-pin plug-in connector.
Does the GLR43302SST have relay outputs?
No. It has two open collector outputs that switch to ground. If your equipment requires voltage-free relay contacts, you will need an appropriate relay interface or a receiver such as the GLR43302.
Can it switch a gate motor directly?
No. The outputs are intended to activate compatible low-current controller inputs. The receiver must not be used to power or switch a gate motor directly.
Does the receiver include an enclosure?
No. The GLR43302SST is supplied as an unenclosed receiver board and should be installed inside suitable equipment or an appropriate protective enclosure.
Which remotes are compatible?
It works with Elsema GLT433-series Gigalink remotes, including the GLT43301, GLT43302, GLT43304 and GLT43308.
How many remotes can be programmed?
The receiver can store an unlimited number of compatible Gigalink transmitters.
Can both channels operate simultaneously?
Yes. Both open collector outputs can operate at the same time when programmed and wired for the required application.
Does it operate from AC power?
No. The GLR43302SST requires a 7.5–28V DC supply.
