Elsema GLR43301 Gigalink 1-Channel Receiver
The Elsema GLR43301 is a genuine 433.92MHz Gigalink receiver with one voltage free changeover relay output. Designed for domestic, commercial and industrial automation, it provides reliable wireless control for automatic gates, garage doors, access control equipment, security systems, lighting, machinery and other switching applications.
Compatible with Elsema GLT433 Gigalink Remote, the GLR43301 uses secure encrypted coding with more than four billion possible code combinations. It can accept an unlimted number of compatible transmitters, making it suitable for everything from a single-user gate to larger commercial or industrial installations.
Operating from a 12–24V AC or DC power supply, the GLR43301 can achieve a range of up to 350 metres in clear line-of-sight conditions when used with a suitable antenna. A Gigalink programming cable is included for pairing compatible transmitters.
What’s Included:
- 1 × Brand New Genuine GLR43301 Single Channel Receiver with Relay Output
- 1 x Gigalink Coding Cable
- Step-by-step Wiring Programming Instructions
Key Features:
- Single Relay Output: switches up to 8A at 240VAC
- Secure encrypted coding: More than four billion code combinations
- Unlimited Capacity: Suitable for small and large installations
- Up to 350m range: under clear line of sight conditions with a suitable antenna
- Selectable Output Modes: Momentary, latching, timed, pulsing, security latching and on/off
- Adjustable timer: Delayed off settings from 1 - 300 seconds
- Flexible power input: 12-24V AC or DC
Compatible with:
Ideal Applications:
- Automatic gate control
- Security systems
- Industrial and commercial automation
- On/off control for lighting and machinery
Connection Diagram:
Technical Specifications:
| Frequency | 433.920MHz |
| Code Type | Encrypted Code |
| Body Type | Receiver |
| Number of Channels | 1 |
| Enclosure | N/A |
| Size | 95 x 70 x 30mm |
| Power Supply | 12 – 24 Volts AC or DC |
| Current Consumption | 16 mA on standby at 12VDC supply
45 mA if relay “ON” at 12VDC supply |

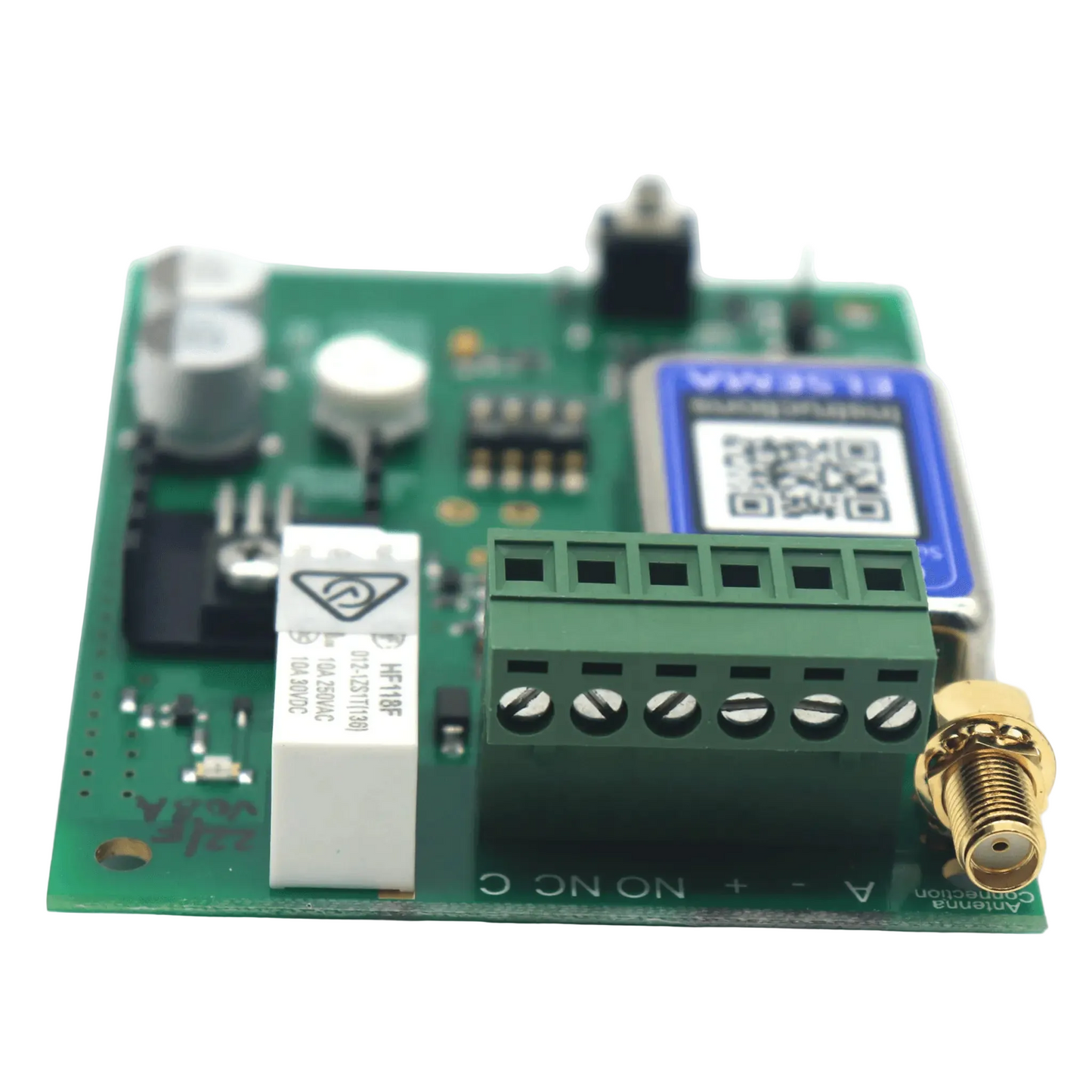

| Connection | 6-way screw type terminal block |
| Output | Change over relay output, rated at 8 Amps/240 Volts |
| Range | Up to 350m in clear line of sight |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
 |
Frequently Asked Questions:
Which remotes work with the Elsema GLR43301?
The GLR43301 works with Elsema GLT433-series Gigalink remotes, including the GLT43301, GLT43302, GLT43304 and GLT43308. It is not compatible with Elsema GLT27 (27MHz), Multic-Code, PentaFOB, PentaCODE, FMT or KEY remotes
Does the GLR43301 include an enclosure?
No. The GLR43301 is supplied as a receiver board without an enclosure. The GLR43301E is the enclosed version.
How many remotes can be programmed to the receiver?
The GLR43301 supports an unlimited number of compatible Gigalink transmitters, making it suitable for residential, commercial and industrial installations.
What power supply does it require?
It operates from a 12–24V AC or DC power supply.
What can the relay output be used for?
The voltage-free changeover relay can provide a control input for gates, garage doors, access-control equipment, lighting, machinery and other automation devices. Suitability depends on the connected equipment and installation requirements.
What is the operating range?
A range of up to 350 metres may be possible under clear line-of-sight conditions with an appropriate antenna. Buildings, metal structures, electrical interference and antenna placement can reduce the practical range.
Is a programming cable included?
Yes. A Gigalink coding cable is supplied for programming compatible GLT433 transmitters to the receiver.
Can the output be timed or latched?
Yes. Available modes include momentary, latching, delayed off, pulsing, security latching and dedicated on/off control.
