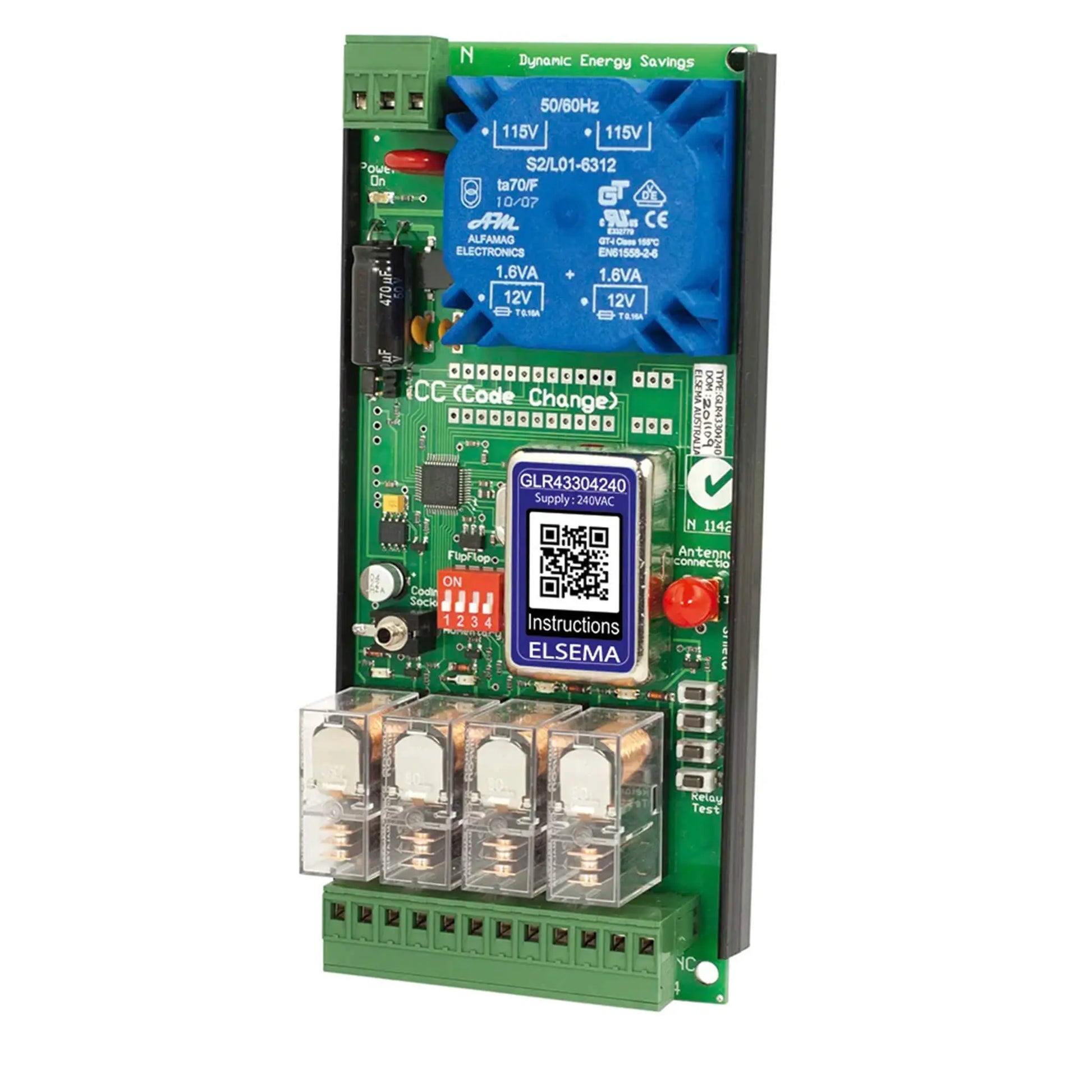

Elsema GLR43304240 Receiver

Elsema GLR43304240 Receiver

$162.95
$162.95
Sale Sold out
Shipping calculated at checkout.

Stock may need to be sourced from Australian suppliers to fulfil your order. Please allow additional time for dispatch. Contact us for ETA

GLR43304240 - Elsema Gigalink 4 Channel 240V Receiver

The Elsema GLR43304240 is a high-performance 4-channel Gigalink receiver designed for 240V mains connection, ideal for gates, security, automation and industrial control systems. With encoded 32-bit Gigalink security, long-range reception and support for multiple output modes, this unit provides professional-grade reliability for commercial and residential installations.

What’s Included:

  • 1 × Brand New Genuine GLR43302240
  • 1 x QM150 Quickmount
  • 1 x Gigalink Coding Cable
  • Step-by-step Wiring Programming Instructions

Features:

  • Direct 240VAC Connection: Eliminates the need for a separate low-voltage power supply.
  • Two Independent Relay Outputs: Control two devices from a single receiver.
  • Multiple Output Modes: Momentary, Latching, Timed-Off and Security Latching
  • Visual status indicators: Power ON LED and Relay ON LED
  • Manual Test Button: for quick relay activation during setup.
  • Secure Gigalink Technology: encrypted 32-bit coding with over 4 billion combinations
  • Unlimited transmitter Storage: scalable for large systems
  • Selectable Output Modes: momentary, latching, security latching and mixed
  • Long Range Performance: up to 350m line-of-sight with compatible transmitters
  • Crystal-controlled stability: for reliable, interference-resistant operation
  • Easy Installation: pluggable terminal blocks and supplied QM150 Quickmount bracket.
  • Australian Compliance: Meets local frequency regulations for Australia

Compatible with:

Remotes:

  • GLT43301
  • GLT43302
  • GLT43304
  • GLT43308

Ideal Applications:

  • Automatic Gates and Garage Doors
  • Wireless Security Activation
  • Lighting Control
  • Industrial Automation; control machinery, equipment, or processes remotely, enabling efficient and convenient operation
  • Access Control: Controlling entry points, such as doors or gates, ensuring secure access with compatible remote controls
  • Remote Switching: With its multiple output options, including relay, open collector it can be used for remote switching applications in various settings, such as turning on/off pumps, motors, or other devices wirelessly.

Technical Specifications:

Frequency 433.920MHz
Code Type Encrypted Code
Body Type Receiver
Number of Channels 2
Enclosure Not Included
Size 130 x 70 x 37mm
Power Supply 110 – 240 Volts AC Mains
Current Consumption  18mA, on 240V AC
Connection Supply & Outputs – pluggable type terminal blocks
Output Change over relay output, rated at 16 Amps of resistive load and up to 8 Amps of inductive load.
Range Up to 350m in clear line of sight
Warranty 12 months Manufacturers Warranty


Downloads:





View full details

Frequently Asked Questions

Is the remote pre-programmed or does it require setup before use?

Most remotes require programming to your opener before use. This process allows the remote to communicate securely with your specific garage or gate system.

If the product is listed as “compatible” rather than “genuine”, it will still need to be coded in the same way as your original remote.

Programming instructions are included with your order, and additional guides can be found on our Programming Instructions page or by contacting our support team for assistance.

How much does shipping cost?

Retail customers enjoy free standard shipping Australia-wide on orders over $10. Orders are sent as tracked parcels via a range of trusted couriers, including Australia Post, CouriersPlease, and Aramex.

For faster delivery, an Express Shipping option is available for $9.95.

International shipping rates vary depending on the destination — standard shipping starts from $20, and all options include tracking for your peace of mind.

Wholesale customers are charged a flat rate of $14.95 for all orders, with tracking provided once despatched.

How long will it take for the order to arrive?

For the East Coast of Australia, standard delivery typically takes 3–5 business days.

For the West Coast and Northern Territory, please allow 7–14 business days for standard delivery.

For more detailed information, please refer to our Shipping Policy.

What happens if I bought the wrong item?

If you think you have purchased the wrong item, please contact us and we will help start up the returns process and suggest correct replacement.

What happens if something is wrong with the remote?

Having Trouble Programming Your Remote?

Setting up your remote to your opener can sometimes be a little frustrating. If you’re having difficulty programming your remote, get in touch with us — our team is happy to help troubleshoot the issue.

All products are covered by a manufacturer’s warranty, which protects against any faults that may occur during the production process.

For more information about our warranty process, please refer to our Warranty Policy.
