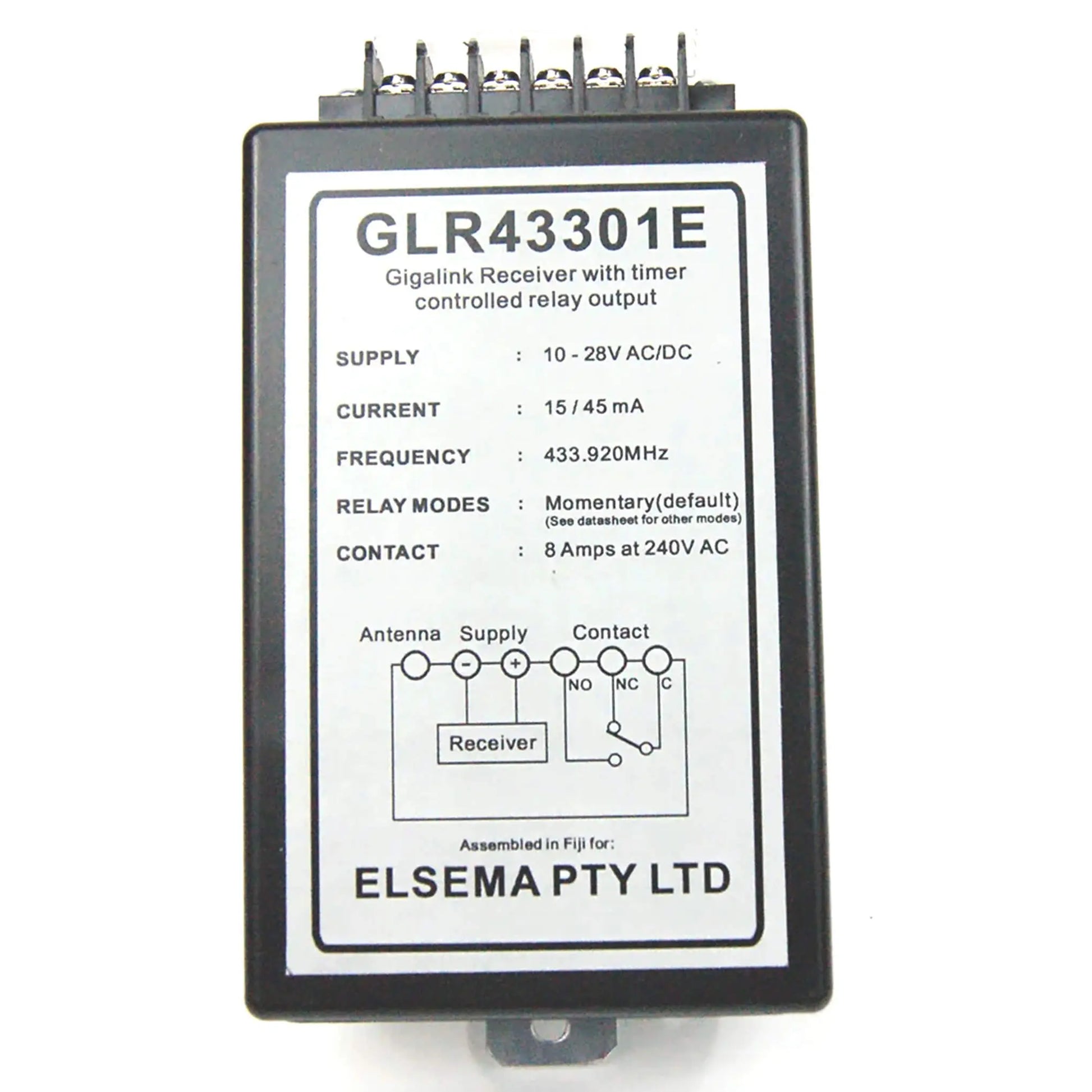

Elsema GLR43301E Receiver in Enclosure

Elsema GLR43301E Gigalink 1-Channel Receiver in Enclosure

The Elsema GLR43301E is a genuine 433.92MHz Gigalink receiver with one voltage free changeover relay output, supplied in a protective enclosure. Designed for domestic, commercial and industrial automation, it provides reliable wireless control for automatic gates, garage doors, access-control equipment, security systems, lighting, machinery and other switching applications.

Compatible with Elsema GLT433 Gigalink Remotes, the GLR43301E uses secure encrypted coding with more than four billion possible code combinations. It can accept an unlimited number of compatible transmitters, making it suitable for everything from a single-user gate to larger commercial or industrial installations.

Operating from a 12–24V AC or DC power supply, the receiver can achieve a range of up to 350 metres in clear line-of-sight conditions when used with a suitable antenna. Multiple selectable output modes allow the relay to be configured for momentary, latching, timed, pulsing, security-latching or dedicated on/off operation.

What’s Included:

• 1 × Brand New Genuine GLR43301 Single Channel Receiver with Relay Output
• 1 x Weatherproof Enclosure
• 1 x Gigalink Coding Cable
• Step-by-step Wiring Programming Instructions

Key Features:

• Weatherproof Enclosure: IP-Rated for outdoor installations
• 433Mhz Gigalink technology: secure and interference-resistant communication
• Single Channel Relay Output: switches up to 8A at 240VAC
• Multiple output modes: momentary, latching, timed-off, pulsing, security latching, on/off, and custom
• High Security: over 4 billion encrypted code combinations
• Unlimited transmitter storage: pair any number of Gigalink® transmitters
• Long-range performance: up to 350m line-of-sight
• Wide supply voltage: 11-28V AC or DC
• Crystal-Controlled Frequency Stability
• Easy Installation: Pluggable terminals, LED indicators, relay test switch


Compatible with:

• GLT43301
• GLT43302
• GLT43304
• GLT43308

Ideal Applications:

• Automatic gate control
• Security systems
• Industrial and commercial automation
• On/off control for lighting and machinery

Connection Diagram for the GLR43301:

Note:  The Terminal positions will be identical on the enclosure:

Technical Specifications:

Downloads:

Frequently Asked Questions:

What is the difference between the GLR43301 and GLR43301E?

Both models use the same one-channel Gigalink receiver. The GLR43301 is supplied as an unenclosed receiver board, while the GLR43301E includes a protective enclosure.

Which remotes work with the GLR43301E?

The GLR43301 works with Elsema GLT433-series Gigalink remotes, including the GLT43301, GLT43302, GLT43304 and GLT43308. It is not compatible with Elsema GLT27 (27MHz), Multi-Code, PentaFOB, PentaCODE, FMT or KEY remotes

How many remotes can be programmed to it?

The GLR43301E supports an unlimited number of compatible Gigalink transmitters.

What power supply does it require?

It operates from a 12–24V AC or DC power supply. A power supply is not listed as part of the included package.

What can the relay output control?

The voltage-free changeover relay can provide a control input for gates, garage doors, access-control equipment, lighting, machinery and other automation devices. Suitability depends on the connected equipment and installation requirements.

What is the operating range?

A range of up to 350 metres may be possible in clear line-of-sight conditions with a suitable antenna. Buildings, metal structures, electrical interference and antenna placement can reduce the practical range.

Is a programming cable included?

Yes. A Gigalink coding cable is supplied for pairing compatible GLT433 transmitters with the receiver.

Can the output be timed or latched?

Yes. Available operating modes include momentary, latching, delayed off, pulsing, security latching and dedicated on/off control.
