Elsema GLR43302SS Gigalink 2 Channel Plug-In Receiver

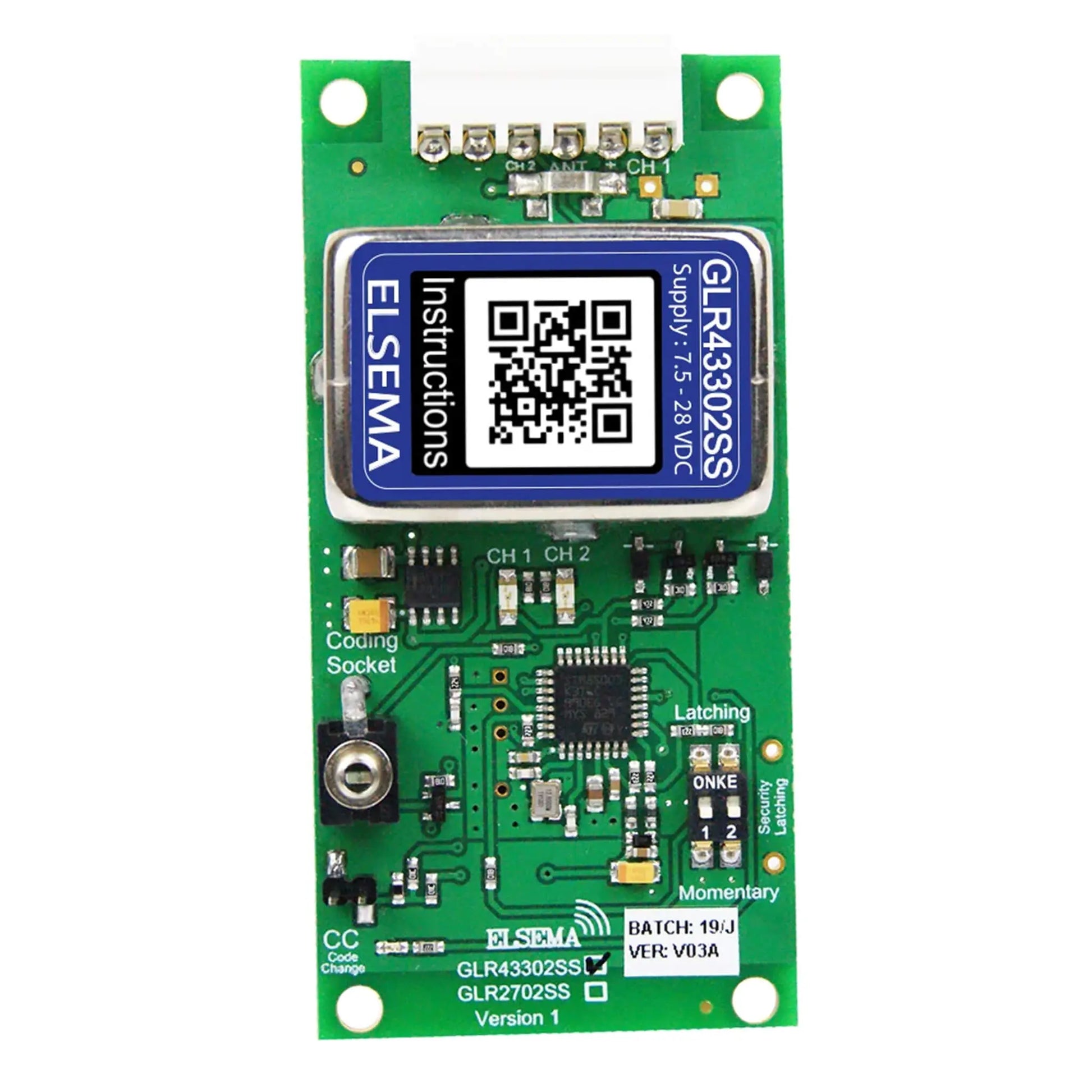

The Elsema GLR43302SS is a two-channel 433MHz Gigalink receiver designed for integration into compatible control boards and electronic control systems.
Unlike a standard receiver with relay outputs, the GLR43302SS provides two low-current open-collector outputs that switch to ground. It connects through a six-pin Molex-style plug, making it suitable for equipment specifically designed to accept this receiver or for custom automation applications.
The receiver uses Elsema’s encrypted 32-bit Gigalink coding and can store an unlimited number of compatible Gigalink transmitters. Each channel can be configured independently for momentary, latching or security-latching operation.
Important: The GLR43302SS does not have relay outputs.
What’s Included:
- 1 × Genuine Elsema GLR43302SS receiver
- 1 x 6 pin plug-in connector
- 1 × Gigalink programming cable
- Programming and wiring instructions
Key Features:
- Two independently programmable channels
- Two open-collector outputs that switch to ground
- Output capacity of up to 100mA at 40VDC per channel
- Six-pin plug-in connection
- Operates from a 7–28VDC power supply
- Encrypted 32-bit Gigalink coding
- Unlimited compatible transmitter storage
- Momentary, latching and security-latching output modes
- Compact design for integration into control equipment
- Compatible with Elsema 433MHz Gigalink transmitters
Compatible with:
Ideal Applications:
- Gate and garage door control systems
- Alarm and security equipment
- Access-control systems
- Lighting and signage control
- Pumps, machinery and industrial automation
- Custom electronic control systems
- Control boards requiring a low-current switched-to-ground input
Technical Specifications:
| Frequency | 433.920MHz |
| Code Type | Encrypted Code |
| Body Type | Receiver |
| Number of Channels | 2 |
| Enclosure | Not Included |
| Size | 88 x 43 x 15mm |
| Power Supply | 7.5 to 28.0 Volts DC
Supply lines should be less than 3 metres long to comply with Radio Frequency Authorities |
| Current Consumption | 11 mA on standby at 12 VDC supply |
| Connection | Female connector, the male connector can be soldered to a printed circuit board. |
| Output | Two open Collector Output |
| Range | Up to 350m in clear line of sight |
| Warranty | 12 months Manufacturers Warranty |
