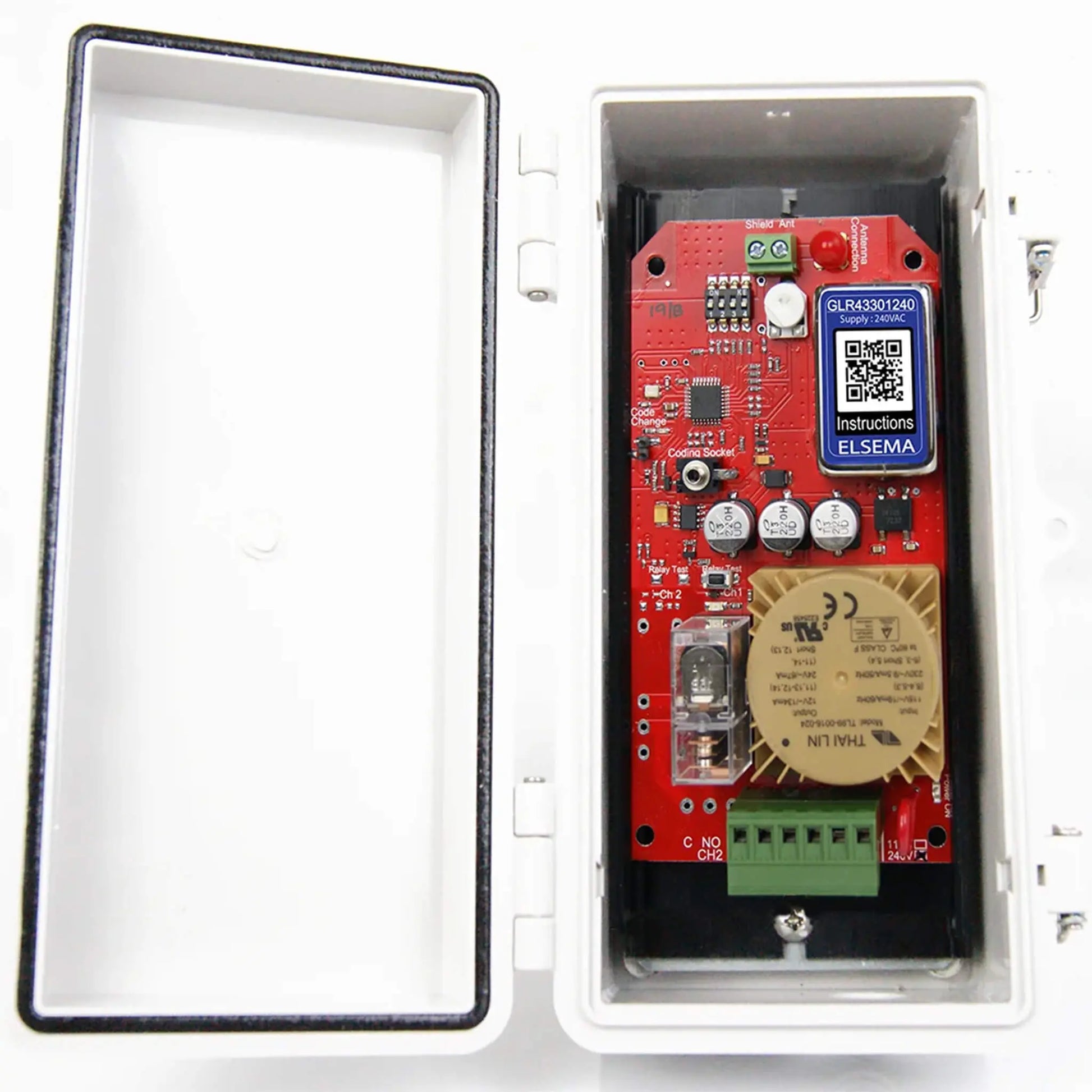

Elsema GLR43301240E Receiver in Enclosure
Elsema GLR43301240E Receiver in Enclosure
This is a low demand item - Stock will need to be sourced from Australian suppliers to fulfil your order. Please allow additional time for dispatch. Contact us for ETA Prior to ordering if required urgently.
Couldn't load pickup availability
Elsema GLR43301240E Gigalink 1-Channel Mains Receiver
The Elsema GLR43301240E is a one-channel 433MHz Gigalink receiver designed for applications requiring direct connection to a 110–240VAC mains supply. It combines a high-capacity voltage-free relay output with an IP66-rated enclosure, making it suitable for correctly installed outdoor, agricultural, commercial and industrial control systems.
The changeover relay is rated for loads up to 16A resistive or 8A inductive and can be configured for momentary, latching, delayed-off, pulsing, security-latching and dedicated on/off operation. Pluggable terminal blocks, relay test controls and LED indicators help simplify installation, testing and fault finding.
Using Elsema’s encrypted 32-bit Gigalink coding, the receiver can store an unlimited number of compatible GLT433-series transmitters. This makes it a practical solution for pump control, remote lighting, agricultural equipment, basic telemetry, security systems and other single-output control applications.
What’s Included:
- 1 × Genuine Elsema GLR43301240E Receiver (Enclosed)
- 1 × Gigalink® Coding Cable
- Step-by-Step Wiring & Programming Instructions
Key Features:
- Reliable 240VAC Power Supply: Ensures consistent performance and is also available in 110-120VAC for international compatibility.
- IP66-Rated Enclosure: Suitable for outdoor installations, providing protection against dust and water.
- High-Efficiency Toroidal Transformer: Operates 25-30% more efficiently than conventional transformers, with lower operating temperatures, minimal hum, and reduced stray magnetic fields.
- Advanced Relay Operation Modes: Supports momentary, latching, timed, and security latching modes for maximum versatility across applications.
- User-Friendly Installation: Equipped with pluggable terminal blocks and test push buttons for quick setup and diagnostics.
- LED Indicators: Power “On” LED confirms correct voltage supply, and a relay status LED provides clear visual feedback during operation.
- Secure Transmitter Storage: Stores an unlimited number of transmitters, each secured with encrypted 32-bit digital codes for enhanced security.
- Gigalink® Programming Cable: Allows for quick and efficient configuration to suit various
Compatible with:
Ideal Applications:
- Pump Control: Manage water systems with ease.
- Long-Distance Light Control: Perfect for outdoor lighting setups.
- On/Off Applications: Ideal for agricultural devices and equipment.
- Telemetry: Basic water level indication and similar applications.
- Security Alarms: Reliable relay operation ensures dependable integration into alarm systems.
Connection Diagram for GLR43301240:
Technical Specifications:
| Frequency | 433.920MHz |
| Code Type | Encrypted Code |
| Body Type | Receiver |
| Number of Channels | 1 |
| Enclosure | IP66 Rated Enclosure |
| Size | 130 x 70 x 37mm |
| Power Supply | 110 – 240 Volts AC Mains |
| Current Consumption | 18mA, on 240V AC |
| Connection | Supply & Outputs – pluggable type terminal blocks |
| Output | Change over relay output, rated at 16 Amps of resistive load and up to 8 Amps of inductive load. |
| Range | Up to 350m in clear line of sight |
| Warranty | 12 months Manufacturers Warranty |
Downloads:
 |
 |
Frequently Asked Questions:
What is the difference between the GLR43301240 and GLR43301240E?
Both models provide a one-channel Gigalink receiver with a 110–240VAC mains supply. The GLR43301240E is supplied in an IP66-rated enclosure, while the GLR43301240 is the unenclosed receiver.
Is the GLR43301240E suitable for outdoor installation?
The receiver is supplied in an IP66-rated enclosure for protection against dust and water. The enclosure must be correctly installed and sealed, with suitable cable glands and cable-entry methods, to maintain its protection rating.
Which remotes work with this receiver?
It is compatible with Elsema 433MHz Gigalink GLT-series transmitters, including the GLT43301, GLT43302, GLT43304 and GLT43308.
How many remotes can be programmed into it?
The GLR43301240E can store an unlimited number of compatible Gigalink transmitters.
Does the receiver provide power through its relay output?
No. It has a voltage-free changeover relay. The relay acts as a switch for a separately connected circuit rather than supplying an output voltage itself.
Can it be used as a simple on/off receiver?
Yes. It supports latching operation and dedicated on/off modes. Dedicated on/off control requires suitable transmitter buttons and channelised programming.
