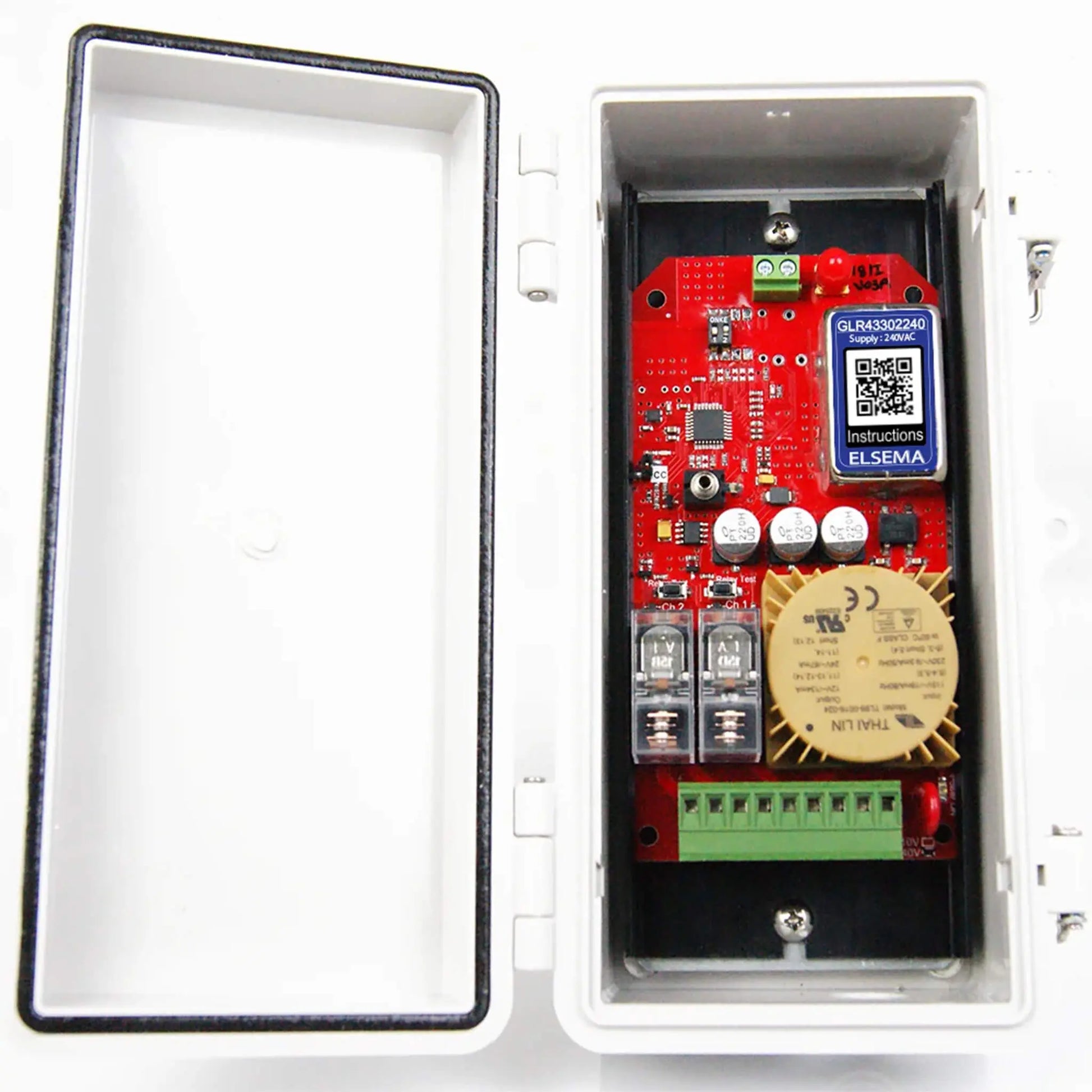

GLR43302240E – Elsema Gigalink 2 Channel 240V Receiver in IP66 Enclosure
The Elsema GLR43302240E is a two channel Gigalink receiver designed for direct connection to a 110 - 240V AC mains supply. Supplied inside an IP66 rated weather resistant enclosure, it is suitable for outdoor and exposed installations where the receiver requires protection from dust and water.
Two independent voltage-free relay outputs allow two separate devices or functions to be controlled from one receiver. Depending on the selected operating mode, the relays can provide momentary, latching or security-latching operation.
Compatible with Elsema GLT433-series Gigalink remotes, the GLR43302240E uses secure encrypted coding with more than four billion possible code combinations. It can accept an unlimited number of compatible transmitters, making it suitable for anything from a small two-function installation to larger commercial or industrial systems.
With direct mains power, high-capacity relay outputs, onboard test buttons and clear LED indicators, the GLR43302240E provides a practical enclosed control solution for pumps, lighting, alarms, gates and other automation equipment.
What’s Included:
- 1 × Brand New Genuine GLR43302240
- 1 x IP66 Rated Enclosure
- 1 x QM150 Quickmount
- 1 x Gigalink Coding Cable
- Step-by-step Wiring Programming Instructions
Key Features:
- Two independent channels: Control two separate devices or automation functions from one receiver.
- Direct 110–240V AC connection: No separate low-voltage power supply is required.
- IP66-rated enclosure: Protects the receiver against dust and water during suitable outdoor installations.
- Voltage-free relay outputs: Suitable for connection to a wide range of control and automation equipment.
- High-capacity relays: Each relay can switch up to 16A resistive or 8A inductive load.
- Selectable relay modes: Choose momentary, latching or security-latching operation.
- Secure Gigalink coding: Encrypted 32-bit digital coding with more than four billion possible combinations.
- Unlimited remote storage: Suitable for installations requiring a large number of authorised transmitters.
- Long-range operation: Up to approximately 350 metres in clear line-of-sight conditions when installed with a suitable antenna.
- Onboard test buttons: Test each relay during installation without using a remote control.
- LED status indicators: Separate visual indicators show when power is connected and when a relay is activated.
- Pluggable terminal blocks: Simplify wiring, installation and future servicing.
Compatible with:
Ideal Applications:
- Pump and irrigation control
- Long-distance lighting control
- Agricultural equipment
- Water-level and basic telemetry systems
- Security and alarm systems
- Gate and access-control equipment
- General remote on/off control
- Commercial and industrial automation
Connection Diagram for GLR43302240:
Technical Specifications:
| Frequency | 433.920MHz |
| Code Type | Encrypted Code |
| Body Type | Receiver |
| Number of Channels | 2 |
| Enclosure | IP66 Rated Enclosure |
| Size | 160 x 120x 55mm |
| Power Supply | 110 – 240 Volts AC Mains |
| Current Consumption | 18mA, on 240V AC |
| Connection | Supply & Outputs – pluggable type terminal blocks |
| Output | Change over relay output, rated at 16 Amps of resistive load and up to 8 Amps of inductive load. |
| Range | Up to 350m in clear line of sight |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
 |
 |
Frequently Asked Questions:
Does the GLR43302240E include the enclosure?
Yes. The GLR43302240E includes the two-channel receiver mounted in an IP66-rated enclosure. The unenclosed version is sold separately as model GLR43302240.
Can this receiver control two different devices?
Yes. It has two independent voltage-free relay outputs. Each channel can be programmed to a compatible Gigalink remote button and connected to a separate device or control input.
Which remotes work with this receiver?
It is compatible with Elsema 433MHz Gigalink GLT-series transmitters, including the GLT43301, GLT43302, GLT43304 and GLT43308.
How many remotes can be programmed into it?
The Gigalink receiver can store an unlimited number of compatible transmitters.
Does it require a separate power supply?
No. The receiver connects directly to a 110–240V AC mains supply. It must be installed by a suitably qualified and licensed electrician.
Can it be installed outdoors?
The included enclosure is rated IP66 and is intended to protect the receiver from dust and water. The completed installation must be correctly sealed and fitted with suitable cable glands to maintain that protection.
Does it include remote controls?
No. Compatible Elsema Gigalink remote controls are sold separately unless specifically stated otherwise in the product inclusions.
