Elsema Gigalink GLT43302 Remote with Cover and Battery

Name: Elsema Gigalink GLT43302 Remote with Cover and Battery
Brand: Elsema
SKU: 58222
Price: 79.95 AUD
Availability: InStock

SKU:58222

$79.95

Sale Read More

Duties and taxes included. Shipping calculated at checkout.

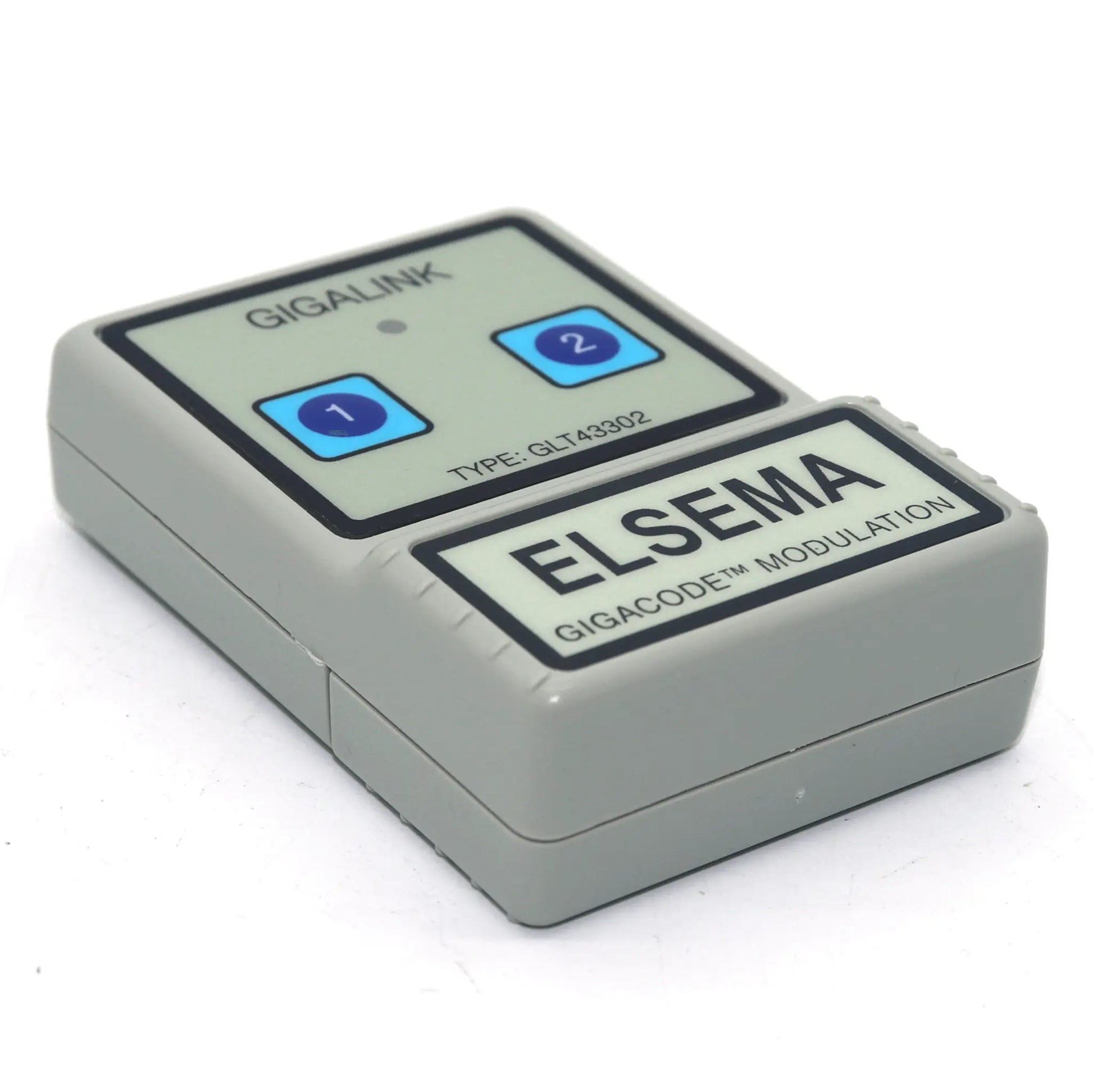

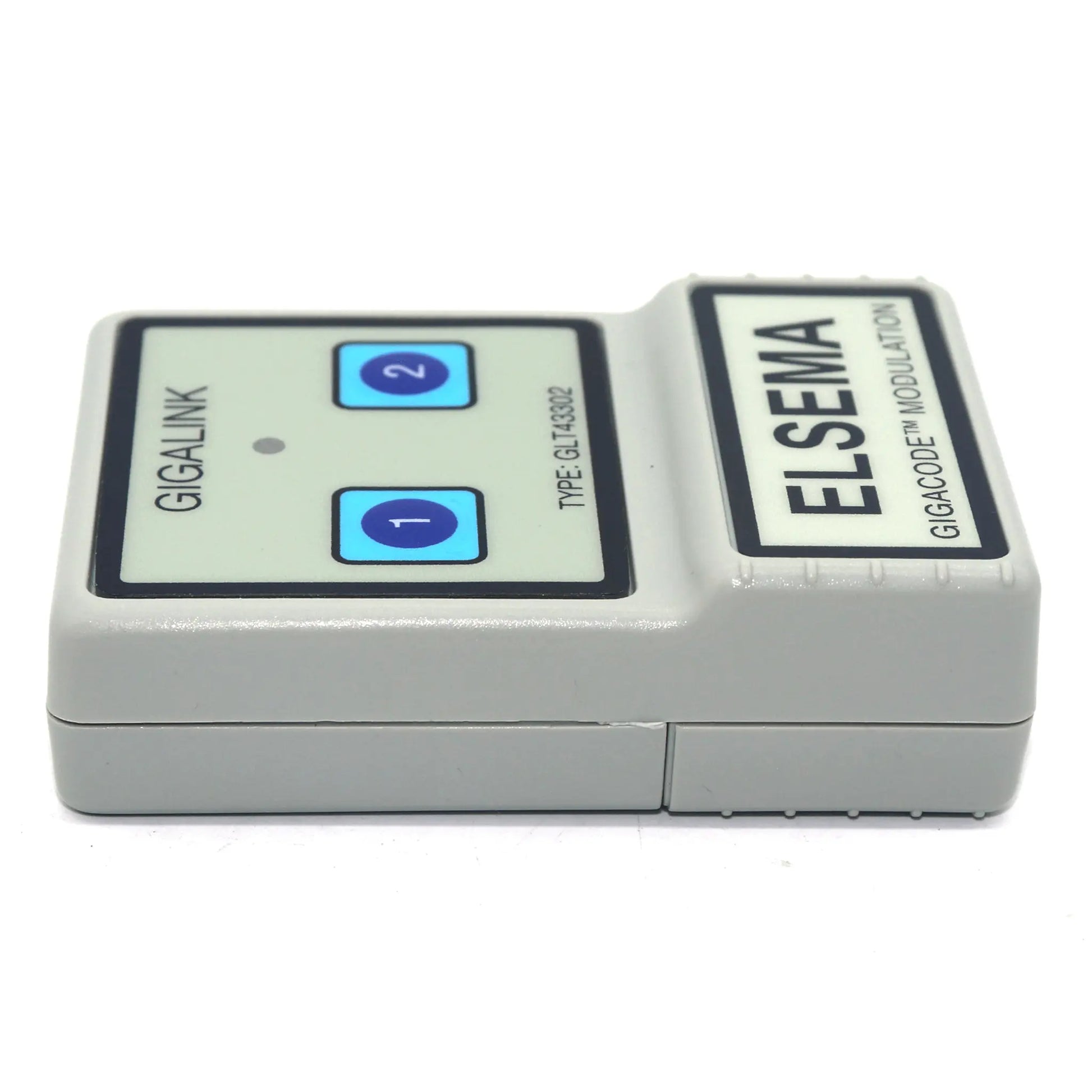

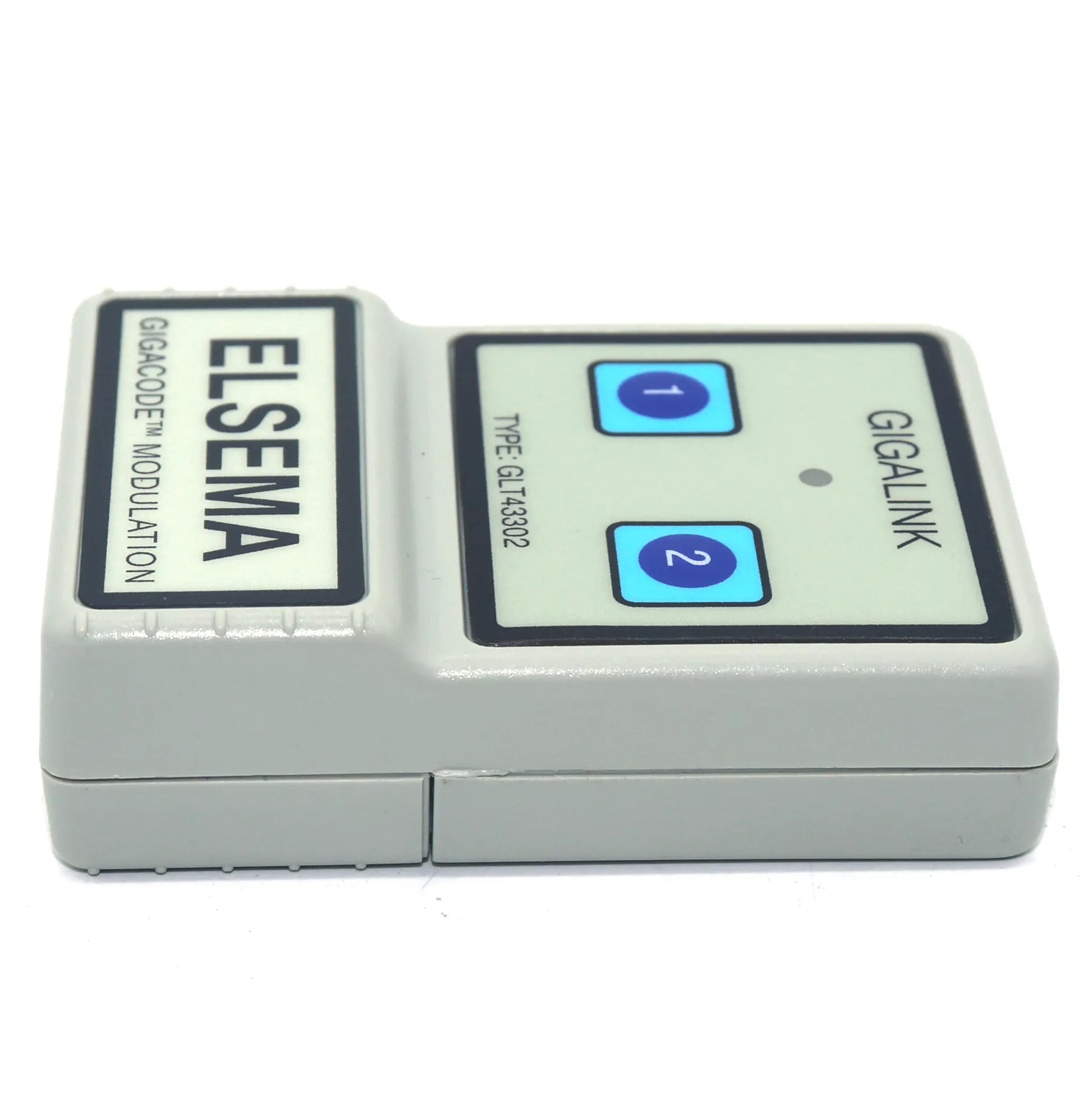

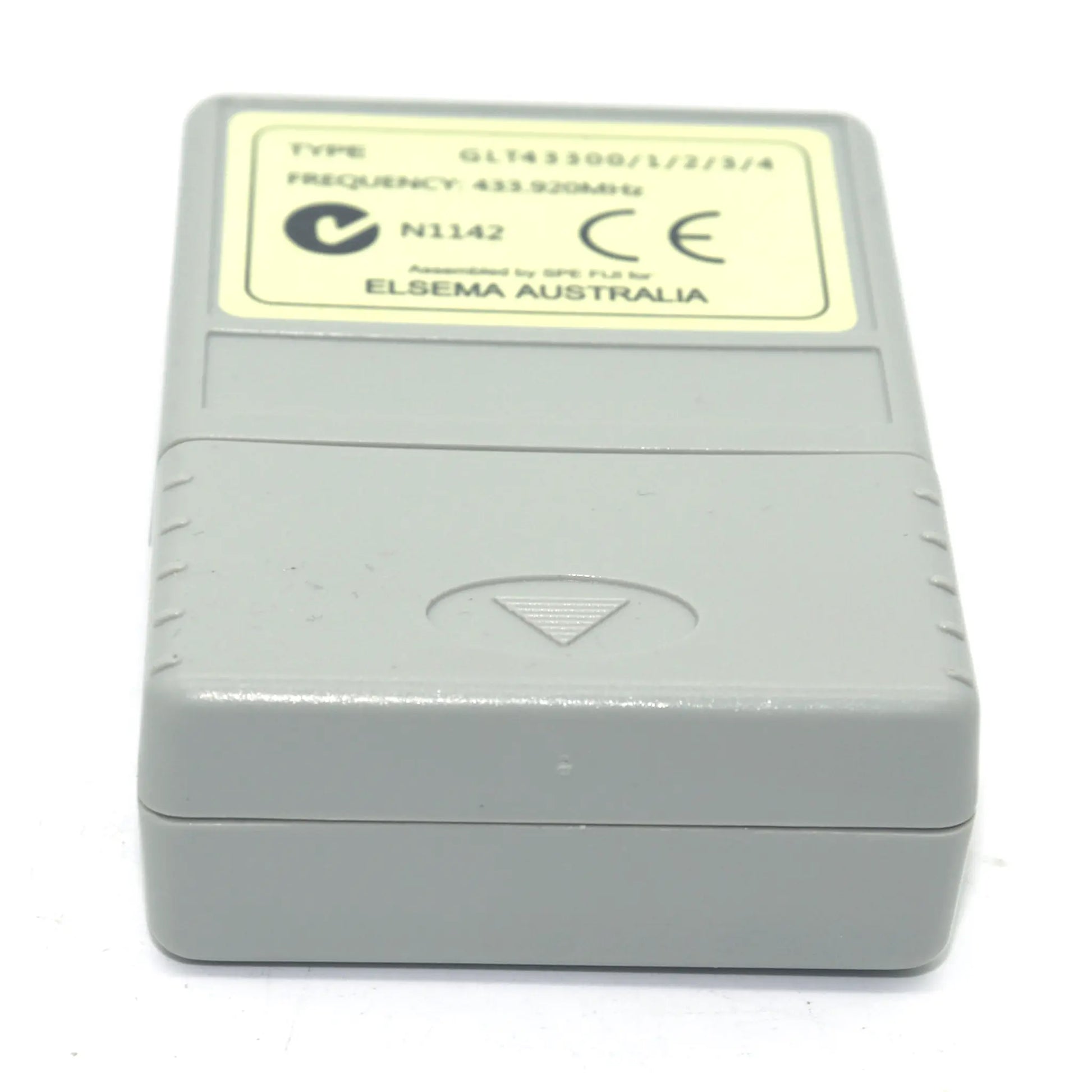

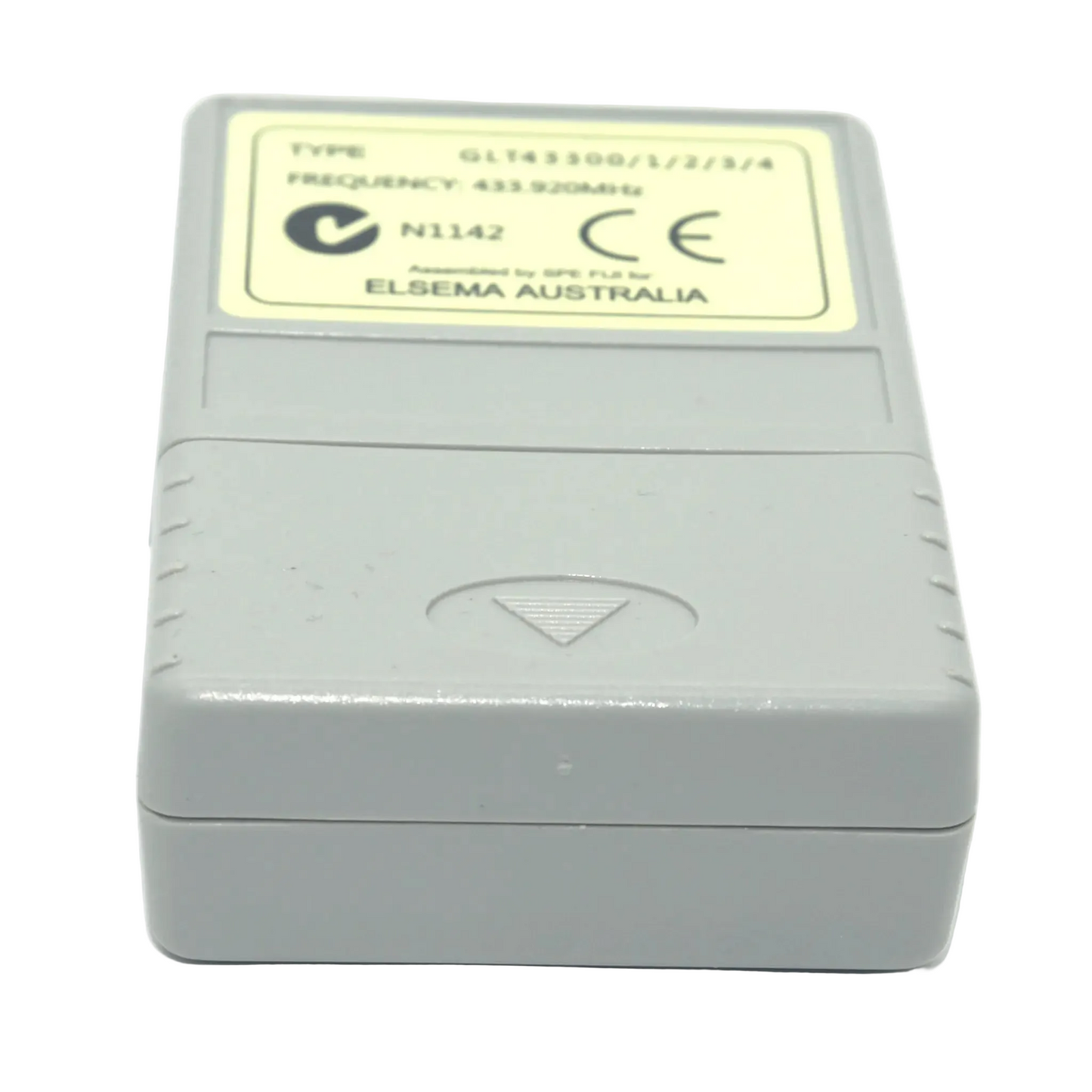

Elsema GLT43302 2-Button Gigalink Remote

The Elsema GLT43302 is a genuine 2button, 433.920MHz Gigalink transmitter designed to control two separate receiver channels or functions. It is commonly used for automatic gates, boom gates, industrial doors, alarms, pumps, lighting and other commercial or agricultural control systems.

Each button can be individually programmed to a compatible Elsema GLR433 Gigalink receiver, allowing one remote to operate two different devices or functions. The transmitter uses encrypted coding with approximately 4.3 billion code combinations and can provide an operating range of up to 350 metres when used with a suitable receiver and antenna.

What’s Included:

2-Button Elsema Gigalink Remote
1 x 9V Battery

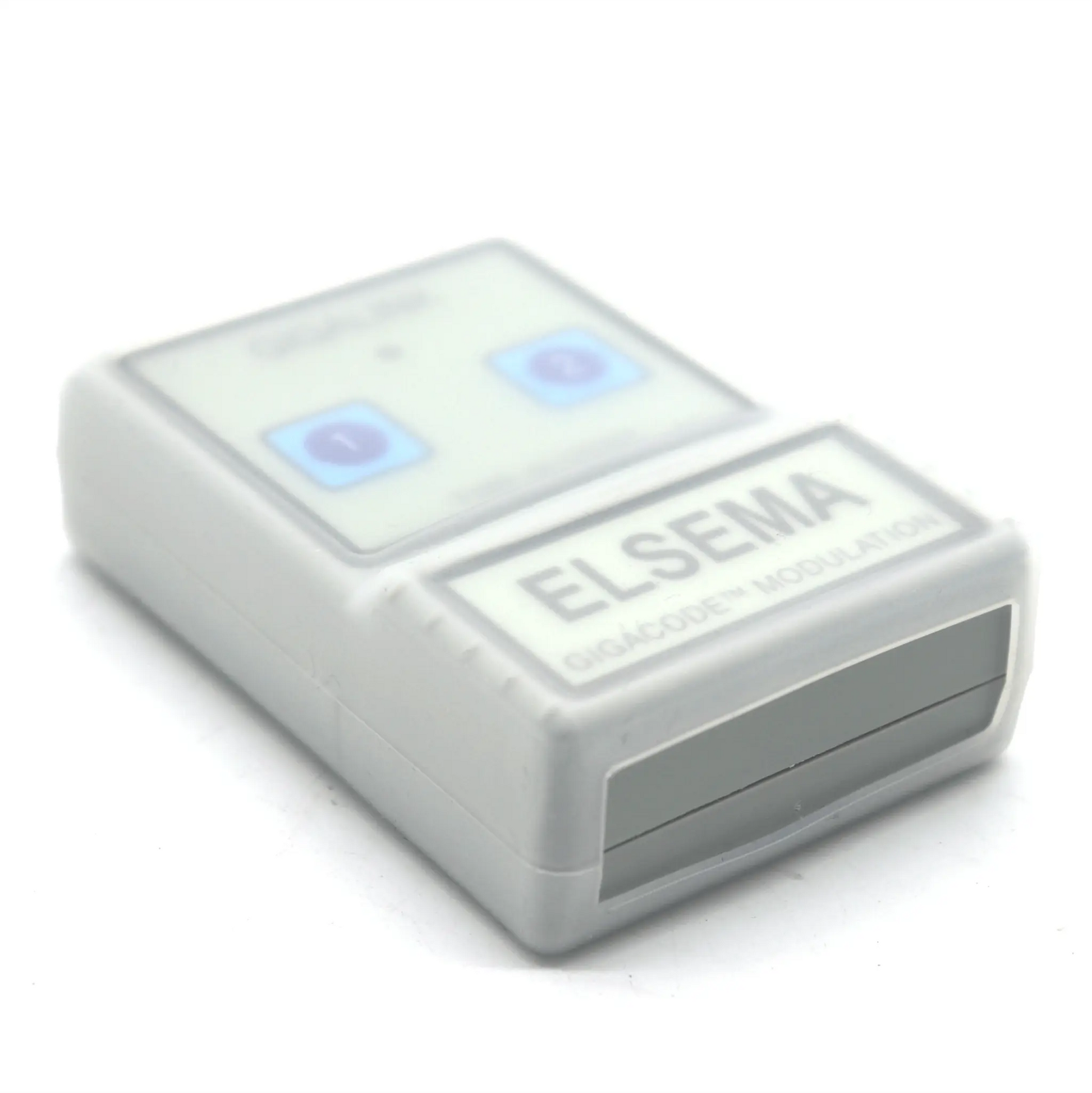

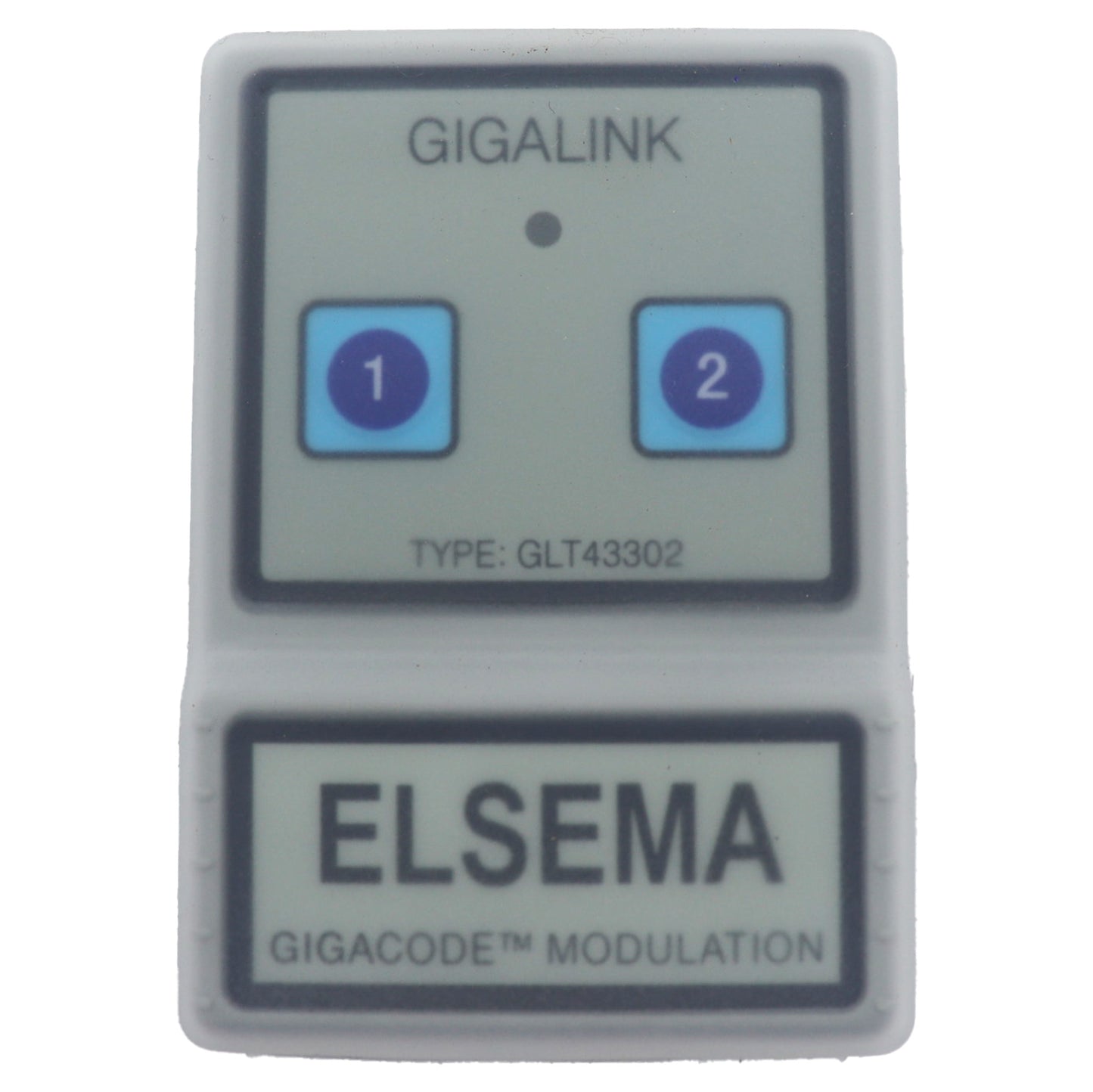

1 x Silicone Protective Case
Programming Instructions

Every Elsema Gigalink remote purchased from Retro Remotes includes a battery and genuine Elsema silicone protective case at no extra charge, so it's ready to use straight out of the box.

Key Features:

Two independently programmable buttons – Control two receiver channels, devices or functions.
Long operating range – Up to 350 metres with a suitable Gigalink receiver and antenna.
Encrypted coding – Approximately 4.3 billion possible code combinations.
433.920MHz Gigalink system – Compatible with Elsema GLR433-series receivers.
Low-battery warning – The red LED flashes during transmission when the battery is running low.
Flexible programming – Program individual buttons to separate compatible receivers.
Australian engineered – Genuine Elsema transmitter designed and engineered in Australia

Compatible with:

Ideal Applications:

Automatic gate and garage door access
Commercial and industrial doors
Alarm activation or panic functions
Lighting and pump control through a compatible receiver
Agricultural and industrial automation

Technical Specifications:

Power Supply	9V Battery
Current Consumption	Max 35mA at 8VDC (Only when transmitting)
Standby Current	10uA (Typical)
Battery Monitor	LED flashes at 1Hz, during transmission, when battery voltage is at 6.5V (flat 9V battery)
Operating Freq	433.92Mhz
Operating Temperature Range	-5 to 50°C
Code Combination	Approximately 4.3 billion
Dimensions	81 x 56 x 24mm
Weight	51g without battery
Useable operating range	Up to 350m; depending on receiver antenna and location
Warranty	12 Months Manufacturers Warranty

Programming Instructions:

Follow the below instructions to program additional remotes to an existing receiver. This will program each button to the allocated channel ie Channel 1 to Button 1, Channel 2 to Button 2.

If you have cleared the memory on the receiver or programming the first remote to the receiver follow steps found in the receiver manual.

Videos:

Is it compatible with Elsema Penta receivers?

No. Gigalink and Penta are different coding systems. For an Elsema Penta receiver, you will need a compatible PentaFOB or PentaCODE transmitter.

How many devices can this remote control?

The GLT43302 has two buttons and is intended to control either two programmed channels or 2 x single channels.

What is the operating range?

Elsema specifies up to 350 metres when used with a compatible Gigalink receiver and suitable antenna. Buildings, metal structures, electrical interference, receiver placement and antenna selection can reduce the practical range.
