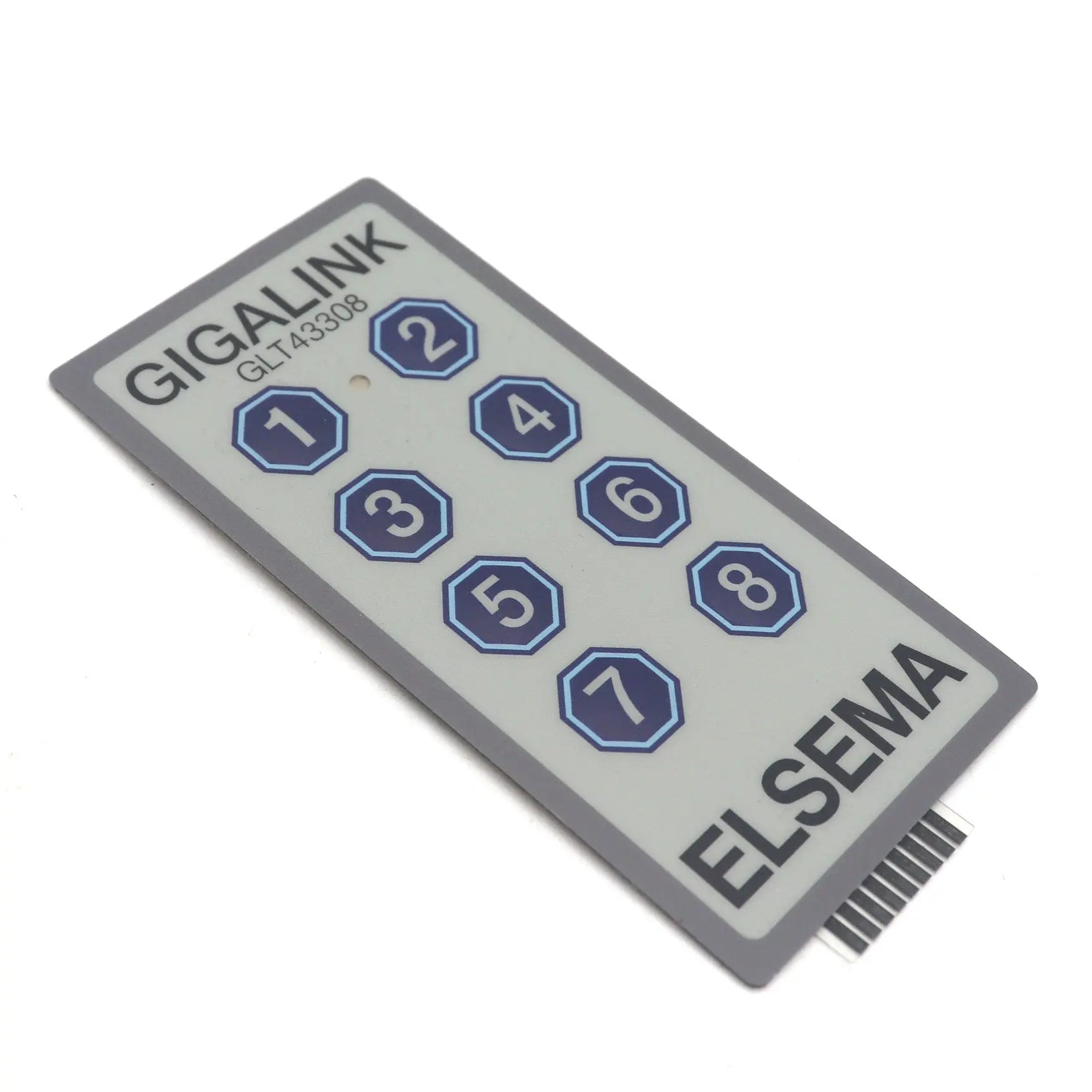

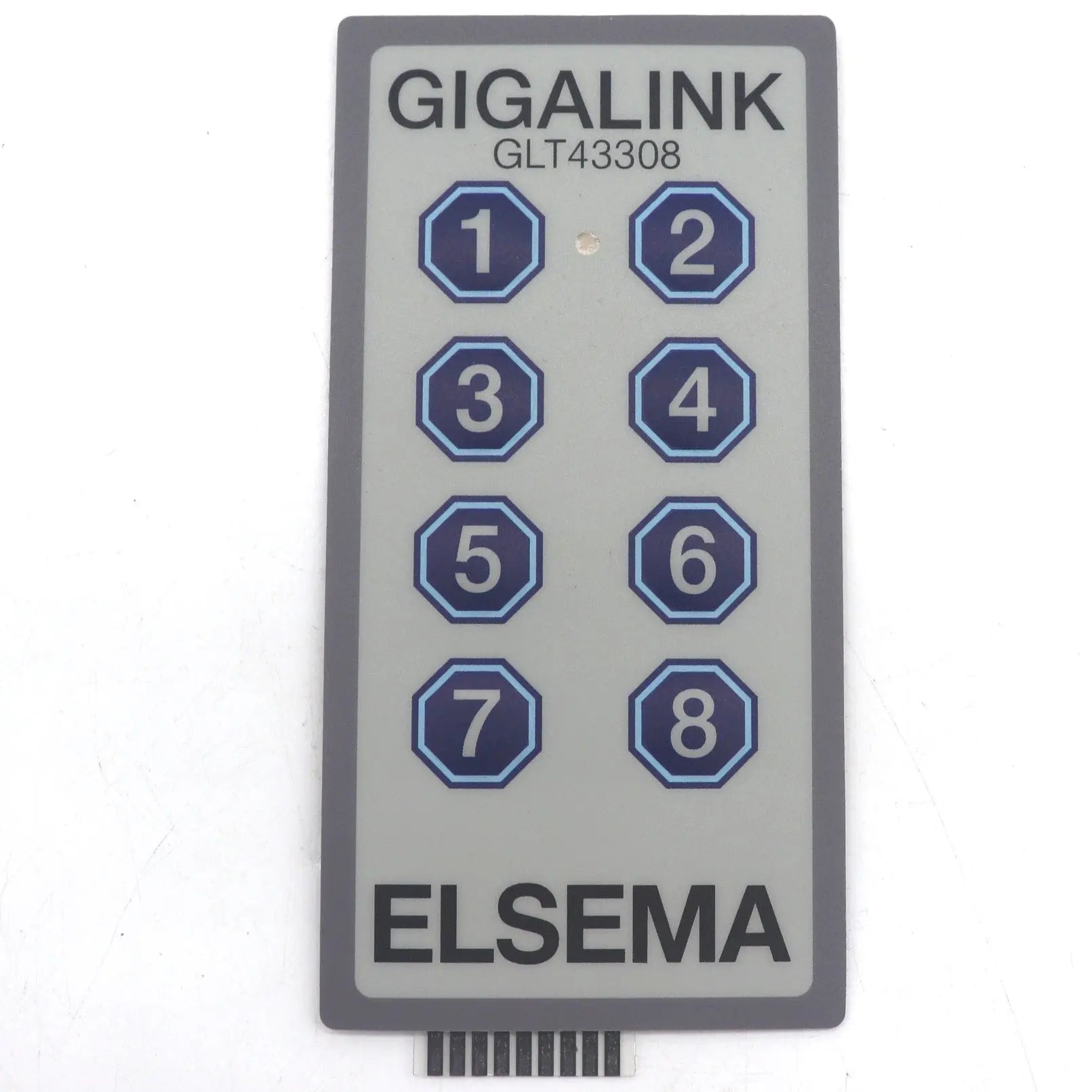

Elsema GLT43308NC 8 Channel Gigalink Transmitter Membrane
The Elsema GLT43308NC is an uncased 8-channel Gigalink transmitter designed for integration into custom control panels, machinery, consoles and specialised wireless-control applications.
Operating on 433.920MHz, the transmitter provides eight independently usable channels and is compatible with Elsema GLR433-series GigaLink receivers. Each channel can be programmed individually to different receivers, or all channels can be programmed to a compatible multi-channel receiver.

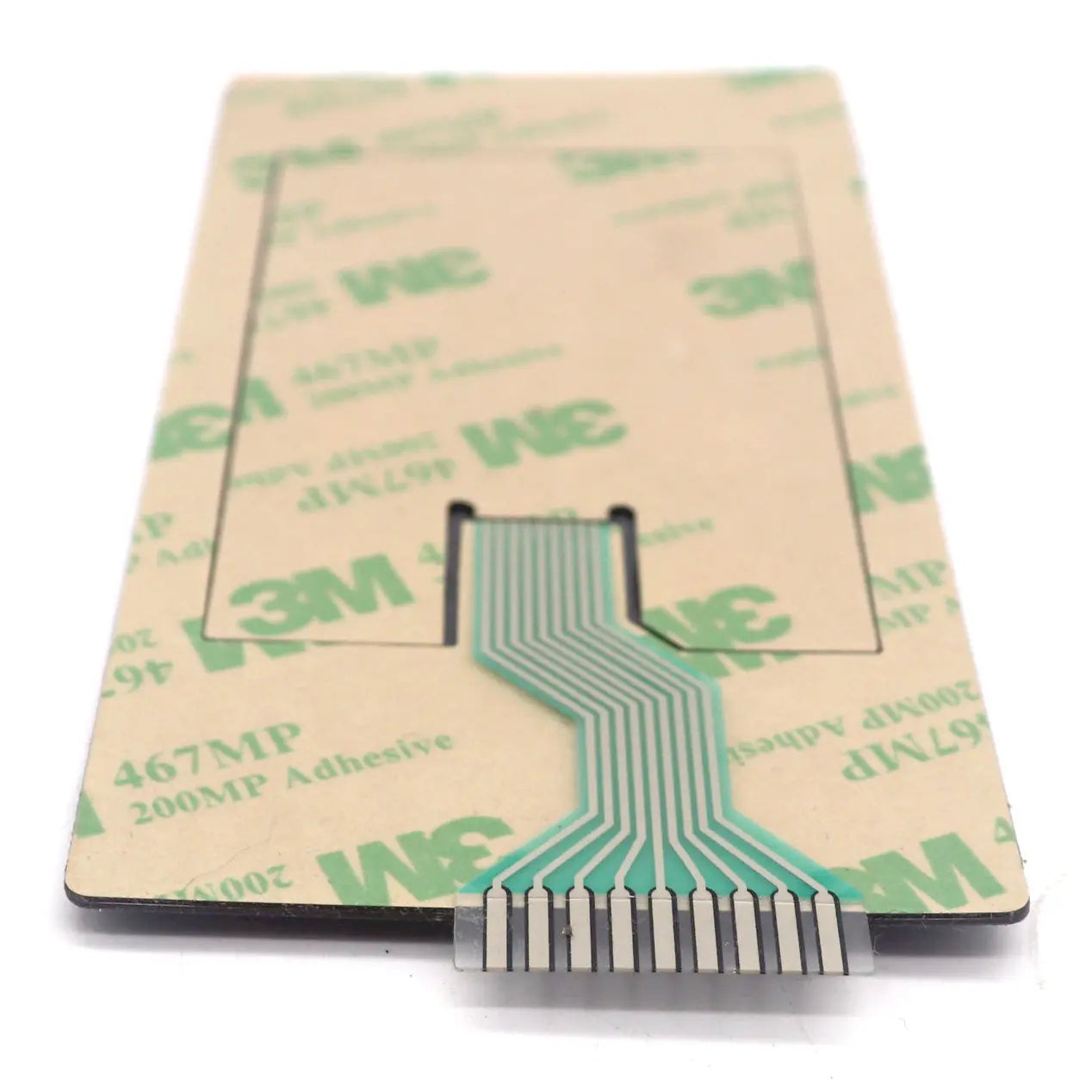

This is the internal transmitter module only. It is supplied without the standard handheld enclosure or battery, making it suitable for installers, manufacturers and technicians building the transmitter into another device or control system.
With a suitable Elsema GLR433 receiver and antenna installation, the GLT43308 series can achieve an operating range of up to 500 metres in open, line-of-sight conditions.
What’s Included:
- 8 Button Gigalink Transmitter Membrane
- Programming Instructions
Note: This listing does not include the remote enclosure, silicone case or battery.
Key Features:
- Eight-Button Transmitter – Controls up to 8 devices or functions simultaneously.
- Secure Rolling Code Technology – Over 4 billion code combinations prevent interference or duplication.
- Battery Monitor – Red LED indicator alerts when power is low.
- 433 MHz Frequency – Ensures strong and stable wireless communication.
- Long Range Operation – Up to 500 m with compatible receivers and antennas.
- Unlimited Programming – Pair an unlimited number of transmitters to one receiver.
- Durable and Modular Design – Suitable for integration or replacement use (no case or battery included).
Compatible with:
This remote is compatible with all Elsema Gigalink 433MHz Receivers such as:
Ideal Applications:
- Industrial machinery and process control
- Security system activation
- Gate and garage door automation
- Panic or emergency buttons
- Remote lighting and equipment switching
Technical Specifications:
| Power Supply | N/A |
| Current Consumption | Max 35mA at 8VDC (Only when transmitting) |
| Standby Current | 10uA (Typical) |
| Battery Monitor | LED flashes at 1Hz, during transmission, when battery voltage is at 6.5V (flat 9V battery) |
| Operating Frequency | 433.920MHz |
| Operating Temperature Range | -5 to 50°C |
| Code Combination | Approximately 4.3 billion |
| Dimensions | 130 x 67 x 27mm |
| Useable operating range | Up to 500m; depending on receiver antenna and location |
| Warranty | 12 months manufacturers warranty |
Downloads:
Frequently Asked Questions:
Is the GLT43308NC a complete handheld remote?
No. It is the uncased internal transmitter module only. It does not include the standard GLT43308 handheld enclosure or a battery.
What is the GLT43308NC used for?
It is designed for custom integration into machinery, control panels, operator consoles and OEM wireless-control equipment. It can also replace an existing GLT43308NC module in a compatible installation.
Can it control eight different functions?
Yes. The transmitter provides eight channels. Each channel may be programmed individually to a compatible receiver, or the channels can be paired with an Elsema multi-channel GigaLink receiver.
Which receivers are compatible?
The GLT43308NC works with compatible Elsema GLR433-series Gigalink receivers. It will not automatically work with other 433MHz receivers.
