Elsema 151Mhz FMT15108E Transmitter
Elsema 151Mhz FMT15108E Transmitter
This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.
Couldn't load pickup availability

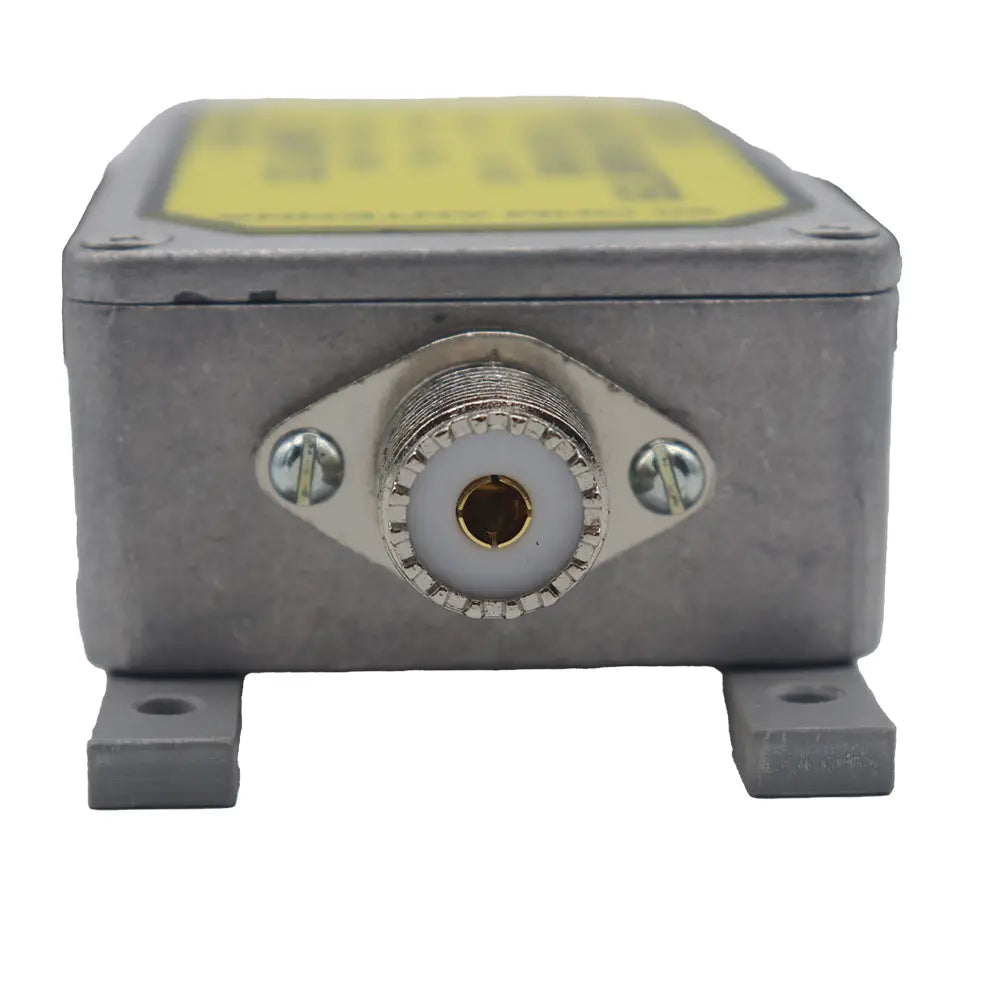

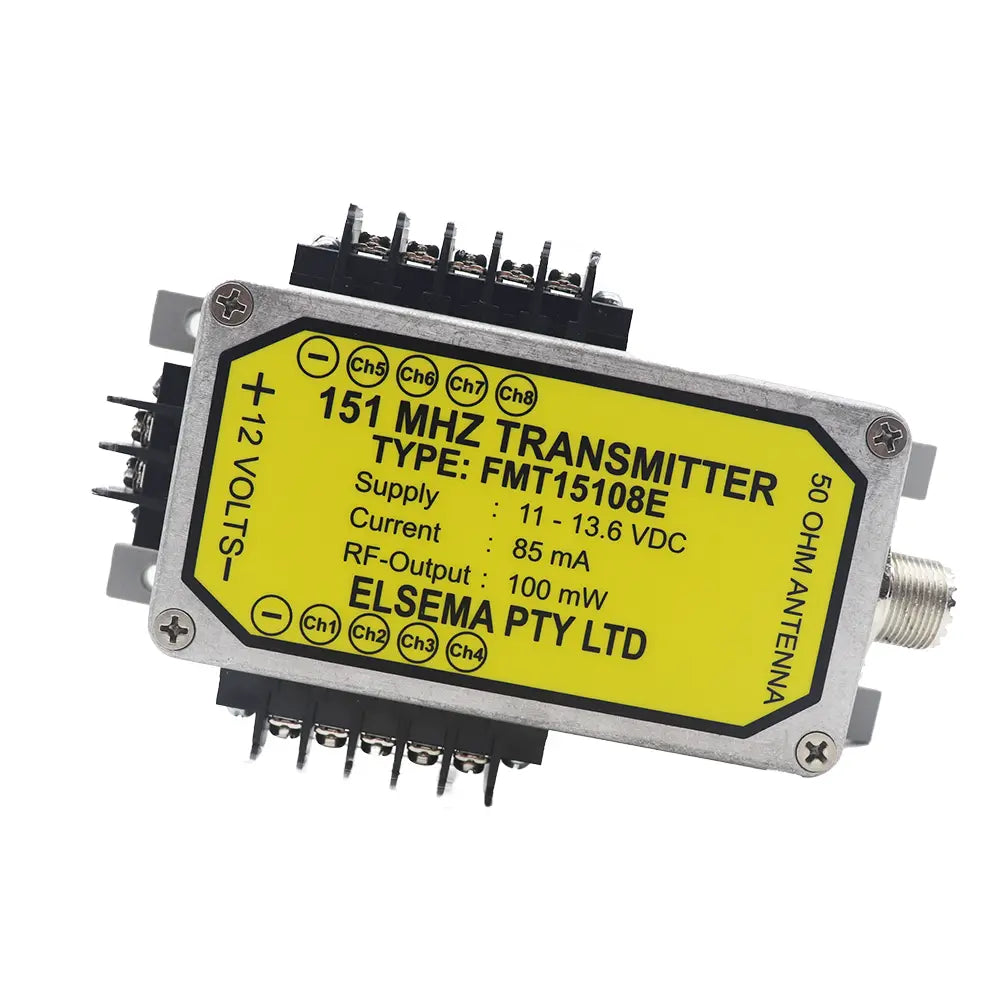

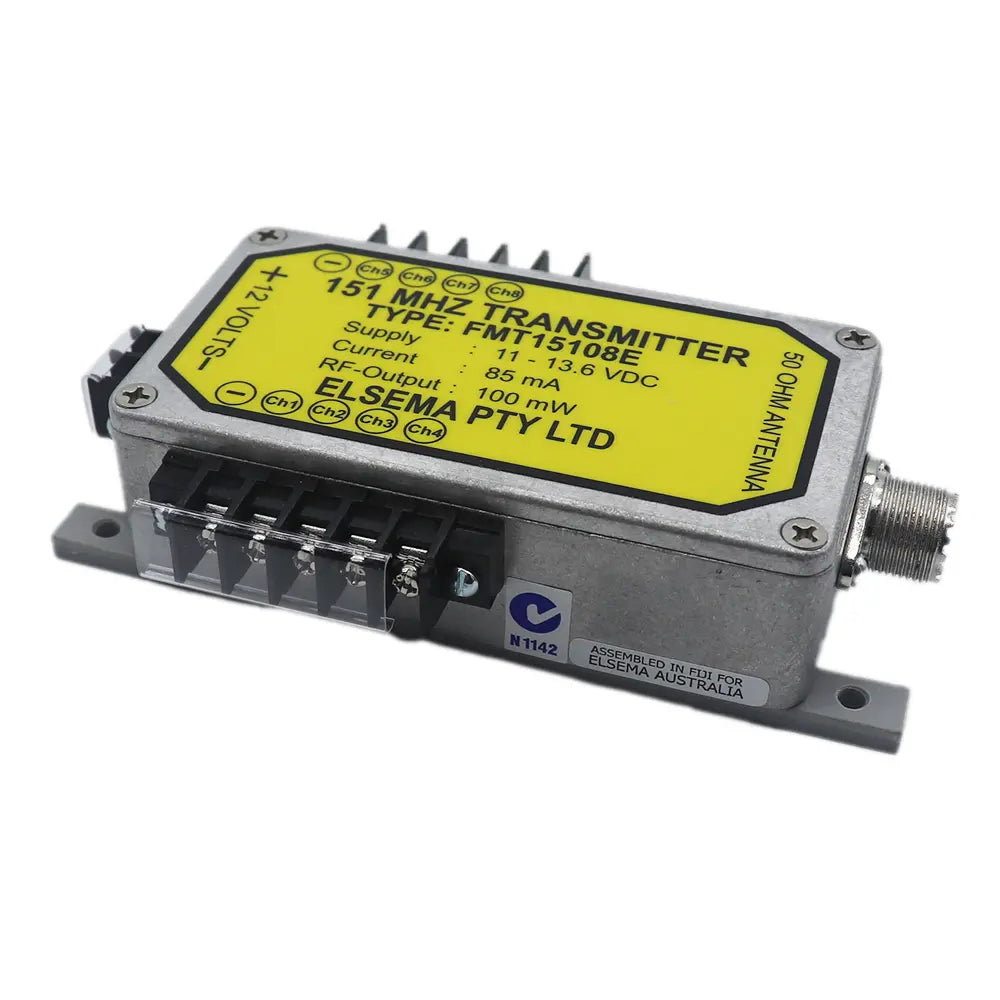

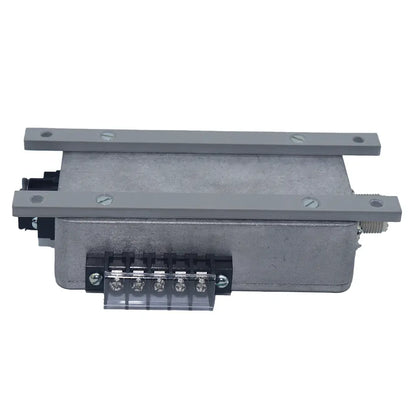

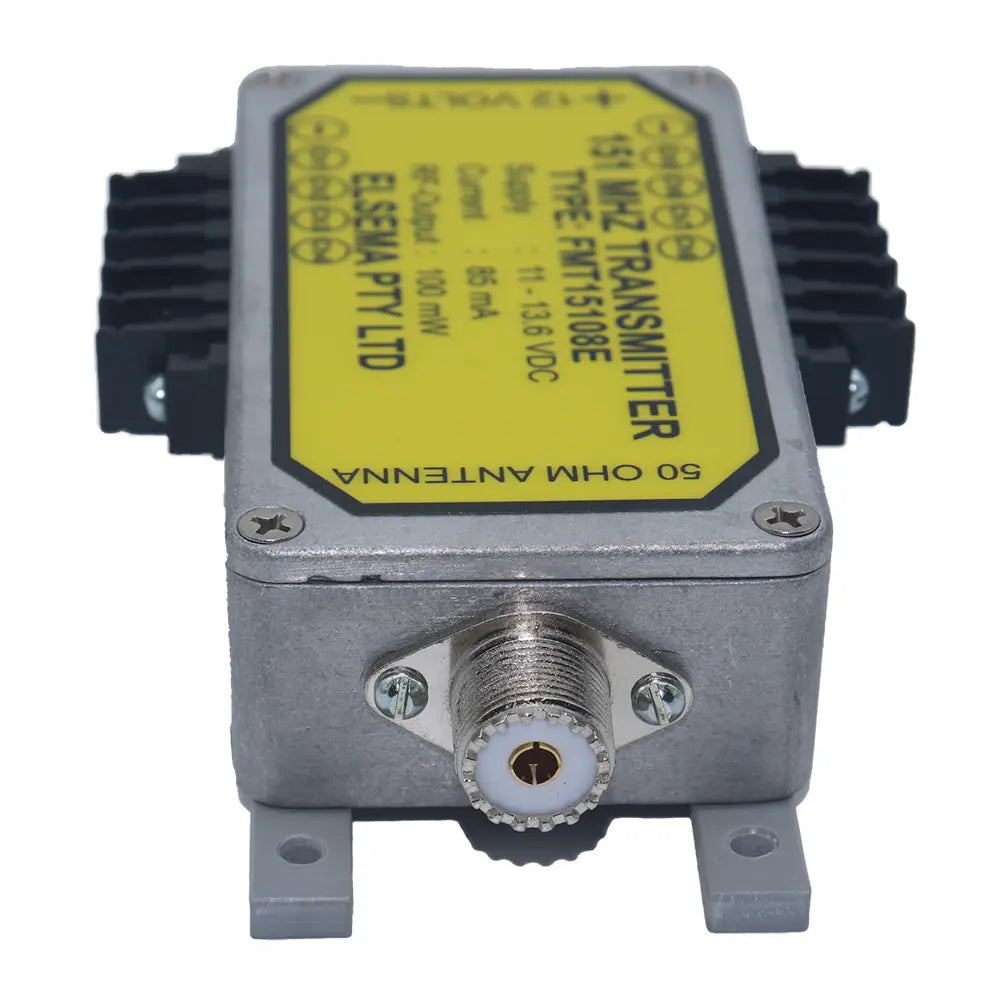

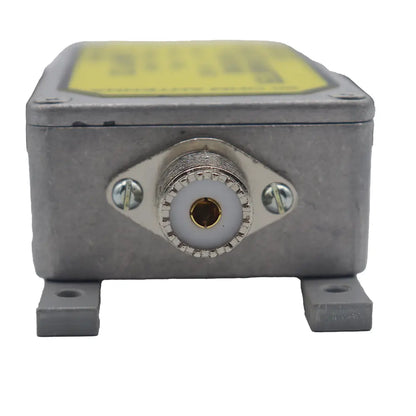

FMT15108E 151Mhz Long Range 8 Channel Transmitter

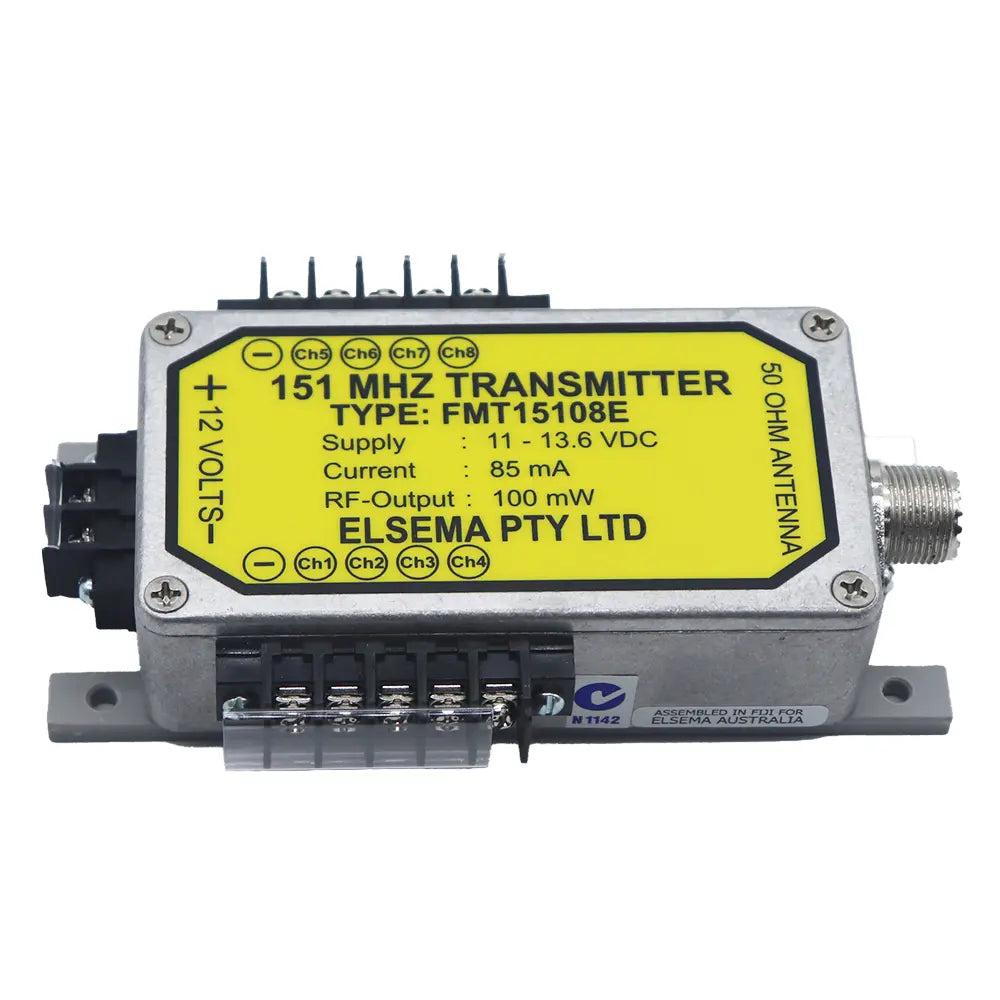

The genuine Elsema FMT15108E is a fixed location, eight channel 151MHz transmitter designed for long-distance wireless control across agricultural, industrial, mining and commercial sites.

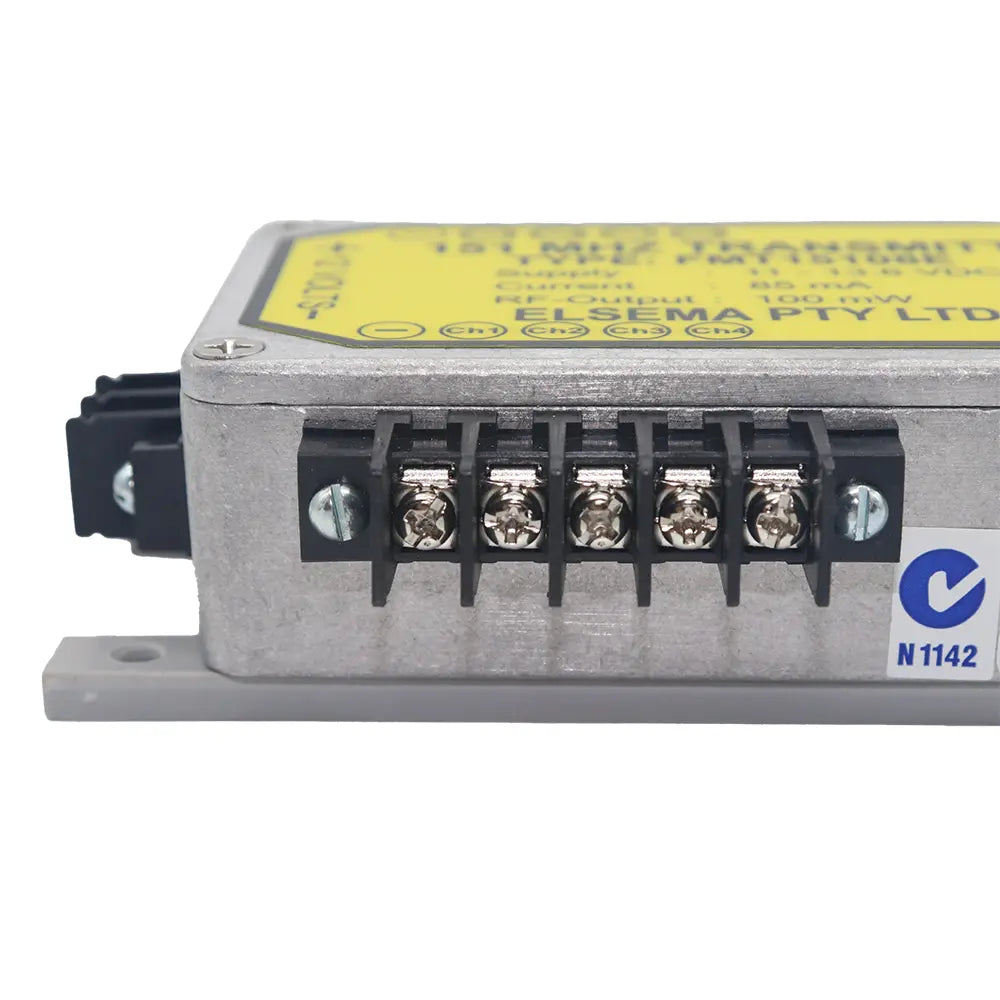

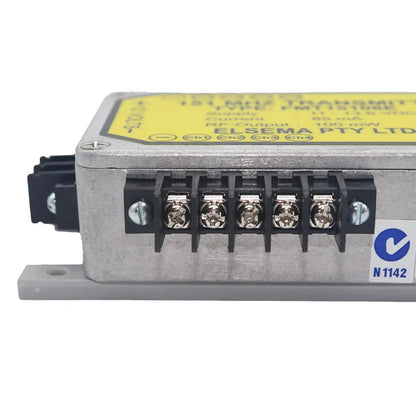

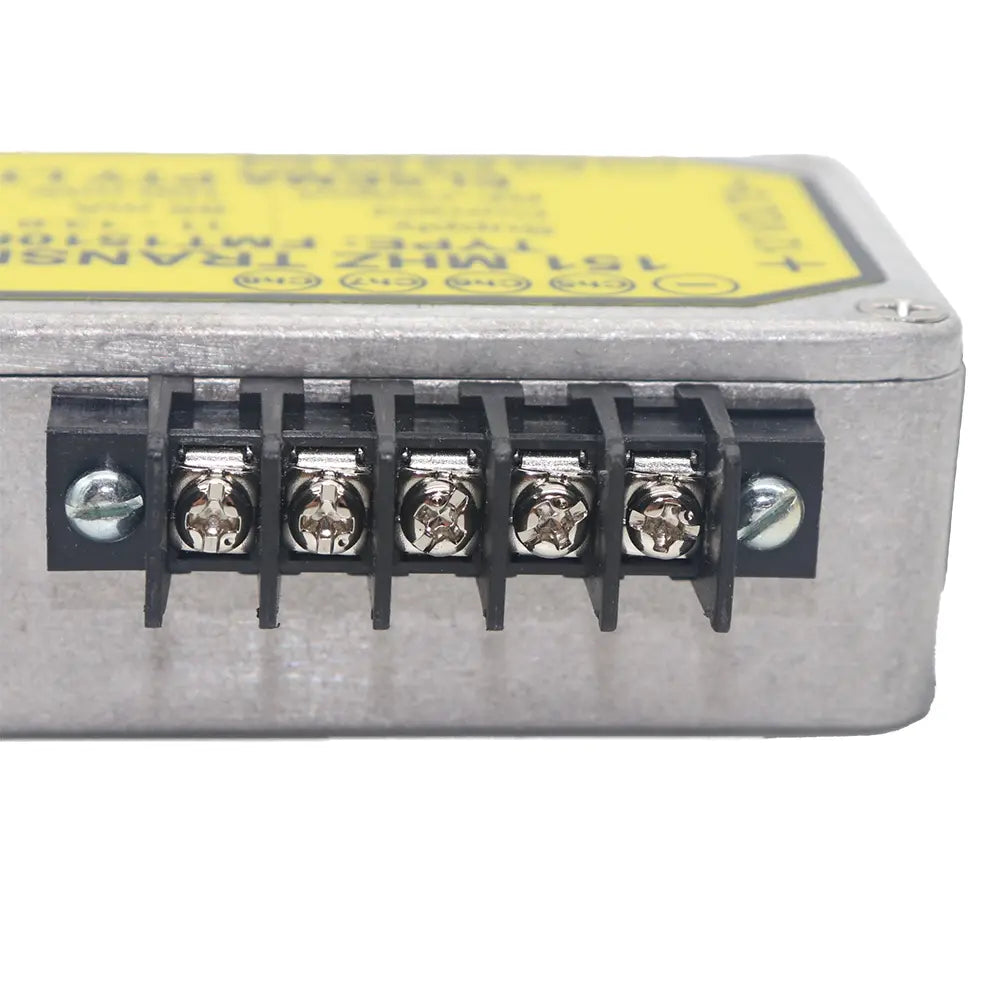

Each of its eight independent inputs can be connected to a normally open, voltage-free contact such as a push button, relay, reed switch or toggle switch. This allows one transmitter to remotely control up to eight separate functions, including pumps, alarms, floodlights, gates, machinery and monitoring equipment.
When installed with the appropriate antenna, the FMT15108E can provide an operating range of up to 5km line-of-sight. Multiple channels can be transmitted simultaneously, making it suitable for applications where several devices or functions may need to operate at the same time.
The transmitter operates from a 12V DC power supply and uses a 12-way DIP switch coding system for straightforward integration with compatible Elsema FMR151 series receivers.
What’s Included:
- 1 x Genuine Elsema FMT15108E Transmitter
- Installation Instructions
Note: This product is for the Australian market. A modified frequency is required for New Zealand, US and Canadian Market (please contact us for more information). This item is not available for sale in other countries due to frequency regulations.
Key Features:
- Eight Independent Channels – Control up to eight separate devices or functions
- Long-Range Transmission – Up to 5,000 metres line-of-sight with a suitable installation and antenna
- Simultaneous Channel Operation – Transmit multiple channel commands at the same time
- Flexible NO Inputs – Connect push buttons, relays, reed switches, toggle switches and other voltage-free contacts
- 151MHz Industrial Performance – Designed for reliable operation in electrically noisy environments
- Selectable Transmission Modes – Continuous, one-burst and off-delay options
- Simple DIP Switch Coding – Match the 12-way code between the transmitter and receiver
- FMR151 Receiver Compatibility – Suitable for compatible single-channel and multi-channel receivers
- 12V DC Operation – Designed for fixed-location automation installations
- Australian Elsema Product – Designed and engineered for demanding long-range applications
Compatible with:
Ideal Applications:
- Remote pump and irrigation control
- Tank and water-level monitoring
- Agricultural and rural automation
- Mining and industrial equipment
- Grain silos and large storage facilities
- Remote floodlight activation
- Alarm and panic-button systems
- Long-distance gate or access control
- Telemetry and solar-powered installations
Dimensions:
Connection Diagram:
Technical Specifications:
| Power Supply | 12VDC. Absolute maximum 14VDC. |
| Current Consumption | Nominal 85mA at 12VDC supply (Transmitting) Nominal 12mA on standby (10uA on sleep mode, all inputs off) |
| Operating Frequency | 151.6MHz (8 selectable frequencies. See table above) |
| Operating Temperature | 0 - 50°C |
| Digital Coding System | On-board 12-way Code Switch |
| Antenna | Elsema ANT151M Antenna |
| Dimension | 140 X 60 X 34 mm (Enclosed).
90 X 56 X 15 mm (PCB Assembly) |
| Useable Operating Range | Up to 5000 meters, depending on installation and type of antenna used. Recommended Antenna is Elsema ANT151M |
| Warranty | 12 months Manufacturers Warranty |
Downloads:
Frequently Asked Questions
What is the Elsema FMT15108E used for?
The FMT15108E provides long-range wireless control of up to eight separate functions. Common applications include pumps, floodlights, alarms, gates, machinery, water-level systems and industrial automation equipment.
How far can the FMT15108E transmit?
The transmitter can achieve a range of up to 5,000 metres under suitable line-of-sight conditions. Actual range depends on the antenna, mounting position, terrain, surrounding structures and installation environment.
Can the FMT15108E control eight different devices?
Yes. It has eight independent normally open inputs, allowing up to eight separate functions or receiver channels to be controlled.
Can multiple channels transmit simultaneously?
Yes. The FMT15108E can transmit multiple channels simultaneously, allowing more than one connected function to be activated at the same time.
What can be connected to its inputs?
The inputs accept normally open, voltage-free contacts. These can include push buttons, toggle switches, reed switches and relay outputs from other control equipment.
Which receivers work with the FMT15108E?
The transmitter is designed for compatible Elsema FMR151 series receivers, including single-channel and multi-channel models. The transmitter and receiver must be set to matching frequencies and 12-way DIP switch codes.

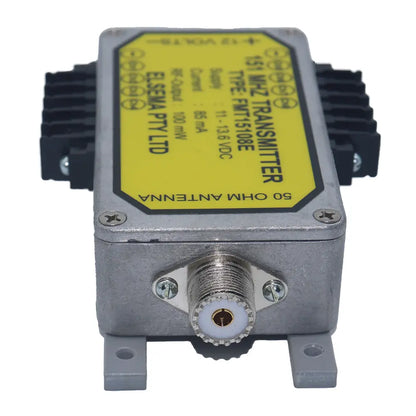

Does the transmitter include an antenna?
No. The external antenna is sold separately. Elsema recommends the ANT151M for suitable long-range installations.
Does it operate from a battery?
No. The FMT15108E is a fixed-location transmitter requiring a 12V DC power supply. It is not a handheld battery-operated remote.
Can it be used outside Australia?
The standard FMT15108E operates on 151MHz for Australia. New Zealand uses a different-frequency version, as do the United States and Canada. Frequency regulations should be checked before ordering for overseas use.
