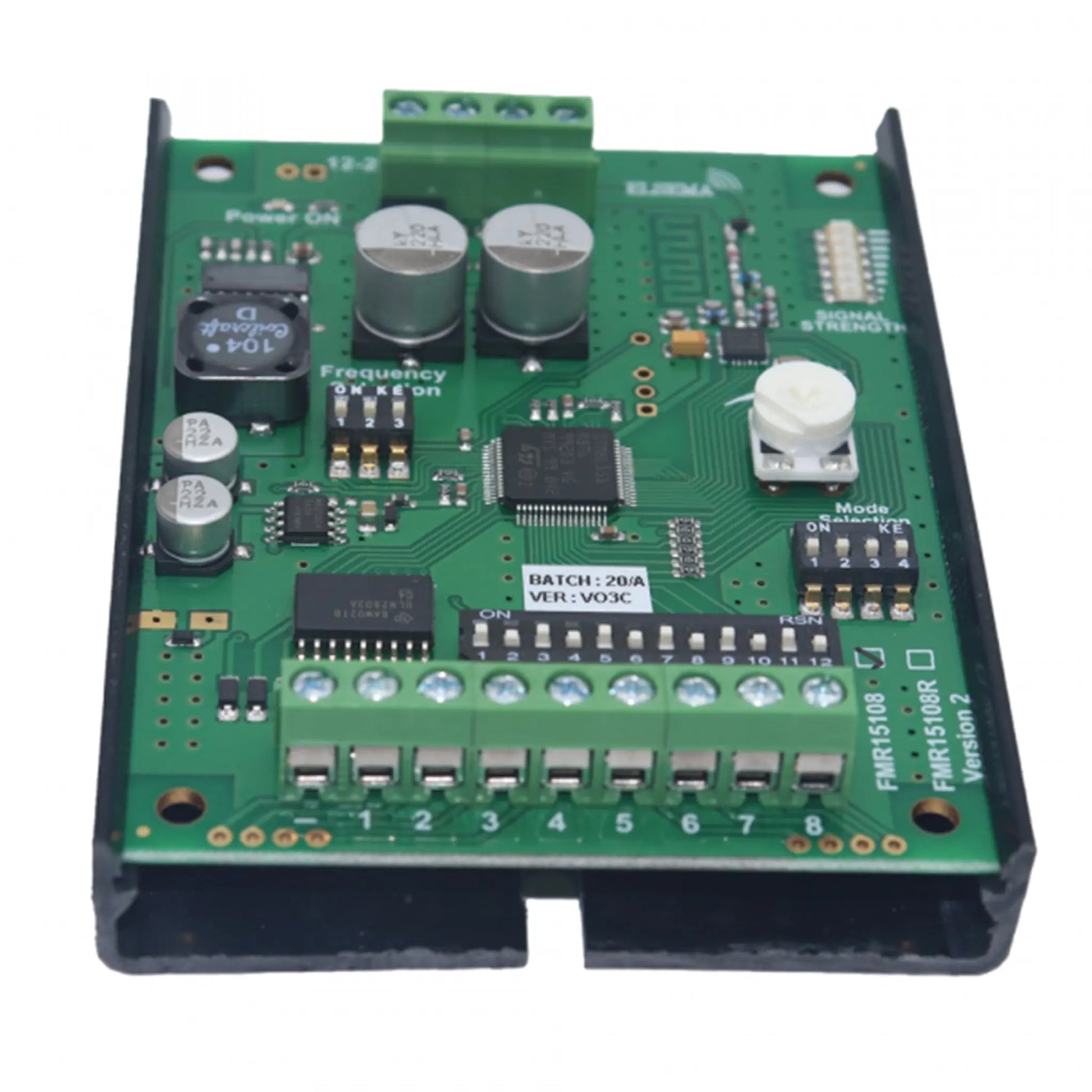

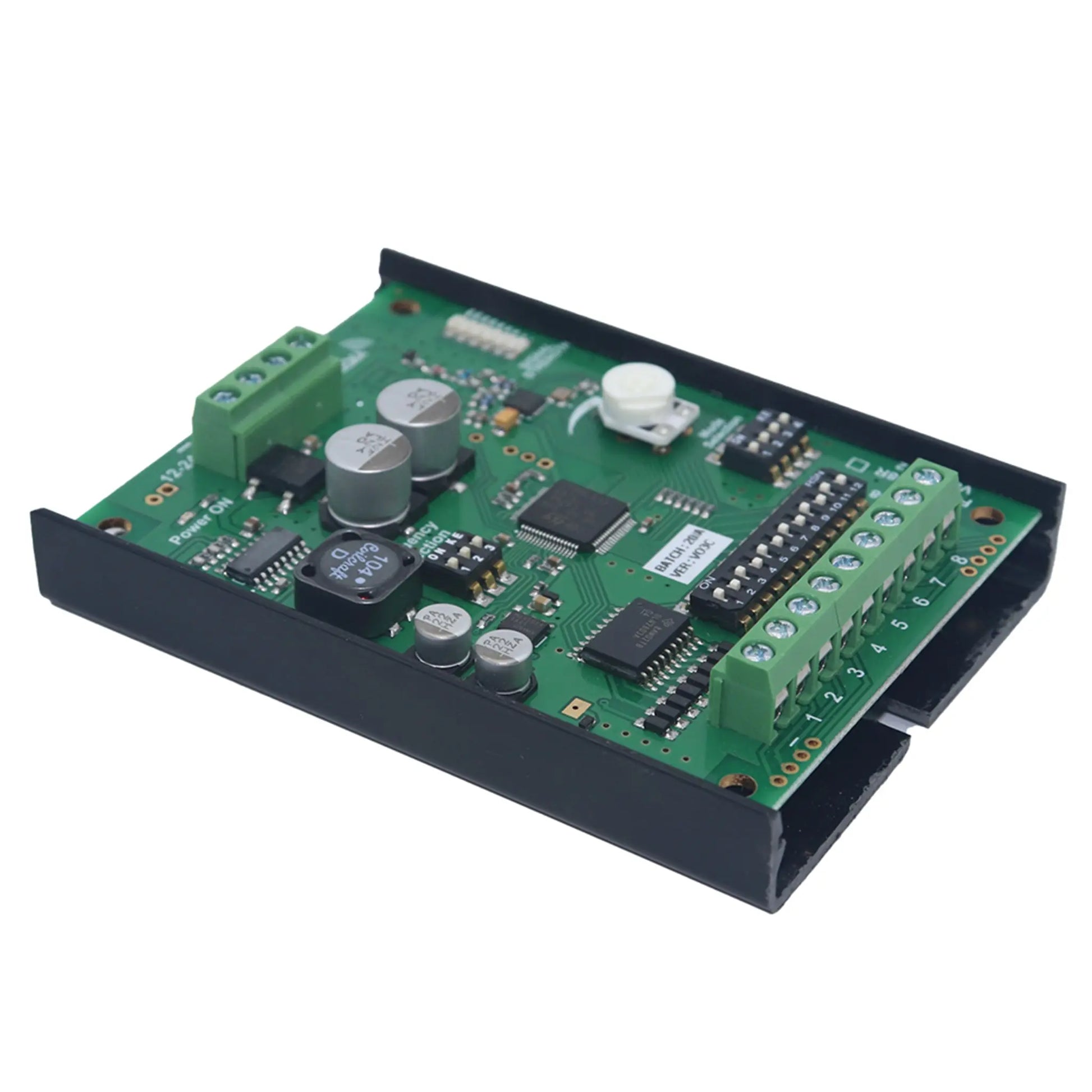

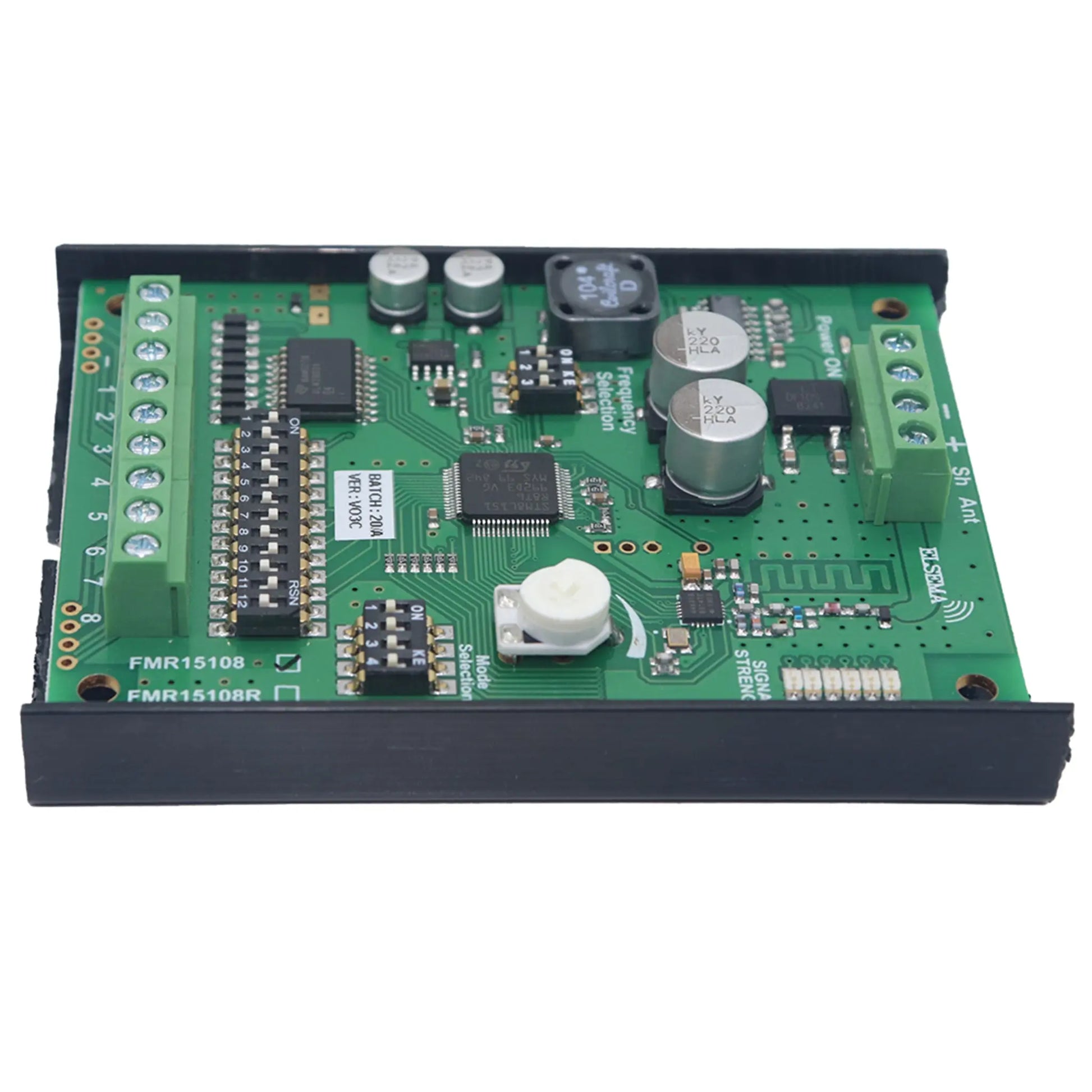

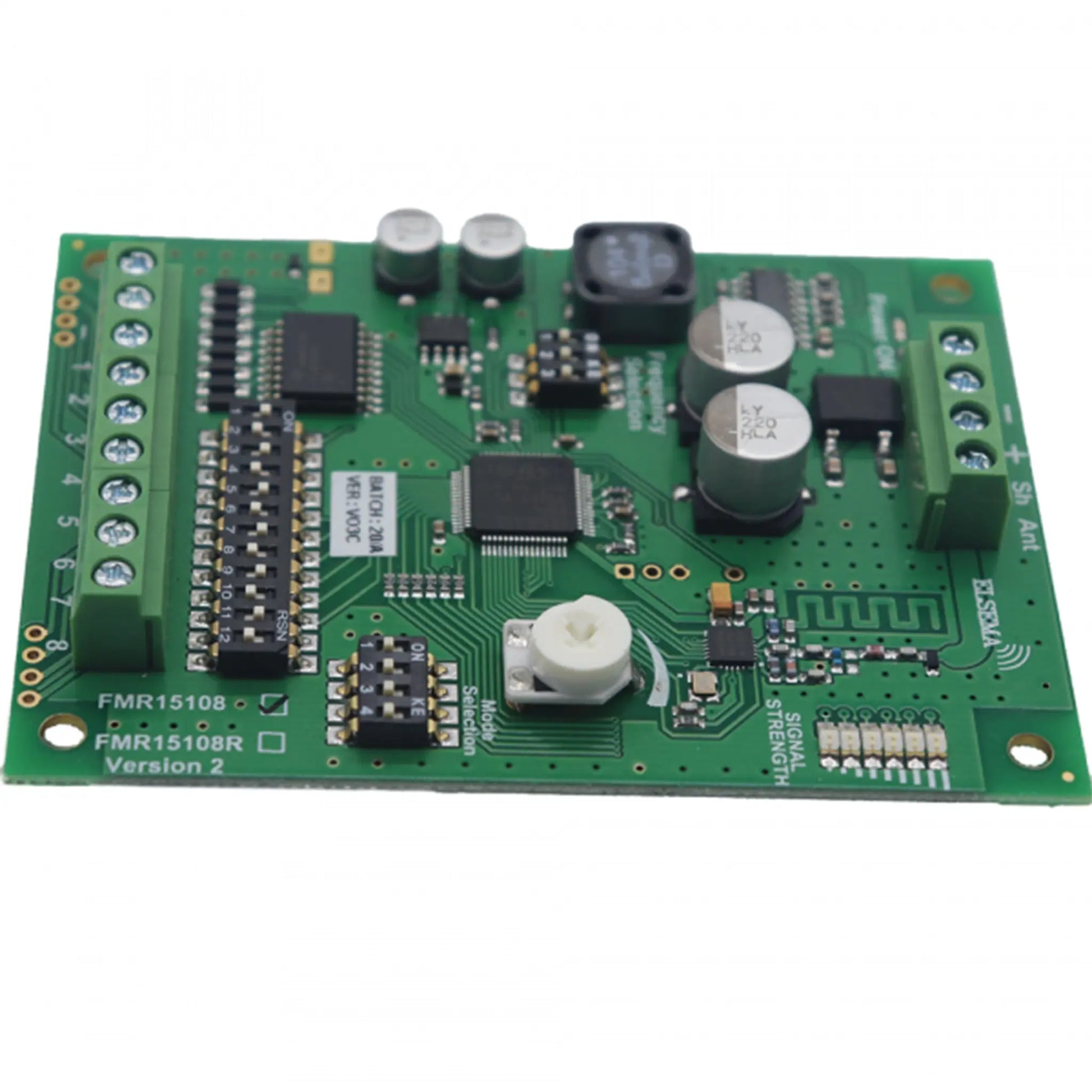

Elsema FMR15108 8-Channel 151MHz Receiver
The Elsema FMR15108 is an eight channel, long range receiver designed for industrial, agricultural and remote automation applications. It provides eight open-collector outputs and operates with compatible Elsema FMT151-series transmitters.
When used with a suitable fixed transmitter and correctly installed 151MHz antennas, the system can achieve a line-of-sight operating range of up to 5km. Range depends on the transmitter, antenna selection, installation height, surrounding terrain and environmental conditions. When paired with an FMT151 handheld remote, the maximum stated range is up to 800 metres.
What’s Included:
- 1 × Brand New Genuine FMR15108 Receiver

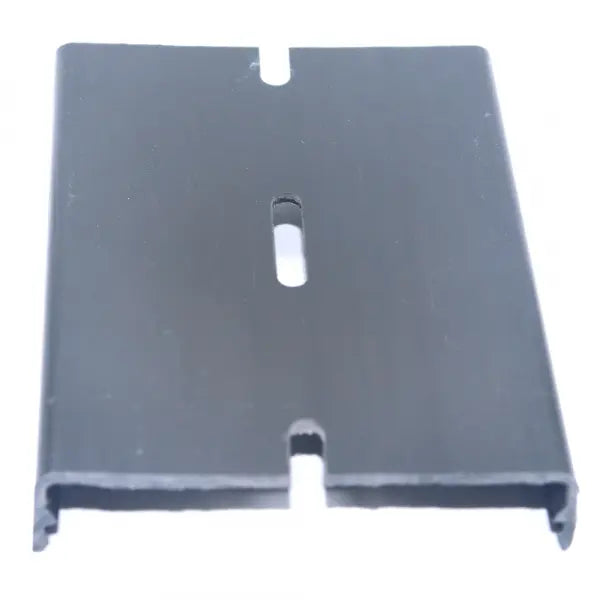

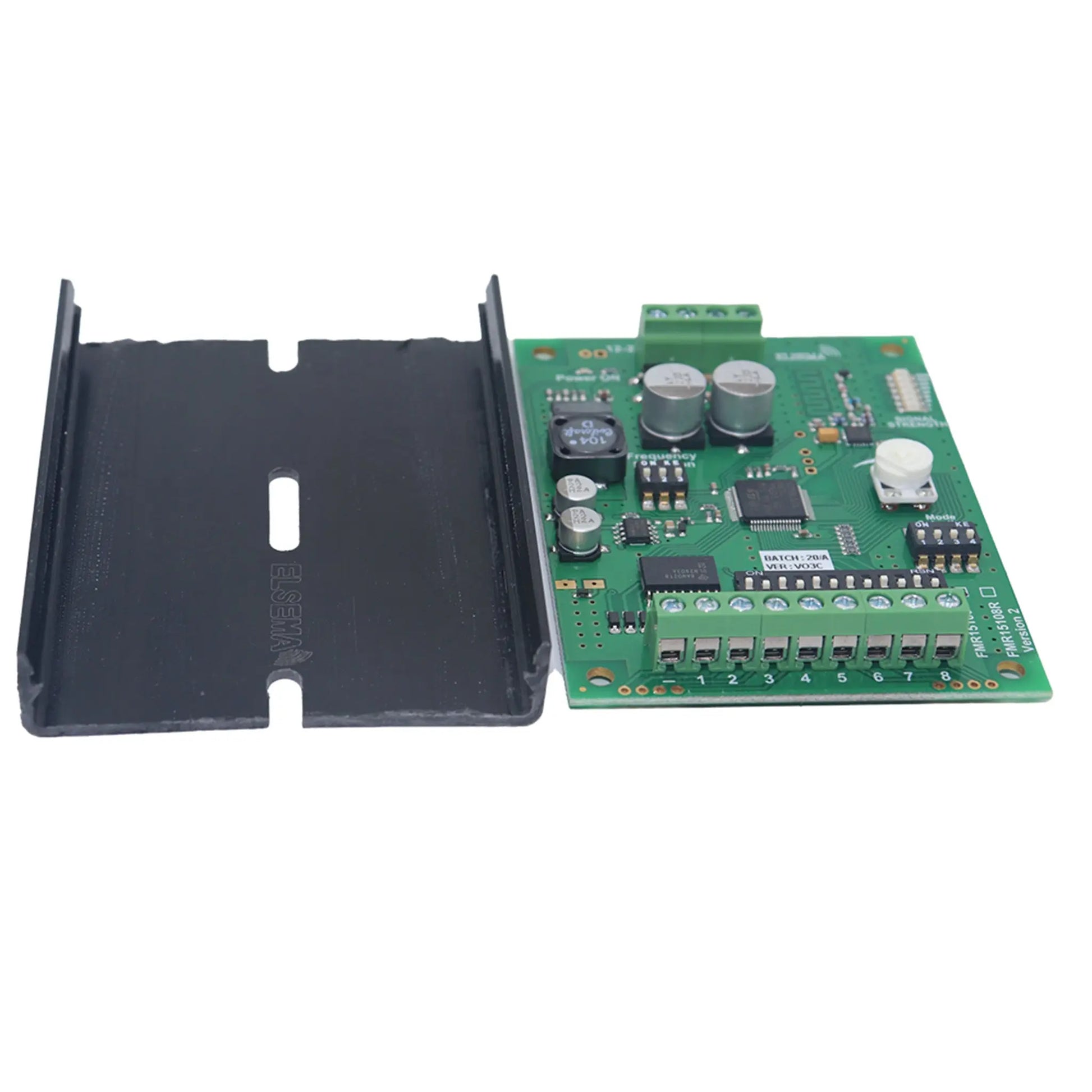

- Quick Mount
- Step-by-step Wiring Programming Instructions
Note: This product is for the Australian market. A modified frequency is required for New Zealand, US and Canadian Market (please contact us for more information). This item is not available for sale in other countries due to frequency regulations.
Key Features:
- Eight independent channels – Eight open-collector outputs for integration with compatible equipment
- Long-range operation – Up to 5km line of sight with a suitable fixed FMT151 transmitter and antenna system
- Selectable output modes – Momentary, latching, security latching, instant-off and adjustable delayed-off options
- Eight selectable frequencies – Helps avoid local noise and interference within the Australian 151MHz range

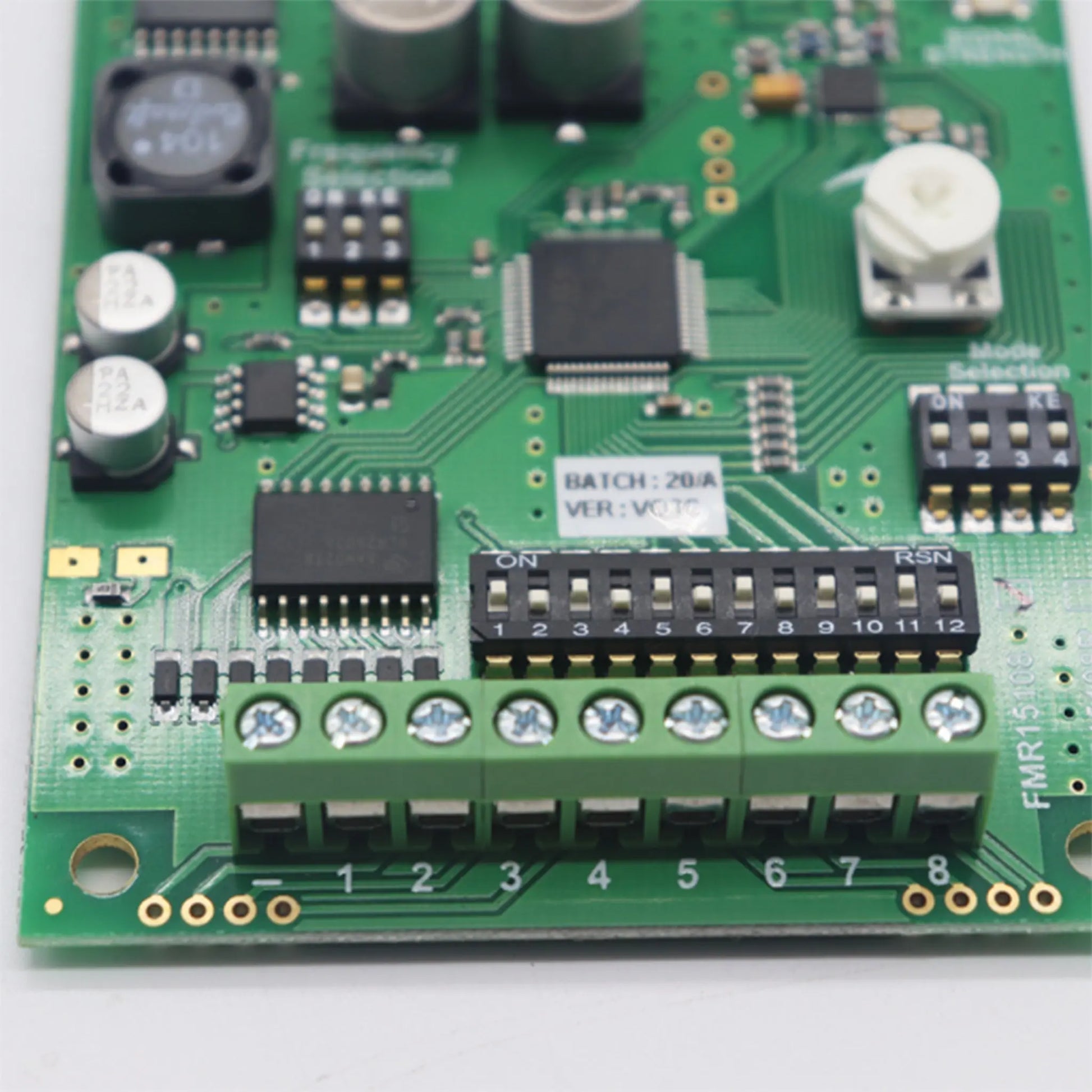

- Dipswitch coding – Match the receiver’s 12-way code with compatible FMT151 transmitters

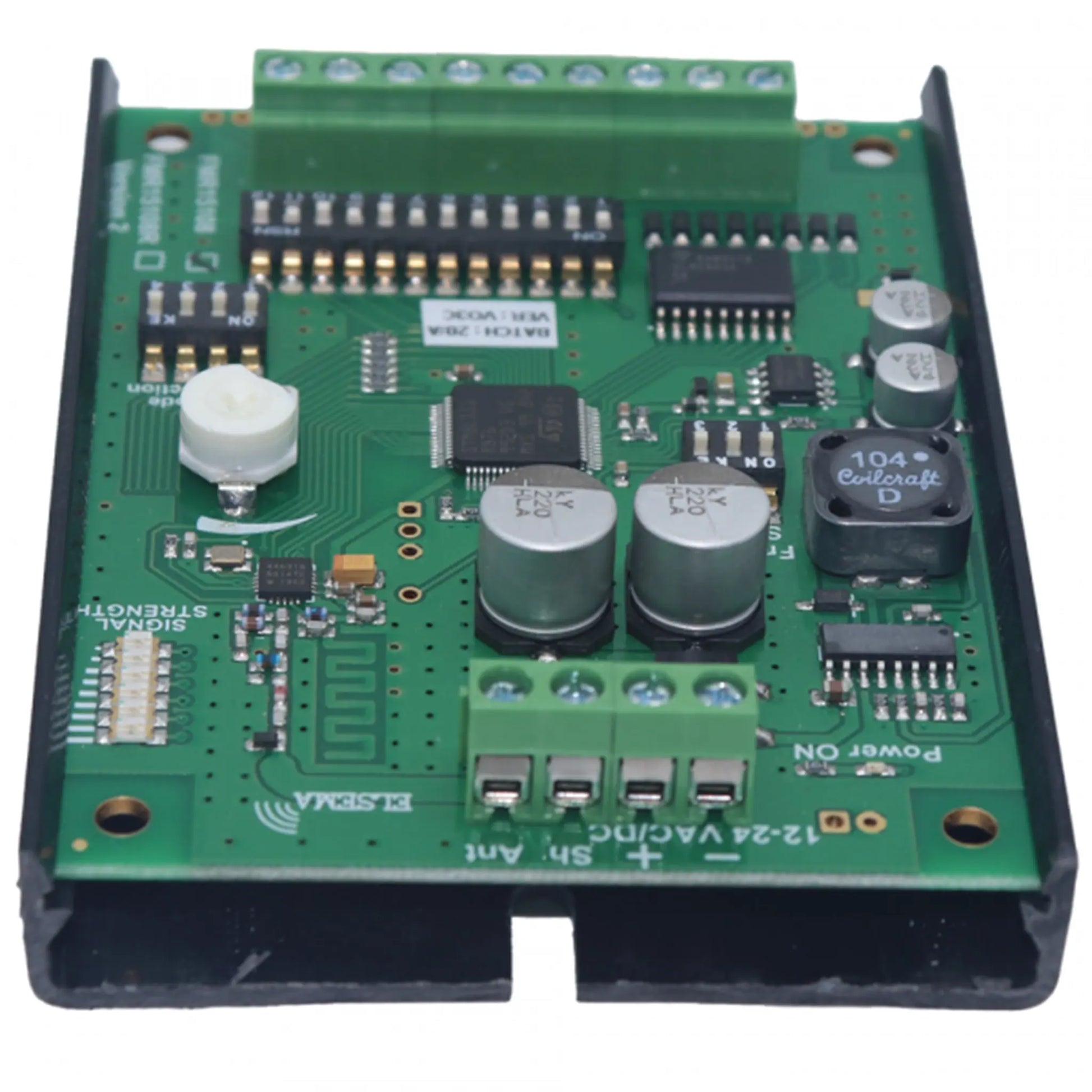

- Signal-strength display – Five onboard LEDs assist with signal and noise assessment
- Low-voltage supply – Operates from 12–24V AC or DC
Compatible with:
Ideal Applications:
- Farm Gates
- Water Pumps
- Quarry equipment
- Industrial Roller Doors
- Remote switching
- Long Driveway access
- Mines and Work sites
- Livestock property access
- Wireless machinery control
- Rural access systems.
Connection Diagram:
Technical Specifications:
| Frequency | 151.6MHz (8 selectable frequencies) Australian Market |
| Code Type | Dipswitch |
| Body Type | Receiver |
| Number of Channels | 8 (open collector) |
| Enclosure | Nil |
| Size | 90 x 70 x 15mm |
| Mounting Hole Size | 3.97mm |
| Power Supply | 12-24 Volts AC or DC |
| Current Consumption | 22mA Standby at 12 VDC
35mA if all outputs “ON” at 12VDC |
| Relay Contacts | Open Collector Outputs |
| Memory Capacity | Unlimited |
| Range | Up to 5km when used with correct transmitter and antenna |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
Frequently Asked Questions:
Does the FMR15108 have relay outputs?
No. The FMR15108 has eight open-collector outputs for connection to compatible control equipment or external relay boards. If you require eight onboard changeover relays, select the Elsema FMR15108R.
Can the FMR15108 achieve a 5km range?
A range of up to 5km line of sight is possible when it is paired with a suitable fixed FMT151 transmitter and correctly installed antennas. Buildings, terrain, electrical noise, antenna height and installation conditions can reduce the operating range.
What range will I get with an FMT151 handheld remote?
Elsema states a maximum line-of-sight range of up to approximately 800 metres for the FMT15104H and FMT15108H when used with a suitable receiver antenna.
How are transmitters programmed?
The system uses matching 12-way dipswitch coding rather than a learn-button memory. The transmitter and receiver must also be set to the same selectable operating frequency.
Is an antenna included?
No. For maximum range, Elsema recommends a correctly installed 151MHz antenna such as the ANT151M. Antenna choice and placement have a significant effect on operating range.
