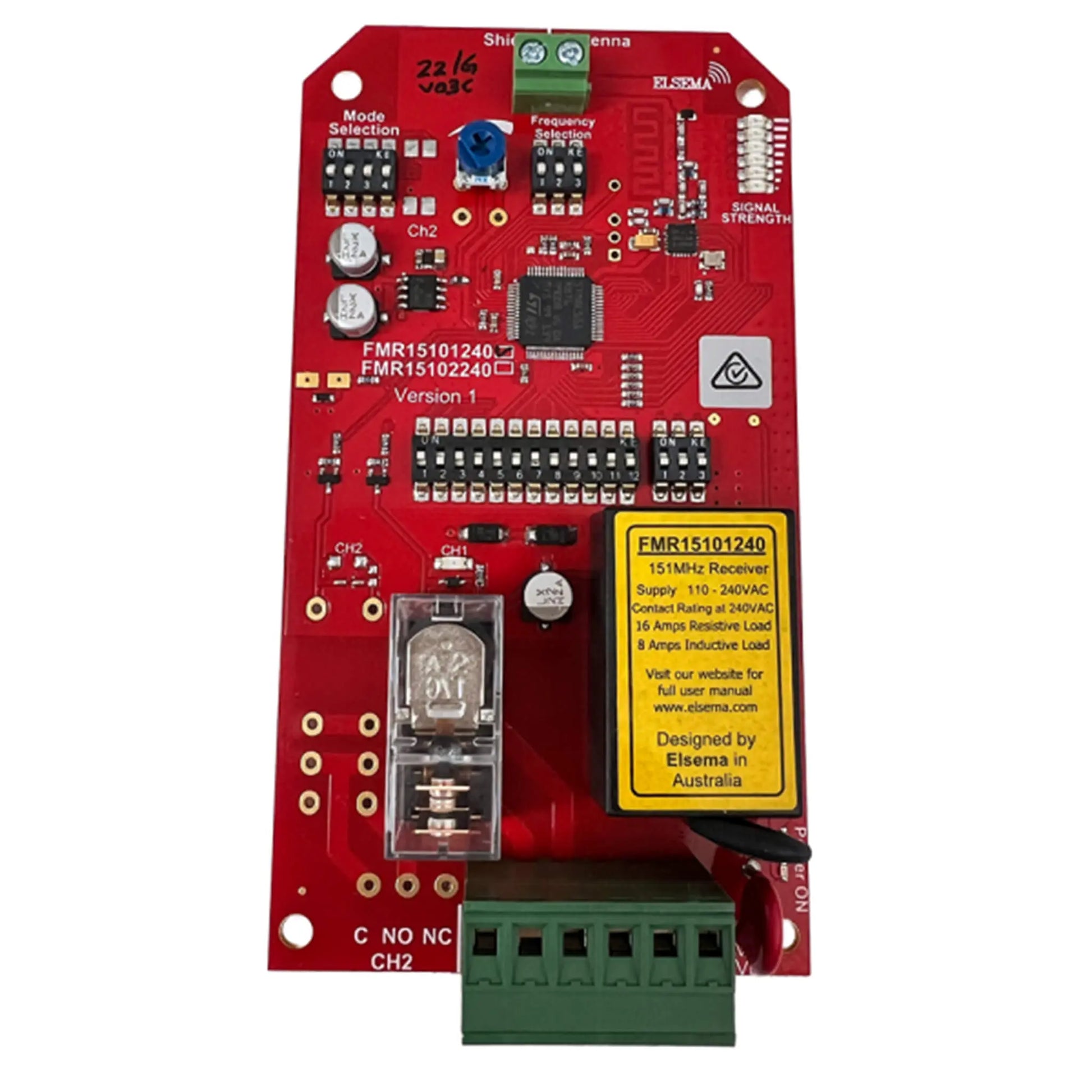

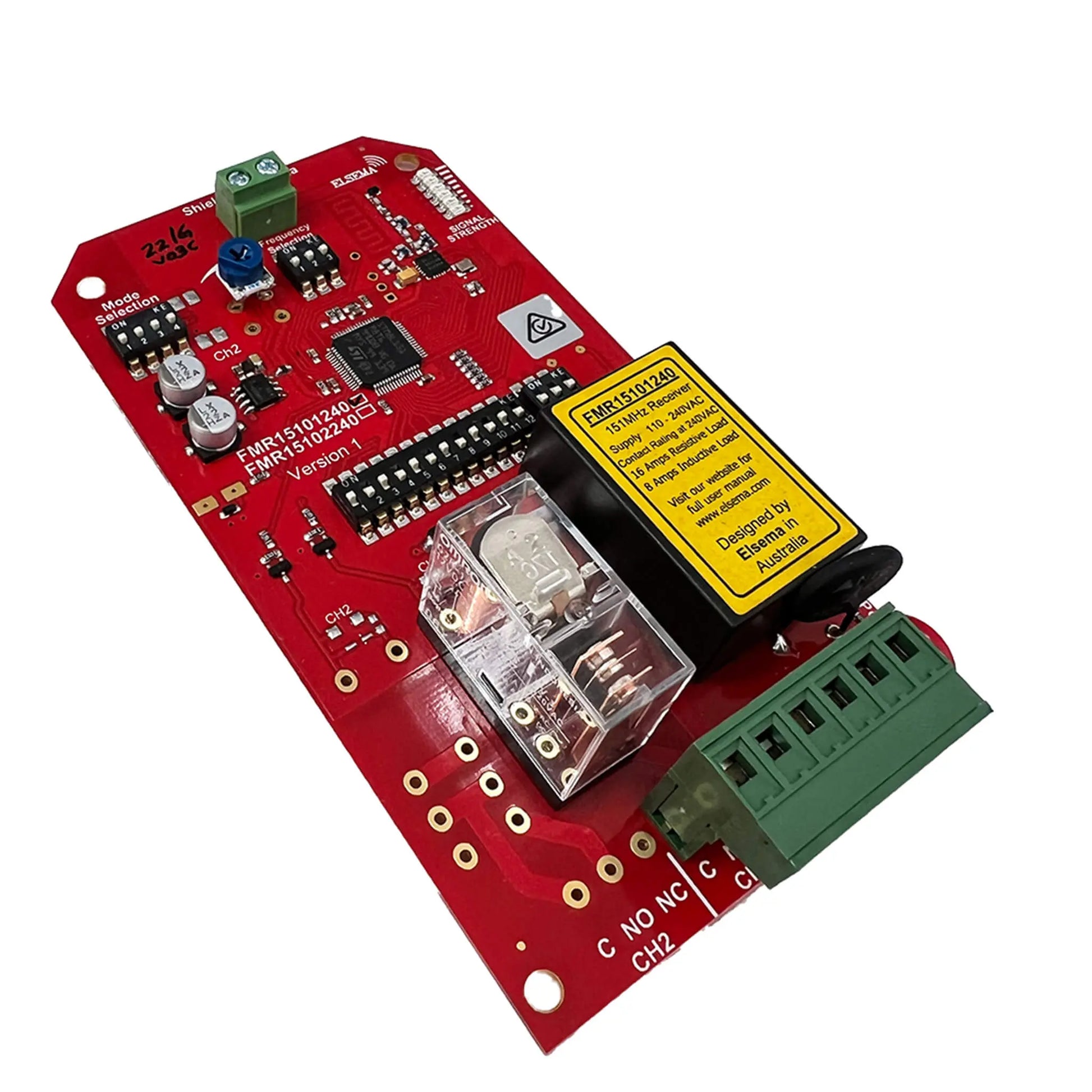

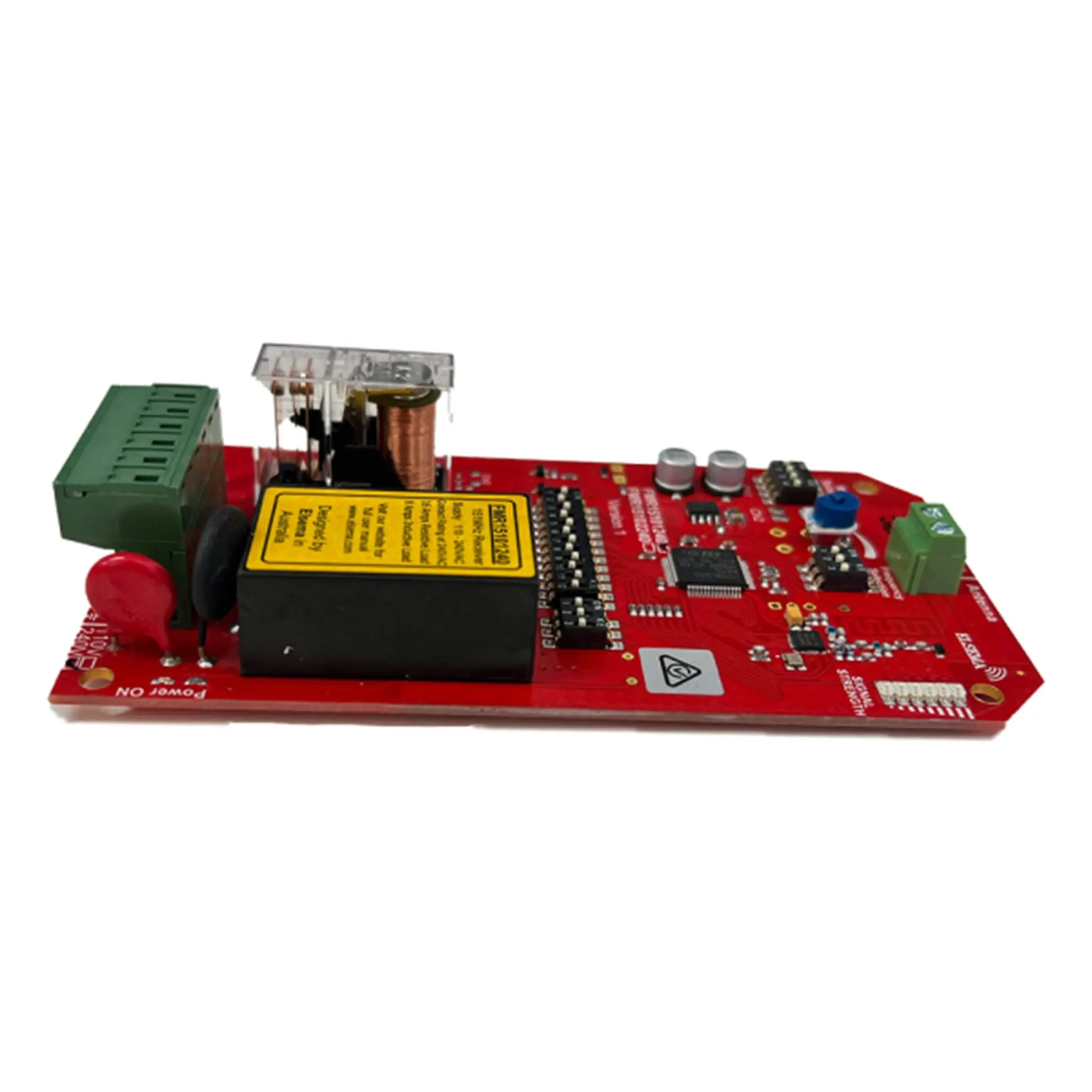

Elsema 151Mhz FMR15101240 Receiver

FMR15101240 - Elsema 151Mhz 1 Channel 240V Receiver

The Elsema FMR15101240 is a genuine Australian designed, single channel receiver for long range industrial, agricultural and rural automation.  It operates directly from a 110-240V AC Mains supply and provides one voltage free changeover relay output for controlling pumps, irrigation equipment, lighting, alarms and other long range equipment.

When paired with a compatible Elsema FMT151 transmitter and correctly installed 151MHz antenna, the system can achieve a line of sight operating range of up to 5km.  Actual range depends on the selected transmitter, antenna, installation height, surrounding terrain and environmental interferences.

What’s Included:

• 1 × Brand New Genuine FMR15101240 Receiver
• 1 x Quickmount
• Step-by-step Wiring Programming Instructions

Note:  This product is for the Australian market.  A modified frequency is required for New Zealand, US and Canadian Market (please contact us for more information).  This item is not available for sale in other countries due to frequency regulations.

Key Features:

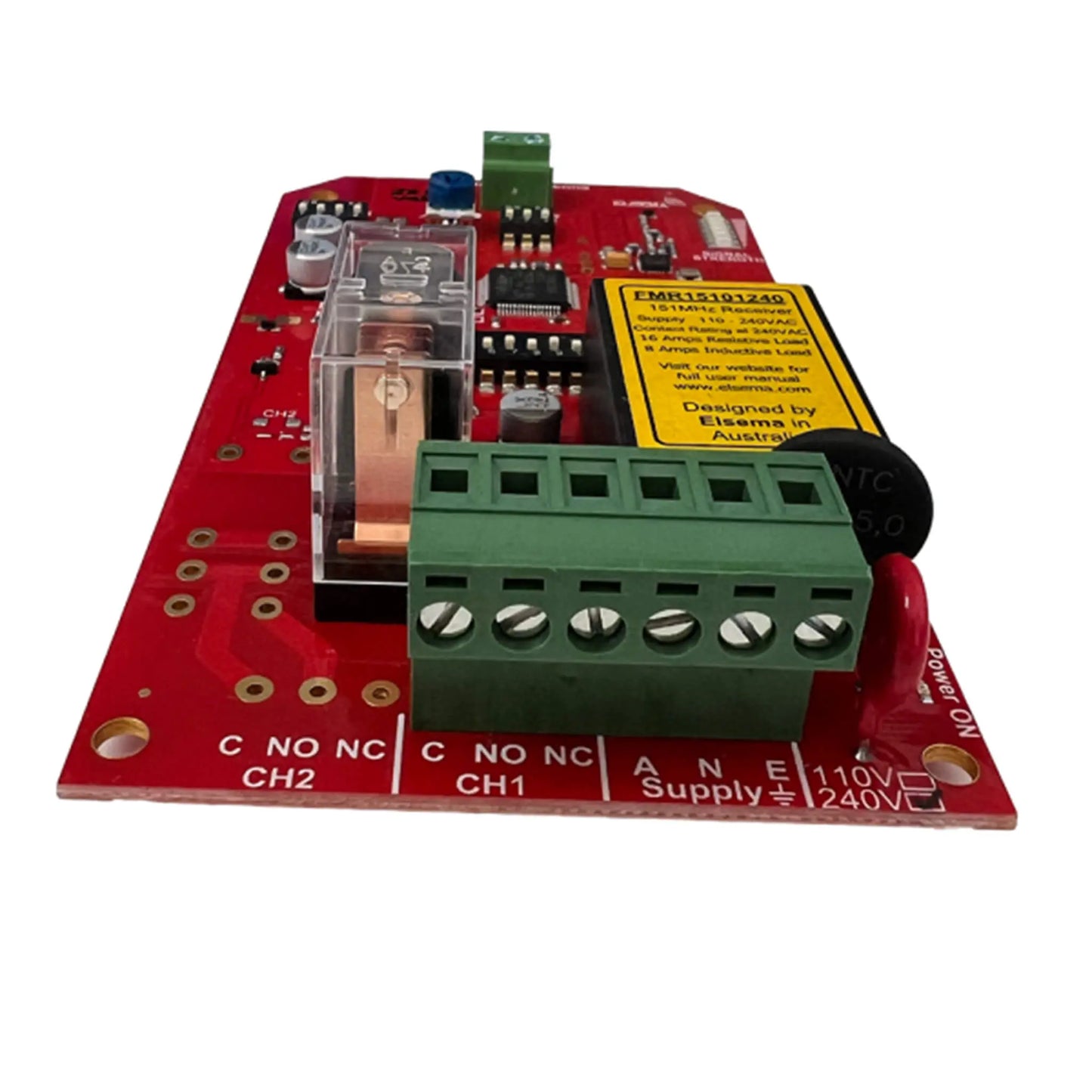

• Single relay output: Voltage-free changeover contacts with NO, NC and common connections
• Mains powered: Connects directly to a 110–240V AC supply
• Long-range operation: Up to 5km line of sight with a suitable FMT151 transmitter and ANT151M antenna

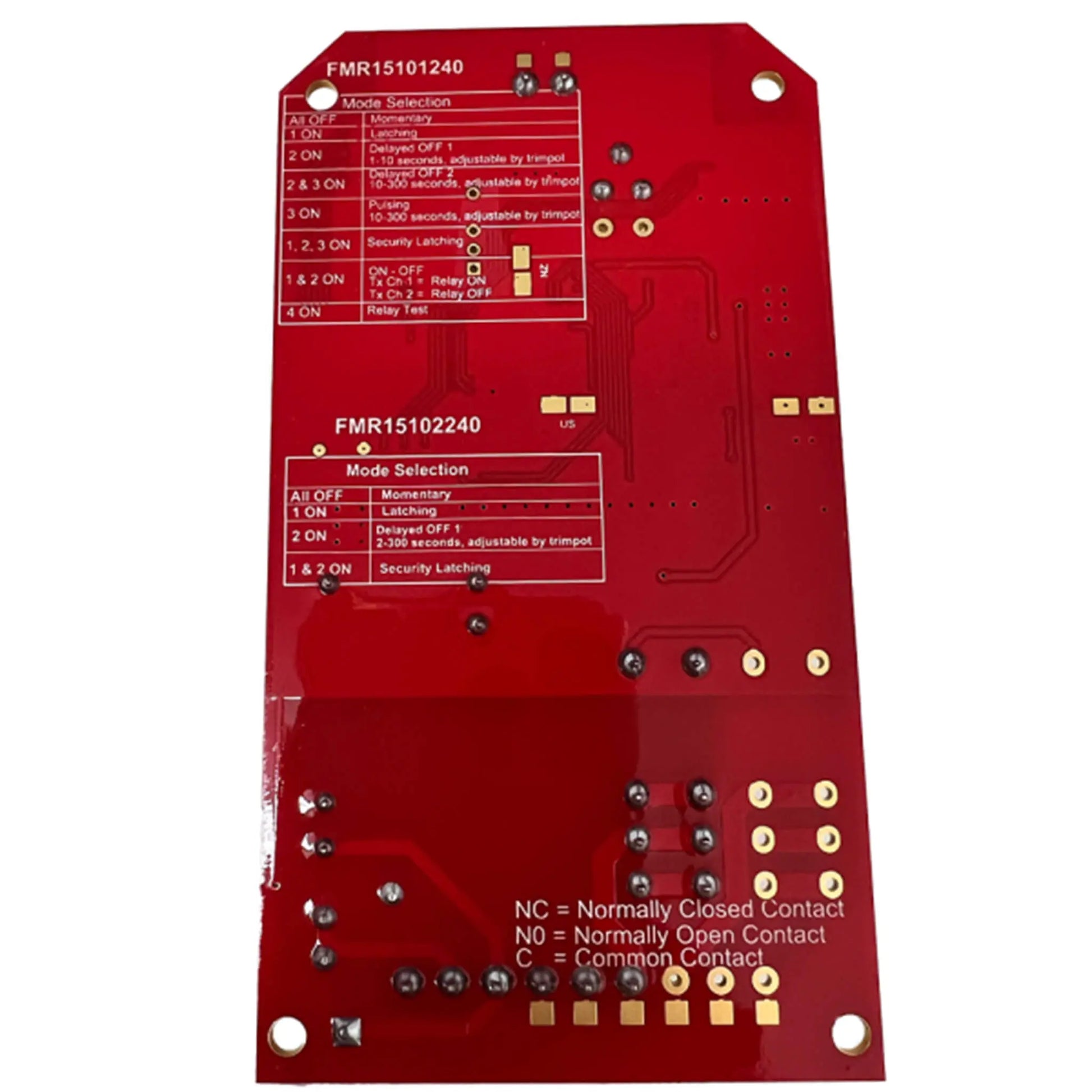

• Flexible relay modes: Momentary, latching, delayed-off, pulsing, on/off and security latching
• 12-way DIP-switch coding: Simple matching with compatible FMT151 transmitters
• Eight selectable frequencies: Helps reduce interference between nearby systems
• Signal-strength indicators: On-board LEDs assist with antenna positioning and interference diagnosis

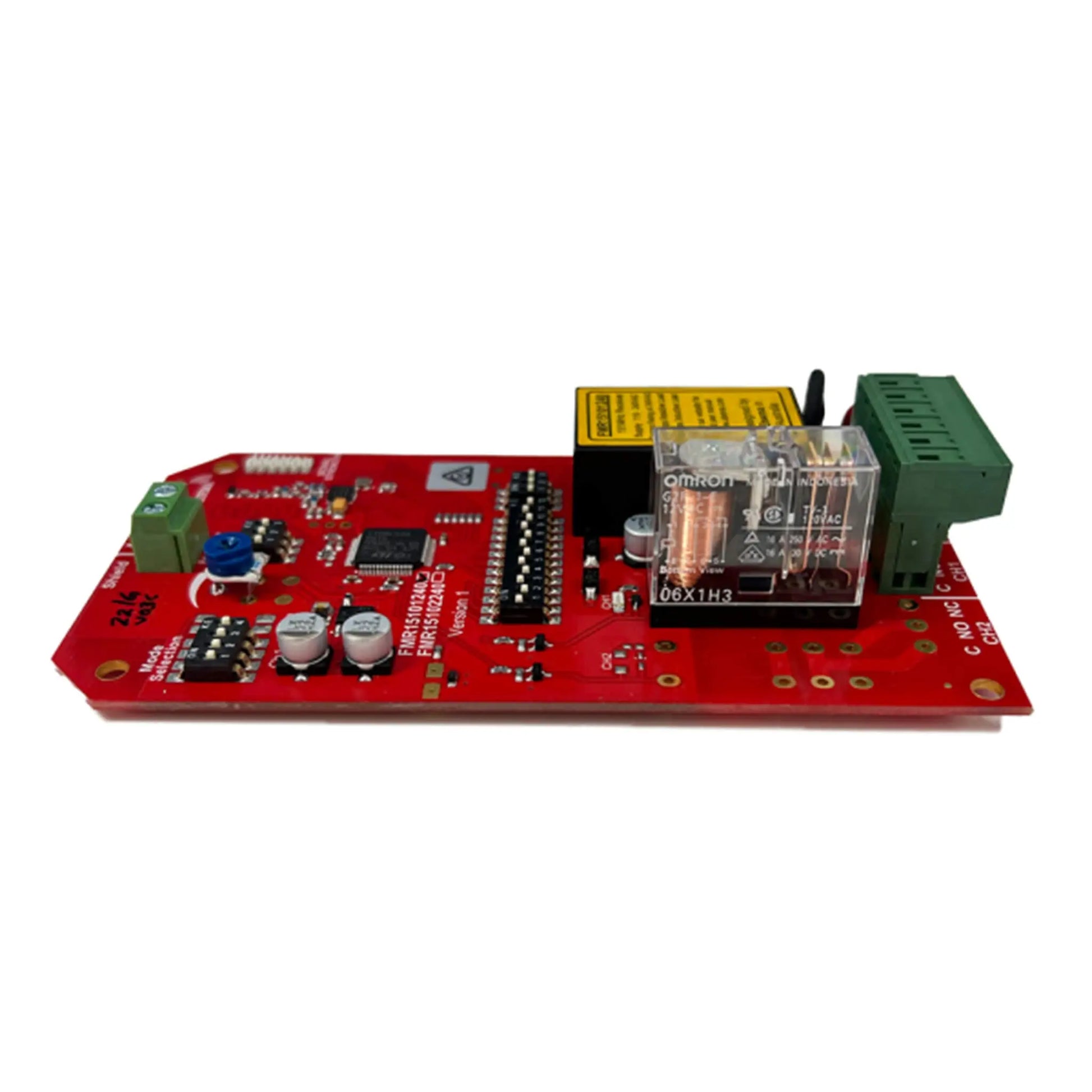

• High-capacity relay: Rated up to 16A resistive or 8A inductive at 240V AC
• Unlimited transmitters: Any number of correctly coded transmitters can operate the receiver

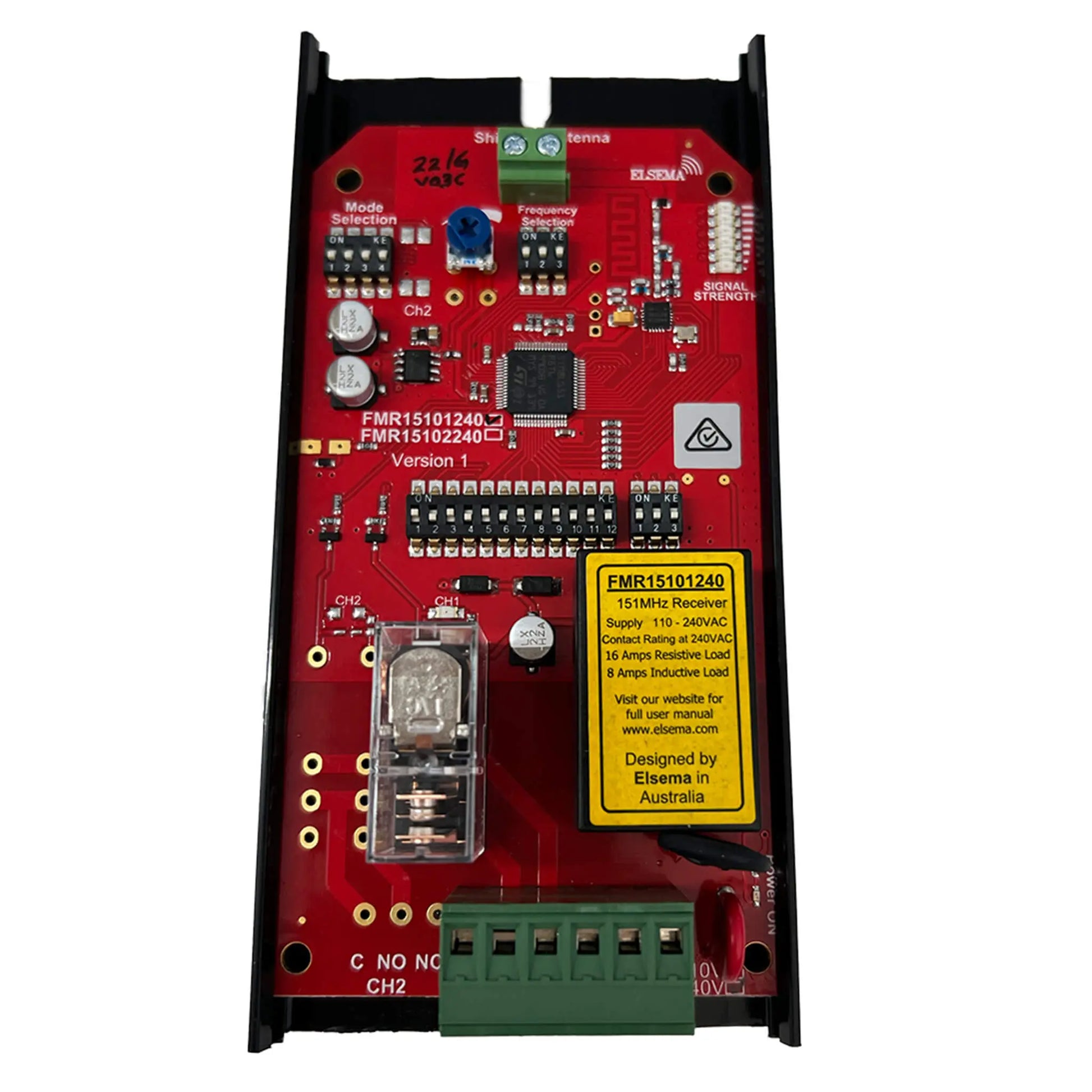

• Quickmount design: Pluggable terminals simplify installation and servicing

Compatible with:

• • FMT15101E
  • FMT15108E
  • FMT15104H (Max 800m Range)
  • FMT15108H (Max 800m Range)

Ideal Applications:

• Pump Control
• Long distance panic button
• On/Off applications in agricultural devices
• Security alarm
• Basic Telemetry eg. Water level indication

Connection Diagram:

Technical Specifications:

Downloads:

Frequently Asked Questions:

What is the Elsema FMR15101240 used for?

The FMR15101240 provides long-range wireless control of one electrical function. Typical applications include pump control, irrigation equipment, agricultural machinery, lighting, alarms and basic telemetry systems.

What is the difference between the FMR15101 and FMR15101240?

Both are single-channel 151MHz receivers. The FMR15101 requires a 12–24V AC/DC power supply, while the FMR15101240 connects directly to a 110–240V AC mains supply.

Which transmitters work with the FMR15101240?

It is compatible with correctly configured Elsema FMT151-series transmitters, including the FMT15101E, FMT15108E, FMT15104H and FMT15108H.

Will this receiver provide a 5km operating range?

Up to 5km line of sight may be possible with a suitable long-range FMT151 transmitter, correctly installed ANT151M antenna and favourable conditions. Handheld transmitters have a shorter maximum range, and buildings, terrain, antenna position and interference can reduce performance.

Is an antenna included?

An appropriate 151MHz antenna is required. Elsema recommends the ANT151M for maximum performance and long-range installations.

Is the FMR15101240 weatherproof?

No. The standard receiver is supplied on a Quickmount base without a weatherproof enclosure. Choose the FMR15101240E or install it inside an appropriate enclosure for exposed locations.

Can this receiver be used outside Australia?

This listing is for the Australian 151MHz version. New Zealand, the United States and Canada use different frequency versions and matching transmitters. Frequency regulations must be checked before installation.
