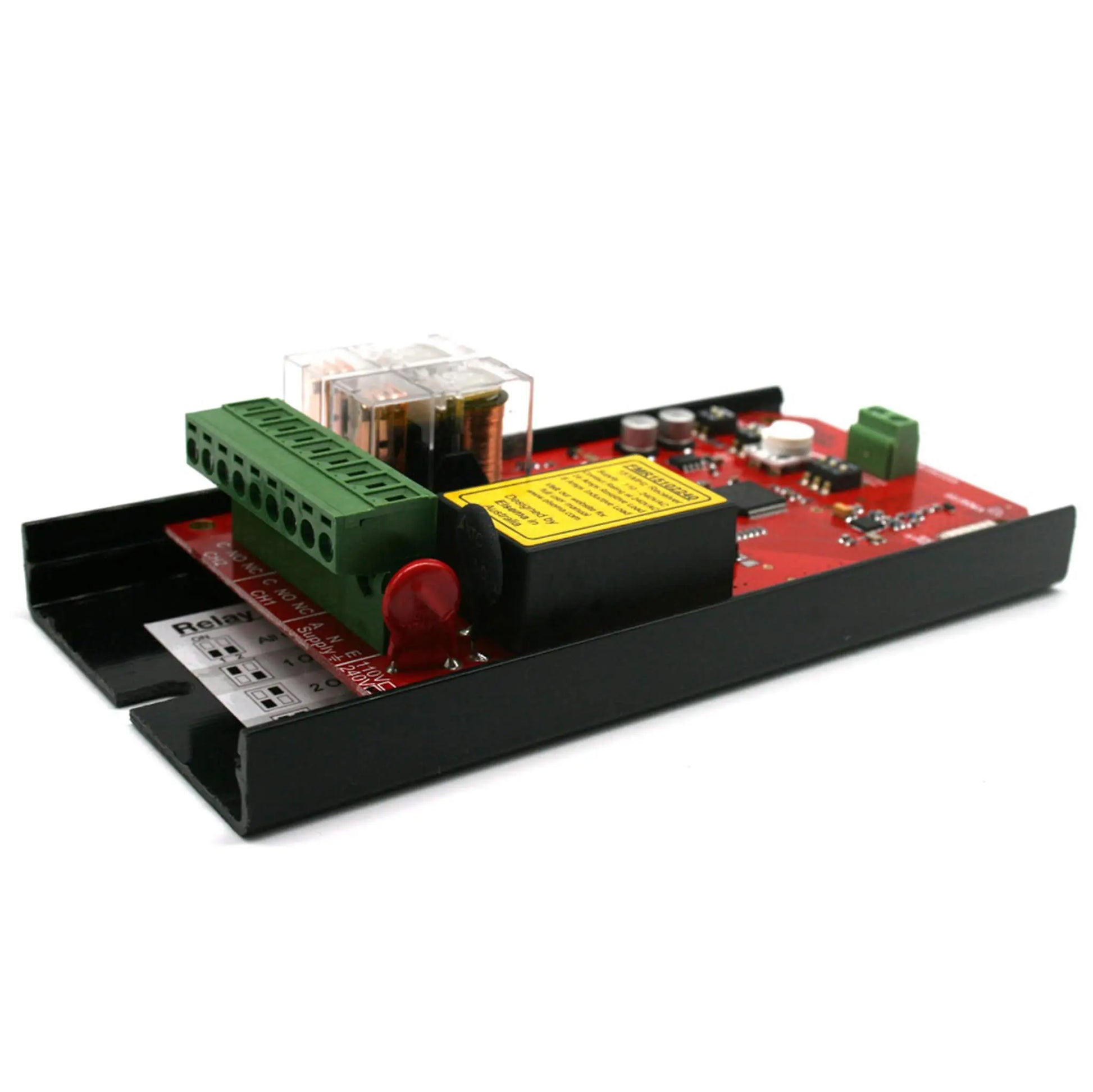

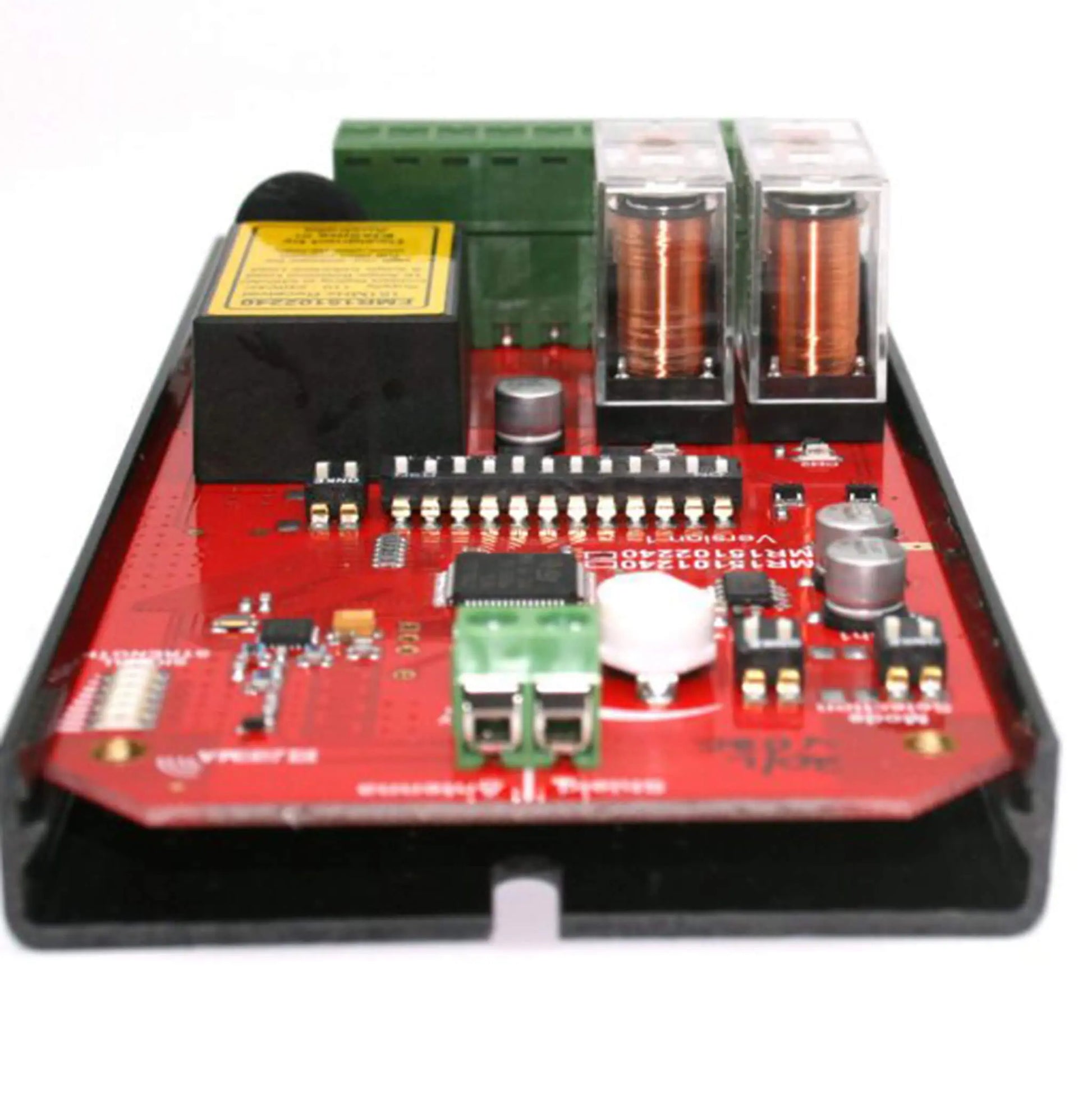

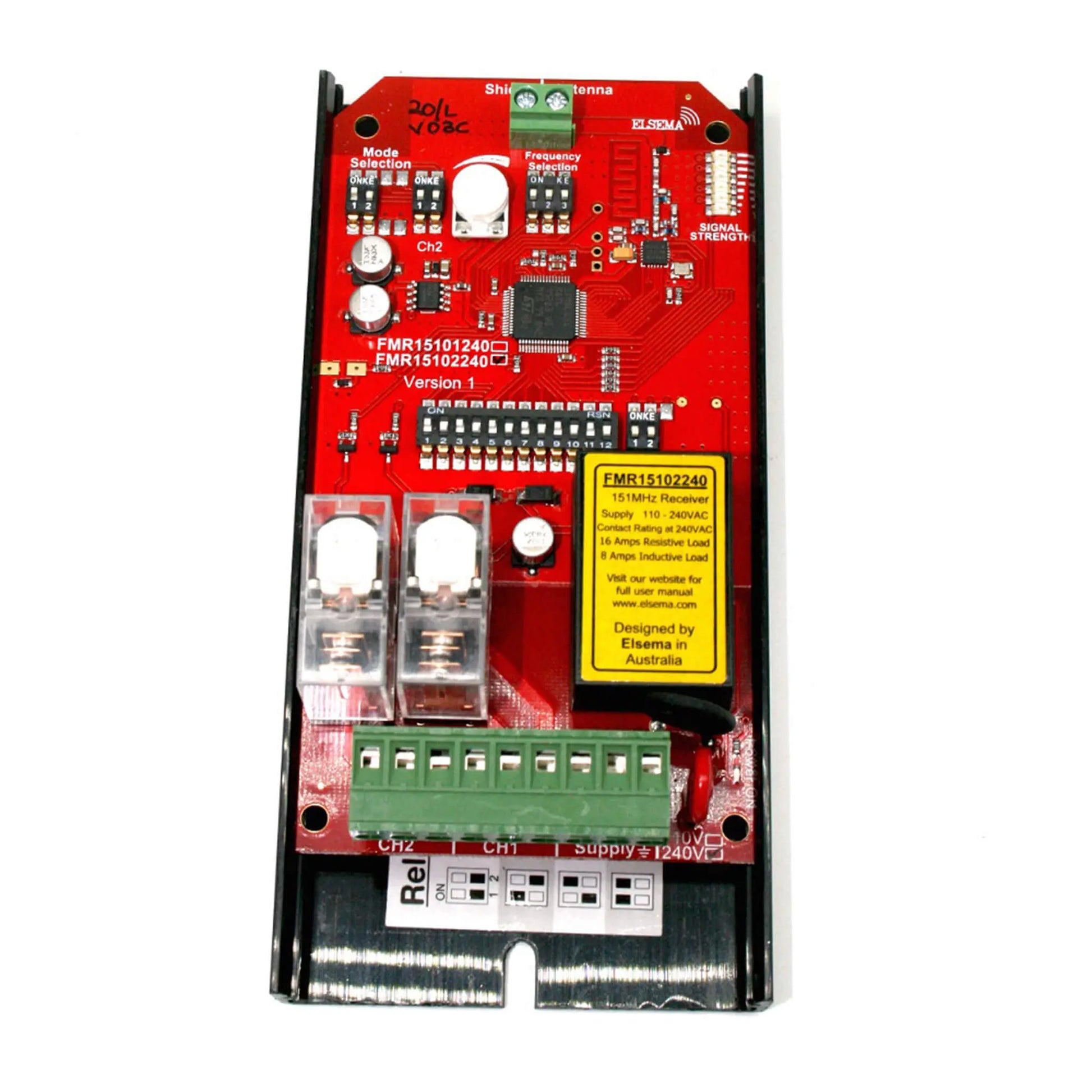

FMR15102240 Elsema 151Mhz 2 Channel 240V Receiver
The Elsema FMR15102240 is a genuine Australian designed, two channel long range receiver designed for direct connection to a 110-240VAC mains supply. It provides two independent voltage-free relay outputs for remotely controlling pumps, irrigation equipment, lighting, alarms and other industrial or agricultural systems.
When paired with a compatible Elsema FMT151 transmitter and correctly installed 151MHz antenna, the system can achieve an operating range of up to 5,000 metres line of sight. Eight selectable frequencies within the Australian 151MHz band help reduce interference and allow multiple systems to operate in the same area.
What’s Included:
- 1 × Brand New Genuine FMR15102240 Receiver
- 1 x Quickmount
- Step-by-step Wiring Programming Instructions
Note: This product is for the Australian market. A modified frequency is required for New Zealand, US and Canadian Market (please contact us for more information). This item is not available for sale in other countries due to frequency regulations.
Key Features:
- Two independent outputs – Control two separate functions or devices.
- Direct mains supply – Operates from 110–240VAC.
- Long-range operation – Up to 5km line of sight with a suitable FMT151 transmitter and antenna.
- Two voltage-free relays – Each output is rated at 8A at 240VAC.
- Selectable relay modes – Momentary, latching, delayed off and security latching.
- Eight selectable frequencies – Helps minimise interference between nearby systems.
- 12-way DIP-switch coding – Simple matching with compatible FMT151 transmitters.
- Unlimited transmitters – No fixed remote-memory limit.
- Signal-strength indication – Assists with antenna positioning and interference diagnosis.
Compatible with:
Ideal Applications:
- Pump Control
- Long distance panic button
- On/Off applications in agricultural devices
- Security alarm
- Basic Telemetry eg. Water level indication
Connection Diagram:
Technical Specifications:
| Frequency | 151.6MHz (8 selectable frequencies) Australian Market |
| Code Type | Dipswitch |
| Body Type | Receiver |
| Number of Channels | 2 |
| Enclosure | Nil |
| Size | 130 x 70 x 37mm |
| Mounting Hole Size | 3.97mm |
| Power Supply | 110 – 240Volts AC Mains |
| Current Consumption | 18mA at 240V AC |

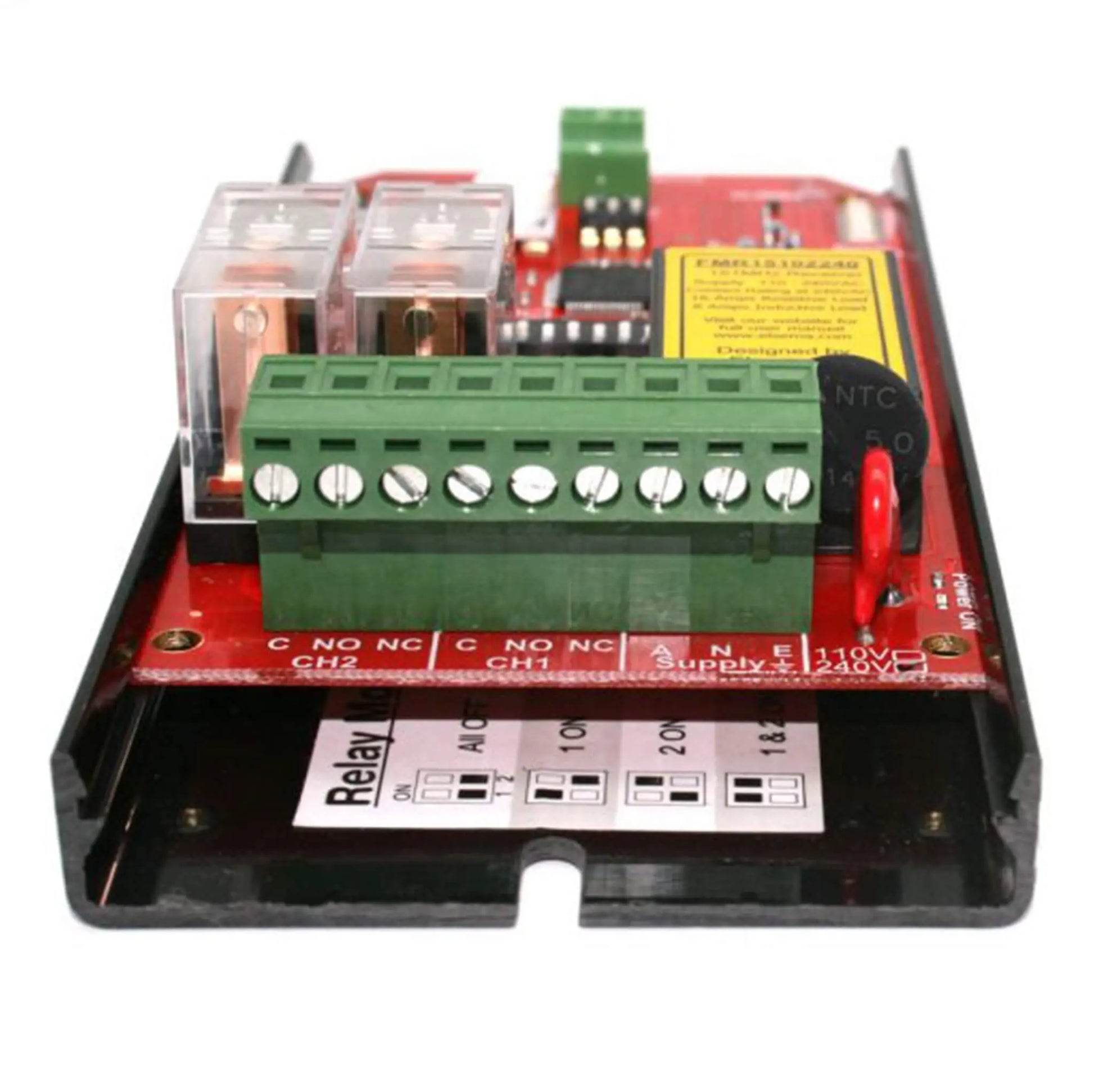

| Connection | Supply & Output – pluggable type terminal blocks |
| Output | Change over relay output, rated at 16 Amps of resistive load and up to 8 Amps of indictive load |
| Memory Capacity | Unlimited |
| Range | Up to 5km when used with correct transmitter and antenna |
| Warranty | 12 months Manufacturers Warranty |
Downloads:
Frequently Asked Questions:
Does the FMR15102240 include a transmitter or antenna?
No. This product includes the receiver and quick-mount bracket. A compatible Elsema FMT151 transmitter and suitable 151MHz antenna are required separately.
What is the difference between the FMR15102 and FMR15102240?
Both provide two relay outputs. The FMR15102 operates from 12–24V AC/DC, while the FMR15102240 connects directly to a 110–240VAC mains supply.
Can it really operate over 5km?
A range of up to 5km line of sight is possible with a suitable Elsema FMT151 transmitter, correctly installed ANT151M antenna and favourable site conditions. Buildings, terrain, antenna placement and interference can reduce the working range.
Can it be installed outdoors?
The standard FMR15102240 does not include a weatherproof enclosure. For outdoor installation, use a suitable enclosure or consider the enclosed FMR15102240E version.
