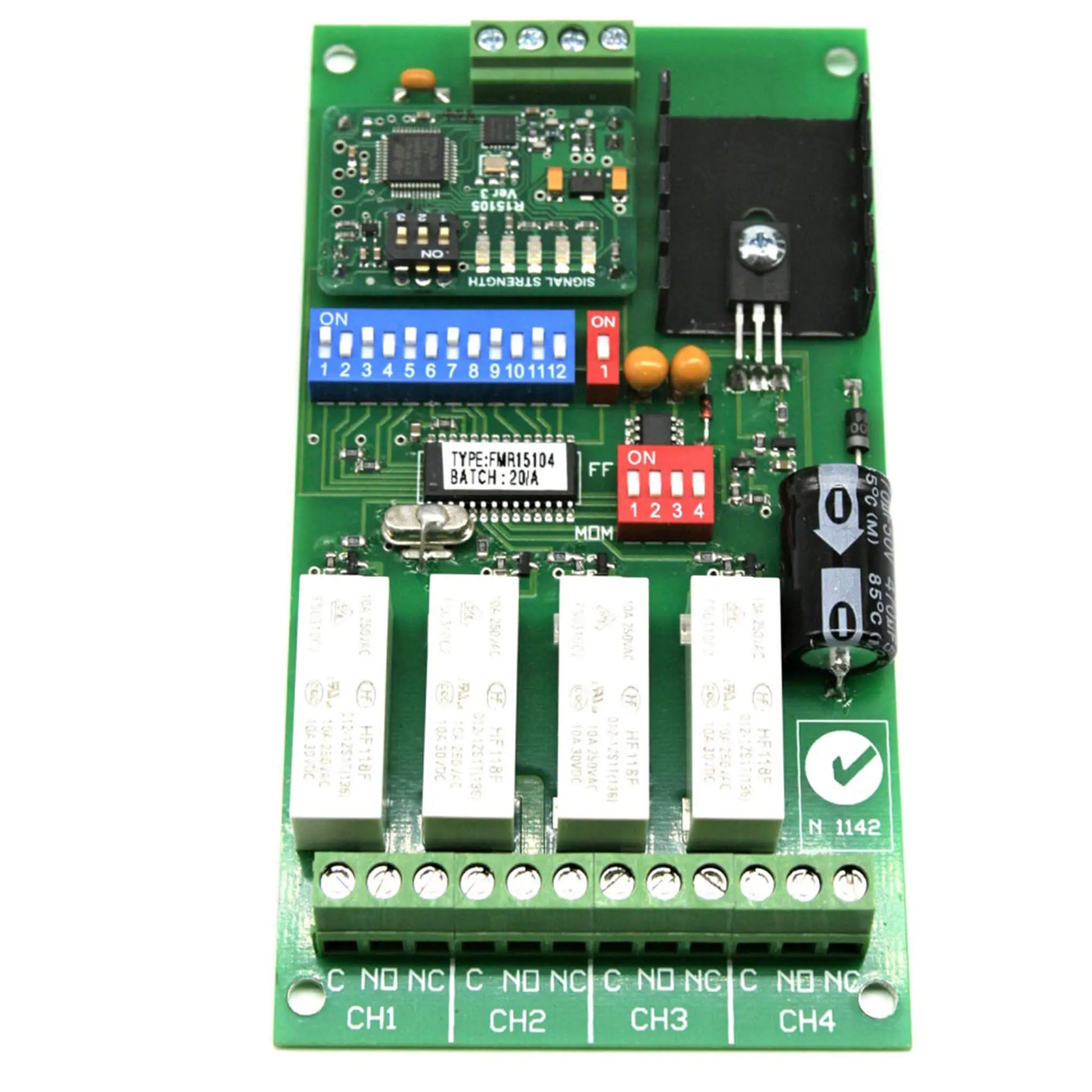

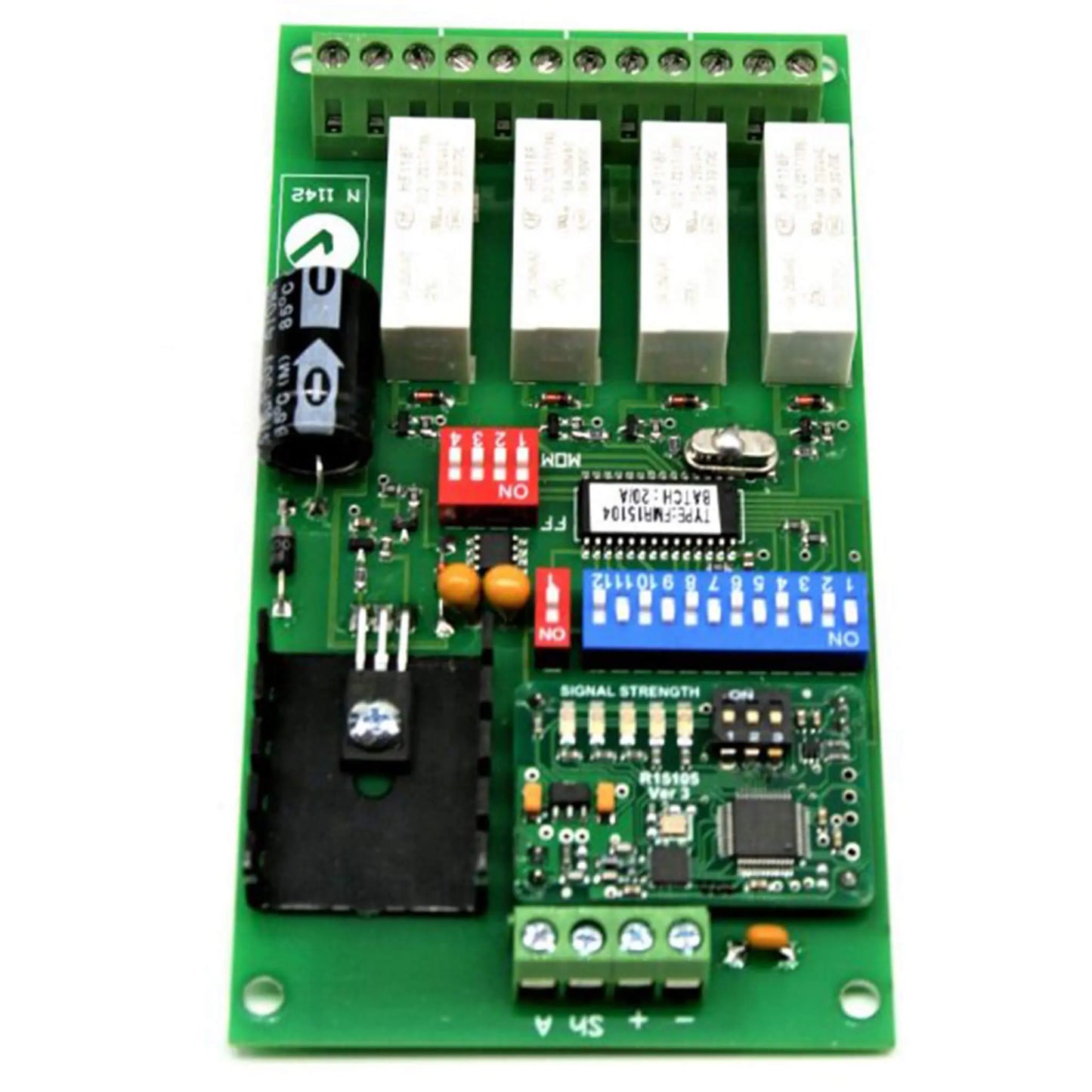

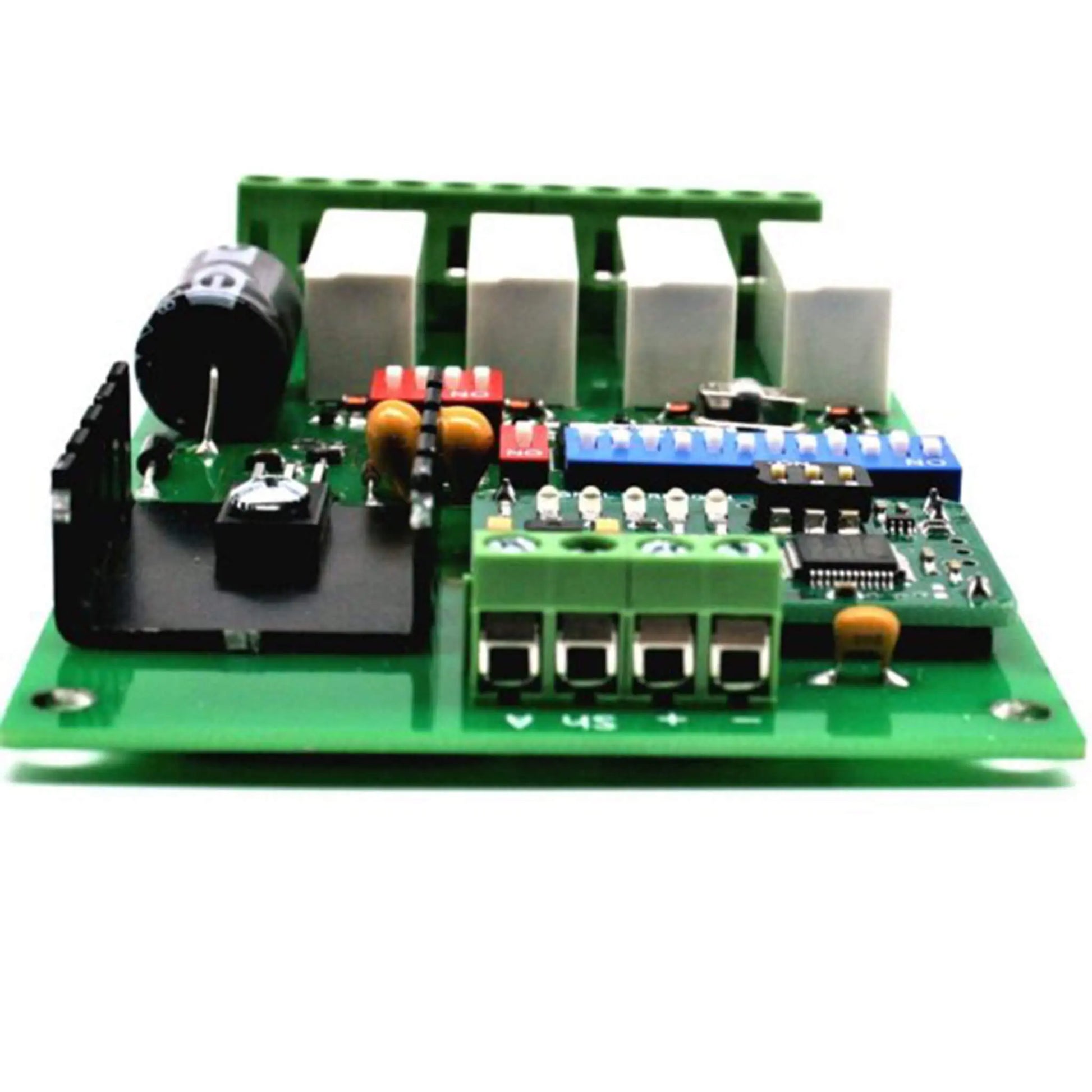

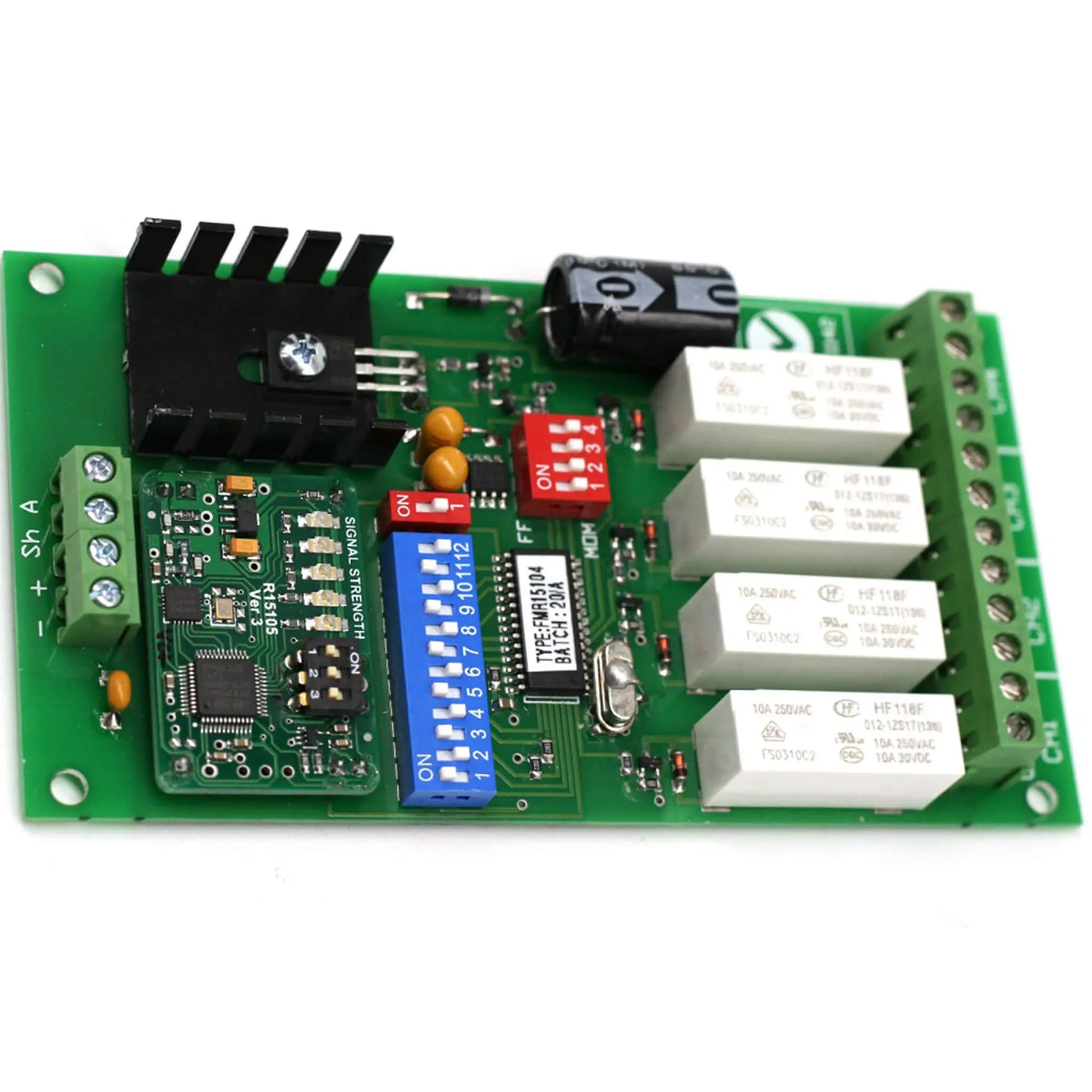

Elsema FMR15104 151MHz Four-Channel Receiver
The Elsema FMR15104 is a genuine Australian designed 151MHz long range receiver with four independently controlled, voltage-free relay outputs. Designed for industrial, agricultural and commercial automation, it can remotely control up to four gates, pumps, alarms, lights, machines or other electrical functions from one receiver.
When paired with a compatible Elsema FMT151 transmitter and correctly installed 151MHz antenna, the FMR15104 can provide an operating range of up to 5km line of sight. Actual range will depend on the transmitter, antenna placement, surrounding terrain, obstacles and local interference.
What’s Included:
- 1 × Brand New Genuine FMR15104 Receiver
- 1 x Quick Mount
- Step-by-step Wiring Programming Instructions
Note: This product is for the Australian market. A modified frequency is required for New Zealand, US and Canadian Market (please contact us for more information). This item is not available for sale in other countries due to frequency regulations.
Key Features:
- Four independent outputs: Four voltage-free changeover relays
- 10A relay capacity: Each relay is rated at 10A at 240VAC
- Long-range operation: Up to 5km line of sight with suitable FMT151 equipment
- Selectable output modes: Momentary or latching operation for each channel
- Eight selectable frequencies: Helps avoid interference between nearby systems
- Signal-strength display: Onboard LEDs assist with installation and troubleshooting
- Simple DIP-switch coding: Match the receiver code to compatible FMT151 transmitters
- Unlimited transmitters: No programmed remote-memory limit
- Flexible power input: Operates from 12–24V AC or DC
- Open-board model: Intended for installation inside a suitable control panel or enclosure
Compatible with:
Ideal Applications:
- Farm Gates
- Water Pumps
- Quarry equipment
- Industrial Roller Doors
- Remote switching
- Long Driveway access
- Mines and Work sites
- Livestock property access
- Wireless machinery control
- Rural access systems.
Connection Diagram:
Technical Specifications:
| Frequency | 151.6MHz (8 selectable frequencies) Australian Market |
| Code Type | Dipswitch |
| Body Type | Receiver |
| Number of Channels | 4 |
| Enclosure | Nil |
| Size | 130 x 70 x 30mm |
| Mounting Hole Size | 3.97mm |
| Power Supply | 12-24 Volts AC or DC |
| Current Consumption | 24mA Standby at 12 VDC
100mA if both relay “ON” at 12VDC |
| Outputs | Four Change over relay outputs, rated at 8Amps 240VAC |
| Memory Capacity | Unlimited |
| Range | Up to 5km when used with correct transmitter and antenna |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
Frequently Asked Questions:
Can it control four separate devices?
Yes. It provides four independently controlled voltage-free relay outputs, allowing up to four separate devices or functions to be controlled.
Does it really provide a 5km range?
Up to 5km line of sight is possible with a compatible fixed FMT151 transmitter, suitable antennas and a correctly planned installation. Terrain, buildings, electrical interference, transmitter type and antenna position can reduce the operating range.
Does the receiver include an antenna?
No. A compatible 151MHz antenna is required and sold separately. Elsema recommends the ANT151M for maximum performance.
Is it compatible with Elsema Penta remotes?
No. The FMR15104 belongs to Elsema’s 151MHz FMT/FMR system and requires a compatible FMT151 transmitter.
