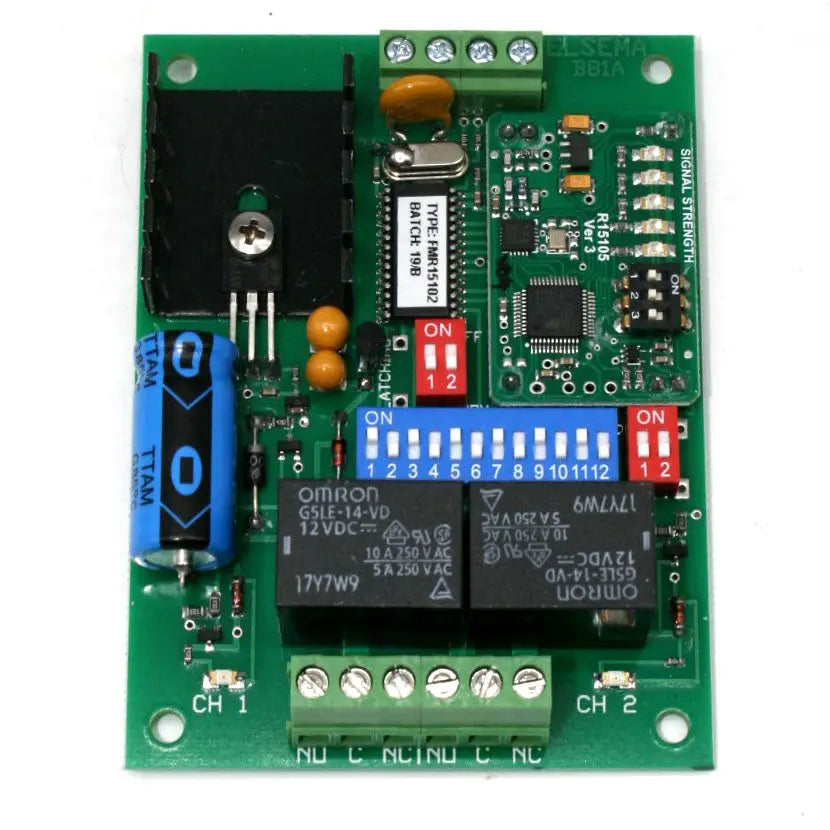

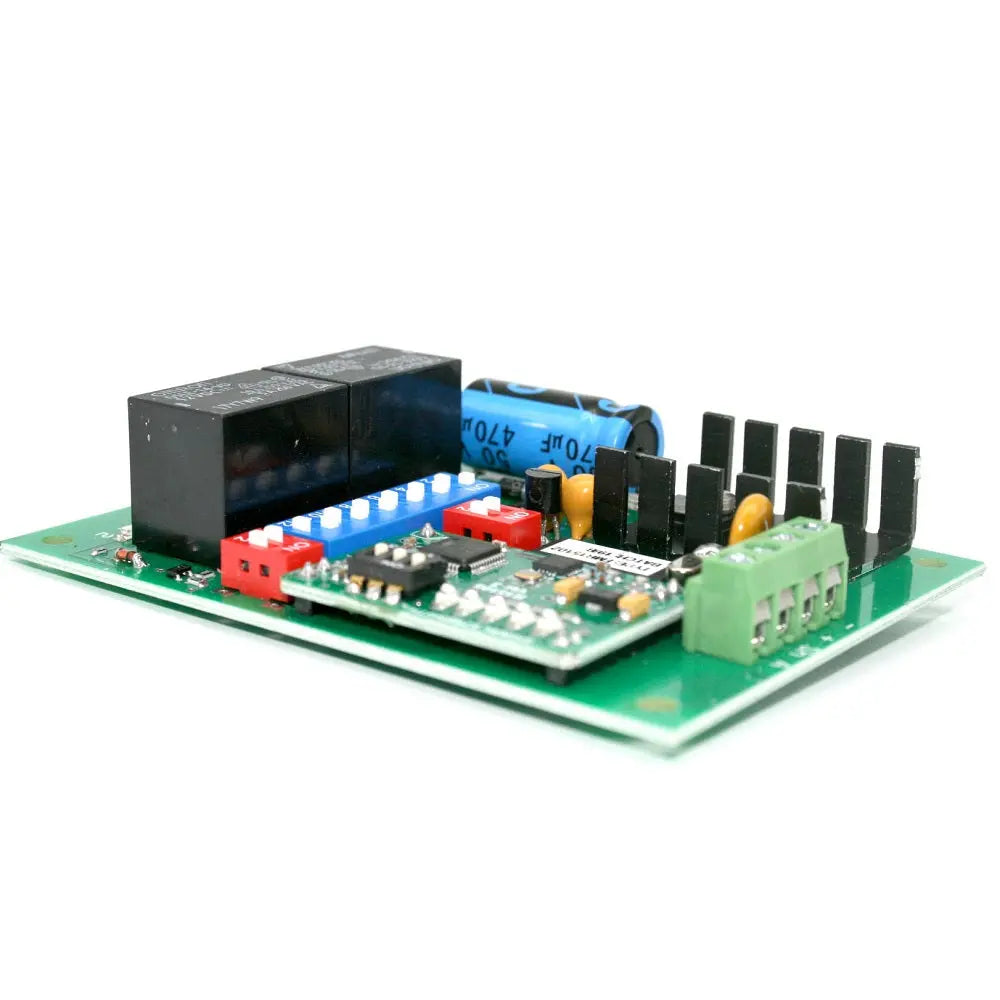

FMR15102 - Elsema High-Capacity Two Channel Relay Output receiver with up to 5km range
The Elsema FMR15102 is an Australian designed 151MHz long range receiver featuring two independently controlled changeover relay outputs. Designed for industrial, agricultural and large-property automation, it can be used to control pumps, gates, lighting, alarms and other equipment where running control cabling is impractical.
When paired with a compatible Elsema FMT151 fixed transmitter and correctly installed ANT151M antenna, the system can achieve a range of up to 5,000 metres under clear line-of-sight conditions. Handheld FMT151 transmitters provide a shorter maximum range.
The receiver operates from 12–24V AC or DC and offers eight selectable narrowband frequencies to help avoid local radio interference. Its onboard LEDs provide signal and noise-strength indication, making installation and troubleshooting easier.
What’s Included:
- 1 × Brand New Genuine FMR15102 Receiver
- 1 x Quickmount
- Step-by-step Wiring Programming Instructions
Note: This product is for the Australian market. A modified frequency is required for New Zealand, US and Canadian Market (please contact us for more information). This item is not available for sale in other countries due to frequency regulations.
Key Features:
- Two changeover relay outputs – Control two separate devices or functions.
- Up to 5 km line-of-sight range – With a suitable FMT151 transmitter and ANT151M antenna.
- Four selectable output modes – Momentary, latching, delayed off and security latching.
- Eight selectable frequencies – Helps minimise interference at the installation site.
- 12-way dipswitch coding – Straightforward matching with compatible FMT151 transmitters.
- No programmed remote limit – Any number of correctly coded compatible transmitters can operate the receiver.
- Signal and noise indicators – Onboard LEDs assist with antenna positioning and fault-finding.
- Flexible power supply – Operates from 12–24V AC or DC.
Compatible with:
Ideal Applications:
- Farm Gates
- Water Pumps
- Quarry equipment
- Industrial Roller Doors
- Remote switching
- Long Driveway access
- Mines and Work sites
- Livestock property access
- Wireless machinery control
- Rural access systems.
Connection Diagram:
Technical Specifications:
| Frequency | 151.6MHz (8 selectable frequencies) Australian Market |
| Code Type | Dipswitch |
| Body Type | Receiver |
| Number of Channels | 2 |
| Enclosure | Nil |
| Size | 95 x 70 x 30mm |
| Mounting Hole Size | 3.97mm |
| Power Supply | 12-24 Volts AC or DC |
| Current Consumption | 24mA Standby at 12VDC 85mA when relay “ON” at 12VDC |
| Connections | Supply, Antenna & Outputs - Screw type terminal block |
| Memory Capacity | Unlimited |
| Range | Up to 5km when used with correct transmitter and antenna |
| Warranty | 12 month Manufacturers Warranty |
Downloads:
Frequently Asked Questions:
Does the FMR15102 include an enclosure?
No. The standard FMR15102 is supplied as an open circuit-board receiver and must be installed in a suitable enclosure.
Can the FMR15102 really operate over 5 km?
A range of up to 5,000 metres may be possible with a suitable fixed FMT151 transmitter, correctly installed antennas and clear line of sight. Buildings, terrain, electrical interference and antenna placement can reduce the practical range.
Can I use a handheld remote over 5 km?
No. The FMT15104H and FMT15108H handheld transmitters have a maximum quoted range of approximately 800 metres when used with the appropriate receiving antenna.
How are transmitters programmed?
The receiver uses 12-way dipswitch coding.
Is this compatible with PentaFOB or PentaCODE remotes?
No. The FMR15102 is designed for compatible Elsema FMT151-series transmitters. It does not receive Elsema Penta, Gigalink, Multicode or 27MHz remote signals.
