Elsema 151MHz FMT15104H Remote
Elsema 151MHz FMT15104H Remote
This is a popular item that is regularly replenished from our Australian supplier. It is always available to purchase, even if our on-hand warehouse stock is low. If you need this item urgently, please contact us for current stock levels.
Couldn't load pickup availability

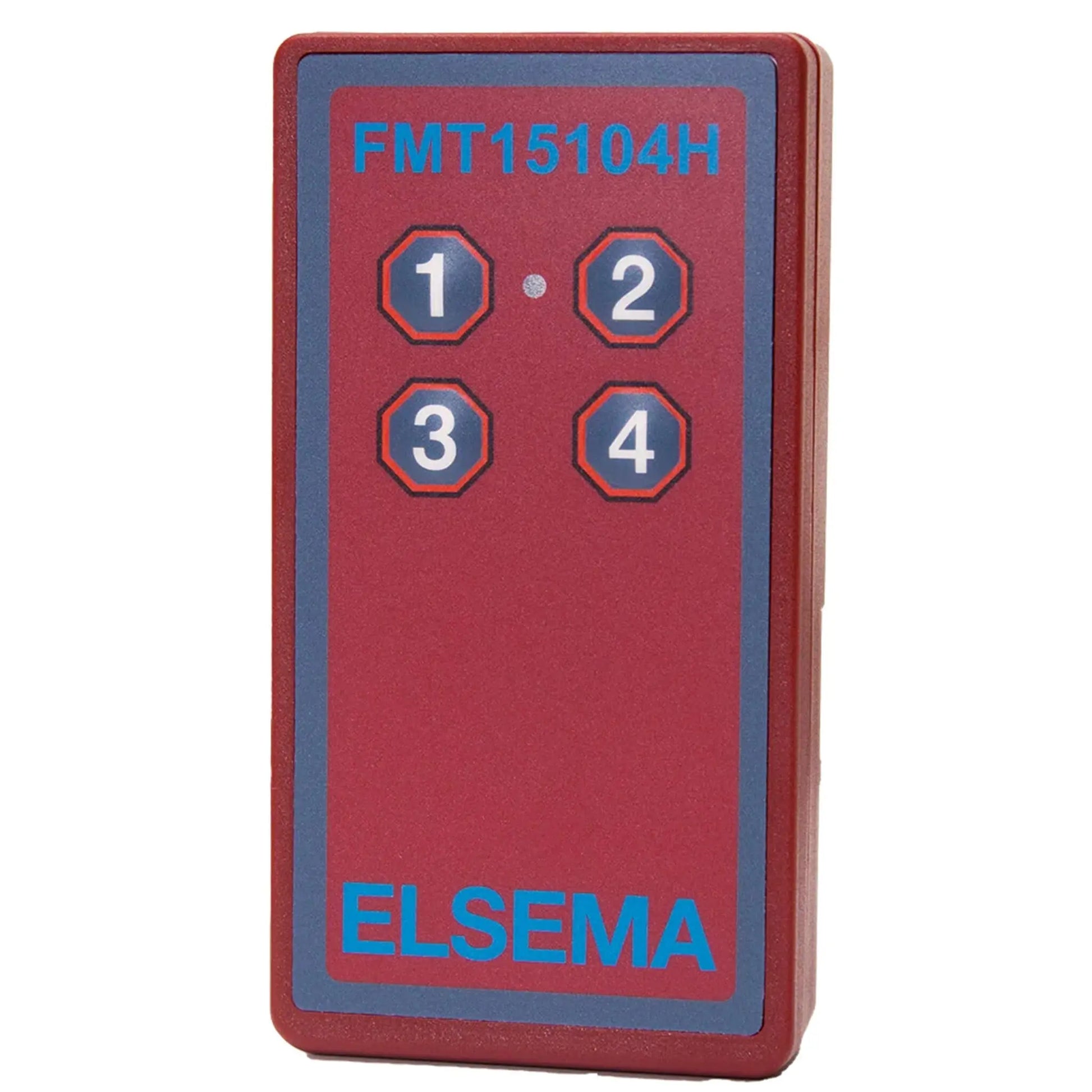

FMT15104H - 151Mhz 4 Channel Handheld Transmitter
The Elsema FMT15104H is a genuine four button, 151MHz handheld transmitter designed for dependable remote control across farms, industrial facilities, commercial sites and other large properties.
Offering an operating range of up to 800 meters in clear line of sight conditions, the FMT15104H can control up to four receiver channels from one handheld transmitter. it is well suited to pumps, irrigation equipment, floodlights, machinery, alarms, gates and long-distance emergency activation systems.
Designed and engineered by Elsema in Australia, the FMT15104H provides a practical long-range control solution for demanding agricultural, industrial and commercial applications.
What’s Included:
- Genuine Elsema FMT15104H 4-Button Handheld Transmitter
- 9V Battery
- Installation & coding instructions
Note: This product is for the Australian market. A modified frequency is required for New Zealand, US and Canadian Market (please contact us for more information). This item is not available for sale in other countries due to frequency regulations.
Key Features:
- Four independent buttons – Control up to four receiver channels
- Long-range operation – Up to 800 metres in clear line-of-sight conditions
- Australian 151MHz system – Designed for compatible Elsema FMR151 receivers
- Simple DIP switch coding – Match the 12-way code switch with the receiver
- Eight selectable frequencies – Helps minimise interference between nearby systems
- Industrial handheld design – Suitable for agricultural, commercial and industrial use
- Integrated antenna – No external transmitter antenna required
- 9V battery operation – Uses a standard alkaline battery
- Genuine Elsema product – Australian designed and engineered
Compatible with:
Ideal Applications:
- Pump Control – Remote activation of pumps in agriculture and water management
- Long-Distance Panic Button – Emergency alert systems for industrial sites
- Security & Alarms – Secure activation of gates, alarms, and monitoring systems
- Telemetry & Automation – Remote monitoring for water levels, floodlights, and machinery
- Heavy Industrial Use – Ideal for mining, factories, and large-scale operations
Technical Specifications:
| Supply | 9-Volt Alkaline Battery. |
| Standby Current | Less than 10uA |
| Current Consumption | 85mA at 9VDC (only when transmitting) |
| Operating range | Up to 800 metres, depending on installation |
| Operating Frequency | 151.6MHz |
| Operating Temperature Range | 0 - 50°C |
| Decoding System | On-board 12-way Code Switch |
| Dimensions | 130 x 67 x 27mm |
| Weight | 60g |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
Frequently Asked Questions:
What is the FMT15104H used for?
The FMT15104H is a handheld FM transmitter designed for long range remote control applications such as pump control, long distance panic button, industrial automation, agricultural devices and security systems.
What frequency does the remote operate on?
The FMT15104H operates on 151MHz frequency band, part of Elsema FMT151 series, providing stable and interference resistant communication.
What is the typical operating range of the FMT15104H
In line of sight applications, the FMT15104H can operate up to 800m when paired with the Elsema FMR151 receiver and an ANT151M antenna. Actual range depends on antenna setup, obstacles, and environmental conditions.
Can the operating frequency be changed?
Yes, the transmitter provides 8 user selectable frequencies within the 151MHz band. These can be adjusted via a 3-way DIP Switch on the board, allowing multiple systems to operate in the same vicinity without interfering with one another.
Can I use multiple transmitters with the same receiver?
Yes, multiple transmitters can be learnt to compatible FMR151 receivers by matching the 12 way dipswitch to the receiver. This allows several uses to operate the same system.
Does this remote require an antenna?
No, the FMT15104H does not require an external antenna. It is designed with a high-performance integrated antenna that delivers strong reliable transmission without any additional hardware.
Why can I not use this remote outside of Australia?
This particular model operates in the Australian 151MHz frequency band and should not be purchased for overseas use without first confirming local radio-frequency regulations.
- NZ - Modified to work on 161MHz
- US/Canada - Modified to work 154MHZ
Modification is required during the manufacturing process.
