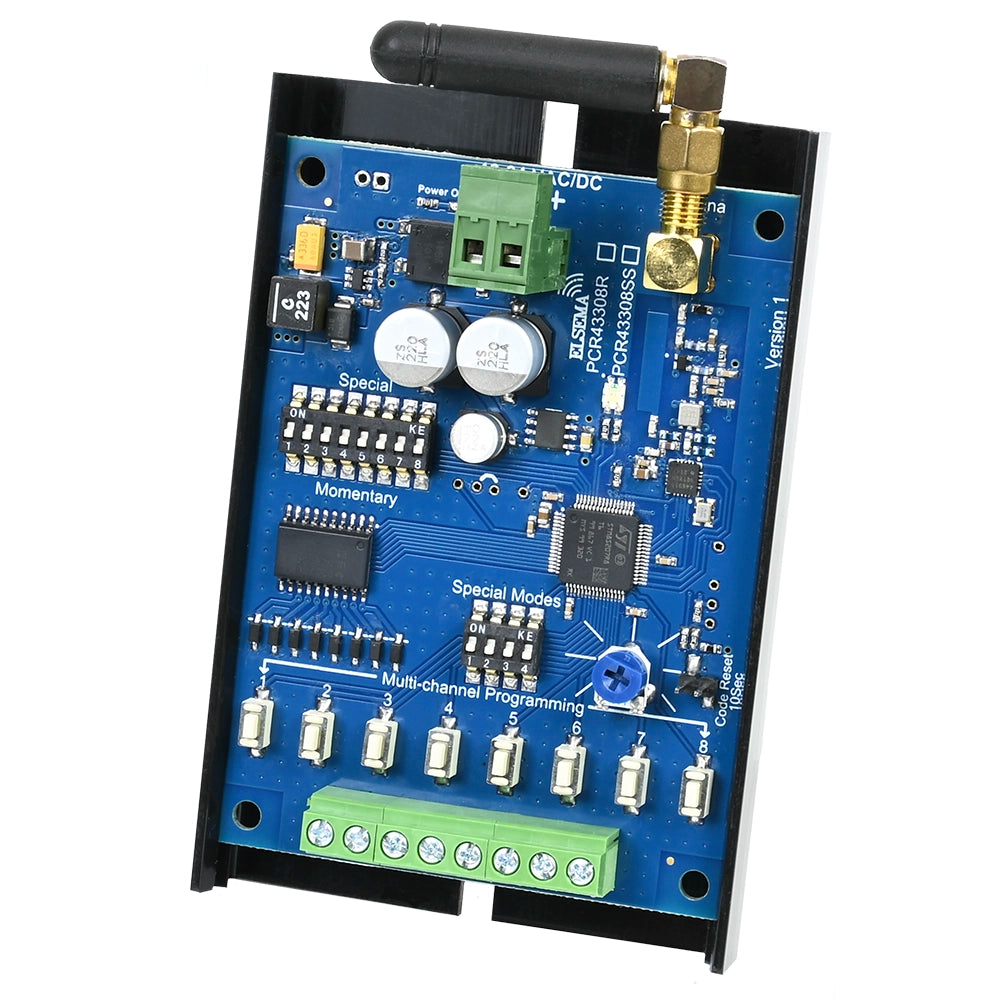

Elsema PCR43308SS – 8 Channel 433MHz Penta Receiver with Open Collector Outputs
The Elsema PCR43308SS is a genuine Elsema Penta Series 8-channel 433MHz wireless receiver designed for advanced remote control applications where multiple devices or functions need to be operated from a single receiver.
Unlike the PCR43308R, which uses relay outputs, the PCR43308SS features eight open-collector outputs, making it particularly suitable for interfacing with electronic control systems, vehicle equipment, automation controllers, PLCs and other low-current control inputs.
What's Included:
- 1 x Genuine Elsema PCR43308SS 8 Channel Penta Receiver
- 1 x Micro Antenna
- Installation and programming documentation
Key Features:
- Genuine Elsema Penta Series receiver
- 8 independent wireless channels
- 433MHz Frequency Hopping Spread Spectrum (FHSS)
- Frequency hopping between 433.10 and 434.70MHz
- Eight open-collector outputs
- Supports unlimited remote controls
- Multiple user-selectable output modes
- Diagnostic LEDs for receiver status and output activation
Compatible With:
This receiver is compatible with either the PentFOB or PentaCODE series
- Elsema PentaFOB Keyring
- Elsema PentaFOB Waterproof
- Elsema PentaFOB Handheld
- Elsema Hardwired PentaFOB
- Elsema PentaCODE
- Elsema Hardwired PentaCODE
Not compatible with:
- Elsema KEY/FMT 27Mhz Series
- Elsema Multicode 915MHZ Series
- Elsema Gigalink 433MHz Series
- Elsema FMT 151MHz Series
Ideal Applications:
- Automatic Gates
- Sliding Gates
- Swing Gates
- Boom Gates
- Commercial Gates
- Apartment Complexes
- Industrial Sites
- Warehouses
- Mining Equipment
- Concrete Pump Trucks
- Tilt Tray Trucks
- Water Trucks
- Agricultural Equipment
- Irrigation Control
- Pump Systems
- Lighting Control
- Roller Doors
- Roller Shutters
- Access Control
- Security Systems
- Fire Systems
- Machinery Control
Technical Specifications:
| Supply Voltage | 12 – 24 Volts AC or DC |
| Standby Current | 15 mA stand by at 24VDC |
| Frequency Band | 433.100 to 434.700MHz |
| Operating Temperature Range | -5 to 50°C |
| Receiver Memory Storage | Unlimited Remotes |
| Decoding Systems | Encrypted 17 billion codes combinations or On board 12-way code switch |
| Connections | Supply is a screw type terminal block Relay outputs are plug-in type terminal block |
| Outputs | Eight outputs can be ON simultaneously with each output current being 125mA. Outputs can hold 40 Volts in “Off” state. |
| Relay Contacts | Common (C), Normally Closed (NC) & Normally Open (NO) |
| Dimensions | 95 x 70x 27 mm |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
Frequently Asked Questions:
What is the difference between the PCR43308SS and PCR43308R?
The PCR43308R has eight change-over relay outputs rated at 10A/240VAC, while the PCR43308SS has eight open-collector outputs designed for interfacing with electronic control circuits.
How many remotes can be programmed to the PCR43308SS?
The receiver has unlimited remote memory, allowing an unlimited number of compatible Penta transmitters to be programmed.
Which remotes work with the PCR43308SS?
The PCR43308SS works with Elsema PentaFOB® and PentaCODE® transmitters.
Does the PCR43308SS have relay outputs?
No. The PCR43308SS has eight open-collector outputs. If you require eight change-over relay outputs, the Elsema PCR43308R is the appropriate version.
Can the outputs be configured for momentary or latching operation?
Yes. The receiver provides multiple selectable operating modes, including momentary, latching, security latching, delayed ON, delayed OFF, timed latching and other specialised modes.
